Single Hop BFD over IRB

OcNOS DC : Virtual Extensible Local Area Network Guide : VxLAN - EVPN with Integrated Routing and Bridging Deployment Mode : Single Hop BFD over IRB

Overview

The Single-hop Bidirectional Forwarding Detection (BFD) with BGP over EVPN-VXLAN IRB feature provides a lightweight, software-based failure detection mechanism for routed interfaces in virtualized data center networks. This feature enables BFD sessions over Integrated Routing and Bridging (IRB) interfaces without requiring hardware BFD support, ensuring compatibility with legacy or older routers that do not support BFD in hardware.

With this enhancement, BFD operates in the control plane, where software handles the transmission (TX), reception (RX), and state machine logic. This approach facilitates faster failure detection in environments using EVPN-VXLAN overlays with BGP routing over IRB interfaces.

This feature is ideal for networks with critical interoperability and control-plane flexibility, especially when upgrading or migrating from older hardware platforms.

Feature Characteristics

The Single-hop BFD with BGP over EVPN-VXLAN IRB feature includes the following characteristics:

• Software-based BFD operation: Introduces the CLI command bfd session software, enabling BFD to run in the control plane.

• Dedicated session state: Each BFD session maintains its own local discriminator, session state, and control-plane state machine.

• Interoperability: Supports BFD over IRB interfaces for routers that do not have hardware BFD capability.

• EVPN-VXLAN integration: Compatible with BGP routing over EVPN-VXLAN IRB deployments, improving failure detection across virtualized networks.

• No reliance on hardware: The software control plane manages the entire BFD session lifecycle, including packet processing.

Benefits

Implementing this feature provides the following advantages:

• Enhanced compatibility: Enables BFD deployment in networks with legacy routers that lack hardware BFD support.

• Improved resiliency: Offers faster failure detection and improved convergence in BGP EVPN-VXLAN environments.

• Flexible deployment: Facilitates BFD sessions over IRB interfaces without requiring hardware upgrades or dependencies.

• Simplified management: Reduces configuration complexity by allowing consistent BFD behavior across both new and existing platforms.

Limitations

• CPU-dependent scaling: The number of concurrent BFD sessions is limited by the CPU performance of the device, as all processing occurs in the control plane.

• Recommended interval: It is recommended to configure a minimum BFD interval of 250 ms to avoid excessive load on the control plane and ensure stable operation..

Configuration

Perform configuration steps for enabling Single-hop BFD with BGP over EVPN-VXLAN IRB, based on the configuration you provided. This includes enabling software-based BFD sessions over the IRB interface and configuring BFD integration with BGP in a VXLAN-EVPN environment.

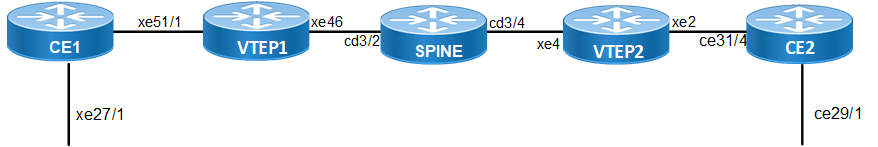

Topology

The network topology includes various network elements such as routers, Customer Edge (CE) devices, Service Aggregator (SA) devices, and Provider Edge (PE) routers. The feature enables OSPF on the IRB interfaces, allowing for efficient routing and communication between network devices within the topology.

Single Hop BFD over EVPN-VXLAN IRB

Perform the following configurations to enable single-hop BFD with BGP over EVPN-VXLAN IRB.

1. Enable the BFD filter profile and set default timers globally to support BFD across the device.

VTEP1(config)# hardware-profile filter bfd-group enable

VTEP1(config)# bfd interval 50 minrx 50 multiplier 50

2. Configure the IRB interface to participate in L3 forwarding within a VRF and enable software-based BFD for failure detection.

VTEP1(config)#interface irb1601

VTEP1(config-irb-if)# ip vrf forwarding L3_VRF1

VTEP1(config-irb-if)# evpn irb-if-forwarding anycast-gateway-mac

VTEP1(config-irb-if)# ip address 12.0.0.12/24 anycast

VTEP1(config-irb-if)# ip address 71.10.0.2/24 secondary

VTEP1(config-irb-if)# ipv6 address 1100::1/48

VTEP1(config-irb-if)# ipv6 address 2a02:2488:2:2906::2/64 anycast

VTEP1(config-irb-if)# bfd interval 50 minrx 50 multiplier 50

VTEP1(config-if)# bfd session software

VTEP1(config-if)# exit

3. Define the VRF and associate it with a Layer 3 VNI to enable inter-subnet routing in the overlay network..

VTEP1(config)#ip vrf L3_VRF1

VTEP1(config-vrf)# rd 1.1.1.1:10

VTEP1(config-vrf)# route-target both 10:10

VTEP1(config-vrf)# l3vni 1000

VTEP1(config-vrf)# exit

4. Enable OSPF for both global and VRF instances to exchange routing information and support BFD for neighbor monitoring:

VTEP1(config)# router ospf 1

VTEP1(config-router)# ospf router-id 1.1.1.1

VTEP1(config-router)# bfd all-interfaces

VTEP1(config-router)# redistribute connected

VTEP1(config-router)# network 10.1.31.0/24 area 0.0.0.0

VTEP1(config-router)# exit

VTEP1(config)# router ospf 2 L3_VRF1

VTEP1(config-router)# ospf router-id 1.1.1.1

VTEP1(config-router)# bfd all-interfaces

VTEP1(config-router)# redistribute bgp

VTEP1(config-router)# network 71.10.0.0/24 area 0.0.0.0

VTEP1(config-router)# exit

5. Enable IS-IS routing for both underlay and VRF contexts and enable BFD for fast convergence.

VTEP1(config)# router isis 1

VTEP1(config-router)# is-type level-1-2

VTEP1(config-router)# metric-style wide

VTEP1(config-router)# dynamic-hostname

VTEP1(config-router)# bfd all-interfaces

VTEP1(config-router)# net 49.0000.0000.0001.00

VTEP1(config-router)# redistribute connected

VTEP1(config-router)# exit

VTEP1(config)# router isis 2 L3_VRF3

VTEP1(config-router)# is-type level-1-2

VTEP1(config-router)# metric-style wide

VTEP1(config-router)# dynamic-hostname

VTEP1(config-router)# bfd all-interfaces

VTEP1(config-router)# net 49.0000.0000.0465.00

VTEP1(config-router)# redistribute bgp

VTEP1(config-router)# exit

6. Bind interfaces to IS-IS.

VTEP1(config)# interface lo

VTEP1(config-if)# ip router isis 1

VTEP1(config-if)# exit

VTEP1(config)# interface xe46

VTEP1(config-if)# ip router isis 1

VTEP1(config-if)# exit

VTEP1(config)# interface irb1603

VTEP1(config-irb-if)# ip router isis 2

VTEP1(config-irb-if)# exit

7. Enable BGP for EVPN and VRF instances, configure peer relationships, and apply BFD to detect failures quickly.

VTEP1(config)# router bgp 100

VTEP1(config-router)# bgp router-id 1.1.1.1

VTEP1(config-router)# no bgp inbound-route-filter

VTEP1(config-router)# neighbor 3.3.3.3 remote-as 100

VTEP1(config-router)# neighbor 3.3.3.3 update-source lo

VTEP1(config-router)# neighbor 3.3.3.3 advertisement-interval 0

VTEP1(config-router)# address-family l2vpn evpn

VTEP1(config-router-af)# neighbor 3.3.3.3 activate

VTEP1(config-router-af)# exit-address-family

8. Configure BGP for each VRF:

L3_VRF1

VTEP1(config-router)# address-family ipv4 vrf L3_VRF1

VTEP1(config-router-af)# network 71.10.0.0/24

VTEP1(config-router-af)# redistribute connected

VTEP1(config-router-af)# redistribute ospf

VTEP1(config-router-af)# exit-address-family

L3_VRF2

VTEP1(config-router)# address-family ipv4 vrf L3_VRF2

VTEP1(config-router-af)# redistribute connected

VTEP1(config-router-af)# neighbor 91.10.0.1 remote-as 100

VTEP1(config-router-af)# neighbor 91.10.0.1 activate

VTEP1(config-router-af)# neighbor 91.10.0.1 update-source 91.10.0.2

VTEP1(config-router-af)# neighbor 91.10.0.1 fall-over bfd

VTEP1(config-router-af)# exit-address-family

L3_VRF3

VTEP1(config-router)# address-family ipv4 vrf L3_VRF3

VTEP1(config-router-af)# network 61.10.0.0/24

VTEP1(config-router-af)# redistribute connected

VTEP1(config-router-af)# redistribute isis

VTEP1(config-router-af)# exit-address-family

9. Enable VXLAN tunnel services and configure EVPN for Layer 2 and IRB services with anycast gateway MAC.

VTEP1(config)# nvo vxlan enable

VTEP1(config)# nvo vxlan irb

VTEP1(config)# evpn vxlan multihoming enable

VTEP1(config)# evpn irb-forwarding anycast-gateway-mac 0000.0000.1111

VTEP1(config)# nvo vxlan vtep-ip-global 1.1.1.1

10. Configure L2VNI for each VRF:

L2 VRF1

VTEP1(config)# nvo vxlan id 1601 ingress-replication inner-vid-disabled

VTEP1(config-nvo)# vxlan host-reachability-protocol evpn-bgp L2_VRF1

VTEP1(config-nvo)# evpn irb1601

VTEP1(config-nvo)# vni-name VNI-1601

VTEP1(config-nvo)# exit

L2 VRF2

VTEP1(config)# nvo vxlan id 1602 ingress-replication inner-vid-disabled

VTEP1(config-nvo)# vxlan host-reachability-protocol evpn-bgp L2_VRF2

VTEP1(config-nvo)# evpn irb1602

VTEP1(config-nvo)# vni-name VNI-1602

VTEP1(config-nvo)# exit

L2 VRF3

VTEP1(config)# nvo vxlan id 1603 ingress-replication inner-vid-disabled

VTEP1(config-nvo)# vxlan host-reachability-protocol evpn-bgp L2_VRF3

VTEP1(config-nvo)# evpn irb1603

VTEP1(config-nvo)# vni-name VNI-1603

VTEP1(config-nvo)# exit

11. Assign each IRB to its corresponding VRF and configure IP addresses and BFD.

IRB1602

VTEP1(config)# interface irb1602

VTEP1(config-irb-if)# ip vrf forwarding L3_VRF2

VTEP1(config-irb-if)# ip address 11.0.11.11/24

VTEP1(config-irb-if)# ip address 91.10.0.2/24 secondary

VTEP1(config-irb-if)# ipv6 address 1200::1/48

VTEP1(config-irb-if)# bfd session software

VTEP1(config-irb-if)# exit

IRB1603

VTEP1(config)# interface irb1603

VTEP1(config-irb-if)# ip vrf forwarding L3_VRF3

VTEP1(config-irb-if)# evpn irb-if-forwarding anycast-gateway-mac

VTEP1(config-irb-if)# ip address 13.0.0.13/24 anycast

VTEP1(config-irb-if)# ip address 61.10.0.2/24 secondary

VTEP1(config-irb-if)# ipv6 address 1300::1/48

VTEP1(config-irb-if)# bfd session software

VTEP1(config-irb-if)# exit

12. Attach underlay interfaces for IS-IS, configure port-channel for multihoming, and set interface parameters.

VTEP1(config)# interface xe46

VTEP1(config-if)# load-interval 30

VTEP1(config-if)# ip address 10.1.31.1/24

VTEP1(config-if)# mtu 9000

VTEP1(config-if)# ip router isis 1

VTEP1(config-if)# exit

VTEP1(config)# interface xe51/1

VTEP1(config-if)# channel-group 1 mode active

VTEP1(config-if)# exit

VTEP1(config)# interface po1

VTEP1(config-if)# switchport

VTEP1(config-if)# load-interval 30

VTEP1(config-if)# evpn multi-homed system-mac 0000.aaaa.bbbb

VTEP1(config-if)# exit

Configuration Snapshot

vlan database

vlan-reservation 4039-4094

vlan 100 bridge 1

nvo vxlan enable

nvo vxlan irb

evpn vxlan multihoming enable

mac vrf m1

rd 2.2.2.2:1

route-target both 10:10

ip vrf vxlan_l3

rd 2222:300

route-target both 300:300

l3vni 5053

evpn irb-forwarding anycast-gateway-mac 0000.0000.1111

nvo vxlan vtep-ip-global 2.2.2.2

nvo vxlan id 100 ingress-replication inner-vid-disabled

vxlan host-reachability-protocol evpn-bgp m1

evpn irb200

interface po10

switchport

load-interval 30

evpn multi-homed system-mac 0000.1122.3344

interface ce10

ip address 46.1.1.2/24

mtu 7000

interface ce15

channel-group 10 mode active

interface ce17

description leaf2-leaf3

ip address 20.0.0.1/24

mtu 7000

interface irb200

ip vrf forwarding vxlan_l3

evpn irb-if-forwarding anycast-gateway-mac

ip address 50.1.1.1/24 anycast

ip address 200.2.2.2/24 secondary

mtu 9216

bfd session software

interface lo

ip address 127.0.0.1/8

ip address 2.2.2.2/32 secondary

ipv6 address ::1/128

exit

router ospf 1

ospf router-id 2.2.2.2

network 2.2.2.2/32 area 0.0.0.0

network 20.0.0.0/24 area 0.0.0.0

network 46.1.1.0/24 area 0.0.0.0

router bgp 1

bgp router-id 2.2.2.2

neighbor 1.1.1.1 remote-as 1

neighbor 3.3.3.3 remote-as 1

neighbor 1.1.1.1 update-source lo

neighbor 1.1.1.1 advertisement-interval 0

neighbor 3.3.3.3 update-source lo

neighbor 3.3.3.3 advertisement-interval 0

address-family ipv4 unicast

redistribute connected

exit-address-family

address-family l2vpn evpn

neighbor 1.1.1.1 activate

neighbor 3.3.3.3 activate

exit-address-family

address-family ipv4 vrf vxlan_l3

max-paths ibgp 2

redistribute connected

neighbor 200.2.2.10 remote-as 1

neighbor 200.2.2.10 activate

neighbor 200.2.2.10 update-source 200.2.2.2

neighbor 200.2.2.10 fall-over bfd

exit-address-family

exit

line console 0

exec-timeout 0

nvo vxlan access-if port-vlan po10 100

map vnid 100

end

Implementation Examples

A data center is using EVPN-VXLAN to provide Layer 2 and Layer 3 segmentation across a spine-leaf fabric. IRB interfaces are configured on leaf switches to enable routed communication between VLANs. BGP is used as the control protocol for EVPN route exchange.

Enable software-based Single-hop BFD using the CLI bfd session software under the IRB interface or BGP neighbor configuration. This allows BFD to run entirely in the control plane.

New CLI Commands

bfd session software parameter is added under bfd session command. For more info refer to the Bidirectional Forwarding Commands section in the Layer 3 Guide.

Validation

show bfd session vrf all

BFD process for VRF: (DEFAULT VRF)

=====================================================================================

Sess-Idx Remote-Disc Lower-Layer Sess-Type Sess-State UP-Time Interface Down-Reason Remote-Addr

Number of Sessions: 0

BFD process for VRF: vxlan_l3

=====================================================================================

Sess-Idx Remote-Disc Lower-Layer Sess-Type Sess-State UP-Time Interface Down-Reason Remote-Addr

2049 2060 IPv4 Single-Hop Up 00:23:16 irb200 NA 200.2.2.10/32

Number of Sessions: 1

Glossary

The following provides definitions for key terms used throughout this document.

Single Home VxLAN	This refers to a Virtual Extensible LAN (VxLAN) deployment where a single data center or network site is connected to a single external network (usually the internet) for connectivity.
IRB	A networking feature that enables the integration of Layer 3 IP routing and Layer 2 MAC address bridging within the same interface, simplifying network management and resource utilization.
OSPF	A dynamic and efficient link-state routing protocol used to determine the best path for data packets in an IP network. It is characterized by rapid convergence and adaptability, making it suitable for large and dynamic networks.
ISIS	A routing protocol designed for scalability and stability in computer networks, commonly used in large Service Provider networks. It provides a robust framework for routing information exchange.
Layer 3 Routing	Network routing operations at the Network Layer (Layer 3) of the OSI model, focusing on routing IP packets between different subnets or networks.
Layer 2 Bridging	Network bridging operations at the Data Link Layer (Layer 2) of the OSI model, handling the forwarding of data frames based on MAC addresses within the same network segment.
EVPN	Ethernet VPN, a technology that provides advanced and efficient methods for Layer 2 and Layer 3 services in Ethernet networks, often used in data centers and service provider environments.
