BGP Labeled Unicast with Seamless MPLS
Topology

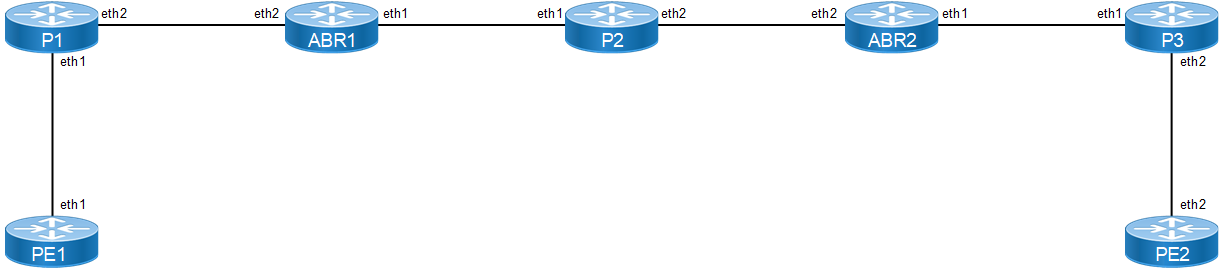

Figure 10-104: BGP_LU with MPLS
Configuration
PE1

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 1.1.1.54/32 secondary
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 10.1.1.54/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 10
Configure the routing process OSPF with process id 10
(config-router)#network 1.1.1.54/32 area 0
Define the interface (1.1.1.54/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 10.1.1.0/24 area 0
Define the interface (10.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)#router bgp 100
Enter Router BGP mode
(config-router)#neighbor 7.7.7.55 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 7.7.7.55 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 3.3.3.52 remote-
as 100
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#neighbor 3.3.3.52 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 3.3.3.52 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#exit-address-family
Exit from address family IPv4 labeled unicast
(config-router)#address-family vpnv4 unicast
Enter into vpnv4 unicast address family
(config-router-af)#neighbor 7.7.7.55 activate
Activate the neighbor inside vpnv4 address family
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router)#address-family ipv4 unicast
Enter into ipv4 unicast address family
(config-router-af)#network 1.1.1.54/32
Advertise the loopback of RTR1 in BGP
(config-router-af)#exit-address-family
Exit from address family
(config-router)#exit
Exit from router BGP mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 1.1.1.54 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip vrf vrf1
Specify the name of the VRF (vrf1) to be created.
(config-vrf)#rd 10:100
Assign a route distinguisher (RD) for the VRF, which is a unique value on the router. The RD value can be in ASN:NN or A.B.C.D:NN format.
(config-vrf)#route-target both 100:300
Specify the 2-Octet AS specific or IPv4 specific Transitive Route-Target extended community attribute.
(config-vrf)#exit
Exit VRF mode, and return to Configure mode.
(config)#interface eth2
Enter interface mode
(config-if)# ip vrf forwarding vrf1
Bind the interface (eth2) to the VRF vrf1
(config-if)# ip address 61.1.1.54/24
Configure the IP address of the interface eth2
(config-if)#exit
Exit interface mode.
(config)#router bgp 100
Enter Router BGP mode
(config-router)# address-family ipv4 vrf vrf1
Enter address family ipv4 vrf mode
(config-router-af)# redistribute connected
Redistribute connected routes
(config-router-af)#end
Exit from router mode into privilege mode
P1

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 2.2.2.23/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 10.1.1.23/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 20.1.1.23/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 10
Configure the routing process OSPF with process id 10
(config-router)#network 20.1.1.0/24 area 0
Define the interface (20.1.1.0/24)) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 10.1.1.0/24 area 0
Define the interface (10.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 2.2.2.23/32 area 0
Define the interface (2.2.2.23/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 2.2.2.23 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip route 7.7.7.55/32 20.1.1.52
Specify the destination prefix and mask for the network and a gateway.
(config)# end
Exit from config mode
ABR1

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 3.3.3.52/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 30.1.1.52/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 20.1.1.52/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 20
Configure the routing process OSPF with process id 20
(config-router)#network 3.3.3.52/32 area 0
Define the interface (3.3.3.52/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 20.1.1.0/24 area 0
Define the interface (20.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 3.3.3.52 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)#router bgp 100
Enter Router BGP mode
(config-router)#neighbor 1.1.1.54 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 1.1.1.54 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 5.5.5.56 remote-
as 100
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#neighbor 5.5.5.56 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 1.1.1.54 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#neighbor 5.5.5.56 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)# neighbor 1.1.1.54 route-reflector-client
Enable Route reflector client for the neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 5.5.5.56 route-reflector-client
Enable Route reflector client for the neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 1.1.1.54 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 5.5.5.56 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)#exit-address-family
Exit from address family labeled-unicast
(config-router)#exit
Exit from router BGP mode
P2

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 4.4.4.53/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 30.1.1.53/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 40.1.1.53/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode
(config)#router ospf 20
Configure the routing process OSPF with process id 20
(config-router)#network 30.1.1.0/24 area 0
Define the interface (30.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 40.1.1.0/24 area 0
Define the interface (40.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 4.4.4.53/32 area 0
Define the interface (4.4.4.53/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 4.4.4.53 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
ABR2

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 5.5.5.56/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 50.1.1.56/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 40.1.1.56/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 30
Configure the routing process OSPF with process id 20
(config-router)#network 5.5.5.56/32 area 0
Define the interface 5.5.5.56/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 50.1.1.0/24 area 0
Define the interface (50.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)#router ospf 20
Configure the routing process OSPF with process id 20
(config-router)#network 5.5.5.56/32 area 0
Define the interface 5.5.5.56/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 40.1.1.0/24 area 0
Define the interface (40.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 3.3.3.52 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)#router bgp 100
Enter Router BGP mode
(config-router)#neighbor 3.3.3.52 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 3.3.3.52 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 7.7.7.55 remote-
as 100
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#neighbor 7.7.7.55 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 3.3.3.52 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#neighbor 7.7.7.55 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)# neighbor 3.3.3.52 route-reflector-client
Enable Route reflector client for the neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 7.7.7.55 route-reflector-client
Enable Route reflector client for the neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 3.3.3.52 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 7.7.7.55 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)#exit-address-family
Exit from address family labeled-unicast
(config-router)#exit
Exit from router BGP mode
P3

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 6.6.6.22/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 50.1.1.22/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 60.1.1.22/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode
(config)#router ospf 30
Configure the routing process OSPF with process id 20
(config-router)#network 50.1.1.0/24 area 0
Define the interface (30.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 60.1.1.0/24 area 0
Define the interface (40.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 6.6.6.22/32 area 0
Define the interface (4.4.4.53/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 6.6.6.22 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip route 1.1.1.54/32 50.1.1.56
Specify the destination prefix and mask for the network and a gateway.
(config)#exit
Exit from config mode
PE2

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 7.7.7.55/32 secondary
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth2
Enter interface mode
(config-if)#ip address 60.1.1.55/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 30
Configure the routing process OSPF with process id 10
(config-router)#network 7.7.7.55/32 area 0
Define the interface (7.7.7.55/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 60.1.1.0/24 area 0
Define the interface (60.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)#router bgp 100
Enter Router BGP mode
(config-router)#neighbor 1.1.1.54 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 1.1.1.54 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 5.5.5.56 remote-
as 100
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#neighbor 5.5.5.56 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 5.5.5.56 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#exit-address-family
Exit from address family IPv4 labeled unicast
(config-router)#address-family vpnv4 unicast
Enter into vpnv4 unicast address family
(config-router-af)#neighbor 1.1.1.54 activate
Activate the neighbor inside vpnv4 address family
(config-router-af)#exit-address-family
Exit from address family vpnv4
(config-router)#address-family ipv4 unicast
Enter into ipv4 unicast address family
(config-router-af)#network 7.7.7.55/32
Advertise the loopback of RTR1 in BGP
(config-router-af)#exit-address-family
Exit from address family
(config-router)#exit
Exit from router BGP mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 7.7.7.55 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip vrf vrf1
Specify the name of the VRF (vrf1) to be created.
(config-vrf)#rd 10:100
Assign a route distinguisher (RD) for the VRF, which is a unique value on the router. The RD value can be in ASN:NN or A.B.C.D:NN format.
(config-vrf)#route-target both 100:300
Specify the 2-Octet AS specific or IPv4 specific Transitive Route-Target extended community attribute.
(config-vrf)#exit
Exit VRF mode, and return to Configure mode.
(config)#interface eth2
Enter interface mode
(config-if)# ip vrf forwarding vrf1
Bind the interface (eth2) to the VRF vrf1
(config-if)# ip address 62.1.1.55/24
Configure the IP address of the interface eth2
(config-if)#exit
Exit interface mode.
(config)#router bgp 100
Enter Router BGP mode
(config-router)# address-family ipv4 vrf vrf1
Enter address family ipv4 vrf mode
(config-router-af)# redistribute connected
Redistribute connected routes
(config-router-af)#end
Exit from router mode into privilege mode
Validation
PE1
#show ip bgp neighbors 3.3.3.52
BGP neighbor is 3.3.3.52, remote AS 100, local AS 100, internal link
BGP version 4, local router ID 1.1.1.54, remote router ID 3.3.3.52
BGP state = Established, up for 00:00:06
Last read 00:00:07, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new)
Received 4 messages, 1 notifications, 0 in queue
Sent 6 messages, 0 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: IPv4 Unicast
BGP table version 1, neighbor version 1 Index 0, Offset 0, Mask 0x1
Community attribute sent to this neighbor (both)
0 accepted prefixes
1 announced prefixes

For address family: IPv4 Labeled-Unicast
BGP table version 1, neighbor version 1
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
0 accepted prefixes
1 announced prefixes

Connections established 2; dropped 1
Local host: 1.1.1.54, Local port: 179
Foreign host: 3.3.3.52, Foreign port: 46745
Nexthop: 1.1.1.54
Nexthop global: 54::54 Nexthop local: ::
BGP connection: non shared network
Last Reset: 00:00:11, due to BGP Notification received Notification Error Message: (Cease/Other Configuration Change.)

#show ip bgp neighbors 7.7.7.55
BGP neighbor is 7.7.7.55, remote AS 100, local AS 100, internal link
BGP version 4, local router ID 1.1.1.54, remote router ID 7.7.7.55
BGP state = Established, up for 00:01:10
Last read 00:00:11, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new)
Received 8 messages, 1 notifications, 0 in queue
Sent 9 messages, 2 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: VPNv4 Unicast
BGP table version 3, neighbor version 3 Index 0, Offset 0, Mask 0x1
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

Connections established 3; dropped 2
Local host: 1.1.1.54, Local port: 179

Foreign host: 7.7.7.55, Foreign port: 58871
Nexthop: 1.1.1.54
Nexthop global: 54::54 Nexthop local: ::
BGP connection: non shared network
Last Reset: 00:01:10, due to BGP Notification sent Notification Error Message: (Cease/Administratively Reset.)


#show mpls vrf-table
Output for IPv4 VRF table with id: 2
Primary FTN entry with FEC: 62.1.1.0/24, id: 1, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 12, in intf: - in label: 0 out-segment ix: 11 Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 11, owner: BGP, out intf: eth1, out label: 24961 Nexthop addr: 7.7.7.55 cross connect ix: 12, op code: Push and
Lookup

#show ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*> 1.1.1.54/32 0.0.0.0 24961 -
*>i 7.7.7.55/32 3.3.3.52 - 24961
#show mpls forwarding-table | include 7.7.7.55
B> 7.7.7.55/32 4 0 Yes LSP_DEFAULT 24961
eth1 3.3.3.52

#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM K - CLI ILM, T - MPLS-TP, S - Stitched ILM

Code FEC ILM-ID In-Label Out-Label In-Intf Out- Intf Nexthop LSP-Type
> 1.1.1.54/32 11 24961 N/A N/A N/A
127.0.0.1 LSP_DEFAULT
> 61.1.1.0/24 13 24963 N/A N/A eth2
0.0.0.0 LSP_DEFAULT

#show mpls ftn-table
Primary FTN entry with FEC: 2.2.2.23/32, id: 1, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: LDP, out intf: eth1, out label: 3 Nexthop addr: 10.1.1.23 cross connect ix: 1, op code: Push

Primary FTN entry with FEC: 3.3.3.52/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth1, out label: 24320

Nexthop addr: 10.1.1.23 cross connect ix: 2, op code: Push

Primary FTN entry with FEC: 7.7.7.55/32, id: 4, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 3 Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: BGP, out intf: eth1, out label: 24961 Nexthop addr: 3.3.3.52 cross connect ix: 4, op code: Push and
Lookup


Primary FTN entry with FEC: 20.1.1.0/24, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: LDP, out intf: eth1, out label: 3 Nexthop addr: 10.1.1.23 cross connect ix: 1, op code: Push

P1
#show ip ospf neighbor

Total number of full neighbors: 2
OSPF process 10 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
1.1.1.54 1 Full/Backup 00:00:38 10.1.1.54 eth1 0
3.3.3.52 1 Full/DR 00:00:39 20.1.1.52 eth2 0
#show ldp session
Peer IP Address IF Name My Role State KeepAlive UpTime
1.1.1.54 eth1 Active OPERATIONAL 30 00:00:21
3.3.3.52 eth2 Passive OPERATIONAL 30 00:00:15
ABR1
#show ip bgp neighbors 1.1.1.54
BGP neighbor is 1.1.1.54, remote AS 100, local AS 100, internal link BGP version 4, local router ID 3.3.3.52, remote router ID 1.1.1.54 BGP state = Established, up for 00:00:09
Last read 00:00:05, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new) Address family IPv4 Unicast: advertised and received Address family IPv4 Labeled-Unicast: advertised and received
Received 5 messages, 0 notifications, 0 in queue
Sent 4 messages, 1 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: IPv4 Unicast
BGP table version 1, neighbor version 1 Index 0, Offset 0, Mask 0x1
Community attribute sent to this neighbor (both)
1 accepted prefixes

0 announced prefixes

For address family: IPv4 Labeled-UnicastBGP table version 2, neighbor version 2 Index 0, Offset 0, Mask 0x1
Route-Reflector Client NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
1 accepted prefixes
0 announced prefixes

Connections established 2; dropped 1
Local host: 3.3.3.52, Local port: 46745
Foreign host: 1.1.1.54, Foreign port: 179
Nexthop: 3.3.3.52
Nexthop global: 52::52 Nexthop local: ::
BGP connection: non shared network
Last Reset: 00:00:14, due to BGP Notification sent Notification Error Message: (Cease/Other Configuration Change.)

#show ip bgp neighbors 5.5.5.56
BGP neighbor is 5.5.5.56, remote AS 100, local AS 100, internal link BGP version 4, local router ID 3.3.3.52, remote router ID 5.5.5.56 BGP state = Established, up for 00:00:11
Last read 00:00:02, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new) Address family IPv4 Unicast: advertised and received Address family IPv4 Labeled-Unicast: advertised and received
Received 4 messages, 0 notifications, 0 in queue
Sent 6 messages, 2 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: IPv4 Unicast
BGP table version 1, neighbor version 1 Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

For address family: IPv4 Labeled-UnicastBGP table version 3, neighbor version 2 Index 1, Offset 0, Mask 0x2
Route-Reflector Client NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

Connections established 2; dropped 1
Local host: 3.3.3.52, Local port: 179
Foreign host: 5.5.5.56, Foreign port: 40440
Nexthop: 3.3.3.52
Nexthop global: 52::52 Nexthop local: ::

BGP connection: non shared network
Last Reset: 00:00:11, due to BGP Notification sent Notification Error Message: (Cease/Administratively Reset.)

#show ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*>i 1.1.1.54/32 1.1.1.54 24960 24961
*>i 7.7.7.55/32 5.5.5.56 24961 24961

#show mpls forwarding-table | include 1.1.1.54
L> 1.1.1.54/32 1 0 Yes LSP_DEFAULT 24321 eth2 20.1.1.23
B 1.1.1.54/32 7 0 Yes LSP_DEFAULT 24961 eth2 1.1.1.54

#show mpls forwarding-table | include 7.7.7.55
B> 7.7.7.55/32 8 0 Yes LSP_DEFAULT 24961 eth1 5.5.5.56

#show mpls ftn-table
Primary FTN entry with FEC: 1.1.1.54/32, id: 1, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth2, out label: 24321
Nexthop addr: 20.1.1.23 cross connect ix: 2, op code: Push


Primary FTN entry with FEC: 1.1.1.54/32, id: 7, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 11, in intf: - in label: 0 out-segment ix: 10
Owner: BGP, Persistent: No, Admin Status: Down, Oper Status: Down
Out-segment with ix: 10, owner: BGP, out intf: eth2, out label: 24961
Nexthop addr: 1.1.1.54 cross connect ix: 11, op code: Push and Lookup


Primary FTN entry with FEC: 2.2.2.23/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 5, in intf: - in label: 0 out-segment ix: 4
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 20.1.1.23 cross connect ix: 5, op code: Push


Primary FTN entry with FEC: 4.4.4.53/32, id: 4, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 6
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: LDP, out intf: eth1, out label: 3
Nexthop addr: 30.1.1.53 cross connect ix: 7, op code: Push


Primary FTN entry with FEC: 5.5.5.56/32, id: 5, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 10, in intf: - in label: 0 out-segment ix: 9
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: LDP, out intf: eth1, out label: 24320
Nexthop addr: 30.1.1.53 cross connect ix: 10, op code: Push


Primary FTN entry with FEC: 7.7.7.55/32, id: 8, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 12, in intf: - in label: 0 out-segment ix: 11
Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 11, owner: BGP, out intf: eth1, out label: 24961
Nexthop addr: 5.5.5.56 cross connect ix: 12, op code: Push and Lookup


Primary FTN entry with FEC: 10.1.1.0/24, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 5, in intf: - in label: 0 out-segment ix: 4
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 20.1.1.23 cross connect ix: 5, op code: Push


Primary FTN entry with FEC: 40.1.1.0/24, id: 6, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 6
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: LDP, out intf: eth1, out label: 3
Nexthop addr: 30.1.1.53 cross connect ix: 7, op code: Push
P2
#show ip ospf neighbor

Total number of full neighbors: 2 OSPF process 20 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
3.3.3.52 1 Full/Backup 00:00:39 30.1.1.52 eth1
0
5.5.5.56 1 Full/DR 00:00:40 40.1.1.56 eth2
0

#show ldp session
Peer IP Address IF Name My Role State KeepAlive UpTime
3.3.3.52 eth1 Active OPERATIONAL 30 00:00:21
5.5.5.56 eth2 Passive OPERATIONAL 30 00:00:19

ABR2
#show ip bgp neighbors 3.3.3.52

BGP neighbor is 3.3.3.52, remote AS 100, local AS 100, internal link BGP version 4, local router ID 5.5.5.56, remote router ID 3.3.3.52 BGP state = Established, up for 00:00:12
Last read 00:00:07, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new) Address family IPv4 Unicast: advertised and received Address family IPv4 Labeled-Unicast: advertised and received
Received 5 messages, 1 notifications, 0 in queue
Sent 5 messages, 0 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: IPv4 Unicast
BGP table version 1, neighbor version 1 Index 0, Offset 0, Mask 0x1
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

For address family: IPv4 Labeled-UnicastBGP table version 2, neighbor version 2 Index 0, Offset 0, Mask 0x1
Route-Reflector Client NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

Connections established 2; dropped 1
Local host: 5.5.5.56, Local port: 40440
Foreign host: 3.3.3.52, Foreign port: 179
Nexthop: 5.5.5.56
Nexthop global: 56::56 Nexthop local: ::
BGP connection: non shared network
Last Reset: 00:00:17, due to BGP Notification received Notification Error Message: (Cease/Other Configuration Change.)

#show ip bgp neighbors 7.7.7.55
BGP neighbor is 7.7.7.55, remote AS 100, local AS 100, internal link BGP version 4, local router ID 5.5.5.56, remote router ID 7.7.7.55 BGP state = Established, up for 00:00:13
Last read 00:00:08, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new) Address family IPv4 Unicast: advertised and received Address family IPv4 Labeled-Unicast: advertised and received
Received 3 messages, 0 notifications, 0 in queue
Sent 4 messages, 0 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: IPv4 Unicast
BGP table version 1, neighbor version 1 Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)

1 accepted prefixes
1 announced prefixes

For address family: IPv4 Labeled-UnicastBGP table version 2, neighbor version 2 Index 1, Offset 0, Mask 0x2
Route-Reflector Client NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

Connections established 1; dropped 0
Local host: 5.5.5.56, Local port: 35004
Foreign host: 7.7.7.55, Foreign port: 179
Nexthop: 5.5.5.56
Nexthop global: 56::56 Nexthop local: ::
BGP connection: non shared network

#show ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*>i 1.1.1.54/32 3.3.3.52 24960 24960
*>i 7.7.7.55/32 7.7.7.55 24961 24960

#show mpls forwarding-table | include 1.1.1.54
B> 1.1.1.54/32 7 0 Yes LSP_DEFAULT 24960 eth2 3.3.3.52

#show mpls forwarding-table | include 7.7.7.55
L> 7.7.7.55/32 5 0 Yes LSP_DEFAULT 24320 eth1 50.1.1.22
B 7.7.7.55/32 8 0 Yes LSP_DEFAULT 24960 eth1 7.7.7.55

#show mpls ftn-table
Primary FTN entry with FEC: 1.1.1.54/32, id: 7, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 11, in intf: - in label: 0 out-segment ix: 10
Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 10, owner: BGP, out intf: eth2, out label: 24960
Nexthop addr: 3.3.3.52 cross connect ix: 11, op code: Push and Lookup


Primary FTN entry with FEC: 3.3.3.52/32, id: 1, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 3
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: LDP, out intf: eth2, out label: 24321
Nexthop addr: 40.1.1.53 cross connect ix: 4, op code: Push


Primary FTN entry with FEC: 4.4.4.53/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 5, in intf: - in label: 0 out-segment ix: 4
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 40.1.1.53 cross connect ix: 5, op code: Push


Primary FTN entry with FEC: 6.6.6.22/32, id: 4, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 6
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: LDP, out intf: eth1, out label: 3
Nexthop addr: 50.1.1.22 cross connect ix: 7, op code: Push


Primary FTN entry with FEC: 7.7.7.55/32, id: 5, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 10, in intf: - in label: 0 out-segment ix: 9
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: LDP, out intf: eth1, out label: 24320
Nexthop addr: 50.1.1.22 cross connect ix: 10, op code: Push


Primary FTN entry with FEC: 7.7.7.55/32, id: 8, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 12, in intf: - in label: 0 out-segment ix: 11
Owner: BGP, Persistent: No, Admin Status: Down, Oper Status: Down
Out-segment with ix: 11, owner: BGP, out intf: eth1, out label: 24960
Nexthop addr: 7.7.7.55 cross connect ix: 12, op code: Push and Lookup


Primary FTN entry with FEC: 30.1.1.0/24, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 5, in intf: - in label: 0 out-segment ix: 4
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 40.1.1.53 cross connect ix: 5, op code: Push


Primary FTN entry with FEC: 60.1.1.0/24, id: 6, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 6
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: LDP, out intf: eth1, out label: 3
Nexthop addr: 50.1.1.22 cross connect ix: 7, op code: Push
P3
#show ip ospf neighbor

Total number of full neighbors: 2
OSPF process 30 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
5.5.5.56 1 Full/Backup 00:00:39 50.1.1.56 eth1 0
7.7.7.55 1 Full/DR 00:00:39 60.1.1.55 eth2 0

#show ldp session
Peer IP Address IF Name My Role State KeepAlive UpTime
5.5.5.56 eth1 Active OPERATIONAL 30 00:00:30
7.7.7.55 eth2 Passive OPERATIONAL 30 00:00:28
PE2
#show ip bgp neighbors 5.5.5.56
BGP neighbor is 5.5.5.56, remote AS 100, local AS 100, internal link BGP version 4, local router ID 7.7.7.55, remote router ID 5.5.5.56 BGP state = Established, up for 00:00:16
Last read 00:00:11, hold time is 90, keepalive interval is 30 seconds Neighbor capabilities:
Route refresh: advertised and received (old and new) Address family IPv4 Unicast: advertised and received Address family IPv4 Labeled-Unicast: advertised and received
Received 3 messages, 0 notifications, 0 in queue
Sent 4 messages, 0 notifications, 0 in queue Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds Update source is lo
For address family: IPv4 Unicast
BGP table version 1, neighbor version 1 Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

For address family: IPv4 Labeled-UnicastBGP table version 2, neighbor version 2 Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
1 accepted prefixes
1 announced prefixes

Connections established 1; dropped 0
Local host: 7.7.7.55, Local port: 179
Foreign host: 5.5.5.56, Foreign port: 35004
Nexthop: 7.7.7.55
Nexthop global: 55::55 Nexthop local: ::
BGP connection: non shared network

#show mpls vrf-table
Output for IPv4 VRF table with id: 2
Primary FTN entry with FEC: 61.1.1.0/24, id: 1, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 11, in intf: - in label: 0 out-segment ix: 10

Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 10, owner: BGP, out intf: eth2, out label: 24963 Nexthop addr: 1.1.1.54 cross connect ix: 11, op code: Push and
Lookup

#show ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*>i 1.1.1.54/32 5.5.5.56 - 24960
*> 7.7.7.55/32 0.0.0.0 24960 -
#show mpls forwarding-table | include 1.1.1.54
B> 1.1.1.54/32 4 0 Yes LSP_DEFAULT 24960
eth2 5.5.5.56

#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM K - CLI ILM, T - MPLS-TP, S - Stitched ILM

Code FEC ILM-ID In-Label Out-Label In-Intf Out- Intf Nexthop LSP-Type
> 7.7.7.55/32 9 24960 N/A N/A N/A
127.0.0.1 LSP_DEFAULT
> 62.1.1.0/24 10 24961 N/A N/A eth1
0.0.0.0 LSP_DEFAULT

#show mpls ftn-table
Primary FTN entry with FEC: 1.1.1.54/32, id: 4, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 3 Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: BGP, out intf: eth2, out label: 24960 Nexthop addr: 5.5.5.56 cross connect ix: 4, op code: Push and
Lookup

Primary FTN entry with FEC: 5.5.5.56/32, id: 1, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: LDP, out intf: eth2, out label: 24321 Nexthop addr: 60.1.1.22 cross connect ix: 1, op code: Push

Primary FTN entry with FEC: 6.6.6.22/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth2, out label: 3 Nexthop addr: 60.1.1.22 cross connect ix: 2, op code: Push

Primary FTN entry with FEC: 50.1.1.0/24, id: 3, row status: Active

Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth2, out label: 3 Nexthop addr: 60.1.1.22 cross connect ix: 2, op code: Push

Last modified date: 07-13-2023
