BGP Labeled Unicast with Inter-AS
Topology

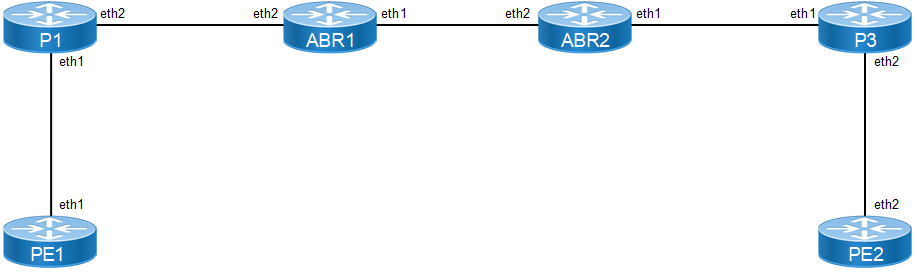

Figure 10-105: BGP Labeled unicast with Inter-AS
Configurations
PE1

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 1.1.1.54/32 secondary
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 10.1.1.54/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 10
Configure the routing process OSPF with process id 10
(config-router)#network 1.1.1.54/32 area 0
Define the interface (1.1.1.54/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 10.1.1.0/24 area 0
Define the interface (10.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)#router bgp 100
Enter Router BGP mode
(config-router)#neighbor 7.7.7.55 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 7.7.7.55 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 3.3.3.52 remote-
as 100
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#neighbor 3.3.3.52 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 3.3.3.52 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#exit-address-family
Exit from address family IPv4 labeled unicast
(config-router)#address-family vpnv4 unicast
Enter into vpnv4 unicast address family
(config-router-af)#neighbor 7.7.7.55 activate
Activate the neighbor inside vpnv4 address family
(config-router-af)#network 1.1.1.54/32
Advertise the loopback of RTR1 in BGP
(config-router-af)#exit-address-family
Exit from address family vpnv4
(config-router)#exit
Exit from router BGP mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 1.1.1.54 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip vrf vrf1
Specify the name of the VRF (vrf1) to be created.
(config-vrf)#rd 10:100
Assign a route distinguisher (RD) for the VRF, which is a unique value on the router. The RD value can be in ASN:NN or A.B.C.D:NN format.
(config-vrf)#route-target both 100:300
Specify the 2-Octet AS specific or IPv4 specific Transitive Route-Target extended community attribute.
(config-vrf)#exit
Exit VRF mode, and return to Configure mode.
(config)#interface eth2
Enter interface mode
(config-if)# ip vrf forwarding vrf1
Bind the interface (eth2) to the VRF vrf1
(config-if)# ip address 61.1.1.54/24
Configure the IP address of the interface eth2
(config-if)#exit
Exit interface mode.
(config)#router bgp 100
Enter Router BGP mode
(config-router)# address-family ipv4 vrf vrf1
Enter address family ipv4 vrf mode
(config-router-af)# redistribute connected
Redistribute connected routes
(config-router-af)#end
Exit from router mode into privilege mode
P1

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 2.2.2.23/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 10.1.1.23/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 20.1.1.23/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 10
Configure the routing process OSPF with process id 10
(config-router)#network 20.1.1.0/24 area 0
Define the interface (20.1.1.0/24)) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 10.1.1.0/24 area 0
Define the interface (10.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 2.2.2.23/32 area 0
Define the interface (2.2.2.23/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 2.2.2.23 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip route 7.7.7.55/32 20.1.1.52
Specify the destination prefix and mask for the network and a gateway.
(config)# end
Exit from config mode
ABR1

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 3.3.3.52/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 52.56.1.52/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 20.1.1.52/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 10
Configure the routing process OSPF with process id 20
(config-router)#network 3.3.3.52/32 area 0
Define the interface (3.3.3.52/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 20.1.1.0/24 area 0
Define the interface (20.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 3.3.3.52 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)#router bgp 100
Enter Router BGP mode
(config-router)#neighbor 1.1.1.54 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 1.1.1.54 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 52.56.1.56 remote-
as 100
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 1.1.1.54 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#neighbor 52.56.1.56 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)# neighbor 1.1.1.54 route-reflector-client
Enable Route reflector client for the neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 1.1.1.54 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 52.56.1.56 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)#exit-address-family
Exit from address family labeled-unicast
(config-router)#exit
Exit from router BGP mode
ABR2

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 5.5.5.56/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 50.1.1.56/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 52.56.1.56/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)#exit
Exit interface mode.
(config)#router ospf 30
Configure the routing process OSPF with process Id 1
(config-router)#network 5.5.5.56/32 area 0
Define the interface (5.5.5.56/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 50.1.1.0/24 area 0
Define the interface (50.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 5.5.5.56 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)#router bgp 200
Enter Router BGP mode
(config-router)#neighbor 52.56.1.52 remote-
as 100
Add neighbor peer ip and neighbor AS
(config-router)#neighbor 7.7.7.55 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 7.7.7.55 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 52.56.1.52 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#neighbor 7.7.7.55 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)# neighbor 7.7.7.55 route-reflector-client
Enable Route reflector client for the neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 52.56.1.52 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)# neighbor 7.7.7.55 next-hop-self
Enable next hop self for the particular neighbor inside address family IPv4 labeled unicast
(config-router-af)#exit-address-family
Exit from address family vpnv4
(config-router)#exit
Exit from router BGP mode
(config)#end
Exit from config mode
P2

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 6.6.6.22/32
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth1
Enter interface mode
(config-if)#ip address 50.1.1.22/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Enter interface mode
(config-if)#ip address 60.1.1.22/24
Configure the IP address of the interface eth2
(config-if)#label-switching
Enable label-switching on interface eth2
(config-if)# enable-ldp ipv4
Enable LDP process on eth2 interface
(config-if)#exit
Exit interface mode
(config)#router ospf 30
Configure the routing process OSPF with process id 20
(config-router)#network 50.1.1.0/24 area 0
Define the interface (30.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 60.1.1.0/24 area 0
Define the interface (40.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 6.6.6.22/32 area 0
Define the interface (4.4.4.53/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 6.6.6.22 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip route 1.1.1.54/32 50.1.1.56
Specify the destination prefix and mask for the network and a gateway.
(config)#exit
Exit from Cofig mode
PE2

#configure terminal
Enter the Configure mode.
(config)#interface lo
Enter interface mode
(config-if)#ip address 7.7.7.55/32 secondary
Configure the IP address of the interface loopback
(config-if)#exit
Exit interface mode
(config)#interface eth2
Enter interface mode
(config-if)#ip address 60.1.1.55/24
Configure the IP address of the interface eth1
(config-if)#label-switching
Enable label-switching on interface eth1
(config-if)# enable-ldp ipv4
Enable LDP process on eth1 interface
(config-if)#exit
Exit interface mode.
(config)#router ospf 30
Configure the routing process OSPF with process id 10
(config-router)#network 7.7.7.55/32 area 0
Define the interface (7.7.7.55/32) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#network 60.1.1.0/24 area 0
Define the interface (60.1.1.0/24) on which OSPF runs, and associate the area ID (0) with the interface (area ID 0 specifies the backbone area).
(config-router)#exit
Exit from router ospf mode
(config)#router bgp 200
Enter Router BGP mode
(config-router)#neighbor 1.1.1.54 remote-
as 100
Add loopback ip of PE2 as neighbor with neighbor AS
(config-router)#neighbor 1.1.1.54 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#neighbor 1.1.1.54 ebgp-multihop
Enable neighbor connection between two eBGP
(config-router)#neighbor 5.5.5.56 remote-
as 200
Add loopback ip of ABR1 as neighbor with neighbor AS
(config-router)#neighbor 5.5.5.56 update-
source lo
Update the source for that particular neighbor as loopback interface
(config-router)#allocate-label all
Allocate labels
(config-router)#address-family ipv4 labeled- unicast
Enter into labeled-unicast address family
(config-router-af)#neighbor 5.5.5.56 activate
Activate the neighbor inside vpnv4 address family
(config-router-af)#exit-address-family
Exit from address family IPv4 labeled unicast
(config-router)#address-family vpnv4 unicast
Enter into vpnv4 unicast address family
(config-router-af)#neighbor 1.1.1.54 allow-ebgp-vpn
Allow eBGP neighbor to be a vpn peer.
(config-router-af)#neighbor 1.1.1.54 activate
Activate the neighbor inside labeled-unicast address family
(config-router-af)#exit-address-family
Exit from address family vpnv4
(config-router)#address-family ipv4 unicast
Enter into ipv4 unicast address family
(config-router-af)#network 7.7.7.55/32
Advertise the loopback of RTR1 in BGP
(config-router-af)#exit-address-family
Exit from address family vpnv4
(config-router)#exit
Exit from router BGP mode
(config)# router ldp
Configure Router LDP instance
(config-router)# transport-address ipv4 7.7.7.55 0
Configure Transport address for LDP with label space value 0
(config-router)#exit
Exit from router mode
(config)# ip vrf vrf1
Specify the name of the VRF (vrf1) to be created.
(config-vrf)#rd 10:100
Assign a route distinguisher (RD) for the VRF, which is a unique value on the router. The RD value can be in ASN:NN or A.B.C.D:NN format.
(config-vrf)#route-target both 100:300
Specify the 2-Octet AS specific or IPv4 specific Transitive Route-Target extended community attribute.
(config-vrf)#exit
Exit VRF mode, and return to Configure mode.
(config)#interface eth2
Enter interface mode
(config-if)# ip vrf forwarding vrf1
Bind the interface (eth2) to the VRF vrf1
(config-if)# ip address 62.1.1.55/24
Configure the IP address of the interface eth2
(config-if)#exit
Exit interface mode.
(config)#router bgp 100
Enter Router BGP mode
(config-router)# address-family ipv4 vrf vrf1
Enter address family ipv4 vrf mode
(config-router-af)# redistribute connected
Redistribute connected routes
(config-router-af)#end
Exit from router mode into privilege mode
Validation
PE1
#sh ip bgp labeled-unicast
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*> 1.1.1.54/32 0.0.0.0 24969 -
*>i 7.7.7.55/32 3.3.3.52 - 24322


#sh mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN, B - BGP FTN, K - CLI FTN, t - tunnel
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
10.1.1.23
10.1.1.23
3.3.3.52
10.1.1.23

#sh mpls ftn-table
Nexthop
Primary FTN entry with FEC: 2.2.2.23/32, id: 1, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: LDP, out intf: eth1, out label: 3 Nexthop addr: 10.1.1.23 cross connect ix: 1, op code: Push

Primary FTN entry with FEC: 3.3.3.52/32, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth1, out label: 24321 Nexthop addr: 10.1.1.23 cross connect ix: 2, op code: Push

Primary FTN entry with FEC: 7.7.7.55/32, id: 4, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 3 Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: BGP, out intf: eth1, out label: 24322 Nexthop addr: 3.3.3.52 cross connect ix: 4, op code: Push and
Lookup

Primary FTN entry with FEC: 20.1.1.0/24, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1 Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: LDP, out intf: eth1, out label: 3 Nexthop addr: 10.1.1.23 cross connect ix: 1, op code: Push
ABR1
#sh ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*>i 1.1.1.54/32 1.1.1.54 24323 24969
*> 7.7.7.55/32 52.56.1.56 24322 24325

#sh mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN

Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf Nexthop
L> 1.1.1.54/32 2 0 Yes LSP_DEFAULT 24322 eth2 20.1.1.23
B 1.1.1.54/32 5 0 Yes LSP_DEFAULT 24969 eth2 1.1.1.54
L> 2.2.2.23/32 3 0 Yes LSP_DEFAULT 3 eth2 20.1.1.23
B> 7.7.7.55/32 1 0 Yes LSP_DEFAULT 24325 eth1 52.56.1.56
L> 10.1.1.0/24 4 0 Yes LSP_DEFAULT 3 eth2 20.1.1.23

#sh mpls ftn-table
Primary FTN entry with FEC: 1.1.1.54/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth2, out label: 24322
Nexthop addr: 20.1.1.23 cross connect ix: 2, op code: Push


Primary FTN entry with FEC: 1.1.1.54/32, id: 5, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 8, in intf: - in label: 0 out-segment ix: 8
Owner: BGP, Persistent: No, Admin Status: Down, Oper Status: Down
Out-segment with ix: 8, owner: BGP, out intf: eth2, out label: 24969
Nexthop addr: 1.1.1.54 cross connect ix: 8, op code: Push and Lookup


Primary FTN entry with FEC: 2.2.2.23/32, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 3
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 20.1.1.23 cross connect ix: 3, op code: Push


Primary FTN entry with FEC: 7.7.7.55/32, id: 1, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 7
Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 7, owner: BGP, out intf: eth1, out label: 24325
Nexthop addr: 52.56.1.56 cross connect ix: 7, op code: Push


Primary FTN entry with FEC: 10.1.1.0/24, id: 4, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 3
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 20.1.1.23 cross connect ix: 3, op code: Push
ABR2
#sh ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*> 1.1.1.54/32 52.56.1.52 24322 24323
*>i 7.7.7.55/32 7.7.7.55 24325 24967

#sh mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN

Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf Nexthop
B> 1.1.1.54/32 1 0 Yes LSP_DEFAULT 24323 eth2 52.56.1.52
L> 6.6.6.22/32 2 0 Yes LSP_DEFAULT 3 eth1 50.1.1.22
L> 7.7.7.55/32 3 0 Yes LSP_DEFAULT 24322 eth1 50.1.1.22
B 7.7.7.55/32 5 0 Yes LSP_DEFAULT 24967 eth1 7.7.7.55
L> 60.1.1.0/24 4 0 Yes LSP_DEFAULT 3 eth1 50.1.1.22

#sh mpls ftn-table
Primary FTN entry with FEC: 1.1.1.54/32, id: 1, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 8, in intf: - in label: 0 out-segment ix: 8
Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: BGP, out intf: eth2, out label: 24323
Nexthop addr: 52.56.1.52 cross connect ix: 8, op code: Push


Primary FTN entry with FEC: 6.6.6.22/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth1, out label: 3
Nexthop addr: 50.1.1.22 cross connect ix: 2, op code: Push


Primary FTN entry with FEC: 7.7.7.55/32, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 3
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: LDP, out intf: eth1, out label: 24322
Nexthop addr: 50.1.1.22 cross connect ix: 3, op code: Push


Primary FTN entry with FEC: 7.7.7.55/32, id: 5, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 7
Owner: BGP, Persistent: No, Admin Status: Down, Oper Status: Down
Out-segment with ix: 7, owner: BGP, out intf: eth1, out label: 24967
Nexthop addr: 7.7.7.55 cross connect ix: 7, op code: Push and Lookup


Primary FTN entry with FEC: 60.1.1.0/24, id: 4, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 2
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 2, owner: LDP, out intf: eth1, out label: 3
Nexthop addr: 50.1.1.22 cross connect ix: 2, op code: Push
PE2
#show ip bgp labeled-unicast

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*>i 1.1.1.54/32 5.5.5.56 - 24322
*> 7.7.7.55/32 0.0.0.0 24967 -

#show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN

Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf Nexthop
B> 1.1.1.54/32 4 0 Yes LSP_DEFAULT 24322 eth2 5.5.5.56
L> 5.5.5.56/32 3 0 Yes LSP_DEFAULT 24321 eth2 60.1.1.22
L> 6.6.6.22/32 2 0 Yes LSP_DEFAULT 3 eth2 60.1.1.22
L> 50.1.1.0/24 1 0 Yes LSP_DEFAULT 3 eth2 60.1.1.22

#sh mpls ftn-table
Primary FTN entry with FEC: 1.1.1.54/32, id: 4, row status: Active
Owner: BGP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 36, in intf: - in label: 0 out-segment ix: 37
Owner: BGP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 37, owner: BGP, out intf: eth2, out label: 24322
Nexthop addr: 5.5.5.56 cross connect ix: 36, op code: Push and Lookup


Primary FTN entry with FEC: 5.5.5.56/32, id: 3, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 6
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: LDP, out intf: eth2, out label: 24321
Nexthop addr: 60.1.1.22 cross connect ix: 7, op code: Push


Primary FTN entry with FEC: 6.6.6.22/32, id: 2, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 9, in intf: - in label: 0 out-segment ix: 8
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 60.1.1.22 cross connect ix: 9, op code: Push


Primary FTN entry with FEC: 50.1.1.0/24, id: 1, row status: Active
Owner: LDP, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A
Cross connect ix: 9, in intf: - in label: 0 out-segment ix: 8
Owner: LDP, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: LDP, out intf: eth2, out label: 3
Nexthop addr: 60.1.1.22 cross connect ix: 9, op code: Push
Last modified date: 07-13-2023
