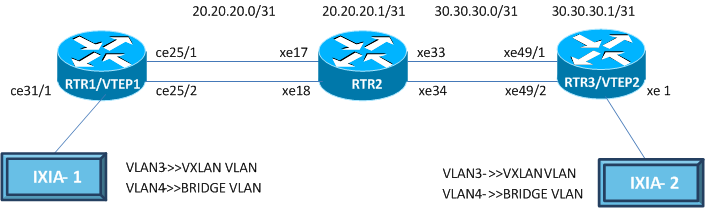

Topology
RTR1/VTEP1
#configure terminal | Enter configure mode. |
(config)#interface lo | Enter interface mode for loopback. |
(config-if)#ip address 10.10.10.10/32 secondary | Assign secondary IP address. |
(config-if)#exit | Exit interface mode. |
(config)#mac vrf vrf12345 | Create mac routing/forwarding instance with vrf12345 name and enter VRF mode. |
(config-vrf)#rd 1.1.1.1:1 | Assign Rd value. |
(config-vrf)#route-target both 10.10.10.10:10 | Assign route-target both value. |
(config-vrf)#exit | Exit VRF configuration mode. |
(config)#bridge 32 protocol ieee vlan-bridge | Configure the ieee VLAN-bridge with Id 32. |
(config)#vlan 2-5 bridge 32 | Configure the VLANs 2-5 for the configured bridge Id 32. |
(config)#interface ce25/1 | Enter interface mode for ce25/1. |
(config-if)#ip address 20.20.20.0/31 | Assign IP address 20.20.20.0 in /31 mask. |
(config-if)#exit | Exit interface mode. |
(config)#interface ce25/2 | Enter interface mode for ce25/2. |
(config-if)#switchport | Make it L2 interface. |
(config-if)#bridge-group 32 | Associate the bridge-group 32 to the interface. |
(config-if)#switchport mode hybrid | Configure the Hybrid mode. |
(config-if)#switchport hybrid allowed vlan add 4 egress-tagged enable | Configure hybrid allowed VLAN add 4 to support the created VLAN in the L2 Bridge. |
(config-if)#exit | Exit interface mode. |
(config)#interface ce31/1 | Enter interface mode for ce31/1. |
(config-if)#switchport | Make it L2 interface. |
(config-if)#bridge-group 32 | Associate the bridge-group 32 to the interface. |
(config-if)#switchport mode hybrid | Configure the Hybrid mode. |
(config-if)#switchport hybrid allowed vlan add 4 egress-tagged enable | Configure hybrid allowed VLAN add 4 to support the created VLAN in the L2 Bridge. |
(config-if)#exit | Exit interface mode. |
(config)#router bgp 64512 | Enter BGP router mode. |
(config-router)#bgp router-id 1.1.1.1 | Assign BGP router ID |
(config-router)#neighbor 20.20.20.1 remote-as 64513 | Specify a neighbor router with peer ip address and remote-as defined. |
(config-router)#address-family ipv4 unicast | Enter into IPv4 unicast address family |
(config-router-af)#network 10.10.10.10/32 | Advertise loopback network into BGP for VTEP ID reachability |
(config-router-af)#exit-address-family | Exit IPv4 unicast address family mode |
(config-router)#address-family l2vpn evpn | Enter L2VPN address family mode. |
(config-router-af)#neighbor 20.20.20.1 activate | Activate the peer into address family mode. |
(config-router-af)#exit-address-family | Exit L2VPN address family mode. |
(config-router)#exit | Exit BGP router mode. |
(config)#nvo vxlan enable | Enable Vxlan. |
(config)#nvo vxlan vtep-ip-global 10.10.10.10 | Configure the source Vtep-ip. |
(config)#nvo vxlan id 16777215 ingress-replication inner-vid-disabled | Configure Vxlan Network identifier with/without inner-vid-disabled configure and enter Vxlan tenant mode. |
(config-nvo)#vxlan host-reachability-protocol evpn-bgp vrf12345 | Assign VRF for evpn-bgp to carry evpn route. |
(config-nvo)#exit | Exit Vxlan tenant mode. |
(config)#nvo vxlan access-if port-vlan ce31/1 3 | Enable port-VLAN mapping i.e. access port to outer-VLAN (SVLAN) mapping. |
(config-nvo-acc-if)#map vnid 16777215 | Map Vxlan Identifier to access-port. |
(config-nvo-acc-if)#exit | Exit Vxlan access-interface mode. |
(config)#commit | Commit the candidate configuration to the running configuration |
RTR2
#configure terminal | Enter configure mode. |
(config)#bridge 32 protocol ieee vlan-bridge | Configure the ieee VLAN-bridge with Id 32. |
(config)#vlan 2-5 bridge 32 | Configure the VLANs 2-5 for the configured bridge Id 32. |
(config)#interface xe17 | Enter interface mode for xe17. |
(config-if)#ip address 20.20.20.1/31 | Assign IP address 20.20.20.1 in /31 mask. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe18 | Enter interface mode for xe18. |
(config-if)#switchport | Make it L2 interface . |
(config-if)#bridge-group 32 | Associate the bridge-group 32 to the interface. |
(config-if)#switchport mode hybrid | Configure the Hybrid mode. |
(config-if)#switchport hybrid allowed vlan add 4 egress-tagged enable | Configure hybrid allowed VLAN add 4 to support the created VLAN in the L2 Bridge. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe33 | Enter interface mode for xe33. |
(config-if)#ip address 30.30.30.0/31 | Assign IP address 30.30.30.0 in /31 mask. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe34 | Enter interface mode for xe34. |
(config-if)#switchport | Make it L2 interface. |
(config-if)#bridge-group 32 | Associate the bridge-group 32 to the interface. |
(config-if)#switchport mode hybrid | Configure the Hybrid mode. |
(config-if)#switchport hybrid allowed vlan add 4 egress-tagged enable | Configure hybrid allowed VLAN add 4 to support the created VLAN in the L2 Bridge. |
(config-if)#exit | Exit interface mode. |
(config)#router bgp 64513 | Enter BGP router mode. |
(config-router)#bgp router-id 2.2.2.2 | Assign BGP router ID |
(config-router)#neighbor 20.20.20.0 remote-as 64512 | Specify a neighbor router with peer ip address and remote-as defined. |
(config-router)#neighbor 30.30.30.1 remote-as 64514 | Specify a neighbor router with peer ip address and remote-as defined. |
(config-router)#address-family l2vpn evpn | Enter L2VPN address family mode. |
(config-router-af)#neighbor 20.20.20.0 activate | Activate the peer into address family mode. |
(config-router-af)#neighbor 30.30.30.1 activate | Activate the peer into address family mode. |
(config-router-af)#exit-address-family | Exit L2VPN address family mode. |
(config-router)#exit | Exit BGP router mode. |
(config)#commit | Commit the candidate configuration to the running configuration |
RTR3/VTEP2
#configure terminal | Enter configure mode. |
(config)#interface lo | Enter interface mode for loopback. |
(config-if)#ip address 40.40.40.40/32 secondary | Assign secondary IP address. |
(config-if)#exit | Exit interface mode. |
(config)#mac vrf vrf12345 | Create mac routing/forwarding instance with vrf12345 name and enter VRF mode. |
(config-vrf)#rd 2.2.2.2:2 | Assign Rd value. |
(config-vrf)#route-target both 10.10.10.10:10 | Assign route-target both value. |
(config-vrf)#exit | Exit VRF configuration mode. |
(config)#bridge 32 protocol ieee vlan-bridge | Configure the ieee VLAN-bridge with Id 32. |
(config)#vlan 2-5 bridge 32 | Configure the VLANs 2-5 for the configured bridge Id 32. |
(config)#interface xe 49/1 | Enter interface mode for xe49/1. |
(config-if)#ip address 30.30.30.1/31 | Assign Ip address 30.30.30.1 in /31 mask. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe49/2 | Enter interface mode for xe49/2. |
(config-if)#switchport | Make it L2 interface . |
(config-if)#bridge-group 32 | Associate the bridge-group 32 to the interface. |
(config-if)#switchport mode hybrid | Configure the Hybrid mode. |
(config-if)#switchport hybrid allowed vlan add 4 egress-tagged enable | Configure hybrid allowed VLAN add 4 to support the created VLAN in the L2 Bridge. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe1 | Enter interface mode for xe1. |
(config-if)#switchport | Make it L2 interface . |
(config-if)#bridge-group 32 | Associate the bridge-group 32 to the interface. |
(config-if)#switchport mode hybrid | Configure the Hybrid mode. |
(config-if)#switchport hybrid allowed vlan add 4 egress-tagged enable | Configure hybrid allowed VLAN add 4 to support the created VLAN in the L2 Bridge. |
(config-if)#exit | Exit interface mode. |
(config)#router bgp 64514 | Enter BGP router mode. |
(config-router)#bgp router-id 3.3.3.3 | Assign BGP router ID |
(config-router)#neighbor 30.30.30.0 remote-as 64513 | Specify a neighbor router with peer IP address and remote-as defined. |
(config-router)#address-family ipv4 unicast | Enter into IPv4 unicast address family |
(config-router-af)#network 40.40.40.40/32 | Advertise loopback network into BGP for VTEP ID reachability |
(config-router-af)#exit-address-family | Exit IPv4 unicast address family mode |
(config-router)#address-family l2vpn evpn | Enter L2VPN address family mode. |
(config-router-af)#neighbor 30.30.30.0 activate | Activate the peer into address family mode. |
(config-router-af)#exit-address-family | Exit L2VPN address family mode. |
(config-router)#exit | Exit BGP router mode. |
(config)#nvo vxlan enable | Enable Vxlan. |
(config)#nvo vxlan vtep-ip-global 40.40.40.40 | Configure the source Vtep-ip. |
(config)#nvo vxlan id 16777215 ingress-replication inner-vid-disabled | Configure Vxlan Network identifier with/without inner-vid-disabled configure and enter Vxlan tenant mode. |
(config-nvo)#vxlan host-reachability-protocol evpn-bgp vrf12345 | Assign VRF for evpn-bgp to carry evpn route. |
(config-nvo)#exit | Exit Vxlan tenant mode. |
(config)#nvo vxlan access-if port-vlan xe1 3 | Enable port-VLAN mapping i.e. access port to outer-VLAN (SVLAN) mapping. |
(config-nvo-acc-if)#map vnid 16777215 | Map Vxlan Identifier to access-port. |
(config-nvo-acc-if)#exit | Exit Vxlan access-interface mode. |
(config)#commit | Commit the candidate configuration to the running configuration |
