OcNOS-RON : Layer 1 Guide : Layer 1 Configuration Guide : CFM over xConnect Configuration : Topology
Topology

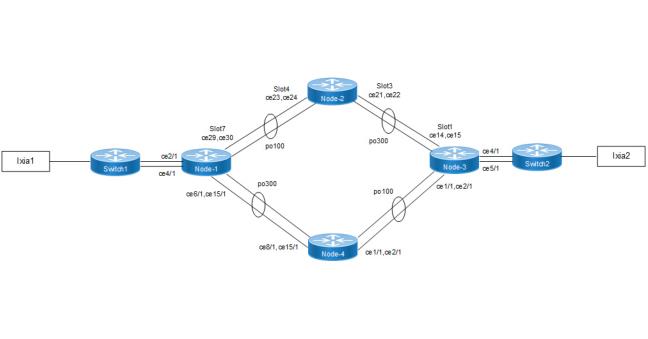

Figure 3-1: CFM over xConnect Topology
Node-1

#configure terminal
Enter configure mode
(config)# hostname Node-1
Configure the hostname.
(config)#coherent-module 7
Enter into coherent-module
(config-module)#enable
Enabling the coherent module
(config-module)#exit
Exiting the coherent module
(config)#interface po100
Create port channel interface.
(config-if)#switchport
Configure switchport on LAG port
(config-if)#exit
Exit the interface level
(config)#interface ce29
Enter interface level
(config-if)#channel-group 100 mode active
Add member port to the port channel interface.
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce30
Enter interface level
(config-if)#channel-group 100 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface po300
Create port channel interface
(config-if)#switchport
Configure switchport on LAG interface
(config-if)#exit
Exit the interface level
(config)#interface ce6/1
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce15/1
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce2/1
Enter interface level
(config-if)#switchport
Configure switchport
(config)#interface ce4/1
Enter interface level
(config-if)#switchport
Configure switchport
(config-if)#exit
Exit the interface level
(config)#cross-connect xc1
Create cross-connect by providing the name
(config-XC)#ep1 po100 ep2 ce2/1
Add end-points end-point1 and end-point2
(config-XC)#backup ep1 po300
Add backup end-point1
(config-XC)#backup ep2 ce4/1
Add backup end-point2
(config-XC)#exit
Exit XC mode
(config)#ethernet cfm domain-type character-string domain-name mdnam1 level 0 mip-creation none
Create CFM domain with type as character string with level 0 and set MIP creation criteria to none.
(config-ether-cfm)#service ma-type string ma-name test1
Create ma type as string
(config-ether-cfm-ma)#link-level-ma
Configure link-level-ma
(config-ether-cfm-ma)#ethernet cfm mep down mpid 1 active true po100
Create down MEP for local-VID on po100
(config-ether-cfm-ma-mep)#cc multicast state enable
Enable cc multicast
(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode
Exit ethernet cfm ma-mep mode
(config-ether-cfm-ma)#mep crosscheck mpid 2
Configure crosscheck to remote MEP
(config-ether-cfm-ma)#cc interval 10ms
Enable cc interval for 10 millisecond
(config-ether-cfm-ma)#exit-ether-ma-mode
Exit ethernet ma mode
(config-ether-cfm)#exit
Exit ethernet CFM mode
(config)#ethernet cfm domain-type character-string domain-name mdnam2 level 0 mip-creation none
Create CFM domain with type as character string with level 0 and set MIP creation criteria to none.
(config-ether-cfm)#service ma-type string ma-name test2
Create MA type as string
(config-ether-cfm-ma)#link-level-ma
Configure link-level-ma
(config-ether-cfm-ma)#ethernet cfm mep down mpid 3 active true po300
Create down MEP for local-VID on po300
(config-ether-cfm-ma-mep)#cc multicast state enable
Enable CC multicast
(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode
Exit ethernet CFM MA-MEP mode
(config-ether-cfm-ma)#mep crosscheck mpid 4
Configure crosscheck to remote MEP
(config-ether-cfm-ma)#cc interval 10ms
Enable CC interval for 10 millisecond
(config-ether-cfm-ma)#exit-ether-ma-mode
Exit ethernet MA mode
(config-ether-cfm)#exit
Exit ethernet CFM mode
Node-2

#configure terminal
Enter configure mode
(config)#hostname Node-2
Configure the hostname
(config)#coherent-module 4
Enter into coherent-module
(config-module)#enable
Enabling the coherent module
(config-module)#exit
Exit from coherent module mode
(config)#coherent-module 3
Enter into coherent-module
(config-module)#enable
Enabling the coherent module
(config-module)#exit
Exit from coherent module mode
(config)#interface po100
Create port channel interface
(config-if)#switchport
Configure switchport on LAG port
(config-if)#exit
Exit the interface level
(config)#interface ce23
Enter interface level
(config-if)#channel-group 100 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level.
(config)#interface ce24
Enter interface level
(config-if)#channel-group 100 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface po300
Create port channel interface
(config-if)#switchport
Configure switchport on LAG interface
(config-if)#exit
Exit the interface level
(config)#interface ce21
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce22
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#cross-connect xc1
Create cross-connect by providing the name
(config-XC)#ep1 po100 ep2 po300
Add end-points end-point1 and end-point2
Node-3

#configure terminal
Enter configure mode
(config)#hostname Node-3
Configure the hostname
(config)#coherent-module 1
Enter into coherent-module
(config-module)#enable
Enabling the coherent module
(config-module)#exit
Exit from coherent module mode
(config)#interface po300
Create port channel interface
(config-if)#switchport
Configure switchport on LAG port
(config-if)#exit
Exit the interface level
(config)#interface ce13
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level.
(config)#interface ce14
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface po100
Create port channel interface
(config-if)#switchport
Configure switchport on LAG interface
(config-if)#exit
Exit the interface level
(config)#interface ce1/1
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce2/1
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce4/1
Enter interface level
(config-if)#switchport
Configure switchport
(config)#interface ce5/1
Enter interface level
(config-if)#switchport
Configure switchport
(config-if)#exit
Exit the interface level
(config)#cross-connect xc1
Create cross-connect by providing the name
(config-XC)#ep1 po300 ep2 ce4/1
Add end-points end-point1 and end-point2
(config-XC)#backup ep1 po100
Add backup end-point1
(config-XC)#backup ep2 ce5/1
Add backup end-point2
(config-XC)#exit
Exit XC mode
(config)#ethernet cfm domain-type character-string domain-name mdnam1 level 0 mip-creation none
Create cfm domain with type as character string with level 0 and set mip creation criteria to none.
(config-ether-cfm)#service ma-type string ma-name test1
Create ma type as string
(config-ether-cfm-ma)#link-level-ma
Configure link-level-ma
(config-ether-cfm-ma)#ethernet cfm mep down mpid 2 active true po300
Create down mep for local-vid on po100
(config-ether-cfm-ma-mep)#cc multicast state enable
Enable cc multicast
(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode
Exit ethernet cfm ma-mep mode
(config-ether-cfm-ma)#mep crosscheck mpid 1
Configure crosscheck to remote MEP
(config-ether-cfm-ma)#cc interval 10ms
Enable cc interval for 10 millisecond
(config-ether-cfm-ma)#exit-ether-ma-mode
Exit ethernet ma mode
(config-ether-cfm)#exit
Exit ethernet CFM mode
(config)#ethernet cfm domain-type character-string domain-name mdnam2 level 0 mip-creation none
Create cfm domain with type as character string with level 0 and set mip creation criteria to none.
(config-ether-cfm)#service ma-type string ma-name test2
Create ma type as string
(config-ether-cfm-ma)#link-level-ma
Configure link-level-ma
(config-ether-cfm-ma)#ethernet cfm mep down mpid 4 active true po100
Create down mep for local-vid on po300
(config-ether-cfm-ma-mep)#cc multicast state enable
Enable cc multicast
(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode
Exit ethernet cfm ma-mep mode
(config-ether-cfm-ma)#mep crosscheck mpid 3
Configure crosscheck to remote MEP
(config-ether-cfm-ma)#cc interval 10ms
Enable cc interval for 10 millisecond
(config-ether-cfm-ma)#exit-ether-ma-mode
Exit ethernet ma mode
(config-ether-cfm)#exit
Exit ethernet CFM mode
Node-4

#configure terminal
Enter configure mode
(config)#hostname Node-4
Configure the hostname
(config)#interface po100
Create port channel interface
(config-if)#switchport
Configure switchport on LAG port
(config-if)#exit
Exit the interface level
(config)#interface ce1/1
Enter interface level
(config-if)#channel-group 100 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level.
(config)#interface ce2/1
Enter interface level
(config-if)#channel-group 100 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface po300
Create port channel interface
(config-if)#switchport
Configure switchport on LAG interface
(config-if)#exit
Exit the interface level
(config)#interface ce8/1
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#interface ce15/1
Enter interface level
(config-if)#channel-group 300 mode active
Add member port to the port channel interface
(config-if)#lacp timeout short
Configure LACP timeout as short
(config-if)#exit
Exit the interface level
(config)#cross-connect xc1
Create cross-connect by providing the name
(config-XC)#ep1 po300 ep2 po100
Add end-points end-point1 and end-point2
Validation
Node-1
#sh ethernet cfm maintenance-points local mep domain mdnam2 ma-name test2
MPID Dir Lvl VLAN CC-Stat CC-Intvl MAC-Address Def Port MD Name
--------------------------------------------------------------------------------
3 Dn 0 0 Enable 10 ms 34ef.b689.e05a T po300 mdnam2

#sh ethernet cfm maintenance-points local mep domain mdnam1 ma-name test1
MPID Dir Lvl VLAN CC-Stat CC-Intvl MAC-Address Def Port MD Name
--------------------------------------------------------------------------------
1 Dn 0 0 Enable 10 ms 34ef.b689.e020 F po100 mdnam1

#sh ethernet cfm maintenance-points remote mpid 3 domain mdnam2
MEPID RMEPID LEVEL VLAN Rx CCM RDI PEER-MAC TYPE
-------------------------------------------------------------------------------
3 4 0 0 Yes False 5cff.35b7.54b3 Configured

#sh ethernet cfm maintenance-points remote mpid 1 domain mdnam1
MEPID RMEPID LEVEL VLAN Rx CCM RDI PEER-MAC TYPE
-------------------------------------------------------------------------------
1 2 0 0 Yes False 5cff.35b7.54bb Configured

#sh ethernet cfm errors domain mdnam1
Domain Name Level Vlan MEPID Defects
--------------------------------------------------------
mdnam1 0 0 1 .....

1. defRDICCM 2. defMACstatus 3. defRemoteCCM
4. defErrorCCM 5. defXconCCM

#sh ethernet cfm errors domain mdnam2
Domain Name Level Vlan MEPID Defects
--------------------------------------------------------
mdnam2 0 0 3 .....

1. defRDICCM 2. defMACstatus 3. defRemoteCCM
4. defErrorCCM 5. defXconCCM
Node-3
#sh ethernet cfm maintenance-points local mep domain mdnam1 ma-name test1
MPID Dir Lvl VLAN CC-Stat CC-Intvl MAC-Address Def Port MD Name
--------------------------------------------------------------------------------
2 Dn 0 0 Enable 10 ms 5cff.35b7.54bb F po300 mdnam1

#sh ethernet cfm maintenance-points local mep domain mdnam2 ma-name test2
MPID Dir Lvl VLAN CC-Stat CC-Intvl MAC-Address Def Port MD Name
--------------------------------------------------------------------------------
4 Dn 0 0 Enable 10 ms 5cff.35b7.54b3 F po100 mdnam2

#sh ethernet cfm maintenance-points remote mpid 4 domain mdnam2
MEPID RMEPID LEVEL VLAN Rx CCM RDI PEER-MAC TYPE
-------------------------------------------------------------------------------
4 3 0 0 Yes False 34ef.b689.e05a Configured

#sh ethernet cfm maintenance-points remote mpid 2 domain mdnam1
MEPID RMEPID LEVEL VLAN Rx CCM RDI PEER-MAC TYPE
-------------------------------------------------------------------------------
2 1 0 0 Yes False 34ef.b689.e020 Configured

#sh ethernet cfm errors domain mdnam1
Domain Name Level Vlan MEPID Defects
--------------------------------------------------------
mdnam1 0 0 2 .....

1. defRDICCM 2. defMACstatus 3. defRemoteCCM
4. defErrorCCM 5. defXconCCM

#sh ethernet cfm errors domain mdnam2
Domain Name Level Vlan MEPID Defects
--------------------------------------------------------
mdnam2 0 0 4 .....

1. defRDICCM 2. defMACstatus 3. defRemoteCCM
4. defErrorCCM 5. defXconCCM
Last modified date: 06/28/2023
