Single Provider Bridge Configuration
Topology

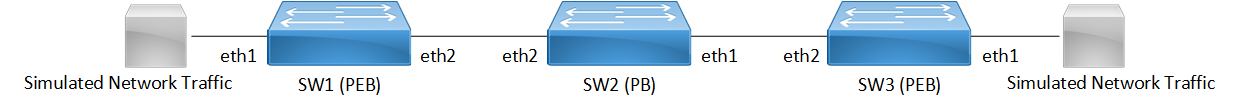

Figure 14-23: Single provider bridge configuration
Configuration
SW1 (PEB)
SW1#configure terminal | Enter configuration mode |
SW1(config)#bridge 1 protocol provider-rstp edge | Create bridge |
SW1(config)#vlan database | Enter VLAN configuration mode |
SW1(config-vlan)#vlan 2 type customer bridge 1 state enable | Create customer vlan VLAN 2 |
SW1(config-vlan)#vlan 200 type service point-point bridge 1 state enable | Create service vlan VLAN200 |
SW1(config-vlan)#exit | Exit VLAN configuration mode |
SW1(config)#cvlan registration table map1 bridge 1 | Create cvlan registration table map1 |
SW1(config-cvlan-registration)#cvlan 2 svlan 200 | Map cvlan2 with svlan 200 |
SW1(config-cvlan-registration)#exit | Exit registration table |
SW1(config)#interface eth1 | Enter interface configuration mode for eth1 |
SW1(config-if)#switchport | Configure switchport |
SW1(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW1(config-if)#switchport mode customer-edge access | Configure switchport mode customer edge |
SW1(config-if)#switchport customer-edge access vlan 2 | Associate customer vlan2 with interface |
SW1(config-if)#switchport customer-edge vlan registration map1 | Attach registration table map1 with interface |
SW1(config-if)#exit | Exit interface mode |
SW1(config-if)#interface eth2 | Enter interface configuration mode for eth2 |
SW1(config-if)#switchport | Make interface as switchport |
SW1(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW1(config-if)#switchport mode provider-network | Configure switchport pnp port |
SW1(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW1(config-if)#exit | Exit interface configuration mode |
SW2 (PB)
SW2#configure terminal | Enter configuration mode |
SW2(config)#bridge 1 protocol provider-rstp | Create provider bridge |
SW2(config)#vlan database | Enter VLAN configuration mode |
SW2(config-vlan)#vlan 200 type service point-point bridge 1 state enable | Create service vlan VLAN200 |
SW2(config-vlan)#exit | Exit VLAN configuration mode |
SW2(config)#interface eth1 | Enter interface configuration mode for eth1 |
SW2(config-if)#switchport | Make interface as switchport |
SW2(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW2(config-if)#switchport mode provider-network | Configure switchport pnp port |
SW2(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW2(config-if)#exit | Exit interface configuration mode |
SW2(config-if)#interface eth2 | Enter interface configuration mode for eth2 |
SW2(config-if)#switchport | Make interface as switchport |
SW2(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW2(config-if)#switchport mode provider-network | Configure switchport pnp port |
SW2(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW2(config-if)#exit | Exit interface configuration mode |
SW3 (PEB)
SW3#configure terminal | Enter configuration mode |
SW3(config)#bridge 1 protocol provider-rstp edge | Create bridge |
SW3(config)#vlan database | Enter VLAN configuration mode |
SW3(config-vlan)#vlan 2 type customer bridge 1 state enable | Create customer vlan VLAN 2 |
SW3(config-vlan)#vlan 200 type service point-point bridge 1 state enable | Create service vlan VLAN200 |
SW3(config-vlan)#exit | Exit VLAN configuration mode |
SW3(config)#cvlan registration table map1 bridge 1 | Create cvlan registration table map1 |
SW3(config-cvlan-registration)#cvlan 2 svlan 200 | Map cvlan2 with svlan 200 |
SW3(config-cvlan-registration)#exit | Exit registration table |
SW3(config)#interface eth1 | Enter interface configuration mode for eth1 |
SW3(config-if)#switchport | Configure switchport |
SW3(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW3(config-if)#switchport mode customer-edge access | Configure switchport mode customer edge |
SW3(config-if)#switchport customer-edge access vlan 2 | Associate customer vlan2 with interface |
SW3(config-if)#switchport customer-edge vlan registration map1 | Attach registration table map1 with interface |
SW3(config-if)#exit | Exit interface mode |
SW3(config-if)#interface eth2 | Enter interface configuration mode for eth2 |
SW3(config-if)#switchport | Make interface as switchport |
SW3(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW3(config-if)#switchport mode provider-network | Configure switchport pnp port |
SW3(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW3(config-if)#exit | Exit interface configuration mode |
Validation
SW3#sh br
bridge 1 is running on provider-rstp edge
Ageout time is global and if something is configured for vxlan then it will be a
ffected here also
Bridge CVLAN SVLAN BVLAN Port MAC Address FWD Time-out
---------+------+------+------+-----------+-----------------+-----+---------+
1 200 eth1 0000.0000.0f00 1 300
1 200 eth2 0001.0000.0800 1 300
SW1#sh br
bridge 1 is running on provider-rstp edge
Ageout time is global and if something is configured for vxlan then it will be a
ffected here also
Bridge CVLAN SVLAN BVLAN Port MAC Address FWD Time-out
---------+------+------+------+-----------+-----------------+-----+---------+
1 200 eth2 0000.0000.0f00 1 300
1 200 eth1 0001.0000.0800 1 300
SW1#sh cvlan registration table
Bridge Table Name Port List
====== ========== =========
1 map1 eth1
CVLAN ID SVLAN ID
======== ========
2 200
Last modified date: 07/13/2023
