Spanning Tree Protocol Configuration
This chapter contains a complete sample STP configuration. STP prevents duplication of packets by eliminating loops in the network.
Topology
The following example is a simple multi-bridge topology.

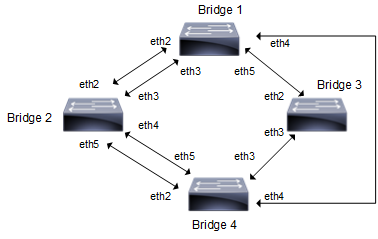

Figure 3-3: STP Topology
Note: Run the switchport command on each port to change to Layer-2 mode.
