Configure LDP MD5 for Targeted LDP Session
In this example, MD5 authentication is configured for the targeted LDP session established between R1 and R3.

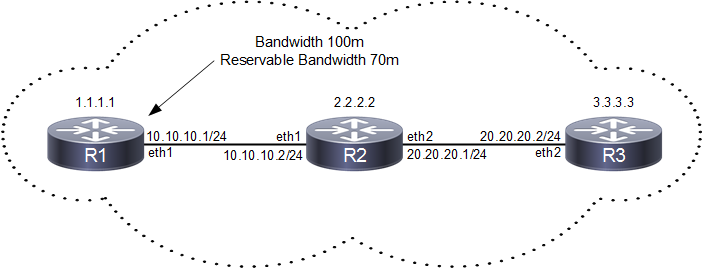

Figure 6-3: Topology for Targeted Session MD5
R1

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode.
(config-router)#neighbor 10.10.10.2 auth md5 password 0 pwd1
Configure the MD5 authentication and password, pwd1, for the neighbor, 10.10.10.2.
(config-router)#targeted-peer ipv4 3.3.3.3
Configure the targeted peer IP address (R3 loopback address).
(config-router-targeted-peer)#exit
Exit targeted peer mode.
(config-router)#neighbor 3.3.3.3 auth md5 password 0 pwd2
Configure the MD5 authentication and password, pwd2, for the targeted peer, 3.3.3.3.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
(config)#interface eth1
Specify the interface (eth1) to be configured.
(config-if)#label-switching
Enable label switching on interface eth1.
(config-if)#enable-ldp ipv4
Enable LDP on interface eth1.
(config-if)#exit
Exit interface mode.
R2

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode to enable LDP.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
(config)#interface eth1
Specify the interface (eth1) to be configured.
(config-if)#label-switching
Enable label switching on interface eth1.
(config-if)#enable-ldp ipv4
Enable LDP on interface eth1.
(config-if)#exit
Exit interface mode.
(config)#interface eth2
Specify the interface (eth2) to be configured.
(config-if)#label-switching
Enable label switching on interface eth2.
(config-if)#enable-ldp ipv4
Enable LDP on interface eth2.
(config-if)#exit
Exit interface mode.
R3

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode.
(config-router)#targeted-peer ipv4 1.1.1.1
Configure the targeted peer IP address (R1 loopback address).
(config-router-targeted-peer)#exit
Exit targeted peer mode.
(config-router)#neighbor 1.1.1.1 auth md5 password 0 pwd2
Configure the MD5 authentication and password, pwd2, for the targeted peer, 1.1.1.1.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
(config)#interface eth1
Specify the interface (eth1) to be configured.
(config-if)#label-switching
Enable label switching on interface eth1.
(config-if)#enable-ldp ipv4
Enable LDP on interface eth1.
(config-if)#exit
Exit interface mode.
Last modified date: 07/13/2023
