Removing MD5 Authentication for LDP Session
This example shows removing the MD5 authentication configuration from an LDP session.

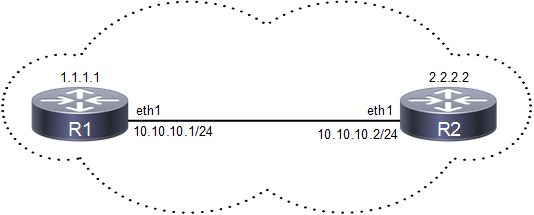

Figure 6-4: LDP Session Topology
R1

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode.
(config-router)#no neighbor 10.10.10.2 auth md5 password 0
Remove MD5 authentication for the neighbor, 10.10.10.2.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
R2

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode.
(config-router)#no neighbor 10.10.10.1 auth md5 password 0
Remove MD5 authentication for the neighbor, 10.10.10.1.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
Validation for LDP Session Count
This example shows the number of configured LDP basic neighbors and targeted neighbors count.
#show ldp session count
--------------------------------------------
Multicast Peers : 1 [UP: 1]
Targeted Peers : 1 [UP: 1]
Total Sessions : 2 [UP: 2]
--------------------------------------------

#show ldp targeted-peer count
-------------------------------------------------
Num Targeted Peers: 500 [UP: 500]
-------------------------------------------------
Validation for FTN, SWAP, and POP Entries
This example shows forwarding table entries, SWAP entries and POP entries for IPV4 and IPV6 prefixes.
#show mpls forwarding-table count
---------------------------------------------
Num FTNs : 3 [UP: 3, INSTALLED: 3]
Primary FTNs : 3 [UP: 3, INSTALLED: 3]
Secondary FTNs : 0 [UP: 0, INSTALLED: 0]
---------------------------------------------
---------------------------------------------
Num IPV6 FTNs : 0 [UP: 0, INSTALLED: 0]
Primary IPV6 FTNs : 0 [UP: 0, INSTALLED: 0]
Secondary IPV6 FTNs : 0 [UP: 0, INSTALLED: 0]
---------------------------------------------

#show mpls ilm-table count
--------------------------------------------
Num ILMs : 3 [UP: 3, INSTALL: 3]
Swap Entries : 3 [UP: 3, INSTALL: 3]
Pop Entries : 0 [UP: 0, INSTALL: 0]
VC Pop Entries : 0 [UP: 0]
--------------------------------------------
