ACL OVER VTY
• When a telnet or ssh connection is made the OcNOS associates this connection with a virtual terminal (VTY) line. ACL over vty feature provides security for management features associated with vty.
Note: Refer to command reference section for limitation, default behavior, and not supported features.
Topology

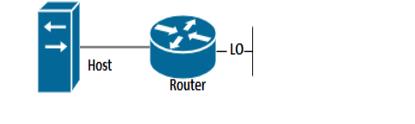

Figure 21-33: ACL VTY Topology
VTY ACL Configuration
#configure terminal | Enter configure mode. |
(config)#interface lo | Enter interface mode. |
(config-if)#ip address 3.3.3.3/32 secondary | Assign the IPv4 secondary address. |
(config-if)#ip address 4.4.4.4/32 secondary | Assign the IPv4 secondary address. |
(config-if)#ip address 5.5.5.5/32 secondary | Assign the IPv4 secondary address. |
(config-if)#ip address 6.6.6.6/32 secondary | Assign the IPv4 secondary address. |
(config-if)#ip address 7.7.7.7/32 secondary | Assign the IPv4 secondary address. |
(config-if)#exit | Exit interface mode. |
(config)#ip access-list vty | Create loopback access list |
(config-ip-acl)#10 permit tcp any host 3.3.3.3 eq telnet | Permit telnet session from any source with specific destination. |
(config-ip-acl)#20 deny tcp any host 4.4.4.4 eq telnet | Deny telnet session from any source with specific destination. |
(config-ip-acl)#30 permit tcp any host 5.5.5.5 eq ssh | Permit ssh session from any source with specific destination. |
(config-ip-acl)#40 deny tcp any host 6.6.6.6 eq ssh | Deny ssh session from any source with specific destination. |
(config-ip-acl)#50 deny udp any host 6.6.6.6 eq snmp | Deny udp from any source with specific destination. |
(config-ip-acl)#60 deny udp any host 7.7.7.7 eq ntp | Deny udp from any source with specific destination. |
(config-ip-acl)#exit | Exit interface acl mode |
(config)#line vty | Enter interface vty mode |
(config-all-line)#ip access-group vty in | Associate acl over |
(config-if)#end | Exit interface mode |
(config)#exit | Exit config mode |
Validation
OcNOS#sh access-lists
IP access list vty
10 permit tcp any host 3.3.3.3 eq telnet [match=53]
20 deny tcp any host 4.4.4.4 eq telnet
30 permit tcp any host 5.5.5.5 eq ssh
40 deny tcp any host 6.6.6.6 eq ssh [match=4]
50 deny udp any host 6.6.6.6 eq snmp
60 deny udp any host 7.7.7.7 eq ntp
OcNOS#sh ip access-lists summary
IPV4 ACL vty
statistics enabled
Total ACEs Configured: 6
Configured on interfaces:
Active on interfaces:
Configured on line vty:
all vty lines - ingress
OcNOS#sh running-config ac
access-list aclmgr
OcNOS#sh running-config aclmgr
ip access-list vty
10 permit tcp any host 3.3.3.3 eq telnet
20 deny tcp any host 4.4.4.4 eq telnet
30 permit tcp any host 5.5.5.5 eq ssh
40 deny tcp any host 6.6.6.6 eq ssh
50 deny udp any host 6.6.6.6 eq snmp
60 deny udp any host 7.7.7.7 eq ntp
!
line vty
ip access-group vty in
