Seamless BFD for SR-TE
This chapter shows how to configure seamless bfd and how to use isis to advertise local-discriminators. Bidirectional Forwarding Detection (BFD) is a detection protocol designed to provide fast forwarding path failure detection times for all media types, encapsulations, topologies, and routing protocols.
Seamless Bidirectional Forwarding Detection (S-BFD), is a simplified mechanism for using BFD with a large proportion of negotiation aspects eliminated, thus providing benefits such as quick provisioning, as well as improved control and flexibility for network nodes initiating path monitoring. If SBFD session fails, S-BFD does not bring down the SR-TE session. SBFD also provides faster session bring up due to less control packets exchange. S-BFD does not help in bringing up SR-TE session quickly. The BFD state is only maintained at head end thereby reducing overhead.
Topology
In Figure :
• "L1" means ISIS routers in Level-1
• "L2" means ISIS routers in Level-2
• "L1/L2" means ISIS routers in both Level-1 and Level-2
Configure a prefix SID on any router directly attached to that network prefix.

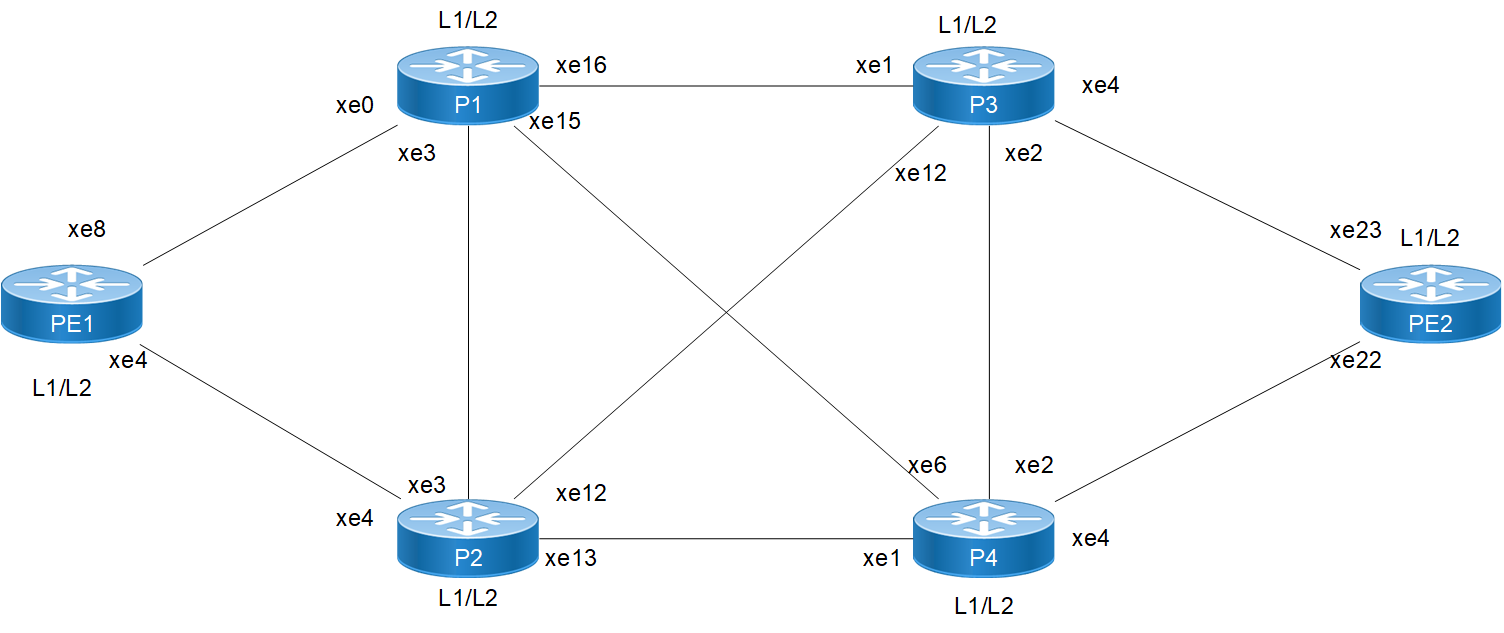

BFD for ISIS Segment Routing Topology
Note:
• You must ensure that prefix SIDs are unique globally.
• You can use the pure L1 or L2 routers throughout your SR domain.
Configuration
PE1
PE1#configure terminal | Enter the configure mode. |
PE1(config)#segment-routing | Enable Segment Routing |
PE1(config-sr)#traffic-engineering | Segment routing traffic engineering |
PE1(config-sr-te)#segment-list PE3 | Segment List configuration |
PE1(config-sr-sl)#index 30 segment-type-1 16700 | Specify the entry index, Segment-descriptor type: SR-MPLS Label and Label value |
PE1(config-sr-sl)#exit-sr-sl | Exit from segment-list configuration mode |
PE1(config-sr-te)#policy ocnos | Policy configuration and Policy Name |
PE1(config-sr-pol)#color 201 end-point 10.0.1.33 | SR Policy color, color value, SR Policy end-point and IPv4 address |
PE1(config-sr-pol)#candidate-path 1 | SR policy candidate path and Identifier value for candidate path |
PE1(config-sr-pol-cp)#preference 200 | Candidate Path preference Preference value for candidate path (Default is : 100 ) |
PE1(config-sr-pol-cp)#explicit segment-list PE3 | Explicit candidate path, Segment-list for the path and Name of the SID List |
PE1(config-sr-pol-cp)#exit-pol-cp | Exit from SR policy candidate path configuration mode |
PE1(config-sr-pol)# exit-sr-pol | Exit from policy |
PE1(config-sr-te)#exit-te | Exit from traffic engineering configuration mode |
PE1(config-sr)# commit | Commit the candidate configuration to the running configuration |
PE1(config)#s-bfd sr policy ocnos | Seamless-Bidirectional Forwarding Detection, SR type LSP, Policy Name and Input the name of the SR-policy |
PE1 (config-sbfd)#min-tx 40 multiplier 40 | Set S-BFD Min Tx interval; Default : 10ms and Set S-BFD Detection Multiplier; Default : 5 |
PE1 (config-sbfd)#commit | Commit the candidate configuration to the running configuration |
PE1(config)#interface lo | Enter interface mode. |
PE1(config-if)#ip address 10.0.1.11/32 secondary | Configure the IP address of the interface. |
PE1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis isis1 instance. |
PE1(config-if)# prefix-sid index 100 no-php | Configure prefix sid index value with no-php. |
PE1(config-if)#exit | Exit interface mode. |
PE1(config)#commit | Commit the candidate configuration to the running configuration |
PE1(config)#interface xe8 | Enter interface mode. |
PE1(config-if)#ip address 10.11.1.1/30 | Configure the IP address of the interface. |
PE1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
PE1(config-if)#label-switching | Enable label switching. |
PE1(config-if)#exit | Exit interface mode. |
PE1(config)#commit | Commit the candidate configuration to the running configuration |
PE1(config)#interface xe4 | Enter interface mode. |
PE1(config-if)#ip address 10.11.2.1/30 | Configure the IP address of the interface. |
PE1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
PE1(config-if)#label-switching | Enable label switching. |
PE1(config-if)#exit | Exit interface mode. |
PE1(config)#commit | Commit the candidate configuration to the running configuration |
PE1(config)#router isis isis1 | Set the routing process ID . |
PE1(config-router)#metric-style wide | Configure metric style as wide. |
PE1(config-router)#is-type level-1-2 | Configure is-type with level-1-2. |
PE1(config-router)#net 49.0000.0100.0000.1011.00 | Configure Network entity title (NET). |
PE1(config-router)#mpls traffic-eng level-1 | Enable MPLS Traffic Engineering as level-1. |
PE1(config-router)#mpls traffic-eng level-2 | Enable MPLS Traffic Engineering as level-2. |
PE1(config-router)# dynamic-hostname | Enable dynamic-hostname under ISIS isis1 process. |
PE1(config-router)# isis segment- routing global block 16000 23999 | Enable SRGB under ISIS isis1 process. |
PE1(config-router)#segment-routing mpls | Enable segment routing under router process. |
PE1(config-router)#exit | Exit router mode. |
PE1(config)#commit | Commit the candidate configuration to the running configuration |
P1
P1#configure terminal | Enter configure mode. |
P1(config)#interface lo | Enter interface mode. |
P1(config-if)#ip address 10.0.1.1/32 secondary | Configure the IP address of the interface. |
P1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P1(config-if)# prefix-sid index 300 no-php | Configure prefix sid index value with no-php. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration |
P1(config)#interface xe0 | Enter interface mode. |
P1(config-if)#ip address 10.11.1.2/30 | Configure the IP address of the interface. |
P1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P1(config-if)#label-switching | Enable label switching. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration |
P1(config)#interface xe3 | Enter interface mode. |
P1(config-if)#ip address 10.1.2.2/30 | Configure the IP address of the interface. |
P1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P1(config-if)#label-switching | Enable label switching. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration |
P1(config)#interface xe15 | Enter interface mode. |
P1(config-if)#ip address 10.4.1.1/30 | Configure the IP address of the interface. |
P1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P1(config-if)#label-switching | Enable label switching. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration |
P1(config)#interface xe16 | Enter interface mode. |
P1(config-if)#ip address 10.1.1.1/30 | Configure the IP address of the interface. |
P1(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P1(config-if)#label-switching | Enable label switching. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration |
P1(config)#router isis isis1 | Set the routing process ID . |
P1(config-router)#metric-style wide | Configure metric style as wide. |
P1(config-router)#is-type level-1-2 | Configure is-type with level-1-2. |
P1(config-router)#net 49.0000.0100.0000.1001.00 | Configure Network entity title (NET). |
P1(config-router)#mpls traffic-eng level-1 | Enable MPLS Traffic Engineering as level-1. |
P1(config-router)#mpls traffic-eng level-2 | Enable MPLS Traffic Engineering as level-2. |
P1(config-router)#dynamic-hostname | Enable dynamic-hostname under ISIS isis1 process. |
P1(config-router)# isis segment-routing global block 16000 23999 | Enable SRGB under ISIS isis1 process. |
P1(config-router)#segment-routing mpls | Enable segment routing under router process. |
P1(config-router)#exit | Exit router mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration |
P2
P2#configure terminal | Enter configure mode. |
P2(config)#s-bfd discriminator 10.0.1.2 | Discriminator value for reflector |
P2(config)#commit | Commit the candidate configuration to the running configuration |
P2(config)#interface lo | Enter interface mode. |
P2(config-if)#ip address 10.0.1.2/32 secondary | Configure the IP address of the interface. |
P2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P2(config-if)# prefix-sid index 400 no-php | Configure prefix sid index value with no php. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#commit | Commit the candidate configuration to the running configuration |
P2(config)#interface xe3 | Enter interface mode. |
P2(config-if)# ip address 10.1.2.1/30 | Configure the IP address of the interface. |
P2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P2(config-if)#label-switching | Enable label switching. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#interface xe4 | Enter interface mode. |
P2(config-if)#ip address 10.11.2.2/30 | Configure the IP address of the interface. |
P2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P2(config-if)#label-switching | Enable label switching. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#commit | Commit the candidate configuration to the running configuration |
P2(config)#interface xe12 | Enter interface mode. |
P2(config-if)#ip address 10.2.1.1/30 | Configure the IP address of the interface. |
P2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P2(config-if)#label-switching | Enable label switching. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#commit | Commit the candidate configuration to the running configuration |
P2(config)#interface xe13 | Enter interface mode. |
P2(config-if)#ip address 10.4.2.2/30 | Configure the IP address of the interface. |
P2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P2(config-if)#label-switching | Enable label switching. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#commit | Commit the candidate configuration to the running configuration |
P2(config)#router isis isis1 | Set the routing process ID . |
P2(config-router)#metric-style wide | Configure metric style as wide. |
P2(config-router)#is-type level-1-2 | Configure is-type with level-1-2. |
P2(config-router)#net 49.0000.0100.0000.1002.00 | Configure Network entity title (NET). |
P2(config-router)#mpls traffic-eng level-1 | Enable MPLS Traffic Engineering as level-1. |
P2(config-router)#mpls traffic-eng level-2 | Enable MPLS Traffic Engineering as level-2 as well. |
P2 (config-router)#dynamic-hostname | Enable dynamic-hostname under ISIS isis1 process. |
P2(config-router)#isis segment-routing global block 16000 23999 | Enable SRGB under ISIS isis1 process. |
P2(config-router)#segment-routing mpls | Enable segment routing under router process. |
P2(config-router)#exit | Exit router mode. |
P2(config)#commit | Commit the candidate configuration to the running configuration |
P3
P3#configure terminal | Enter configure mode. |
P3(config)#s-bfd discriminator 10.0.1.3 | Discriminator value for reflector |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P3(config)#interface lo | Enter interface mode. |
P3(config-if)#ip address 10.0.1.3/32 secondary | Configure the IP address of the interface. |
P3(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P3(config-if)#prefix-sid index 500 no-php | Configure prefix sid index value with no php. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P3(config)#interface xe1 | Enter interface mode. |
P3(config-if)#ip address 10.1.1.2/30 | Configure the IP address of the interface. |
P3(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P3(config-if)#label-switching | Enable label switching. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P3(config)#interface xe2 | Enter interface mode. |
P3(config-if)#ip address 10.3.2.1/30 | Configure the IP address of the interface. |
P3(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P3(config-if)#label-switching | Enable label switching. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P3(config)#interface xe4 | Enter interface mode. |
P3(config-if)#ip address 10.33.1.2/30 | Configure the IP address of the interface. |
P3(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P3(config-if)#label-switching | Enable label switching. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P3(config)#interface xe12 | Enter interface mode. |
P3(config-if)#ip address 10.2.1.2/30 | Configure the IP address of the interface. |
P3(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P3(config-if)#label-switching | Enable label switching. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P3(config)#router isis isis1 | Set the routing process ID . |
P3(config-router)#metric-style wide | Configure metric style as wide. |
P3(config-router)#is-type level-1-2 | Configure is-type with level-1-2. |
P3(config-router)#net 49.0000.0100.0000.1003.00 | Configure Network entity title (NET). |
P3(config-router)#mpls traffic-eng level-1 | Enable MPLS Traffic Engineering as level-1. |
P3(config-router)#mpls traffic-eng level-2 | Enable MPLS Traffic Engineering as level-2 as well. |
P3(config-router)#dynamic-hostname | Enable dynamic-hostname under ISIS isis1 process. |
P3(config-router)#isis segment-routing global block 16000 23999 | Enable SRGB under ISIS isis1 process. |
P3(config-router)#segment-routing mpls | Enable segment routing under router process. |
P3(config-router)#exit | Exit router mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration |
P4
P4#configure terminal | Enter configure mode. |
P4(config)#s-bfd discriminator 10.0.1.4 | Discriminator value for reflector |
P4(config)#commit | Commit the candidate configuration to the running configuration |
P4(config)#interface lo | Enter interface mode. |
P4(config-if)#ip address 10.0.1.4/32 secondary | Configure the IP address of the interface. |
P4(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P4(config-if)# prefix-sid index 600 no-php | Configure prefix sid index value with no php. |
P4(config-if)#exit | Exit interface mode. |
P4(config)#commit | Commit the candidate configuration to the running configuration |
P4(config)#interface xe1 | Enter interface mode. |
P4(config-if)#ip address 10.4.2.1/30 | Configure the IP address of the interface. |
P4(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P4(config-if)#label-switching | Enable label switching. |
P4(config-if)#exit | Exit interface mode. |
P4(config)#interface xe2 | Enter interface mode. |
P4(config-if)#ip address 10.3.2.2/30 | Configure the IP address of the interface. |
P4(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P4(config-if)#label-switching | Enable label switching. |
P4(config-if)#exit | Exit interface mode. |
P4(config)#commit | Commit the candidate configuration to the running configuration |
P4(config)#interface xe4 | Enter interface mode. |
P4(config-if)#ip address 10.44.5.1/30 | Configure the IP address of the interface. |
P4(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P4(config-if)#label-switching | Enable label switching. |
P4(config-if)#exit | Exit interface mode. |
P4(config)#commit | Commit the candidate configuration to the running configuration |
P4(config)#interface xe6 | Enter interface mode. |
P4(config-if)#ip address 10.4.1.2/30 | Configure the IP address of the interface. |
P4(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
P4(config-if)#label-switching | Enable label switching. |
P4(config-if)#exit | Exit interface mode. |
P4(config)#commit | Commit the candidate configuration to the running configuration |
P4(config)#router isis isis1 | Set the routing process ID . |
P4(config-router)#metric-style wide | Configure metric style as wide. |
P4(config-router)#is-type level-1-2 | Configure is-type with level-1-2. |
P4(config-router)#net 49.0000.0100.0000.1004.00 | Configure Network entity title (NET). |
P4(config-router)#mpls traffic-eng level-1 | Enable MPLS Traffic Engineering as level-1. |
P4(config-router)#mpls traffic-eng level-2 | Enable MPLS Traffic Engineering as level-2 as well. |
P4(config-router)#dynamic-hostname | Enable dynamic-hostname under ISIS isis1 process. |
P4(config-router)#isis segment-routing global block 16000 23999 | Enable SRGB under ISIS isis1 process. |
P4(config-router)#segment-routing mpls | Enable segment routing under router process. |
P4(config-router)#exit | Exit router mode. |
P4(config)#commit | Commit the candidate configuration to the running configuration |
PE2
PE2#configure terminal | Enter configure mode. |
PE2(config)#s-bfd discriminator 10.0.1.33 | Discriminator value for reflector |
PE2(config)#commit | Commit the candidate configuration to the running configuration |
PE2(config)#interface lo | Enter interface mode. |
PE2(config-if)#ip address 10.0.1.33/32 secondary | Configure the IP address of the interface. |
PE2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
PE2(config-if)# prefix-sid index 700 no-php | Configure prefix sid index value with no-php. |
PE2(config-if)#exit | Exit interface mode. |
PE2(config)#commit | Commit the candidate configuration to the running configuration |
PE2(config)#interface xe22 | Enter interface mode. |
PE2(config-if)#ip address 10.44.5.2/30 | Configure the IP address of the interface. |
PE2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
PE2(config-if)#label-switching | Enable label switching. |
PE2(config-if)#exit | Exit interface mode. |
PE2(config)#commit | Commit the candidate configuration to the running configuration |
PE2(config)#interface xe23 | Enter interface mode. |
PE2(config-if)#ip address 10.33.1.1/30 | Configure the IP address of the interface. |
PE2(config-if)#ip router isis isis1 | Make the interface part of the router isis isis1 instance. |
PE2(config-if)#label-switching | Enable label switching. |
PE2(config-if)#exit | Exit interface mode. |
PE2(config)#commit | Commit the candidate configuration to the running configuration |
PE2(config)#router isis isis1 | Set the routing process ID . |
PE2(config-router)#metric-style wide | Configure metric style as wide. |
PE2(config-router)#is-type level-1-2 | Configure is-type with level-1-2. |
PE2(config-router)#net 49.0000.0100.0000.1033.00 | Configure Network entity title (NET). |
PE2(config-router)#mpls traffic-eng level-1 | Enable MPLS Traffic Engineering as level-1. |
PE2(config-router)#mpls traffic-eng level-2 | Enable MPLS Traffic Engineering as level- 2 as well. |
PE2(config-router)#dynamic-hostname | Enable dynamic-hostname under ISIS isis1 process |
PE2(config-router)# isis segment-routing global block 16000 23999 | Enable SRGB under ISIS isis1 process. |
PE2(config-router)#segment-routing mpls | Enable segment routing under router process. |
PE2(config-router)#exit | Exit router mode. |
PE2(config)#commit | Commit the candidate configuration to the running configuration |
Note: By default, PHP is enabled, to see all the labels in MPLS forwarding and ILM table we have enabled with non- php option.
Validation
Validation 1
PE2-7048#show bfd session
BFD process for VRF: (DEFAULT VRF)
=====================================================================================
Sess-Idx Remote-Disc Lower-Layer Sess-Type Sess-State UP-Time Interface Down-Reason Remote-Addr
1281 45.45.45.45 MPLS LSP Single-Hop Up 00:01:15 po1.10 NA 45.45.45.45/32
Number of Sessions: 1
PE2-7048#show segment-routing policy detail
Policy-Name: 1 Color 1 End-point 45.45.45.45 Tunnel-ID: 1
Admin-Status: UP Oper-Status: UP for 00:01:13
State Transition Count: 1
CSPF Retry Limit: 100 CSPF Retry Interval: 10
S-BFD is enabled.
Binding SID :
BSID: 25600
Alloc mode: Dynamic
Oper State: Programmed
CP ID: 1, Active
Preference: 300 Path Type: Explicit CP Origin: Local
CP state: Valid
Segment List:
Total no. of segments: 2
Segment0[LABEL]: Label :16042
Segment1[LABEL]: Label :16045
Out-if: po1.10 Out-label-stack: 3/16045
Backup ftn_ix: 6 (calculated based on s-bfd)
Attributes:
Configured:
Explicit segment-list Name: 48-42
Last Recorded Error: Next-hop resolution failed for SID-LIST, 00:02:15 ago
CP ID: 2, S-BFD backup
Preference: 100 Path Type: Explicit CP Origin: Local
CP state: Valid
Segment List:
Total no. of segments: 2
Segment0[LABEL]: Label :16043
Segment1[LABEL]: Label :16045
Out-if: xe0 Out-label-stack: 3/16045
Attributes:
Configured:
Explicit segment-list Name: 48-43
Last Recorded Error: Next-hop resolution failed for SID-LIST, 00:02:15 ago
Verify ISIS neighbor adjacency between routers.
PE1#show clns neighbors
Total number of L1 adjacencies: 2
Total number of L2 adjacencies: 2
Total number of adjacencies: 4
Tag isis1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
P2 xe4 e8c5.7a79.5722 Up 20 L1 IS-IS
Up 20 L2 IS-IS
P1 xe8 9819.2ca4.1c04 Up 20 L1 IS-IS
Up 20 L2 IS-IS
P1#sh clns neighbors
Total number of L1 adjacencies: 4
Total number of L2 adjacencies: 4
Total number of adjacencies: 8
Tag isis1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
PE1 xe0 e8c5.7a90.cc76 Up 8 L1 IS-IS
Up 8 L2 IS-IS
P2 xe3 e8c5.7a79.5721 Up 9 L1 IS-IS
Up 9 L2 IS-IS
P4 xe15 903c.b32e.0349 Up 28 L1 IS-IS
Up 28 L2 IS-IS
P3 xe16 e8c5.7a8b.a81f Up 9 L1 IS-IS
Up 9 L2 IS-IS
P2#show clns neighbors
Total number of L1 adjacencies: 4
Total number of L2 adjacencies: 4
Total number of adjacencies: 8
Tag isis1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
P1 xe3 9819.2ca4.1c07 Up 22 L1 IS-IS
Up 22 L2 IS-IS
PE1 xe4 e8c5.7a90.cc72 Up 6 L1 IS-IS
Up 6 L2 IS-IS
P3 xe12 e8c5.7a8b.a82a Up 6 L1 IS-IS
Up 6 L2 IS-IS
P4 xe13 903c.b32e.0344 Up 22 L1 IS-IS
Up 22 L2 IS-IS
P2#
P3#sh clns neighbors
Total number of L1 adjacencies: 4
Total number of L2 adjacencies: 4
Total number of adjacencies: 8
Tag isis1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
P1 xe1 9819.2ca4.1c14 Up 28 L1 IS-IS
Up 28 L2 IS-IS
P4 xe2 903c.b32e.0345 Up 28 L1 IS-IS
Up 28 L2 IS-IS
PE2 xe4 80a2.35ec.d679 Up 27 L1 IS-IS
Up 27 L2 IS-IS
P2 xe12 e8c5.7a79.572a Up 27 L1 IS-IS
Up 27 L2 IS-IS
P3#
P4#sh clns neighbors
Total number of L1 adjacencies: 4
Total number of L2 adjacencies: 4
Total number of adjacencies: 8
Tag isis1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
P2 xe1 e8c5.7a79.572b Up 6 L1 IS-IS
Up 6 L2 IS-IS
P3 xe2 e8c5.7a8b.a820 Up 6 L1 IS-IS
Up 6 L2 IS-IS
PE2 xe4 80a2.35ec.d678 Up 25 L1 IS-IS
Up 25 L2 IS-IS
P1 xe6 9819.2ca4.1c13 Up 6 L1 IS-IS
Up 6 L2 IS-IS
P4#
PE2#show clns neighbors
Total number of L1 adjacencies: 2
Total number of L2 adjacencies: 2
Total number of adjacencies: 4
Tag isis1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
P4 xe22 903c.b32e.0347 Up 5 L1 IS-IS
Up 5 L2 IS-IS
P3 xe23 e8c5.7a8b.a822 Up 5 L1 IS-IS
Up 5 L2 IS-IS
PE2#
Validation-2
The command output below displays the details of routers configured with segment routing.
PE1#show isis segment-routing capability
Tag isis1 Segment-Routing:
-----------------------------------------------------
Advertisement Router Capability :10.0.1.1
Algorithm0 :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.2
Algorithm0 :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.3
Algorithm0 :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.4
Algorithm0 :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.11
Algorithm0 :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.33
Algorithm0 :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
PE1#
PE1#
PE1#
PE1#sh isis segment-routing state
Tag isis1 Segment-Routing:
SR State: SR_ENABLED
SRGB Start: 16000, SRGB Range: 8000
Operational state: enabled
PE1#
Validation 3
Verify that segment routing information is present in ISIS database.
PE1#show isis database verbose
Tag isis1: VRF : default
IS-IS Level-1 Link State Database:
LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL
P1.00-00 0x00000004 0x8CE8 825 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P1
IP Address: 10.0.1.1
Router ID: 10.0.1.1
Router Cap: 10.0.1.1
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.1
Metric: 10 IS-Extended P2.05
IPv4 Interface Address: 10.1.2.2
Neighbor IP Address: 10.1.2.1
Maximum Link Bandwidth: 25g
Reservable Bandwidth: 25g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 25g
Unreserved Bandwidth at priority 1: 25g
Unreserved Bandwidth at priority 2: 25g
Unreserved Bandwidth at priority 3: 25g
Unreserved Bandwidth at priority 4: 25g
Unreserved Bandwidth at priority 5: 25g
Unreserved Bandwidth at priority 6: 25g
Unreserved Bandwidth at priority 7: 25g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.02
IPv4 Interface Address: 10.1.1.1
Neighbor IP Address: 10.1.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P1.04
IPv4 Interface Address: 10.4.1.1
Neighbor IP Address: 10.4.1.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended PE1.03
IPv4 Interface Address: 10.11.1.2
Neighbor IP Address: 10.11.1.1
Maximum Link Bandwidth: 25g
Reservable Bandwidth: 25g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 25g
Unreserved Bandwidth at priority 1: 25g
Unreserved Bandwidth at priority 2: 25g
Unreserved Bandwidth at priority 3: 25g
Unreserved Bandwidth at priority 4: 25g
Unreserved Bandwidth at priority 5: 25g
Unreserved Bandwidth at priority 6: 25g
Unreserved Bandwidth at priority 7: 25g
TE-Default Metric: 10
System-ID: 0100.0000.1011 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.11.1.0/30
Metric: 10 IP-Extended 10.1.2.0/30
Metric: 10 IP-Extended 10.4.1.0/30
Metric: 10 IP-Extended 10.1.1.0/30
P1.04-00 0x00000001 0xCBC6 796 0/0/0
Metric: 0 IS-Extended P1.00
Metric: 0 IS-Extended P4.00
P2.00-00 0x00000004 0x2EA9 824 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P2
IP Address: 10.0.1.2
Router ID: 10.0.1.2
Router Cap: 10.0.1.2
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.2
Metric: 10 IS-Extended P2.04
IPv4 Interface Address: 10.4.2.2
Neighbor IP Address: 10.4.2.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.06
IPv4 Interface Address: 10.2.1.1
Neighbor IP Address: 10.2.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended PE1.04
IPv4 Interface Address: 10.11.2.2
Neighbor IP Address: 10.11.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1011 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P2.05
IPv4 Interface Address: 10.1.2.1
Neighbor IP Address: 10.1.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.1.2.0/30
Metric: 10 IP-Extended 10.11.2.0/30
Metric: 10 IP-Extended 10.2.1.0/30
Metric: 10 IP-Extended 10.4.2.0/30
P2.04-00 0x00000001 0xCCC3 796 0/0/0
Metric: 0 IS-Extended P2.00
Metric: 0 IS-Extended P4.00
P2.05-00 0x00000001 0x8909 796 0/0/0
Metric: 0 IS-Extended P2.00
Metric: 0 IS-Extended P1.00
P3.00-00 0x00000004 0x4651 824 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P3
IP Address: 10.0.1.3
Router ID: 10.0.1.3
Router Cap: 10.0.1.3
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.3
Metric: 10 IS-Extended P3.04
IPv4 Interface Address: 10.33.1.2
Neighbor IP Address: 10.33.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1033 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.06
IPv4 Interface Address: 10.2.1.2
Neighbor IP Address: 10.2.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.02
IPv4 Interface Address: 10.1.1.2
Neighbor IP Address: 10.1.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.03
IPv4 Interface Address: 10.3.2.1
Neighbor IP Address: 10.3.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.1.1.0/30
Metric: 10 IP-Extended 10.3.2.0/30
Metric: 10 IP-Extended 10.33.1.0/30
Metric: 10 IP-Extended 10.33.44.0/30
Metric: 10 IP-Extended 10.2.1.0/30
P3.02-00 0x00000001 0x9FF3 797 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended P1.00
P3.03-00 0x00000001 0xD4BA 796 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended P4.00
P3.04-00 0x00000001 0x7DE1 797 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended PE2.00
P3.06-00 0x00000001 0x97F6 796 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended P2.00
P4.00-00 0x00000004 0x1369 825 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P4
IP Address: 10.0.1.4
Router ID: 10.0.1.4
Router Cap: 10.0.1.4
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.4
Metric: 10 IS-Extended P2.04
IPv4 Interface Address: 10.4.2.1
Neighbor IP Address: 10.4.2.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P1.04
IPv4 Interface Address: 10.4.1.2
Neighbor IP Address: 10.4.1.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.03
IPv4 Interface Address: 10.3.2.2
Neighbor IP Address: 10.3.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P4.03
IPv4 Interface Address: 10.44.5.1
Neighbor IP Address: 10.44.5.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1033 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.4.2.0/30
Metric: 10 IP-Extended 10.3.2.0/30
Metric: 10 IP-Extended 10.44.5.0/30
Metric: 10 IP-Extended 10.4.1.0/30
P4.03-00 0x00000001 0x85D8 796 0/0/0
Metric: 0 IS-Extended P4.00
Metric: 0 IS-Extended PE2.00
PE1.00-00 * 0x00000004 0x119E 825 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: PE1
IP Address: 10.0.1.11
Router ID: 10.0.1.11
Router Cap: 10.0.1.11
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
Metric: 10 IS-Extended PE1.04
IPv4 Interface Address: 10.11.2.1
Neighbor IP Address: 10.11.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 26240 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended PE1.03
IPv4 Interface Address: 10.11.1.1
Neighbor IP Address: 10.11.1.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 26241 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.11.2.0/30
Metric: 10 IP-Extended 10.11.22.0/30
Metric: 10 IP-Extended 10.11.1.0/30
PE1.03-00 * 0x00000001 0xA6CF 797 0/0/0
Metric: 0 IS-Extended PE1.00
Metric: 0 IS-Extended P1.00
PE1.04-00 * 0x00000001 0xB3C0 797 0/0/0
Metric: 0 IS-Extended PE1.00
Metric: 0 IS-Extended P2.00
PE2.00-00 0x00000005 0x076F 930 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: PE2
IP Address: 10.0.1.33
Router ID: 10.0.1.33
Router Cap: 10.0.1.33
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.33
Metric: 10 IS-Extended P4.03
IPv4 Interface Address: 10.44.5.2
Neighbor IP Address: 10.44.5.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 25600 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.04
IPv4 Interface Address: 10.33.1.1
Neighbor IP Address: 10.33.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 25601 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:0 N:1 P:0 E:0 V:0 L:0
Metric: 10 IP-Extended 10.44.5.0/30
Metric: 10 IP-Extended 10.33.1.0/30
IS-IS Level-2 Link State Database:
LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL
P1.00-00 0x00000007 0x8175 931 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P1
IP Address: 10.0.1.1
Router ID: 10.0.1.1
Router Cap: 10.0.1.1
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.1
Metric: 10 IS-Extended P2.05
IPv4 Interface Address: 10.1.2.2
Neighbor IP Address: 10.1.2.1
Maximum Link Bandwidth: 25g
Reservable Bandwidth: 25g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 25g
Unreserved Bandwidth at priority 1: 25g
Unreserved Bandwidth at priority 2: 25g
Unreserved Bandwidth at priority 3: 25g
Unreserved Bandwidth at priority 4: 25g
Unreserved Bandwidth at priority 5: 25g
Unreserved Bandwidth at priority 6: 25g
Unreserved Bandwidth at priority 7: 25g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.02
IPv4 Interface Address: 10.1.1.1
Neighbor IP Address: 10.1.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P1.04
IPv4 Interface Address: 10.4.1.1
Neighbor IP Address: 10.4.1.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended PE1.03
IPv4 Interface Address: 10.11.1.2
Neighbor IP Address: 10.11.1.1
Maximum Link Bandwidth: 25g
Reservable Bandwidth: 25g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 25g
Unreserved Bandwidth at priority 1: 25g
Unreserved Bandwidth at priority 2: 25g
Unreserved Bandwidth at priority 3: 25g
Unreserved Bandwidth at priority 4: 25g
Unreserved Bandwidth at priority 5: 25g
Unreserved Bandwidth at priority 6: 25g
Unreserved Bandwidth at priority 7: 25g
TE-Default Metric: 10
System-ID: 0100.0000.1011 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.11.1.0/30
Metric: 10 IP-Extended 10.1.2.0/30
Metric: 10 IP-Extended 10.4.1.0/30
Metric: 10 IP-Extended 10.1.1.0/30
Metric: 20 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:1 N:0 P:0 E:0 V:0 L:0
Metric: 20 IP-Extended 10.2.1.0/30
Metric: 20 IP-Extended 10.3.2.0/30
Metric: 20 IP-Extended 10.4.2.0/30
Metric: 20 IP-Extended 10.11.2.0/30
Metric: 20 IP-Extended 10.11.22.0/30
Metric: 20 IP-Extended 10.33.1.0/30
Metric: 20 IP-Extended 10.33.44.0/30
Metric: 20 IP-Extended 10.44.5.0/30
P1.04-00 0x00000001 0xCBC6 796 0/0/0
Metric: 0 IS-Extended P1.00
Metric: 0 IS-Extended P4.00
P2.00-00 0x00000008 0x7B45 931 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P2
IP Address: 10.0.1.2
Router ID: 10.0.1.2
Router Cap: 10.0.1.2
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.2
Metric: 10 IS-Extended P3.06
IPv4 Interface Address: 10.2.1.1
Neighbor IP Address: 10.2.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P2.04
IPv4 Interface Address: 10.4.2.2
Neighbor IP Address: 10.4.2.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P2.05
IPv4 Interface Address: 10.1.2.1
Neighbor IP Address: 10.1.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended PE1.04
IPv4 Interface Address: 10.11.2.2
Neighbor IP Address: 10.11.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1011 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.1.2.0/30
Metric: 10 IP-Extended 10.11.2.0/30
Metric: 10 IP-Extended 10.2.1.0/30
Metric: 10 IP-Extended 10.4.2.0/30
Metric: 20 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:1 N:0 P:0 E:0 V:0 L:0
Metric: 20 IP-Extended 10.1.1.0/30
Metric: 20 IP-Extended 10.3.2.0/30
Metric: 20 IP-Extended 10.4.1.0/30
Metric: 20 IP-Extended 10.11.1.0/30
Metric: 20 IP-Extended 10.11.22.0/30
Metric: 20 IP-Extended 10.33.1.0/30
Metric: 20 IP-Extended 10.33.44.0/30
Metric: 20 IP-Extended 10.44.5.0/30
P2.04-00 0x00000001 0xCCC3 796 0/0/0
Metric: 0 IS-Extended P2.00
Metric: 0 IS-Extended P4.00
P2.05-00 0x00000001 0x8909 796 0/0/0
Metric: 0 IS-Extended P2.00
Metric: 0 IS-Extended P1.00
P3.00-00 0x00000008 0xC9B7 931 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P3
IP Address: 10.0.1.3
Router ID: 10.0.1.3
Router Cap: 10.0.1.3
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.3
Metric: 10 IS-Extended P3.04
IPv4 Interface Address: 10.33.1.2
Neighbor IP Address: 10.33.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1033 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.06
IPv4 Interface Address: 10.2.1.2
Neighbor IP Address: 10.2.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.02
IPv4 Interface Address: 10.1.1.2
Neighbor IP Address: 10.1.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.03
IPv4 Interface Address: 10.3.2.1
Neighbor IP Address: 10.3.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.1.1.0/30
Metric: 10 IP-Extended 10.3.2.0/30
Metric: 10 IP-Extended 10.33.1.0/30
Metric: 10 IP-Extended 10.33.44.0/30
Metric: 10 IP-Extended 10.2.1.0/30
Metric: 20 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:1 N:0 P:0 E:0 V:0 L:0
Metric: 20 IP-Extended 10.44.5.0/30
Metric: 20 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.1.2.0/30
Metric: 20 IP-Extended 10.4.1.0/30
Metric: 20 IP-Extended 10.4.2.0/30
Metric: 20 IP-Extended 10.11.1.0/30
Metric: 20 IP-Extended 10.11.2.0/30
Metric: 30 IP-Extended 10.11.22.0/30
P3.02-00 0x00000001 0x9FF3 796 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended P1.00
P3.03-00 0x00000001 0xD4BA 796 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended P4.00
P3.04-00 0x00000001 0x7DE1 796 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended PE2.00
P3.06-00 0x00000001 0x97F6 796 0/0/0
Metric: 0 IS-Extended P3.00
Metric: 0 IS-Extended P2.00
P4.00-00 0x00000007 0xB896 931 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: P4
IP Address: 10.0.1.4
Router ID: 10.0.1.4
Router Cap: 10.0.1.4
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.4
Metric: 10 IS-Extended P2.04
IPv4 Interface Address: 10.4.2.1
Neighbor IP Address: 10.4.2.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 24320 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P1.04
IPv4 Interface Address: 10.4.1.2
Neighbor IP Address: 10.4.1.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 24323 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.03
IPv4 Interface Address: 10.3.2.2
Neighbor IP Address: 10.3.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 24321 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P4.03
IPv4 Interface Address: 10.44.5.1
Neighbor IP Address: 10.44.5.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1033 LAN Adjacency SID: 24322 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.4.2.0/30
Metric: 10 IP-Extended 10.3.2.0/30
Metric: 10 IP-Extended 10.44.5.0/30
Metric: 10 IP-Extended 10.4.1.0/30
Metric: 20 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:1 N:0 P:0 E:0 V:0 L:0
Metric: 20 IP-Extended 10.1.1.0/30
Metric: 20 IP-Extended 10.1.2.0/30
Metric: 20 IP-Extended 10.2.1.0/30
Metric: 20 IP-Extended 10.11.1.0/30
Metric: 20 IP-Extended 10.11.2.0/30
Metric: 30 IP-Extended 10.11.22.0/30
Metric: 20 IP-Extended 10.33.1.0/30
Metric: 20 IP-Extended 10.33.44.0/30
P4.03-00 0x00000001 0x85D8 796 0/0/0
Metric: 0 IS-Extended P4.00
Metric: 0 IS-Extended PE2.00
PE1.00-00 * 0x00000007 0xCE3C 932 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: PE1
IP Address: 10.0.1.11
Router ID: 10.0.1.11
Router Cap: 10.0.1.11
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
Metric: 10 IS-Extended PE1.04
IPv4 Interface Address: 10.11.2.1
Neighbor IP Address: 10.11.2.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1002 LAN Adjacency SID: 26240 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended PE1.03
IPv4 Interface Address: 10.11.1.1
Neighbor IP Address: 10.11.1.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1001 LAN Adjacency SID: 26241 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:0 N:1 P:1 E:0 V:0 L:0
Metric: 10 IP-Extended 10.11.2.0/30
Metric: 10 IP-Extended 10.11.22.0/30
Metric: 10 IP-Extended 10.11.1.0/30
Metric: 20 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 40 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:1 N:0 P:0 E:0 V:0 L:0
Metric: 20 IP-Extended 10.1.1.0/30
Metric: 20 IP-Extended 10.1.2.0/30
Metric: 20 IP-Extended 10.2.1.0/30
Metric: 30 IP-Extended 10.3.2.0/30
Metric: 20 IP-Extended 10.4.1.0/30
Metric: 20 IP-Extended 10.4.2.0/30
Metric: 30 IP-Extended 10.33.1.0/30
Metric: 30 IP-Extended 10.33.44.0/30
Metric: 30 IP-Extended 10.44.5.0/30
PE1.03-00 * 0x00000001 0xA6CF 797 0/0/0
Metric: 0 IS-Extended PE1.00
Metric: 0 IS-Extended P1.00
PE1.04-00 * 0x00000001 0xB3C0 797 0/0/0
Metric: 0 IS-Extended PE1.00
Metric: 0 IS-Extended P2.00
PE2.00-00 0x00000008 0x9F4C 935 0/0/0
Area Address: 49.0000
NLPID: 0xCC
Hostname: PE2
IP Address: 10.0.1.33
Router ID: 10.0.1.33
Router Cap: 10.0.1.33
SRGB Range: 8000 SRGB Base SID: 16000 I:1 V:0
SR-Algorithm:
Algorithm: 0
SBFD Discriminator: 10.0.1.33
Metric: 10 IS-Extended P4.03
IPv4 Interface Address: 10.44.5.2
Neighbor IP Address: 10.44.5.1
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1004 LAN Adjacency SID: 25600 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IS-Extended P3.04
IPv4 Interface Address: 10.33.1.1
Neighbor IP Address: 10.33.1.2
Maximum Link Bandwidth: 10g
Reservable Bandwidth: 10g
Unreserved Bandwidth:
Unreserved Bandwidth at priority 0: 10g
Unreserved Bandwidth at priority 1: 10g
Unreserved Bandwidth at priority 2: 10g
Unreserved Bandwidth at priority 3: 10g
Unreserved Bandwidth at priority 4: 10g
Unreserved Bandwidth at priority 5: 10g
Unreserved Bandwidth at priority 6: 10g
Unreserved Bandwidth at priority 7: 10g
TE-Default Metric: 10
System-ID: 0100.0000.1003 LAN Adjacency SID: 25601 F:0 B:0 V:1 L:1 S:0 P:0
Metric: 10 IP-Extended 10.0.1.33/32
Prefix-SID: index 700 R:0 N:1 P:0 E:0 V:0 L:0
Metric: 10 IP-Extended 10.44.5.0/30
Metric: 10 IP-Extended 10.33.1.0/30
Metric: 30 IP-Extended 10.0.1.1/32
Prefix-SID: index 300 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 30 IP-Extended 10.0.1.2/32
Prefix-SID: index 400 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.3/32
Prefix-SID: index 500 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.0.1.4/32
Prefix-SID: index 600 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 40 IP-Extended 10.0.1.11/32
Prefix-SID: index 100 R:1 N:0 P:1 E:0 V:0 L:0
Metric: 20 IP-Extended 10.1.1.0/30
Metric: 30 IP-Extended 10.1.2.0/30
Metric: 20 IP-Extended 10.2.1.0/30
Metric: 20 IP-Extended 10.3.2.0/30
Metric: 20 IP-Extended 10.4.1.0/30
Metric: 20 IP-Extended 10.4.2.0/30
Metric: 30 IP-Extended 10.11.1.0/30
Metric: 30 IP-Extended 10.11.2.0/30
Metric: 40 IP-Extended 10.11.22.0/30
Metric: 20 IP-Extended 10.33.44.0/30
PE1#
Validation 4
Verify that segment routing is enabled and that prefix SIDs are announced to other routers.
Verify that prefix SIDs are installed as labels in MPLS forwarding table. Verify the same in FTN and ILM tables.
PE1#show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel, P - SR Policy FTN,
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
(m) - FTN mapped over multipath transport
Code FEC FTN-ID Nhlfe-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf ELC Nexthop
i> 10.0.1.1/32 4 10 0 Yes LSP_DEFAULT 16300 xe8 No 10.11.1.2
i> 10.0.1.2/32 1 4 0 Yes LSP_DEFAULT 16400 xe4 No 10.11.2.2
i> 10.0.1.3/32 2 6 0 Yes LSP_DEFAULT 16500 xe4 No 10.11.2.2
i> 10.0.1.4/32 5 13 0 Yes LSP_DEFAULT 16600 xe8 No 10.11.1.2
P> 10.0.1.33/32 6 14 1 Yes LSP_DEFAULT 16400 xe4 No 10.11.2.2
i 10.0.1.33/32 3 7 0 Yes LSP_DEFAULT 16700 xe4 No 10.11.2.2
PE1#
In the forwarding tables above, the configured prefix SIDs are in the Out-Label column which is expected and is global across the topology. The swap happens in between nodes with this prefix SID and there is no local labelling.
Also verify the ILM and FTN tables.
PE1#sh mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM
K - CLI ILM, T - MPLS-TP, s - Stitched ILM
S - SNMP, L - LDP, R - RSVP, C - CRLDP
B - BGP , K - CLI , V - LDP_VC, I - IGP_SHORTCUT
O - OSPF/OSPF6 SR, i - ISIS SR, k - SR CLI
P - SR Policy, U - unknown
Code FEC/VRF/L2CKT ILM-ID In-Label Out-Label In-Intf Out-Intf/VRF Nexthop LSP-Type
i> 10.0.1.3/32 4 16500 16500 N/A xe4 10.11.2.2 LSP_DEFAULT
i> 10.0.1.1/32 7 16300 16300 N/A xe8 10.11.1.2 LSP_DEFAULT
i> 10.0.1.11/32 1 16100 Nolabel N/A N/A 127.0.0.1 LSP_DEFAULT
i> 10.0.1.2/32 6 16400 16400 N/A xe4 10.11.2.2 LSP_DEFAULT
i> 10.11.2.2/32 2 26240 3 N/A xe4 10.11.2.2 LSP_DEFAULT
i> 10.0.1.33/32 5 16700 16700 N/A xe4 10.11.2.2 LSP_DEFAULT
i> 10.0.1.4/32 8 16600 16600 N/A xe8 10.11.1.2 LSP_DEFAULT
P> 10.0.1.33/32 9 25600 16400 N/A xe4 10.11.2.2 LSP_DEFAULT
i> 10.11.1.2/32 3 26241 3 N/A xe8 10.11.1.2 LSP_DEFAULT
PE1#
PE1#
PE1#
PE1#show mpls ftn-table
Primary FTN entry with FEC: 10.0.1.1/32, id: 4, row status: Active, Tunnel-Policy: N/A
Owner: ISIS-SR, distance: 115, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A, Color: 0
Cross connect ix: 7, in intf: - in label: 0 out-segment ix: 9
Owner: ISIS-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: ISIS-SR, Stale: NO, out intf: xe8, out label: 16300
Nexthop addr: 10.11.1.2 cross connect ix: 7, op code: Push
Primary FTN entry with FEC: 10.0.1.2/32, id: 1, row status: Active, Tunnel-Policy: N/A
Owner: ISIS-SR, distance: 115, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A, Color: 0
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 3
Owner: ISIS-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: ISIS-SR, Stale: NO, out intf: xe4, out label: 16400
Nexthop addr: 10.11.2.2 cross connect ix: 4, op code: Push
Primary FTN entry with FEC: 10.0.1.3/32, id: 2, row status: Active, Tunnel-Policy: N/A
Owner: ISIS-SR, distance: 115, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A, Color: 0
Cross connect ix: 5, in intf: - in label: 0 out-segment ix: 5
Owner: ISIS-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: ISIS-SR, Stale: NO, out intf: xe4, out label: 16500
Nexthop addr: 10.11.2.2 cross connect ix: 5, op code: Push
Primary FTN entry with FEC: 10.0.1.4/32, id: 5, row status: Active, Tunnel-Policy: N/A
Owner: ISIS-SR, distance: 115, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A, Color: 0
Cross connect ix: 9, in intf: - in label: 0 out-segment ix: 12
Owner: ISIS-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 12, owner: ISIS-SR, Stale: NO, out intf: xe8, out label: 16600
Nexthop addr: 10.11.1.2 cross connect ix: 9, op code: Push
Primary FTN entry with FEC: 10.0.1.33/32, id: 6, row status: Active, Tunnel-Policy: N/A
Owner: SR_POLICY, distance: 0, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 1, Protected LSP id: 0, QoS Resource id: 0, Description: ocnos, Color: 0
Cross connect ix: 8, in intf: - in label: 0 out-segment ix: 11
Owner: SR_POLICY, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 11, owner: SR_POLICY, Stale: NO, out intf: xe4, out label: 16400\16600\16700
Nexthop addr: 10.11.2.2 cross connect ix: 8, op code: Push
Bidirectional Forwarding Detection is configured
Bidirectional Forwarding Detection is enabled
Primary FTN entry with FEC: 10.0.1.33/32, id: 3, row status: Active, Tunnel-Policy: N/A
Owner: ISIS-SR, distance: 115, Action-type: Redirect to LSP, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, Description: N/A, Color: 0
Cross connect ix: 6, in intf: - in label: 0 out-segment ix: 7
Owner: ISIS-SR, Persistent: No, Admin Status: Down, Oper Status: Down
Out-segment with ix: 7, owner: ISIS-SR, Stale: NO, out intf: xe4, out label: 16700
Nexthop addr: 10.11.2.2 cross connect ix: 6, op code: Push
PE1#
Validation 5
Verify that sr policy is enabled and up.
PE1#show segment-routing policy
Policy-Name Color End-point State Forwarding-Info
ocnos 201 10.0.1.33 UP 16400/16600/16700/xe4
PE1#
PE1#
PE1#show segment-routing policy detail
Policy-Name: ocnos Color 201 End-point 10.0.1.33 Tunnel-ID: 1
Admin-Status: UP Oper-Status: UP for 00:09:45
State Transition Count: 3
CSPF Retry Limit: 100 CSPF Retry Interval: 10
Binding SID :
BSID: 25600
Alloc mode: Dynamic
Oper State: Programmed
CP ID: 1, Active
Preference: 200 Path Type: Explicit CP Origin: Local
CP state: Valid
Segment List:
Total no. of segments: 3
Segment0[LABEL]: Label :16400
Segment1[LABEL]: Label :16600
Segment2[LABEL]: Label :16700
Out-if: xe4 Out-label-stack: 16400/16600/16700
Attributes:
Configured:
Explicit segment-list Name: PE3
PE1#
Validation 6
Verify that s-bfd session is enabled and up.
PE1#show bfd session
BFD process for VRF: (DEFAULT VRF)
=====================================================================================
Sess-Idx Remote-Disc Lower-Layer Sess-Type Sess-State UP-Time Interface Down-Reason Remote-Addr
1281 10.0.1.33 MPLS LSP Single-Hop Up 00:10:45 xe4 NA 10.0.1.33/32
Number of Sessions: 1
PE1#
PE1#
PE1#show bfd session detail
BFD process for VRF: (DEFAULT VRF)
====================================================================================
Session Interface Index : 10005 Interface name :xe4
Session Index : 1281
Lower Layer : MPLS LSP Version : 1
Session Type : Single Hop Session State : Up
Local Discriminator : 1281 Local Address : 10.0.1.11/32
Remote Discriminator : 10.0.1.33 Remote Address : 10.0.1.33/32
Local Port : 49153 Remote Port : 7784
LSP Owner : SR-POLICY SR-Policy Name : ocnos
NHLFE Ix : 14
Options :
Diagnostics : None
Timers in Milliseconds :
Min Tx: 40 Min Rx: 0 Multiplier: 40
Neg Tx: 40 Neg Rx: 40 Neg detect mult: 40
Min echo Tx: 0 Min echo Rx: 0 Neg echo intrvl: 0
Storage type : 2
Sess down time : 00:00:00
Sess Down Reason : NA
Bfd GTSM Disabled
Bfd Authentication Disabled
Counters values:
Pkt In : n/a Pkt Out : n/a
Echo Out : 00000000000000000000 IPv6 Echo Out : 00000000000000000000
IPv6 Pkt In : 00000000000000000000 IPv6 Pkt Out : 00000000000000000000
UP Count : 1 UPTIME : 00:10:52
Protocol Client Info:
NSM-> Client ID: 1 Flags: 4
----------------------------------------------------------
Number of Sessions: 1
PE1#
PE1#sh s-bfd discriminators
S-BFD Discriminators:
10.0.1.3
10.0.1.2
10.0.1.1
10.0.1.33
10.0.1.4
PE1#
PE1#sh bfd mpls lsp sessions
Peer Addr Path Tunnel-name State Local Local Min Min Encap Last
Disc Multi Tx Rx Dn-Time
10.0.1.33 Up 1281 40 40000 0 IP/UDP 00:00:00
PE1#
PE1#
PE1#
PE1#sh bfd mpls lsp clients
Peer Addr Path Tunnel Remote Remote Remote Neg Neg
Type Name Diag Disc Multi Tx int Rx int
10.0.1.33 0 553713674 40 40000 40000
PE1#
