Provider Bridging Untagged-pep Configuration
This is a sample configuration to verify functionality to support provider-bridging with untagged-pep feature.
For the below topology configuration,
1. While sending tagged traffic untagged-pep CVLAN 2, it should drop in provider edge bridge.
2. And while sending tagged traffic CVLAN 3 to the provider network, will egress with CVLAN 3 and SVLAN 12 tag and the same CVLAN and SVLAN tag from provider network, will egress with only CVLAN tag
3. And also for untagged traffic to the provider network, will egress with SVLAN 11 tag
Topology

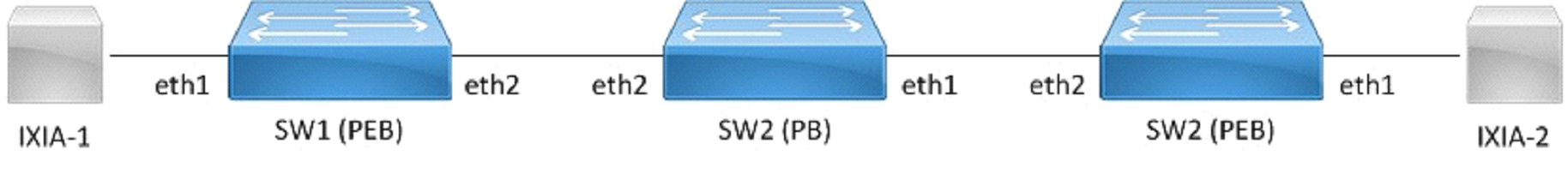

Figure 2-9: Provider bridging untagged-pep configuration
Configuration
SW1 (PEB)
SW1#configure terminal | Enter configuration mode |
SW1(config)#bridge 1 protocol provider-rstp edge | Create bridge |
SW1(config)#vlan database | Enter VLAN configuration mode |
SW1(config-vlan)#vlan 2-10 type customer bridge 1 state enable | Create customer vlan VLAN 2-10 |
SW1(config-vlan)#vlan 11-15 type service point-point bridge 1 state enable | Create service vlan VLAN 11-15 |
SW1(config-vlan)#exit | Exit VLAN configuration mode |
SW1(config)#cvlan registration table map1 bridge 1 | Create cvlan registration table map1 |
SW1(config-cvlan-registration)#cvlan 2 svlan 11 untagged-pep | Map cvlan2 with svlan 11 |
SW1(config-cvlan-registration)#cvlan 3 svlan 12 | Map cvlan3 with svlan 12 |
SW1(config-cvlan-registration)#cvlan 4 svlan 14 | Map cvlan4 with svlan 14 |
SW1(config-cvlan-registration)#exit | Exit registration table |
SW1(config)#interface eth1 | Enter interface configuration mode for eth1 |
SW1(config-if)#switchport | Configure switchport |
SW1(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW1(config-if)#witchport mode customer-edge hybrid | Configure switchport mode customer edge |
SW1(config-if)#switchport customer-edge hybrid vlan 2 | Associate customer vlan2 with interface |
SW1(config-if)#switchport customer-edge hybrid allowed vlan all | Associate all customer vlan with interface |
SW1(config-if)#switchport customer-edge vlan registration map1 | Attach registration table map1 with interface |
SW1(config-if)#exit | Exit interface mode |
SW1(config-if)#interface eth2 | Enter interface configuration mode for eth2 |
SW1(config-if)#switchport | Make interface as switchport |
SW1(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW1(config-if)#switchport mode provider- network | Configure switchport pnp port |
SW1(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW1(config-if)#commit | Apply the commit |
SW1(config-if)#exit | Exit interface configuration mode |
SW1(config)#end | Exit configuration mode |
SW2 (PB)
SW2#configure terminal | Enter configuration mode |
SW2(config)#bridge 1 protocol provider-rstp | Create provider bridge |
SW2(config)#vlan database | Enter VLAN configuration mode |
SW2(config-vlan)# vlan 2-15 type service point-point bridge 1 state enable | Create service vlan VLAN2-15 |
SW2(config-vlan)#exit | Exit VLAN configuration mode |
SW2(config)#interface eth1 | Enter interface configuration mode for eth1 |
SW2(config-if)#switchport | Make interface as switchport |
SW2(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW2(config-if)#switchport mode provider- network | Configure switchport pnp port |
SW2(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW2(config-if)#exit | Exit interface configuration mode |
SW2(config-if)#interface eth2 | Enter interface configuration mode for eth2 |
SW2(config-if)#switchport | Make interface as switchport |
SW2(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW2(config-if)#switchport mode provider- network | Configure switchport pnp port |
SW2(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW2(config-if)#commit | Apply the commit |
SW2(config-if)#exit | Exit interface configuration mode |
SW2(config)#end | Exit configuration mode |
SW3 (PEB)
SW3#configure terminal | Enter configuration mode |
SW3(config)#bridge 1 protocol provider-rstp edge | Create bridge |
SW3(config)#vlan database | Enter VLAN configuration mode |
SW3(config-vlan)#vlan 2-10 type customer bridge 1 state enable | Create customer vlan VLAN 2-10 |
SW3(config-vlan)#vlan 11-15 type service point-point bridge 1 state enable | Create service vlan VLAN11-15 |
SW3(config-vlan)#exit | Exit VLAN configuration mode |
SW3(config)#cvlan registration table map1 bridge 1 | Create cvlan registration table map1 |
SW3(config-cvlan-registration)#cvlan 2 svlan 11 untagged-pep | Map cvlan2 with svlan 200 |
SW3(config-cvlan-registration)#cvlan 3 svlan 12 | Map cvlan3 with svlan 12 |
SW3(config-cvlan-registration)#cvlan 4 svlan 14 | Map cvlan4 with svlan 14 |
SW3(config-cvlan-registration)#exit | Exit registration table |
SW3(config)#interface eth1 | Enter interface configuration mode for eth1 |
SW3(config-if)#switchport | Configure switchport |
SW3(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW3(config-if)#witchport mode customer-edge hybrid | Configure switchport mode customer edge |
SW3(config-if)#switchport customer-edge hybrid vlan 2 | Associate customer vlan2 with interface |
SW3(config-if)#switchport customer-edge hybrid allowed vlan all | Associate all customer vlan with interface |
SW3(config-if)#switchport customer-edge vlan registration map1 | Attach registration table map1 with interface |
SW3(config-if)#exit | Exit interface mode |
SW3(config-if)#interface eth2 | Enter interface configuration mode for eth2 |
SW3(config-if)#switchport | Make interface as switchport |
SW3(config-if)#bridge-group 1 | Associate interface with bridge-group 1 |
SW3(config-if)#switchport mode provider- network | Configure switchport pnp port |
SW3(config-if)#switchport provider-network allowed vlan all | Associate all svlan to the port |
SW3(config-if)#commit | Apply the commit |
SW3(config-if)#exit | Exit interface configuration mode |
SW3(config)#end | Exit configuration mode |
Validation
SW3#sh bridge
bridge 1 is running on provider-rstp edge
Ageout time is global and if something is configured for vxlan then it will be affected here also
Bridge CVLAN SVLAN BVLAN Port MAC Address FWD Time-out
---------+------+------+------+-----------+-----------------+-----+---------+
1 4 14 xe3 0000.0100.0007 1 300
SW1#sh bridge
bridge 1 is running on provider-rstp edge
Ageout time is global and if something is configured for vxlan then it will be affected here also
Bridge CVLAN SVLAN BVLAN Port MAC Address FWD Time-out
---------+------+------+------+-----------+-----------------+-----+---------+
1 14 eth1 0000.0100.0007 1 300
SW1#sh cvlan registration table map1
Bridge Table Name Port List
====== ========== =========
1 map1 ce2/2
CVLAN ID T-CVLAN ID SVLAN ID CCOS SCOS CCFI SCFI
======== ========== ======== ==== ==== ==== ====
3 - 12
2 - 11
4 - 14
