OcNOS-SP : Multi-Protocol Label Switching Guide : Multi-Protocol Label Switching Configuration Guide : Policing Configuration : Configuration
Configuration
Configuring Remarking for MPLS EXP bits require following configurations:
• Enabling label-switching on the interface on NSM.
• Configuring LSP (Using LDP, Static or RSVP-TE, in this example we are using LDP for setting UP LSP).
• Running an IGP (Internal Gateway Protocol), for example, OSPF, to distribute reachability information within the MPLS cloud.
• Enable QoS, Configuring Policing on interface Level.
Topology
-

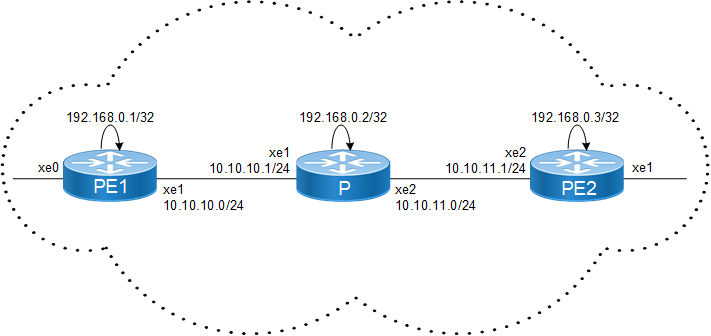

Figure 19-3: Basic Policing Topology
The following steps describes how to configure Policing.
PE1:NSM

#configure terminal
Enter configure mode
(config)#interface xe1
Specify the interface (xe1) to be configured.
(config-if)#ip address 10.10.10.1/24
Configure IP address for the interface
(config-if)#label-switching
Enable label switching on interface xe1.
(config-if)#exit
Exit interface mode.
(config)#interface lo
Specify the loopback (lo) interface to be configured.
(config-if)#ip address 192.168.0.1/32 secondary
Set the IP address of the loopback interface to 192.168.0.1/32
(config-if)#commit
Commit the transaction.
PE1:OSPF

#configure terminal
Enter configure mode.
(config)#router ospf 100
Configure the routing process and specify the Process ID (100). The Process ID should be a unique positive integer identifying the routing process.
(config-router)#network 10.10.10.0/24 area 0
(config-router)#network 192.168.0.1/32 area
0
Define the interface on which OSPF runs and associate the area ID (0) with the interface.
(config-router)#commit
Commit the transaction.
PE1:LDP

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode for LDP.
(config-router)#router-id 192.168.0.1
Set the router ID to IP address 192.168.0.1.
(config-router)#transport-address ipv4 192.168.0.1
Configure the transport address to be used for a TCP session over which LDP will run on an IPv4 interface.
Note: It is preferable to use the loopback address as transport address.
(config-router)#exit
Exit router mode.
(config)#interface xe1
Enter interface mode.
(config-if)#enable-ldp ipv4
Enable LDP on xe1.
(config-if)#commit
Commit the transaction.
PE1

#configure terminal
Enter configure mode.
(config)#qos enable
Enable QoS.
(config)#hardware-profile filter qos enable
Enable QoS hardware.
(config)#commit
Commit candidate configuration to the running configuration.
(config)#class-map cmap1
Enter Class-map mode.
(config-cmap-qos)#match dscp 2
Configure match criteria as DSCP with Value 2.
(config-cmap-qos)#exit
Exit Class-map mode.
(config)#commit
Commit candidate configuration to the running configuration.
(config)#policy-map pmap1
Enter policy-map mode.
(config-pmap-qos)#class cmap1
Assign Class cmap1 to Policy-map pmap1.
(config-pmap-c-qos)#police cir 1 mbps
eir 1 mbps bc 1 kbytes be 1 kbytes
Police DSCP 2 packets @ Committed information rate 1 mbps.
(config-pmap-c-qos)#exit
Exit out of policy-class-map mode.
(config-pmap-qos)#exit
Exit out of Policy-map mode.
(config)#commit
Commit candidate configuration to the running configuration.
(config)#interface xe1
Enter xe1 interface.
(config-if)#service-policy type qos input pmap1
Assign service-policy to interface on in-direction.
(config-if)#exit
Exit interface mode.
(config)#commit
Commit candidate configuration to the running configuration.
P:NSM

#configure terminal
Enter configure mode.
(config)#interface xe1
Specify the interface (xe1) to be configured.
(config-if)#ip address 10.10.10.2/24
Configure IP address for the interface.
(config-if)#label-switching
Enable label switching on interface xe1.
(config-if)#exit
Exit interface mode.
(config)#interface xe2
Specify the interface (xe2) to be configured.
(config-if)#ip address 10.10.11.1/24
Configure IP address for the interface.
(config-if)#label-switching
Enable label switching on interface xe1.
(config-if)#exit
Exit interface mode.
(config)#interface lo
Specify the loopback (lo) interface to be configured.
(config-if)#ip address 192.168.0.2/32 secondary
Set the IP address of the loopback interface to 192.168.0.2/32.
(config-if)#commit
Commit the transaction.
P:OSPF

#configure terminal
Enter configure mode.
(config)#router ospf 100
Configure the routing process and specify the Process ID (100). The Process ID should be a unique positive integer identifying the routing process.
(config-router)#network 10.10.10.0/24 area 0
(config-router)#network 10.10.11.0/24 area 0
(config-router)#network 192.168.0.2/32 area 0
Define the interface on which OSPF runs and associate the area ID (0) with the interface.
(config-router)#commit
Commit the transaction.
P:LDP

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode for LDP.
(config-router)#router-id 192.168.0.2
Set the router ID to IP address 192.168.0.2.
(config-router)#transport-address ipv4 192.168.0.2
Configure the transport address to be used for a TCP session over which LDP will run on an IPv4 interface.
Note: It is preferable to use the loopback address as transport address.
(config-router)#exit
Exit router mode.
(config)#interface xe1
Enter interface mode.
(config-if)#enable-ldp ipv4
Enable LDP on xe1.
(config-if)#exit
Exit interface mode.
(config)#interface xe2
Enter interface mode.
(config-if)#enable-ldp ipv4
Enable LDP on xe2.
(config-if)#commit
Commit the transaction.
PE2:NSM

#configure terminal
Enter configure mode.
(config)#interface xe2
Specify the interface (xe2) to be configured.
(config-if)#ip address 10.10.11.2/24
Configure IP address for the interface.
(config-if)#label-switching
Enable label switching on interface xe2.
(config-if)#exit
Exit interface mode.
(config)#interface lo
Specify the loopback (lo) interface to be configured.
(config-if)#ip address 192.168.0.3/32 secondary
Set the IP address of the loopback interface to 192.168.0.3/32.
(config-if)#commit
Commit the transaction.
PE2:OSPF

#configure terminal
Enter configure mode.
(config)#router ospf 100
Configure the routing process and specify the Process ID (100). The Process ID should be a unique positive integer identifying the routing process.
(config-router)#network 10.10.11.0/24 area 0
(config-router)#network 192.168.0.3/32 area 0
Define the interface on which OSPF runs and associate the area ID (0) with the interface.
(config-router)#commit
Commit the transaction.
PE2:LDP

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode for LDP.
(config-router)#router-id 192.168.0.3
Set the router ID to IP address 192.168.0.3.
(config-router)#explicit-null
To disable PHP.
(config-router)#transport-address ipv4 192.168.0.3
Configure the transport address to be used for a TCP session over which LDP will run on an IPv4 interface.
Note: It is preferable to use the loopback address as transport address.
(config-router)#exit
Exit router mode.
(config)#interface xe2
Enter interface mode.
(config-if)#enable-ldp ipv4
Enable LDP on xe2.
(config-if)#commit
Commit the transaction.
PE2

#configure terminal
Enter configure mode.
(config)#qos enable
Enable QoS.
(config)#hardware-profile filter qos enable
Enable QoS hardware.
(config)#commit
Commit candidate configuration to the running configuration.
(config)#class-map cmap1
Enter Class-map mode.
(config-cmap-qos)#match dscp 2
Configure match criteria as DSCP with Value 2.
(config-cmap-qos)#exit
Exit Class-map mode.
(config)#commit
Commit candidate configuration to the running configuration.
(config)#policy-map pmap1
Enter policy-map mode.
(config-pmap-qos)#class cmap1
Assign Class cmap1 to Policy-map pmap1.
(config-pmap-c-qos)#police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes
Police DSCP 2 packets @ Committed information rate 1 mbps.
(config-pmap-c-qos)#exit
Exit out of policy-class-map mode.
(config-pmap-qos)#exit
Exit out of Policy-map mode.
(config)#commit
Commit candidate configuration to the running configuration.
(config)#interface xe1
Enter xe1 interface.
(config-if)#service-policy type qos input pmap1
Assign service-policy to interface on in-direction.
(config-if)#exit
Exit interface mode.
(config)#commit
Commit candidate configuration to the running configuration.
Validation
PE1
PE1#show class-map

Type qos class-maps
===================
class-map type qos match-any class-default

class-map type qos match-allcmap1
match dscp 2


Type queuing class-maps
=======================
class-map type queuing class-default-q
class-map type queuing q0

class-map type queuing q1

class-map type queuing q2

class-map type queuing q3

class-map type queuing q4

class-map type queuingq5

class-map type queuing q6

class-map type queuing q7


Type Vlan-Queuing class-maps
============================


#show running-config qos
qos enable
!
class-map type qos match-all cmap1

match dscp 2
!
policy-map type qos pmap1
class type qos cmap1
police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes
exit
!
!
!
interface xe1
service-policy type qos input pmap1
#

#show policy-map

Type qos policy-maps
====================

policy-map type qospmap1
class Type qos cmap1
police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes

Type queuing policy-maps
========================

policy-map type queuing default default-out-policy
class type queuing default q0
priority level 0
exit
class type queuing default q1
priority level 1
exit
class type queuing default q2
priority level 2
exit
class type queuing default q3
priority level 3
exit
class type queuing default q4
priority level 4
exit
class type queuing default q5
priority level 5
exit
class type queuing default q6
priority level 6
exit
class type queuing default q7
priority level 7
policy-map type queuing default subif-default-out-policy
class type queuing default q0
priority level 0
class type queuing default q1
priority level 1
class type queuing default q2
priority level 2
class type queuing default q3
priority level 3


#show policy-map interface xe1
==============================

Interface xe1

Type QoS statistics status : disabled
=====================================

Class-map (qos): cmap1 (match all)
match dscp 2
police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes


Type Queuing policy-map : default-out-policy
=============================================

Class-map (queuing): q0
shape 10000000 kbps (inherited)
priority level 0
queue-limit 12517376 bytes/10 ms (default)

Class-map (queuing): q1
shape 10000000 kbps (inherited)
priority level 1
queue-limit 12517376 bytes/10 ms (default)

Class-map (queuing): q2
shape 10000000 kbps (inherited)
priority level 2
queue-limit 12517376 bytes/10 ms (default)

Class-map (queuing): q3
shape 10000000 kbps (inherited)
priority level 3
queue-limit 12517376 bytes/10 ms (default)

Class-map (queuing): q4
shape 10000000 kbps (inherited)
priority level 4
queue-limit 12517376 bytes/10 ms (default)

Class-map (queuing): q5
shape 10000000 kbps (inherited)
priority level 5
queue-limit 12517376 bytes/10 ms (default)

Class-map (queuing): q6
shape 10000000 kbps (inherited)
priority level 6
queue-limit 12517376 bytes/10 ms (default)
Output
Total : 7 packets, 816 bytes
Green : 7 packets, 816 bytes
Yellow : 0 packets, 0 bytes

Class-map (queuing): q7

shape 10000000 kbps (inherited)
priority level 7
queue-limit 12517376 bytes/10 ms (default)
PE2
OcNOS#show class-map

Type qos class-maps
===================
class-map type qos match-any class-default

class-map type qos match-all cmap1
match dscp 2


Type queuing class-maps
=======================
class-map type queuing class-default-q

class-map type queuing q0

class-map type queuing q1

class-map type queuing q2

class-map type queuing q3

class-map type queuing q4

class-map type queuing q5

class-map type queuing q6

class-map type queuing q7



OcNOS#show running-config qos
qos enable
!
class-map type qos match-all cmap1
match dscp 2
!
policy-map type qos pmap1
class type qos cmap1
police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes
exit
!
!
!
interface xe1
service-policy type qos input pmap1
!



OcNOS#show policy-map

Type qos policy-maps
====================

policy-map type qos pmap1
class type qos cmap1
police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes


Type queuing policy-maps
========================

policy-map type queuing default default-out-policy
class type queuing default q0
priority level 0
class type queuing default q1
priority level 1
class type queuing default q2
priority level 2
class type queuing default q3
priority level 3
class type queuing default q4
priority level 4
class type queuing default q5
priority level 5
class type queuing default q6
priority level 6
class type queuing default q7
priority level 7

policy-map type queuing default subif-default-out-policy
class type queuing default q0
priority level 0
class type queuing default q1
priority level 1
class type queuing default q2
priority level 2
class type queuing default q3
priority level 3

OcNOS#show policy-map int xe15

Interface xe15

Type QoS statistics status : disabled

Type QoS Ingress policy-map : pmap1

Class-map (qos): cmap1 (match all)
match dscp 2
police cir 1 mbps eir 1 mbps bc 1 kbytes be 1 kbytes


Type Queuing policy-map : default-out-policy

Class-map (queuing): q0
shape 10000000 kbps (inherited)
priority level 0
queue-limit (default)
Output
Total : 451 packets, 33887 bytes
Green : 451 packets, 33887 bytes
Yellow : 0 packets, 0 bytes

Class-map (queuing): q1
shape 10000000 kbps (inherited)
priority level 1
queue-limit (default)

Class-map (queuing): q2
shape 10000000 kbps (inherited)
priority level 2
queue-limit (default)

Class-map (queuing): q3
shape 10000000 kbps (inherited)
priority level 3
queue-limit (default)

Class-map (queuing): q4
shape 10000000 kbps (inherited)
priority level 4
queue-limit (default)

Class-map (queuing): q5
shape 10000000 kbps (inherited)
priority level 5
queue-limit (default)

Class-map (queuing): q6
shape 10000000 kbps (inherited)
priority level 6
queue-limit (default)
Output
Total : 1119 packets, 100461 bytes
Green : 1119 packets, 100461 bytes
Yellow : 0 packets, 0 bytes

Class-map (queuing): q7
shape 10000000 kbps (inherited)
priority level 7
queue-limit (default)
Output
Total : 56 packets, 4088 bytes
Green : 56 packets, 4088 bytes
Yellow : 0 packets, 0 bytes

Last modified date: 07/17/2023
