Configuration
Configuring Remarking for MPLS EXP bits require following configurations:
• Enabling label-switching on the interface on NSM.
• Configuring LSP (Using LDP, Static or RSVP-TE, in this example we are using LDP for setting up LSP).
• Running an IGP (Internal Gateway Protocol), for example, OSPF, to distribute reachability information within the MPLS cloud.
• Enable QoS, Configuring Remarking on interface and Global Level.
Topology

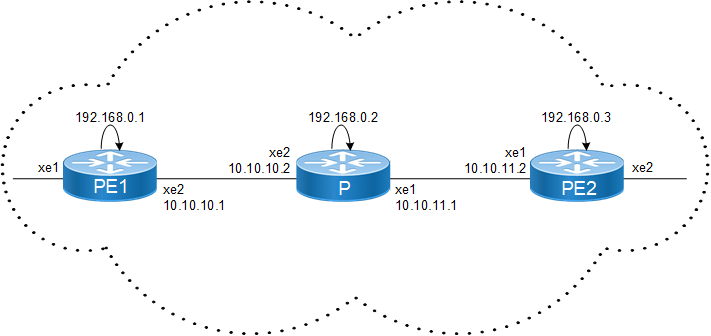

Figure 18-2: Basic LDP Topology
