Topology

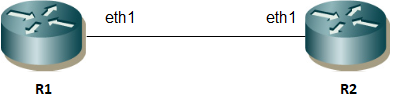

Figure 6-161: ISISv6 Topology for VRF
R1
#configure terminal | Enter configuration mode. |
(config)#ip vrf vrf1 | Create vrf1 |
(config-vrf)#exit | Exit VRF mode |
(config)#router isis 1 vrf1 | Associate the ISIS process to vrf1 |
(config-router)#net 49.0001.0000.0000.0001.00 | Establish a network entity title for this instance, specifying the area address and the system ID. |
(config-router)#is-type level-1 | Configure instance 1 as level-1 routing |
(config-router)#exit | Exit router mode |
(config)#interface eth1 | Enter interface mode |
(config-if)#ip vrf forwarding vrf1 | Associate the interface to vrf1 |
(config-if)#ipv6 address 1000::1/64 | Configure ipv6 address on eth1 |
(config-if)#ipv6 router isis 1 | Enable ISISv6 routing on an instance for area 49 |
(config-if)#isis circuit-type level-1 | Configure interface as level-1 |
(config-if)#commit | Commit the candidate configuration to the running configuration |
(config-if)#exit | Exit interface mode |
(config)#exit | Exit config mode |
R2
#con t | Enter configuration mode. |
(config)#ip vrf vrf1 | Create vrf1 |
(config-vrf)#exit | Exit VRF mode |
(config)#router isis 1 vrf1 | Associate the ISIS process to vrf1 |
(config-router)#net 49.0001.0000.0000.0002.00 | Establish a network entity title for this instance, specifying the area address and the system ID. |
(config-router)#is-type level-1 | Configure instance 1 as level-1 routing |
(config-router)#exit | Exit router mode |
(config)#interface eth1 | Enter interface mode |
(config-if)#ip vrf forwarding vrf1 | Associate the interface to vrf1 |
(config-if)#ipv6 address 1000::2/64 | Configure ipv6 address on eth1 |
(config-if)#ipv6 router isis 1 | Enable ISISv6 routing on an instance for area 49 |
(config-if)#isis circuit-type level-1 | Configure interface as level-1 |
(config-if)#commit | Commit the candidate configuration to the running configuration |
(config-if)#exit | Exit interface mode |
(config)#exit | Exit config mode |
