OcNOS-SP : Layer 3 Guide : Layer 3 Unicast Configuration Guide : BGP Flowspec Support for IPv4 : With RR
With RR
Topology

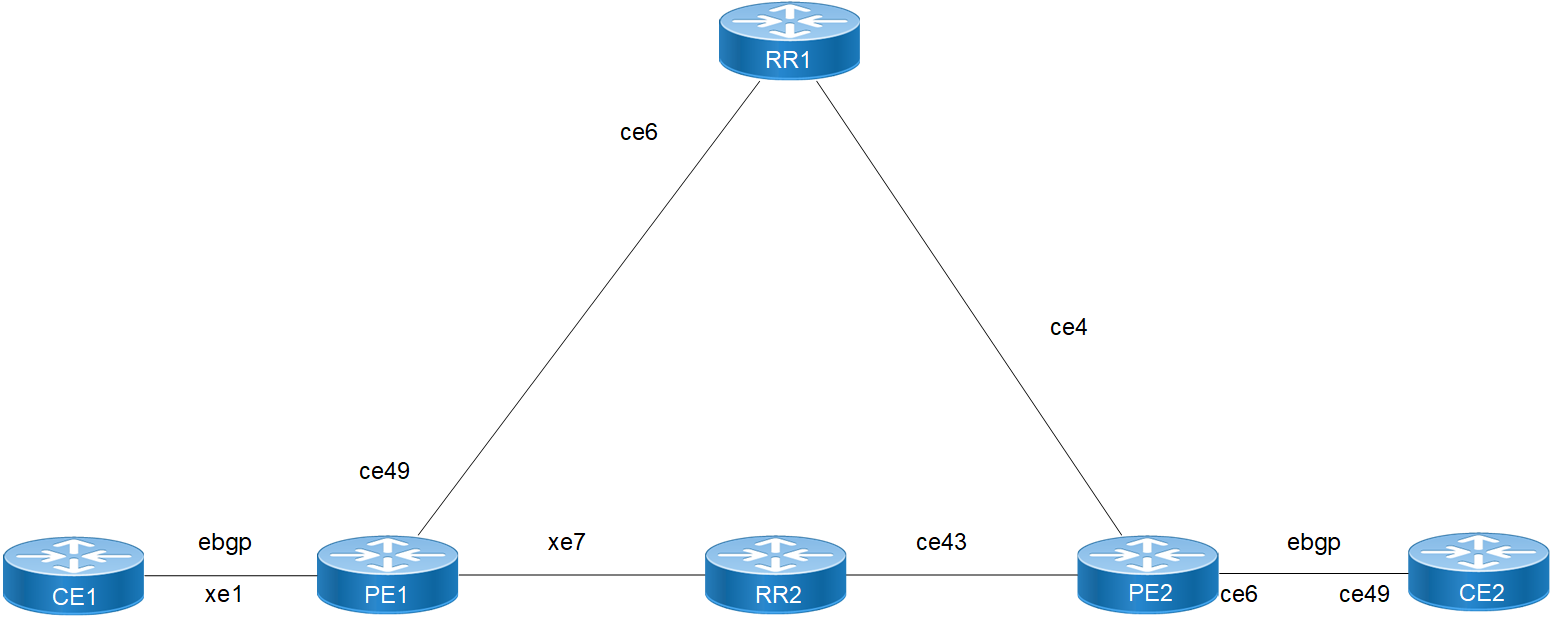

Figure 33-156: BGP Flowpec support for IPv4 with RR
Configuration
CE1

CE1#configure terminal
Enter configure mode.
CE1(config)# class-map type traffic match-all ocnos
Configure class map with class name
CE1(config-cmap-tr)#match destination-address ipv4 5.5.5.5/32
Configure match with destination ip address
CE1(config-cmap-tr)#match source-address ipv4 4.4.4.4/32
Enable match with source ip address
CE1(config-cmap-tr)#match protocol 12
Enable match with protocol
CE1(config-cmap-tr)#match port 333-444
Enable match with port
CE1(config-cmap-tr)#exit


Exit from class map traffic
CE1(config)#commit
Commits the configuration
CE1(config)#class-map type traffic match-all ocnos2
Configure class map with class name
CE1(config-cmap-tr)# match destination-address ipv4 10.1.1.0/24
Configure match with destination ip address
CE1(config-cmap-tr)# match source-address ipv4 10.1.1.0/24
Enable match with source ip address
CE1(config-cmap-tr)# match protocol 44
Enable match with protocol
CE1(config-cmap-tr)# match destination-port 44-144
Enable match with destination port
CE1(config-cmap-tr)# match source-port 22-122
Enter match with source port
CE1(config-cmap-tr)#exit
Exit from class map traffic
CE1(config)#commit
Commits the configuration
CE1(config)#policy-map type pbr CE1
Enable policy map type pbr policy name
CE1(config-pmap-pbr)# class type traffic ocnos2
Enable class type traffic class name
CE1(config-pmap-pbr-c)# police rate 21000 bps
Set the policy rate
CE1(config-pmap-pbr-c)#exit
Exit from class
CE1(config-pmap-pbr)#exit
Exit from policy map
CE1(config)#policy-map type pbr PE1
Enable policy map type pbr policy name
CE1(config-pmap-pbr)# class type traffic ocnos
Enable class type traffic class name
CE1(config-pmap-pbr-c)# police rate 4444444 bps
Set the policy rate
CE1(config-cmap-tr)#exit
Exit from class map traffic
CE1(config)#commit
Commits the configuration
CE1(config)#flowspec
Configure flowspec
CE1(config-flowspec)#address-family ipv4
Enter address family ipv4 mode
CE1(config-flowspec-af)#service-policy type pbr PE1
Enable service policy type pbr with policy name
CE1(config-flowspec-af)#service-policy type pbr CE1
Enable service policy type pbr with policy name
CE1(config-flowspec-af)#exit
Exit from address family
CE1(config-flowspec)#exit
Exit from flowspec mode
CE1(config)#commit
Commits the configuration
CE1(config)#interface lo
Enter the loopback onterface mode
CE1(config-if)# ip address 4.4.4.4/32 secondary
Assign the ip add as secondary
CE1(config-if)# ip router isis 1
Enable the router isis instance
CE1(config-if)#exit
Exit from interface mode
CE1(config)#commit
Commits the configuration
CE1(config)#interface xe1
Enter the interface mode
CE1(config-if)#ip address 10.1.1.1/24
Configure ip address
CE1(config)#interface xe1.10
Configure subinterface
CE1(config-if)# encapsulation dot1q 10
Enable encapsulate dot1q vlan id
CE1(config-if)# ip address 66.1.1.1/24
Configure ip address
CE1(config-if)#exit
Exit from interface mode
CE1(config)#commit
Commits the configuration
CE1(config)#router bgp 100
Configure bgp intstance
CE1(config-router)# neighbor 10.1.1.2 remote-as 65000
Enable neighbour ip address with remote-as 65000
CE1(config-router)# neighbor 66.1.1.2 remote-as 65000
Enable neighbour ip address with remote-as 65000
CE1(config-router)# address-family ipv4 unicast
Enter the address family ipv4 unicast
CE1(config-router-af)# redistribute connected
Enter redistribute connected
CE1(config-router-af)# neighbor 10.1.1.2 activate
Activate the neighbour
CE1(config-router-af)# neighbor 66.1.1.2 activate
Activate the neighbour
CE1(config-router-af)# exit-address-family
Exit from address family mode
CE1(config-router)# address-family ipv4 flowspec
Enter the address family ipv4 flowspec
CE1(config-router-af)# neighbor 10.1.1.2 activate
Activate the neighbour
CE1(config-router-af)#neighbor 66.1.1.2 activate
Activate the neighbour
CE1(config-router-af)# exit-address-family
Exit from address family mode
CE1(config-router)#exit
Exit from router mode
CE1(config)#commit
Commits the configuration
PE1

PE1#configure terminal
Enter configure mode.
PE1(config)#ip vrf vrf100
Enter vrf vrf name
PE1(config-vrf)# rd 100:1
Enter rd value
PE1(config-vrf)# route-target both 100:1
Enter router targeted as both
PE1(config-vrf)#exit
Exit from vrf mode
PE1(config)#commit
Commits the configuration
PE1(config)#ip vrf vrf101
Enter vrf vrf name
PE1(config-vrf)# rd 101:1
Enter rd value
PE1(config-vrf)# route-target both 101:1
Enter router targeted as both
PE1(config-vrf)#exit
Exit from vrf mode
PE1(config)#commit
Commits the configuration
PE1(config)#qos enable
Enable qos
PE1(config)#qos statistics
Enable qos statistics
PE1-7026(config)#class-map type traffic match-all class1
Configure class map with class name
PE1-7026(config-cmap-tr)# match destination-address ipv4 3.3.3.3/32
Configure match with destination ip address
PE1-7026(config-cmap-tr)# match source-address ipv4 1.1.1.1/32
Enable match with source ip address
PE1-7026(config-cmap-tr)# match protocol 78
Enable match with protocol
PE1-7026(config-cmap-tr)# match port 101-201
Enable match with port range
PE1-7026(config-cmap-tr)# match destination-port 400-499
Enable match with destination-port range
PE1-7026(config-cmap-tr)# match source-port 330-399
Enable match with source-port range
PE1-7026(config-cmap-tr)# match ipv4 icmp-code 10
Enable match with icmp code
PE1-7026(config-cmap-tr)# match packet-length 22-222
Enable match with packet length range
PE1-7026(config-cmap-tr)# match dscp 10
Enable match with dscp
PE1-7026(config-cmap-tr)#exit
Exit from class map traffic
PE1-7026(config)#commit
Commits the configuration
PE1-7026(config)#policy-map type pbr pol11
Configure policy map type pbr with policy name
PE1-7026(config-pmap-pbr)# class type traffic class1
Enable class type traffic with class map name
PE1-7026(config-pmap-pbr-c)# police rate 1000011 bps
Enable policy rate
PE1-7026(config-pmap-pbr-c)# set dscp 0e
Set the dscp value
PE1-7026(config-pmap-pbr-c)#exit
Exit from polocy map traffic
PE1-7026(config-pmap-pbr)#exit
Exit from policy map
PE1-7026(config)#commit
Commits the configuration
PE1(config)#flowspec
Configure flowspec
PE1(config-flowspec)# address-family ipv4
Enter address-family mode with ipv4
PE1(config-flowspec-af)# service-policy type pbr pol11
Enable service plocy type pbr with policy name
PE1(config-flowspec-af)#exit
Exit from address family mode
PE1(config-flowspec)#exit
Exit from flowspec mode
PE1(config)#commit
Commits the configuration
PE1(config)#router ldp
Enter router ldp mode
PE1(config-router)# targeted-peer ipv4 3.3.3.3
Enable targeted peer ipv4 address
PE1(config-router-targeted-peer)# exit-targeted-peer-mode
Exit from targeted peer mode
PE1(config-router)#exit
Exit from router ldp
PE1(config)#commit
Commits the configuration
PE1(config)#interface lo
Enter interface mode
PE1(config-if)# ip address 1.1.1.1/32 secondary
Assign the ip address secondary
PE1(config-if)# ip router isis 1
Enable router isis instance
PE1(config-if)#exit
Exit from interface mode
PE1(config)#commit
Commits the configuration
PE1(config)#interface ce49
Enter interface mode
PE1(config-if)# ip address 40.1.1.1/24
Assign the ip add
PE1(config-if)# label-switching
Enable label switching
PE1(config-if)# ip router isis 1
Enter router isis instance
PE1(config-if)# enable-ldp ipv4
Enable ldp ipv4
PE1(config-if)#exit
Exit from interface mode
PE1(config)#commit
Commits the configuration
PE1(config)#interface xe1
Enter the interface mode
PE1(config-if)# ip address 10.1.1.2/24
Assign the ip add
PE1(config-if)#exit
Exit from interface mode
PE1(config)#commit
Commits the configuration
PE1(config)#interface xe1.10
Enter the sub-interface mode
PE1(config-if)# encapsulation dot1q 10
Enable encapsulate dot1q with vlan id
PE1(config-if)# ip vrf forwarding vrf100
Enable ip vrf forwarding vrf name
PE1(config-if)# ip address 66.1.1.2/24
Assign the ip add
PE1(config-if)#exit
Exit from interface mode
PE1(config)#commit
Commits the configuration
PE1(config)#interface xe7
Enter interface mode
PE1(config-if)# ip address 20.1.1.1/24
Assign the ip add
PE1(config-if)# label-switching
Enable label switching
PE1(config-if)# ip router isis 1
Enter router isis instance
PE1(config-if)# enable-ldp ipv4
Enable ldp ipv4
PE1(config-if)#exit
Exit from interface mode
PE1(config)#commit
Commits the configuration
PE1(config)#router isis 1
Configure isis instance
PE1(config-router)# is-type level-1-2
Configure is-type-level-1-2
PE1(config-router)# metric-style wide
Configure metric style wide
PE1(config-router)# mpls traffic-eng router-id 1.1.1.1
Configure router id
PE1(config-router)# mpls traffic-eng level-1
Configure traffic engg level-1
PE1(config-router)# mpls traffic-eng level-2
Configure traffic engg level-2
PE1(config-router)# dynamic-hostname
Configure hostname
PE1(config-router)# bfd all-interfaces
Enable bfd all interfaces
PE1(config-router)# net 49.0000.0000.0001.00
Configure network id
PE1 (config-router)# passive-interface lo
Configure passive interface as loopback
PE1(config-router)#exit
Exit from isis instance mode
PE1(config)#commit
Commits the configuration
PE1(config)#router bgp 65000
Configure bgp instance
PE1(config-router)# neighbor 6.6.6.6 remote-as 65000
Enable neighbour address with remote-as 65000
PE1(config-router)# neighbor 10.1.1.1 remote-as 100
Enable neighbour address with remote-as 100
PE1(config-router)# neighbor 20.1.1.2 remote-as 65000
Enable neighbour address with remote-as 65000
PE1(config-router)# neighbor 6.6.6.6 update-source lo
Enable neighbour address with update loopback
PE1(config-router)# address-family ipv4 unicast
Enter address family ipv4 mode
PE1(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE1(config-router-af)# neighbor 6.6.6.6 next-hop-self
Enter neighbor ip add with next hop self
PE1(config-router-af)# neighbor 10.1.1.1 activate
Activate the neighbour
PE1(config-router-af)# neighbor 20.1.1.2 activate
Activate the neighbour
PE1(config-router-af)# neighbor 20.1.1.2 next-hop-self
Enter neighbor ip add with next hop self
PE1(config-router-af)# exit-address-family
Exit from address family
PE1(config-router)# address-family vpnv4 unicast
Enter address family vpnv4 unicast mode
PE1(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE1(config-router-af)# neighbor 6.6.6.6 next-hop-self
Enter neighbor ip add with next hop self
PE1(config-router-af)# neighbor 20.1.1.2 activate
Activate the neighbour
PE1(config-router-af)# neighbor 20.1.1.2 next-hop-self
Enter neighbor ip add with next hop self
PE1(config-router-af)# exit-address-family
Exit from address family
PE1(config-router)# address-family ipv4 flowspec
Enter address family ipv4 flowspec mode
PE1(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE1(config-router-af)# neighbor 10.1.1.1 activate
Activate the neighbour
PE1(config-router-af)# neighbor 20.1.1.2 activate
Activate the neighbour
PE1(config-router-af)# exit-address-family
Exit from address family
PE1(config-router)# address-family vpnv4 flowspec
Enter address family vpnv4 flowspec mode
PE1(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE1(config-router-af)# neighbor 20.1.1.2 activate
Activate the neighbour
PE1(config-router-af)# exit-address-family
Exit from address family
PE1(config-router)# address-family ipv4 vrf vrf100
Enter address family ipv4 vrf vrf name mode
PE1(config-router-af)# redistribute connected
Enter redistribute connected
PE1(config-router-af)# neighbor 66.1.1.1 remote-as 100
Enter neighbor ip add with remote-as 100
PE1(config-router-af)# neighbor 66.1.1.1 activate
Activate the neighbour
PE1(config-router-af)# exit-address-family
Exit from address family
PE1(config-router)# address-family ipv4 flowspec vrf vrf100
Enter address family ipv4 flowspec vrf vrf name mode
PE1(config-router-af)# neighbor 66.1.1.1 activate
Activate the neighbour
PE1(config-router-af)# exit-address-family
Exit from address family
PE1(config-router)#exit
Exit from router bgp instance
PE1(config)#commit
Commits the configuration
RR2

RR2#configure terminal
Enter configure mode.
RR2(config)#router ldp
Enter router ldp
RR2(config-router)#exit
Exit from ldp mode
RR2(config)#commit
Commits the configuration
RR2(config)#interface lo
Enter interface mode
RR2(config-if)#ip address 2.2.2.2/32 secondary
Assigned ip add as secondary
RR2(config-if)# ip router isis 1
Enter isis instance
RR2(config-if)#exit
Exit from interface mode
RR2(config)#commit
Commits the configuration
RR2(config)#interface ce43
Enter interface mode
RR2(config-if)# speed 40g
Set the speed
RR2(config-if)# ip address 11.1.1.2/24
Assign the ip add
RR2(config-if)# label-switching
Enable label switching
RR2(config-if)# ip router isis 1
Enter router isis instance
RR2(config-if)# enable-ldp ipv4
Enable ldp ipv4
RR2(config-if)#exit
Exit from interface mode
RR2(config)#commit
Commits the configuration
RR2(config)#interface xe7
Enter interface mode
RR2(config-if)# ip address 20.1.1.2/24
Assign the ip add
RR2(config-if)# label-switching
Enable label switching
RR2(config-if)# ip router isis 1
Enter router isis instance
RR2(config-if)# enable-ldp ipv4
Enable ldp ipv4
RR2(config-if)#exit
Exit from interface mode
RR2(config)#commit
Commits the configuration
RR2(config)#router isis 1
Configure isis instance
RR2(config-router)# is-type level-1-2
Configure is-type-level-1-2
RR2(config-router)# metric-style wide
Configure metric style wide
RR2(config-router)# mpls traffic-eng router-id 2.2.2.2
Configure router id
RR2(config-router)# mpls traffic-eng level-1
Configure traffic engg level-1
RR2(config-router)# mpls traffic-eng level-2
Configure traffic engg level-2
RR2(config-router)# dynamic-hostname
Configure hostname
RR2(config-router)# bfd all-interfaces
Enable bfd all interfaces
RR2(config-router)# net 49.0000.0000.0002.00
Configure network id
RR2(config-router)#exit
Exit from isis instance mode
RR2(config)#commit
Commits the configuration
RR2(config)#router bgp 65000
Configure router bgp instance
RR2(config-router)# no bgp inbound-route-filter
Configure no bgp inbound route filter
RR2(config-router)# neighbor 11.1.1.1 remote-as 65000
Configure neighbor ip address remote as 65000
RR2(config-router)# neighbor 20.1.1.1 remote-as 65000
Configure neighbor ip address remote as 65000
RR2(config-router)# address-family ipv4 unicast
Enter address family ipv4 unicast mode
RR2(config-router-af)# neighbor 11.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 11.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# neighbor 20.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 20.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# exit-address-family
Exit from address family
RR2(config-router)# address-family vpnv4 unicast
Enter address family vpnv4 unicast mode
RR2(config-router-af)# neighbor 11.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 11.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# neighbor 20.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 20.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# exit-address-family
Exit from address family
RR2(config-router)# address-family ipv4 flowspec
Enter the address family ipv4 flowspec mode
RR2(config-router-af)# neighbor 11.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 11.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# neighbor 20.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 20.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# exit-address-family
Exit from address family
RR2(config-router)# address-family vpnv4 flowspec
Enter address family vpnv4 flowspec mode
RR2(config-router-af)# neighbor 11.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 11.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# neighbor 20.1.1.1 activate
Activate the neighbour
RR2(config-router-af)# neighbor 20.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR2(config-router-af)# exit-address-family
Exit from address family mode
RR2(config-router)#exit
Exit from router bgp instance mode
RR2(config)#commit

RR1

RR1#configure terminal
Enter configure mode.
RR1(config)#router ldp
Enter router ldp
RR1(config-router)#exit
Exit from ldp mode
RR1(config)#commit
Commits the configuration
RR1(config)#interface lo
Enter the interface mode
RR1(config-if)# ip address 6.6.6.6/32 secondary
Assign the ip address secondary
RR1(config-if)# ip router isis 1
Enter router isis instance
RR1(config-if)#exit
Exit from interface mode
RR1(config)#commit
Commits the configuration
RR1(config)#interface ce4
Enter the interface mode
RR1(config-if)# ip address 50.1.1.2/24
Assign the ip add
RR1(config-if)# label-switching
Enable label switching
RR1(config-if)# ip router isis 1
Enter router isis instance
RR1(config-if)# enable-ldp ipv4
Enable ldp ipv4
RR1(config-if)#exit
Exit from interface mode
RR1(config)#commit
Commits the configuration
RR1(config)#interface ce6
Enter the interface mode
RR1(config-if)# ip address 40.1.1.2/24
Assign the ip add
RR1(config-if)# label-switching
Enable label switching
RR1(config-if)# ip router isis 1
Enter router isis instance
RR1(config-if)# enable-ldp ipv4
Enable ldp ipv4
RR1(config-if)#exit
Exit from interface mode
RR1(config)#commit
Commits the configuration
RR1(config)#router isis 1
Configure isis instance
RR1(config-router)# is-type level-1-2
Configure is-type-level-1-2
RR1(config-router)# metric-style wide
Configure metric style wide
RR1(config-router)# mpls traffic-eng router-id 6.6.6.6
Configure router id
RR1(config-router)# mpls traffic-eng level-1
Configure traffic engg level-1
RR1(config-router)# mpls traffic-eng level-2
Configure traffic engg level-2
RR1(config-router)# dynamic-hostname
Configure hostname
RR1(config-router)# bfd all-interfaces
Enable bfd all interfaces
RR1(config-router)# net 49.0000.0000.0006.00
Configure network id
RR1(config-router)#exit
Exit from isis instance mode
RR1(config)#commit
Commits the configuration
RR1(config)#router bgp 65000
Configure router bgp instance
RR1(config-router)# no bgp inbound-route-filter
Configure no bgp inbound route filter
RR1(config-router)# neighbor 1.1.1.1 remote-as 65000
Configure neighbor ip address remote as 65000
RR1(config-router)# neighbor 3.3.3.3 remote-as 65000
Configure neighbor ip address remote as 65000
RR1(config-router)# neighbor 1.1.1.1 update-source lo
Configure neighbor ip address with update loopback
RR1(config-router)# neighbor 3.3.3.3 update-source lo
Configure neighbor ip address with update loopback
RR1(config-router)# address-family ipv4 unicast
Enter address family ipv4 unicast mode
RR1(config-router-af)# neighbor 1.1.1.1 activate
Activate the neighbour
RR1(config-router-af)# neighbor 1.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# neighbor 3.3.3.3 activate
Activate the neighbour
RR1(config-router-af)# neighbor 3.3.3.3 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# exit-address-family
Exit from address family
RR1(config-router)# address-family vpnv4 unicast
Enter address family vpnv4 unicast mode
RR1(config-router-af)# neighbor 1.1.1.1 activate
Activate the neighbour
RR1(config-router-af)# neighbor 1.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# neighbor 3.3.3.3 activate
Activate the neighbour
RR1(config-router-af)# neighbor 3.3.3.3 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# exit-address-family
Exit from address family
RR1(config-router)# address-family ipv4 flowspec
Enter the address family ipv4 flowspec mode
RR1(config-router-af)# neighbor 1.1.1.1 activate
Activate the neighbour
RR1(config-router-af)# neighbor 1.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# neighbor 3.3.3.3 activate
Activate the neighbour
RR1(config-router-af)# neighbor 3.3.3.3 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# exit-address-family
Exit from address family
RR1(config-router)# address-family vpnv4 flowspec
Enter address family vpnv4 flowspec mode
RR1(config-router-af)# neighbor 1.1.1.1 activate
Activate the neighbour
RR1(config-router-af)# neighbor 1.1.1.1 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# neighbor 3.3.3.3 activate
Activate the neighbour
RR1(config-router-af)# neighbor 3.3.3.3 route-reflector-client
Enable the neighbor ip add as route reflector client
RR1(config-router-af)# exit-address-family
Exit from address family mode
RR1(config-router)#exit
Exit from router bgp instance mode
RR1(config)#commit

PE2

PE2#configure terminal
Enter configure mode.
PE2(config)#router ldp
Enter vrf vrf name
PE2(config-router)# targeted-peer ipv4 1.1.1.1
Enter rd value
PE2(config-router-targeted-peer)#exit-targeted-peer-mode
Enter router targeted as both
PE2(config-router)#exit
Exit from vrf mode
PE2(config)#commit
Commits the configuration
PE2(config)#ip vrf vrf100
Enter vrf vrf name
PE2(config-vrf)# rd 100:1
Enter rd value
PE2(config-vrf)# route-target both 100:1
Enter router targeted as both
PE2(config-vrf)#exit
Exit from vrf mode
PE2(config)#commit
Commits the configuration
PE2(config)#ip vrf vrf101
Enter vrf vrf name
PE2(config-vrf)# rd 101:1
Enter rd value
PE2(config-vrf)# route-target both 101:1
Enter router targeted as both
PE2(config-vrf)#exit
Exit from vrf mode
PE2(config)#commit
Commits the configuration
PE2(config)#class-map type traffic match-all cl1
Configure class map with class name
PE2(config-cmap-tr)# match destination-address ipv4 1.1.1.1/32
Configure match with destination ip address
PE2(config-cmap-tr)# match source-address ipv4 3.3.3.3/32
Enable match with source ip address
PE2(config-cmap-tr)# match port 111-222
Enable match with port range
PE2(config-cmap-tr)# match destination-port 300-399
Enable match with destination-port range
PE2(config-cmap-tr)# match source-port 230-299
Enable match with source-port range
PE2(config-cmap-tr)#exit
Exit from class map traffic
PE2(config)#commit
Commits the configuration
PE2(config)#policy-map type pbr pol1
Configure policy map type pbr with policy name
PE2(config-pmap-pbr)# class type traffic cl1
Enable class type traffic with class map name
PE2(config-pmap-pbr-c)# police rate 1111111 bps
Enable policy rate
PE2(config-pmap-pbr-c)#exit
Exit from polocy map traffic
PE2(config-pmap-pbr)#exit
Exit from policy map
PE2(config)#commit
Commits the configuration
PE2(config)#flowspec
Configure flowspec
PE2(config-flowspec)# address-family ipv4
Enter address-family mode with ipv4
PE2(config-flowspec-af)# service-policy type pbr pol1
Enable service plocy type pbr with policy name
PE2(config-flowspec-af)#exit
Exit from address family mode
PE2(config-flowspec)#exit
Exit from flowspec mode
PE2(config)#commit
Commits the configuration
PE2(config)#interface lo
Enter the loopback interface
PE2(config-if)# ip address 3.3.3.3/32 secondary
Assign the ip add secondary
PE2(config-if)# ip router isis 1
Enable router isis instance
PE2(config-if)#exit
Exit from interface mode
PE2(config)#commit
Commits the configuration
PE2(config)#interface ce4
Enter the interface mode
PE2(config-if)# ip address 50.1.1.1/24
Assign the ip add
PE2(config-if)# label-switching
Enable label switching
PE2(config-if)# ip router isis 1
Enter router isis instance
PE2(config-if)# enable-ldp ipv4
Enable ldp ipv4
PE2(config-if)#exit
Exit from interface mode
PE2(config)#commit
Commits the configuration
PE2(config)#interface ce43
Enter the interface mode
PE2(config-if)# speed 40g
Set the interface speed
PE2(config-if)# ip address 11.1.1.1/24
Assign the ip add
PE2(config-if)# label-switching
Enable label switching
PE2(config-if)# ip router isis 1
Enter router isis instance
PE2(config-if)#enable-ldp ipv4
Enable ldp ipv4
PE2(config-if)#exit
Exit from interface mode
PE2(config)#commit
Commits the configuration
PE2(config)#interface ce6
Enter the interface mode
PE2(config-if)# ip address 30.1.1.2/24
Assign the ip add
PE2(config-if)#exit
Exit from interface mode
PE2(config)#commit
Commits the configuration
PE2(config)#interface ce6.10
Enter the sub-interface mode
PE2(config-if)# encapsulation dot1q 10
Enable encapsulate dot1q vlan id
PE2(config-if)# ip vrf forwarding vrf100
Enable brf forwarding vrf name
PE2(config-if)# ip address 55.1.1.1/24
Assign the ip add
PE2(config-if)#exit
Exit from interface mode
PE2(config)#commit
Commits the configuration
PE2(config)#router isis 1
Configure isis instance
PE2(config-router)# is-type level-1-2
Configure is-type-level-1-2
PE2(config-router)# metric-style wide
Configure metric style wide
PE2(config-router)# mpls traffic-eng router-id 3.3.3.3
Configure router id
PE2(config-router)# mpls traffic-eng level-1
Configure traffic engg level-1
PE2(config-router)# mpls traffic-eng level-2
Configure traffic engg level-2
PE2(config-router)# dynamic-hostname
Configure hostname
PE2(config-router)# bfd all-interfaces
Enable bfd all interfaces
PE2(config-router)# net 49.0000.0000.0003.00
Configure network id
PE2(config-router)# passive-interface lo
Configure passive interface as loopback
PE2(config-router)#exit
Exit from isis instance mode
PE2(config)#commit
Commits the configuration
PE2(config)#router bgp 65000
Configure bgp instance
PE2(config-router)# neighbor 6.6.6.6 remote-as 65000
Enable neighbour address with remote-as 65000
PE2(config-router)# neighbor 11.1.1.2 remote-as 65000
Enable neighbour address with remote-as 65000
PE2(config-router)# neighbor 30.1.1.1 remote-as 200
Enable neighbour address with remote-as 300
PE2(config-router)# neighbor 6.6.6.6 update-source lo
Enable neighbour address with update loopback
PE2(config-router)# address-family ipv4 unicast
Enter address family ipv4 mode
PE2(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE2(config-router-af)# neighbor 6.6.6.6 next-hop-self
Enter neighbor ip add with next hop self
PE2(config-router-af)# neighbor 11.1.1.2 activate
Activate the neighbour
PE2(config-router-af)# neighbor 11.1.1.2 next-hop-self
Activate the neighbour
PE2(config-router-af)# neighbor 30.1.1.1 activate
Enter neighbor ip add with next hop self
PE2(config-router-af)# exit-address-family
Exit from address family
PE2(config-router)# address-family vpnv4 unicast
Enter address family vpnv4 unicast mode
PE2(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE2(config-router-af)# neighbor 6.6.6.6 next-hop-self
Enter neighbor ip add with next hop self
PE2(config-router-af)# neighbor 11.1.1.2 activate
Activate the neighbour
PE2(config-router-af)# neighbor 11.1.1.2 next-hop-self
Enter neighbor ip add with next hop self
PE2(config-router-af)# exit-address-family
Exit from address family
PE2(config-router)# address-family ipv4 flowspec
Enter address family ipv4 flowspec mode
PE2(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE2(config-router-af)# neighbor 11.1.1.2 activate
Activate the neighbour
PE2(config-router-af)# neighbor 30.1.1.1 activate
Activate the neighbour
PE2(config-router-af)# exit-address-family
Exit from address family
PE2(config-router)# address-family vpnv4 flowspec
Enter address family vpnv4 flowspec mode
PE2(config-router-af)# neighbor 6.6.6.6 activate
Activate the neighbour
PE2(config-router-af)# neighbor 11.1.1.2 activate
Activate the neighbour
PE2(config-router-af)# exit-address-family
Exit from address family
PE2(config-router)# address-family ipv4 vrf vrf100
Enter address family ipv4 vrf vrf name mode
PE2(config-router-af)# redistribute connected
Enter redistribute connected
PE2(config-router-af)# neighbor 55.1.1.2 remote-as 200
Enter neighbor ip add with remote-as 200
PE2(config-router-af)# neighbor 55.1.1.2 activate
Activate the neighbour
PE2(config-router-af)# exit-address-family
Exit from address family
PE2(config-router)# address-family ipv4 flowspec vrf vrf100
Enter address family ipv4 flowspec vrf vrf name mode
PE2(config-router-af)# neighbor 55.1.1.2 activate
Activate the neighbour
PE2(config-router-af)# exit-address-family
Exit from address family
PE2(config-router)#exit
Exit from router bgp instance
PE2(config)#commit
Commits the configuration
CE2

CE2#configure terminal
Enter configure mode.
CE2(config)#class-map type traffic match-all clas1
Configure class map with class name
CE2(config-cmap-tr)# match destination-address ipv4 4.4.4.4/32
Configure match with destination ip address
CE2(config-cmap-tr)# match source-address ipv4 5.5.5.5/32
Enable match with source ip address
CE2(config-cmap-tr)# match protocol 121
Enable match with protocol
CE2(config-cmap-tr)# match port 777-888
Enable match with port
CE2(config-cmap-tr)# match destination-port 1300-1400
Enable match with destination-port
CE2(config-cmap-tr)# match source-port 1001-1200
Enable match with source-port
CE2(config-cmap-tr)#exit
Exit from class map traffic mode
CE2(config)#commit
Commits the configuration
CE2(config)#class-map type traffic match-all clas2
Configure class map with class name
CE2(config-cmap-tr)# match destination-address ipv4 30.1.1.0/24
Configure match with destination ip address
CE2(config-cmap-tr)# match source-address ipv4 30.1.1.0/24
Enable match with source ip address
CE2(config-cmap-tr)# match protocol 11
Enable match with protocol
CE2(config-cmap-tr)# match port 100-200
Enable match with port
CE2(config-cmap-tr)# match destination-port 300-400
Enable match with destination-port
CE2(config-cmap-tr)# match source-port 500-600
Enable match with source-port
CE2(config-cmap-tr)# match tcp-flag 21 bit-mask 3f
Enable match with tcp flag bit
CE2(config-cmap-tr)# match dscp 21
Enable match with dscp
CE2(config-cmap-tr)#exit
Exit from class map traffic mode
CE2(config)#commit
Commits the configuration
CE2(config)#policy-map type pbr pol1
Configure policy map type pbr with policy name
CE2(config-pmap-pbr)#class type traffic clas1
Enable class type traffic with class map name
CE2(config-pmap-pbr-c)#police rate 100000 bps
Enable policy rate
CE2(config-pmap-pbr-c)#exit
Exit from polocy map traffic
CE2(config-pmap-pbr)#exit
Exit from policy map
CE2(config)#commit
Commits the configuration
CE2(config)#policy-map type pbr pol2
Configure policy map type pbr with policy name
CE2(config-pmap-pbr)# class type traffic clas2
Enable class type traffic with class map name
CE2(config-pmap-pbr-c)# police rate 500000 bps
Enable policy rate
CE2(config-pmap-pbr-c)# set dscp 1e
Ser the dscp valu
CE2(config-pmap-pbr-c)#exit
Exit from polocy map traffic
CE2(config-pmap-pbr)#exit
Exit from policy map
CE2(config)#commit
Commits the configuration
CE2(config)#flowspec
Configure flowspec
CE2(config-flowspec)# address-family ipv4
Enter address-family mode with ipv4
CE2(config-flowspec-af)# service-policy type pbr pol1
Enable service plocy type pbr with policy name
CE2(config-flowspec-af)# service-policy type pbr pol2
Enable service plocy type pbr with policy name
CE2(config-flowspec-af)#exit
Exit from address family mode
CE2(config-flowspec)#exit
Exit from flowspec mode
CE2(config)#commit
Commits the configuration
CE2(config)#interface lo


Enter interface mode
CE2(config-if)# ip address 5.5.5.5/32 secondary
Assign the ip address secondary
CE2(config-if)# ip router isis 1
Enter router isis instance
CE2(config-if)#exit
Exit from interface mode
CE2(config)#commit
Commits the configuration
CE2(config)#interface ce49
Enter interface mode
CE2(config-if)# ip address 30.1.1.1/24
Assign the ip address
CE2(config-if)#exit
Exit from interface mode
CE2(config)#commit
Commits the configuration
CE2-7025(config)#interface ce49.10
Enter sub-interface mode
CE2-7025(config-if)# encapsulation dot1q 10
Enable encapsulate dot1q vlan id
CE2-7025(config-if)# ip address 55.1.1.2/24
Assign the ip address
CE2-7025(config-if)#exit
Exit from interface mode
CE2-7025(config)#commit
Commits the configuration
CE2(config)#router bgp 200
Configure bgp instance
CE2(config-router)# neighbor 30.1.1.2 remote-as 65000
Enable neighbour address with remote-as 65000
CE2(config-router)# neighbor 55.1.1.1 remote-as 65000
Enable neighbour address with remote-as 65000
CE2(config-router)# address-family ipv4 unicast
Enter address family ipv4 unicast mode
CE2(config-router-af)# redistribute connected
Enter redistribute connected
CE2(config-router-af)# neighbor 30.1.1.2 activate
Activate the neighbour
CE2(config-router-af)# neighbor 55.1.1.1 activate
Activate the neighbour
CE2(config-router-af)# exit-address-family
Exit from address family mode
CE2(config-router)# address-family ipv4 flowspec
Enter address family ipv4 flowspec mode
CE2(config-router-af)# neighbor 30.1.1.2 activate
Activate the neighbour
CE2(config-router-af)# neighbor 55.1.1.1 activate
Exit from address family
CE2(config-router-af)# exit-address-family
Exit from router bgp mode
CE2(config-router)#exit
Exit from router bgp instance
CE2(config)#commit
Commits the configuration
Validation
CE1

CE1#sh ip bgp
BGP table version is 3, local router ID is 4.4.4.4
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> 4.4.4.4/32 0.0.0.0 0 100 32768 ?
*> 5.5.5.5/32 10.1.1.2 0 100 0 65000 200 ?
* 66.1.1.2 0 100 0 65000 200 ?
*> 10.1.1.0/24 0.0.0.0 0 100 32768 ?
*> 30.1.1.0/24 10.1.1.2 0 100 0 65000 200 ?
* 66.1.1.2 0 100 0 65000 200 ?
*> 55.1.1.0/24 66.1.1.2 0 100 0 65000 ?
* 10.1.1.2 0 100 0 65000 200 ?
*> 66.1.1.0/24 0.0.0.0 0 100 32768 ?
* 66.1.1.2 0 100 0 65000 ?
*> 100.1.1.0/24 0.0.0.0 0 100 32768 ?
*> 200.1.1.0 10.1.1.2 0 100 0 65000 200 ?
* 66.1.1.2 0 100 0 65000 200 ?

Total number of prefixes 8
CE1#

CE1#sh ip bgp neighbors
BGP neighbor is 10.1.1.2, remote AS 65000, local AS 100, external link
BGP version 4, local router ID 4.4.4.4, remote router ID 1.1.1.1
BGP state = Established, up for 03:06:16
Last read 00:00:05, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 447 messages, 0 notifications, 0 in queue
Sent 444 messages, 1 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
5 announced prefixes


For address family: IPv4 Flow Specification BGP table version 2, neighbor version 2
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 10.1.1.1, Local port: 179
Foreign host: 10.1.1.2, Foreign port: 37390
Nexthop: 10.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:06:16, due to OPEN Message Error (Notification sent)
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 66.1.1.2, remote AS 65000, local AS 100, external link
BGP version 4, local router ID 4.4.4.4, remote router ID 66.1.1.2
BGP state = Established, up for 03:06:15
Last read 00:00:07, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 446 messages, 0 notifications, 0 in queue
Sent 446 messages, 1 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
5 accepted prefixes
7 announced prefixes


For address family: IPv4 Flow Specification BGP table version 2, neighbor version 2
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 66.1.1.1, Local port: 53648
Foreign host: 66.1.1.2, Foreign port: 179
Nexthop: 66.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:06:20, due to OPEN Message Error (Notification sent)
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

CE1#
CE1#
CE1#sh ip bgp ipv4 flowspec summary
BGP router identifier 4.4.4.4, local AS number 100
BGP table version is 2
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
10.1.1.2 4 65000 447 445 2 0 0 03:06:20 4
66.1.1.2 4 65000 446 448 2 0 0 03:06:19 2

Total number of neighbors 2

Total number of Established sessions 2
CE1#
CE1#sh ip bgp ipv4 flowspec
BGP table version is 2, local router ID is 4.4.4.4
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> flowspec/216 0.0.0.0 0 100 32768 i
* flowspec/336 10.1.1.2 0 100 0 65000 200 i
* 66.1.1.2 0 100 0 65000 200 i
* flowspec/264 10.1.1.2 0 100 0 65000 i
* flowspec/392 10.1.1.2 0 100 0 65000 i
*> flowspec/176 0.0.0.0 0 100 32768 i
* flowspec/288 10.1.1.2 0 100 0 65000 200 i
* 66.1.1.2 0 100 0 65000 200 i

Total number of prefixes 6
CE1#
CE1#sh ip bgp ipv4 flowspec detail
BGP table version is 2, local router ID is 4.4.4.4
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> flowspec/216 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

* flowspec/336 10.1.1.2 0 100 0 65000 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* 66.1.1.2 0 100 0 65000 200 i
FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* flowspec/264 10.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

* flowspec/392 10.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*> flowspec/176 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

* flowspec/288 10.1.1.2 0 100 0 65000 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps

* 66.1.1.2 0 100 0 65000 200 i
FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
CE1#
CE1#
CE1#sh ip bgp ipv4 flowspec vrf all
BGP table version is 2, local router ID is 4.4.4.4
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> flowspec/216 0.0.0.0 0 100 32768 i
* flowspec/336 10.1.1.2 0 100 0 65000 200 i
* 66.1.1.2 0 100 0 65000 200 i
* flowspec/264 10.1.1.2 0 100 0 65000 i
* flowspec/392 10.1.1.2 0 100 0 65000 i
*> flowspec/176 0.0.0.0 0 100 32768 i
* flowspec/288 10.1.1.2 0 100 0 65000 200 i
* 66.1.1.2 0 100 0 65000 200 i

Total number of prefixes 6
CE1#sh ip bgp ipv4 flowspec vrf all detail
BGP table version is 2, local router ID is 4.4.4.4
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> flowspec/216 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

* flowspec/336 10.1.1.2 0 100 0 65000 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* 66.1.1.2 0 100 0 65000 200 i
FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* flowspec/264 10.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

* flowspec/392 10.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*> flowspec/176 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

* flowspec/288 10.1.1.2 0 100 0 65000 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps

* 66.1.1.2 0 100 0 65000 200 i
FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
CE1#
PE1

PE1#sh ip bgp
BGP table version is 5, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> 4.4.4.4/32 10.1.1.1 0 100 0 100 ?
*>i 5.5.5.5/32 3.3.3.3 0 100 0 200 ?
* i 11.1.1.1 0 100 0 200 ?
* 9.9.9.9/32 0.0.0.0 0 100 32768 i
*> 10.1.1.0/24 10.1.1.1 0 100 0 100 ?
*>i 30.1.1.0/24 3.3.3.3 0 100 0 200 ?
* i 11.1.1.1 0 100 0 200 ?
*>i 55.1.1.0/24 3.3.3.3 0 100 0 200 ?
* i 11.1.1.1 0 100 0 200 ?
*> 66.1.1.0/24 10.1.1.1 0 100 0 100 ?
*> 100.1.1.0/24 10.1.1.1 0 100 0 100 ?
*>i 200.1.1.0 3.3.3.3 0 100 0 200 ?
* i 11.1.1.1 0 100 0 200 ?

Total number of prefixes 9
PE1#
PE1#sh ip bgp neighbors
BGP neighbor is 6.6.6.6, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 1.1.1.1, remote router ID 6.6.6.6
BGP state = Established, up for 03:06:53
Last read 00:00:11, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 448 messages, 0 notifications, 0 in queue
Sent 445 messages, 1 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds
Update source is lo

For address family: IPv4 Unicast BGP table version 5, neighbor version 5
Index 1, Offset 0, Mask 0x2
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 7, neighbor version 7
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 2, neighbor version 2
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 1.1.1.1, Local port: 41307
Foreign host: 6.6.6.6, Foreign port: 179
Nexthop: 1.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:06:58, due to OPEN Message Error (Notification sent)
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 10.1.1.1, remote AS 100, local AS 65000, external link
BGP version 4, local router ID 1.1.1.1, remote router ID 4.4.4.4
BGP state = Established, up for 03:07:28
Last read 00:00:24, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 444 messages, 1 notifications, 0 in queue
Sent 450 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 5, neighbor version 5
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 7, neighbor version 7
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
4 announced prefixes

Connections established 1; dropped 0
Local host: 10.1.1.2, Local port: 37390
Foreign host: 10.1.1.1, Foreign port: 179
Nexthop: 10.1.1.2
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:07:33, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 20.1.1.2, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 1.1.1.1, remote router ID 2.2.2.2
BGP state = Established, up for 03:06:26
Last read 00:00:12, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 446 messages, 0 notifications, 0 in queue
Sent 450 messages, 2 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds

For address family: IPv4 Unicast BGP table version 5, neighbor version 5
Index 3, Offset 0, Mask 0x8
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 7, neighbor version 7
Index 3, Offset 0, Mask 0x8
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 2, neighbor version 2
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 20.1.1.1, Local port: 179
Foreign host: 20.1.1.2, Foreign port: 43160
Nexthop: 20.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:06:26, due to Administratively Reset (Cease Notification sent)
Notification Error Message: (Cease/Administratively Reset.)

BGP neighbor is 66.1.1.1, vrf vrf100, remote AS 100, local AS 65000, external link
BGP version 4, local router ID 66.1.1.2, remote router ID 4.4.4.4
BGP state = Established, up for 03:07:28
Last read 00:00:17, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 449 messages, 1 notifications, 0 in queue
Sent 451 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 1, neighbor version 1
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (standard)
Large Community attribute sent to this neighbor
4 accepted prefixes
5 announced prefixes


For address family: IPv4 Flow Specification BGP table version 1, neighbor version 1
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 66.1.1.2, Local port: 179
Foreign host: 66.1.1.1, Foreign port: 53648
Nexthop: 66.1.1.2
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:07:33, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

PE1#
PE1#
PE1#sh ip bgp ipv4 flowspec summary
BGP router identifier 1.1.1.1, local AS number 65000
BGP table version is 7
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
6.6.6.6 4 65000 448 446 7 0 0 03:07:01 3
10.1.1.1 4 100 446 451 7 0 0 03:07:36 2
20.1.1.2 4 65000 446 452 7 0 0 03:06:34 3

Total number of neighbors 3

Total number of Established sessions 3
BGP router identifier 66.1.1.2, local AS number 65000
BGP VRF vrf100 Route Distinguisher: 100:1
BGP table version is 1
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
66.1.1.1 4 100 451 451 1 0 0 03:07:36 2

Total number of neighbors 1

Total number of Established sessions 1
PE1#
PE1#
PE1#sh ip bgp ipv4 flowspec
BGP table version is 7, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> flowspec/216 10.1.1.1 0 100 0 100 i
*>i flowspec/336 6.6.6.6 0 100 0 200 i
* i 20.1.1.2 0 100 0 200 i
*>i flowspec/264 6.6.6.6 0 100 0 i
* i 20.1.1.2 0 100 0 i
*> flowspec/392 0.0.0.0 0 100 32768 i
*> flowspec/176 10.1.1.1 0 100 0 100 i
*>i flowspec/288 6.6.6.6 0 100 0 200 i
* i 20.1.1.2 0 100 0 200 i

Total number of prefixes 6
PE1#
PE1#sh ip bgp ipv4 flowspec detail
BGP table version is 7, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> flowspec/216 10.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* i 20.1.1.2 0 100 0 200 i
FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/264 6.6.6.6 0 100 0 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

* i 20.1.1.2 0 100 0 i
FlowSpec Actions:
traffic_rate: 1111111 bps

*> flowspec/392 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*> flowspec/176 10.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps

* i 20.1.1.2 0 100 0 200 i
FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
PE1#
PE1#
PE1#sh ip bgp ipv4 flowspec vrf all
BGP table version is 1, local router ID is 66.1.1.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path

BGP Route Table for VRF vrf100
*> flowspec/216 66.1.1.1 0 100 0 100 i
*>i flowspec/336 6.6.6.6 0 100 0 200 i
*> flowspec/176 66.1.1.1 0 100 0 100 i
*>i flowspec/288 6.6.6.6 0 100 0 200 i

Total number of prefixes 4
*> flowspec/216 10.1.1.1 0 100 0 100 i
*>i flowspec/336 6.6.6.6 0 100 0 200 i
* i 20.1.1.2 0 100 0 200 i
*>i flowspec/264 6.6.6.6 0 100 0 i
* i 20.1.1.2 0 100 0 i
*> flowspec/392 0.0.0.0 0 100 32768 i
*> flowspec/176 10.1.1.1 0 100 0 100 i
*>i flowspec/288 6.6.6.6 0 100 0 200 i
* i 20.1.1.2 0 100 0 200 i

Total number of prefixes 6
PE1#
PE1#
PE1#sh ip bgp ipv4 flowspec vrf all detail
BGP table version is 1, local router ID is 66.1.1.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path

BGP Route Table for VRF vrf100
*> flowspec/216 66.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*> flowspec/176 66.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 4
*> flowspec/216 10.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* i 20.1.1.2 0 100 0 200 i
FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/264 6.6.6.6 0 100 0 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

* i 20.1.1.2 0 100 0 i
FlowSpec Actions:
traffic_rate: 1111111 bps

*> flowspec/392 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*> flowspec/176 10.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps

* i 20.1.1.2 0 100 0 200 i
FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
PE1#
PE1#
PE1#sh ip bgp vpnv4 flowspec summary
BGP router identifier 1.1.1.1, local AS number 65000
BGP table version is 2
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
6.6.6.6 4 65000 450 448 2 0 0 03:07:39 2
20.1.1.2 4 65000 448 453 2 0 0 03:07:12 2

Total number of neighbors 2

Total number of Established sessions 2
PE1#
PE1#sh ip bgp vpnv4 flowspec vrf vrf100
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, l - labeled
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:1 (Default for VRF vrf100)
*> flowspec/216 66.1.1.1 0 100 0 100 i
*>i flowspec/336 6.6.6.6 0 100 0 200 i
*> flowspec/176 66.1.1.1 0 100 0 100 i
*>i flowspec/288 6.6.6.6 0 100 0 200 i
Announced routes count = 2
Accepted routes count = 2
PE1#
PE1#sh ip bgp vpnv4 flowspec vrf vrf100 detail
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, l - labeled
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:1 (Default for VRF vrf100)
*> flowspec/216 66.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*> flowspec/176 66.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 6.6.6.6 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps

Announced routes count = 2
Accepted routes count = 2
PE1#
RR1
RR1#sh clns neighbors

Total number of L1 adjacencies: 2
Total number of L2 adjacencies: 2
Total number of adjacencies: 4
Tag 1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
PE2 ce4 5c07.5819.4878 Up 27 L1 IS-IS
Up 27 L2 IS-IS
PE1 ce6 b86a.9725.a7ec Up 9 L1 IS-IS
Up 9 L2 IS-IS
RR1#

RR1#sh ip bgp
BGP table version is 3, local router ID is 6.6.6.6
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i 4.4.4.4/32 1.1.1.1 0 100 0 100 ?
*>i 5.5.5.5/32 3.3.3.3 0 100 0 200 ?
*>i 10.1.1.0/24 1.1.1.1 0 100 0 100 ?
*>i 30.1.1.0/24 3.3.3.3 0 100 0 200 ?
*>i 55.1.1.0/24 3.3.3.3 0 100 0 200 ?
*>i 66.1.1.0/24 1.1.1.1 0 100 0 100 ?
*>i 100.1.1.0/24 1.1.1.1 0 100 0 100 ?
*>i 200.1.1.0 3.3.3.3 0 100 0 200 ?

Total number of prefixes 8
RR1#
RR1#
RR1#sh ip bgp neighbors
BGP neighbor is 1.1.1.1, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 6.6.6.6, remote router ID 1.1.1.1
BGP state = Established, up for 03:08:38
Last read 00:00:13, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 449 messages, 1 notifications, 0 in queue
Sent 454 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds
Update source is lo

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 5, neighbor version 5
Index 1, Offset 0, Mask 0x2
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 6.6.6.6, Local port: 179
Foreign host: 1.1.1.1, Foreign port: 41307
Nexthop: 6.6.6.6
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:08:43, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 3.3.3.3, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 6.6.6.6, remote router ID 3.3.3.3
BGP state = Established, up for 03:06:51
Last read 00:00:19, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 446 messages, 0 notifications, 0 in queue
Sent 446 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds
Update source is lo

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 5, neighbor version 5
Index 2, Offset 0, Mask 0x4
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 6.6.6.6, Local port: 35405
Foreign host: 3.3.3.3, Foreign port: 179
Nexthop: 6.6.6.6
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network

RR1#
RR1#
RR1#sh ip bgp ipv4 flowspec summary
BGP router identifier 6.6.6.6, local AS number 65000
BGP table version is 5
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
1.1.1.1 4 65000 450 454 5 0 0 03:08:46 3
3.3.3.3 4 65000 447 447 5 0 0 03:06:59 3

Total number of neighbors 2

Total number of Established sessions 2
RR1#
RR1#
RR1#sh ip bgp ipv4 flowspec
BGP table version is 5, local router ID is 6.6.6.6
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 1.1.1.1 0 100 0 100 i
*>i flowspec/336 3.3.3.3 0 100 0 200 i
*>i flowspec/264 3.3.3.3 0 100 0 i
*>i flowspec/392 1.1.1.1 0 100 0 i
*>i flowspec/176 1.1.1.1 0 100 0 100 i
*>i flowspec/288 3.3.3.3 0 100 0 200 i

Total number of prefixes 6
RR1#
RR1#
RR1#sh ip bgp ipv4 flowspec detail
BGP table version is 5, local router ID is 6.6.6.6
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 1.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 3.3.3.3 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/264 3.3.3.3 0 100 0 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

*>i flowspec/392 1.1.1.1 0 100 0 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*>i flowspec/176 1.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 3.3.3.3 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
RR1#
RR1#
RR1#sh ip bgp ipv4 flowspec vrf all
BGP table version is 5, local router ID is 6.6.6.6
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 1.1.1.1 0 100 0 100 i
*>i flowspec/336 3.3.3.3 0 100 0 200 i
*>i flowspec/264 3.3.3.3 0 100 0 i
*>i flowspec/392 1.1.1.1 0 100 0 i
*>i flowspec/176 1.1.1.1 0 100 0 100 i
*>i flowspec/288 3.3.3.3 0 100 0 200 i

Total number of prefixes 6
RR1#
RR1#sh ip bgp ipv4 flowspec vrf all detail
BGP table version is 5, local router ID is 6.6.6.6
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 1.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 3.3.3.3 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/264 3.3.3.3 0 100 0 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

*>i flowspec/392 1.1.1.1 0 100 0 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*>i flowspec/176 1.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 3.3.3.3 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
RR1#
RR1#
RR1#sh ip bgp vpnv4 all
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, l - labeled
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:1
*>i 4.4.4.4/32 1.1.1.1 0 100 0 100 ?
*>i 5.5.5.5/32 3.3.3.3 0 100 0 200 ?
*>i 10.1.1.0/24 1.1.1.1 0 100 0 100 ?
*>i 30.1.1.0/24 3.3.3.3 0 100 0 200 ?
*>i 55.1.1.0/24 3.3.3.3 0 100 0 ?
*>i 66.1.1.0/24 1.1.1.1 0 100 0 ?
*>i 100.1.1.0/24 1.1.1.1 0 100 0 100 ?
*>i 200.1.1.0 3.3.3.3 0 100 0 200 ?
Announced routes count = 0
Accepted routes count = 8
RR1#
RR1#
RR1#sh ip bgp vpnv4 flowspec summary
BGP router identifier 6.6.6.6, local AS number 65000
BGP table version is 3
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
1.1.1.1 4 65000 452 456 3 0 0 03:09:22 2
3.3.3.3 4 65000 448 448 3 0 0 03:07:35 2

Total number of neighbors 2

Total number of Established sessions 2
RR1#
RR2

RR2#sh clns neighbors

Total number of L1 adjacencies: 2
Total number of L2 adjacencies: 2
Total number of adjacencies: 4
Tag 1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
PE1 xe7 b86a.9725.a7c2 Up 6 L1 IS-IS
Up 6 L2 IS-IS
PE2 ce43 5c07.5819.486b Up 7 L1 IS-IS
Up 7 L2 IS-IS
RR2#
RR2#sh ip bgp
BGP table version is 3, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i 4.4.4.4/32 20.1.1.1 0 100 0 100 ?
*>i 5.5.5.5/32 11.1.1.1 0 100 0 200 ?
*>i 10.1.1.0/24 20.1.1.1 0 100 0 100 ?
*>i 30.1.1.0/24 11.1.1.1 0 100 0 200 ?
*>i 55.1.1.0/24 11.1.1.1 0 100 0 200 ?
*>i 66.1.1.0/24 20.1.1.1 0 100 0 100 ?
*>i 100.1.1.0/24 20.1.1.1 0 100 0 100 ?
*>i 200.1.1.0 11.1.1.1 0 100 0 200 ?

Total number of prefixes 8
RR2#
RR2#
RR2#sh ip bgp neighbors
BGP neighbor is 11.1.1.1, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 2.2.2.2, remote router ID 3.3.3.3
BGP state = Established, up for 03:09:46
Last read 00:00:05, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 458 messages, 0 notifications, 0 in queue
Sent 457 messages, 2 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 4, neighbor version 4
Index 1, Offset 0, Mask 0x2
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 5, neighbor version 5
Index 1, Offset 0, Mask 0x2
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 11.1.1.2, Local port: 179
Foreign host: 11.1.1.1, Foreign port: 41446
Nexthop: 11.1.1.2
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:09:46, due to Administratively Reset (Cease Notification sent)
Notification Error Message: (Cease/Administratively Reset.)

BGP neighbor is 20.1.1.1, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 2.2.2.2, remote router ID 1.1.1.1
BGP state = Established, up for 03:10:17
Last read 00:00:23, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 457 messages, 1 notifications, 0 in queue
Sent 457 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 4, neighbor version 4
Index 2, Offset 0, Mask 0x4
AIGP is enabled
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 5, neighbor version 5
Index 2, Offset 0, Mask 0x4
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
Route-Reflector Client
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 20.1.1.2, Local port: 43160
Foreign host: 20.1.1.1, Foreign port: 179
Nexthop: 20.1.1.2
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:10:22, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

RR2#
RR2#
RR2#sh ip bgp ipv4 flowspec summary
BGP router identifier 2.2.2.2, local AS number 65000
BGP table version is 5
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
11.1.1.1 4 65000 458 459 5 0 0 03:09:54 3
20.1.1.1 4 65000 459 457 5 0 0 03:10:25 3

Total number of neighbors 2

Total number of Established sessions 2
RR2#
RR2#sh ip bgp ipv4 flowspec
BGP table version is 5, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 20.1.1.1 0 100 0 100 i
*>i flowspec/336 11.1.1.1 0 100 0 200 i
*>i flowspec/264 11.1.1.1 0 100 0 i
*>i flowspec/392 20.1.1.1 0 100 0 i
*>i flowspec/176 20.1.1.1 0 100 0 100 i
*>i flowspec/288 11.1.1.1 0 100 0 200 i

Total number of prefixes 6
RR2#
RR2#
RR2#sh ip bgp ipv4 flowspec detail
BGP table version is 5, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 20.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 11.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/264 11.1.1.1 0 100 0 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

*>i flowspec/392 20.1.1.1 0 100 0 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*>i flowspec/176 20.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 11.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
RR2#
RR2#
RR2#sh ip bgp ipv4 flowspec vrf all
BGP table version is 5, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 20.1.1.1 0 100 0 100 i
*>i flowspec/336 11.1.1.1 0 100 0 200 i
*>i flowspec/264 11.1.1.1 0 100 0 i
*>i flowspec/392 20.1.1.1 0 100 0 i
*>i flowspec/176 20.1.1.1 0 100 0 100 i
*>i flowspec/288 11.1.1.1 0 100 0 200 i

Total number of prefixes 6
RR2#
RR2#sh ip bgp ipv4 flowspec vrf all detail
BGP table version is 5, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 20.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*>i flowspec/336 11.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/264 11.1.1.1 0 100 0 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

*>i flowspec/392 20.1.1.1 0 100 0 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*>i flowspec/176 20.1.1.1 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*>i flowspec/288 11.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
RR2#
RR2#
RR2#sh ip bgp vpnv4 all
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, l - labeled
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:1
*>i 4.4.4.4/32 20.1.1.1 0 100 0 100 ?
*>i 5.5.5.5/32 11.1.1.1 0 100 0 200 ?
*>i 10.1.1.0/24 20.1.1.1 0 100 0 100 ?
*>i 30.1.1.0/24 11.1.1.1 0 100 0 200 ?
*>i 55.1.1.0/24 11.1.1.1 0 100 0 ?
*>i 66.1.1.0/24 20.1.1.1 0 100 0 ?
*>i 100.1.1.0/24 20.1.1.1 0 100 0 100 ?
*>i 200.1.1.0 11.1.1.1 0 100 0 200 ?
Announced routes count = 0
Accepted routes count = 8
RR2#
RR2#sh ip bgp vpnv4 flowspec summary
BGP router identifier 2.2.2.2, local AS number 65000
BGP table version is 3
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
11.1.1.1 4 65000 460 460 3 0 0 03:10:38 2
20.1.1.1 4 65000 460 459 3 0 0 03:11:09 2

Total number of neighbors 2

Total number of Established sessions 2
RR2#

PE2

PE2#sh clns neighbors

Total number of L1 adjacencies: 2
Total number of L2 adjacencies: 2
Total number of adjacencies: 4
Tag 1: VRF : default
System Id Interface SNPA State Holdtime Type Protocol
RR2 ce43 3417.ebe4.af2c Up 27 L1 IS-IS
Up 27 L2 IS-IS
RR1 ce4 5c07.5871.205c Up 8 L1 IS-IS
Up 8 L2 IS-IS
PE2#
PE2#sh ip bgp
BGP table version is 4, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i 4.4.4.4/32 1.1.1.1 0 100 0 100 ?
* i 20.1.1.1 0 100 0 100 ?
*> 5.5.5.5/32 30.1.1.1 0 100 0 200 ?
*>i 10.1.1.0/24 1.1.1.1 0 100 0 100 ?
* i 20.1.1.1 0 100 0 100 ?
*> 30.1.1.0/24 30.1.1.1 0 100 0 200 ?
*> 55.1.1.0/24 30.1.1.1 0 100 0 200 ?
*>i 66.1.1.0/24 1.1.1.1 0 100 0 100 ?
* i 20.1.1.1 0 100 0 100 ?
*>i 100.1.1.0/24 1.1.1.1 0 100 0 100 ?
* i 20.1.1.1 0 100 0 100 ?
*> 200.1.1.0 30.1.1.1 0 100 0 200 ?

Total number of prefixes 8
PE2#
PE2#sh ip bgp neighbors
BGP neighbor is 6.6.6.6, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 3.3.3.3, remote router ID 6.6.6.6
BGP state = Established, up for 03:12:03
Last read 00:00:28, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 459 messages, 0 notifications, 0 in queue
Sent 459 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds
Update source is lo

For address family: IPv4 Unicast BGP table version 4, neighbor version 4
Index 1, Offset 0, Mask 0x2
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 6, neighbor version 6
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 3.3.3.3, Local port: 179
Foreign host: 6.6.6.6, Foreign port: 35405
Nexthop: 3.3.3.3
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network

BGP neighbor is 11.1.1.2, remote AS 65000, local AS 65000, internal link
BGP version 4, local router ID 3.3.3.3, remote router ID 2.2.2.2
BGP state = Established, up for 03:12:52
Last read 00:00:26, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family VPNv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Address family VPNv4 Flow Specification: advertised and received
Received 462 messages, 1 notifications, 0 in queue
Sent 467 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 5 seconds

For address family: IPv4 Unicast BGP table version 4, neighbor version 4
Index 2, Offset 0, Mask 0x4
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: VPNv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
AIGP is enabled
NEXT_HOP is always this router
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 6, neighbor version 6
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
3 accepted prefixes
3 announced prefixes


For address family: VPNv4 Flow Specification BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 11.1.1.1, Local port: 41446
Foreign host: 11.1.1.2, Foreign port: 179
Nexthop: 11.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:12:57, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 30.1.1.1, remote AS 200, local AS 65000, external link
BGP version 4, local router ID 3.3.3.3, remote router ID 5.5.5.5
BGP state = Established, up for 03:12:27
Last read 00:00:05, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 456 messages, 0 notifications, 0 in queue
Sent 463 messages, 1 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 4, neighbor version 4
Index 3, Offset 0, Mask 0x8
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
4 announced prefixes


For address family: IPv4 Flow Specification BGP table version 6, neighbor version 6
Index 3, Offset 0, Mask 0x8
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
4 announced prefixes

Connections established 1; dropped 0
Local host: 30.1.1.2, Local port: 179
Foreign host: 30.1.1.1, Foreign port: 41276
Nexthop: 30.1.1.2
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:12:27, due to OPEN Message Error (Notification sent)
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 55.1.1.2, vrf vrf100, remote AS 200, local AS 65000, external link
BGP version 4, local router ID 55.1.1.1, remote router ID 5.5.5.5
BGP state = Established, up for 03:12:27
Last read 00:00:05, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 460 messages, 0 notifications, 0 in queue
Sent 460 messages, 1 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 1, neighbor version 1
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (standard)
Large Community attribute sent to this neighbor
4 accepted prefixes
5 announced prefixes


For address family: IPv4 Flow Specification BGP table version 1, neighbor version 1
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 55.1.1.1, Local port: 40660
Foreign host: 55.1.1.2, Foreign port: 179
Nexthop: 55.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:12:32, due to OPEN Message Error (Notification sent)
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

PE2#
PE2#sh ip bgp ipv4 flowspec summary
BGP router identifier 3.3.3.3, local AS number 65000
BGP table version is 6
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
6.6.6.6 4 65000 460 459 6 0 0 03:12:13 3
11.1.1.2 4 65000 464 468 6 0 0 03:13:02 3
30.1.1.1 4 200 456 464 6 0 0 03:12:37 2

Total number of neighbors 3

Total number of Established sessions 3
BGP router identifier 55.1.1.1, local AS number 65000
BGP VRF vrf100 Route Distinguisher: 100:1
BGP table version is 1
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
55.1.1.2 4 200 460 461 1 0 0 03:12:37 2

Total number of neighbors 1

Total number of Established sessions 1
PE2#
PE2#sh ip bgp ipv4 flowspec
BGP table version is 6, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 6.6.6.6 0 100 0 100 i
* i 11.1.1.2 0 100 0 100 i
*> flowspec/336 30.1.1.1 0 100 0 200 i
*> flowspec/264 0.0.0.0 0 100 32768 i
*>i flowspec/392 6.6.6.6 0 100 0 i
* i 11.1.1.2 0 100 0 i
*>i flowspec/176 6.6.6.6 0 100 0 100 i
* i 11.1.1.2 0 100 0 100 i
*> flowspec/288 30.1.1.1 0 100 0 200 i

Total number of prefixes 6
PE2#
PE2#sh ip bgp ipv4 flowspec detail
BGP table version is 6, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*>i flowspec/216 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

* i 11.1.1.2 0 100 0 100 i
FlowSpec Actions:
traffic_rate: 21000 bps

*> flowspec/336 30.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*> flowspec/264 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

*>i flowspec/392 6.6.6.6 0 100 0 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

* i 11.1.1.2 0 100 0 i
FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*>i flowspec/176 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

* i 11.1.1.2 0 100 0 100 i
FlowSpec Actions:
traffic_rate: 4444444 bps

*> flowspec/288 30.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
PE2#
PE2#
PE2#sh ip bgp ipv4 flowspec vrf all
BGP table version is 1, local router ID is 55.1.1.1
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path

BGP Route Table for VRF vrf100
*>i flowspec/216 6.6.6.6 0 100 0 100 i
*> flowspec/336 55.1.1.2 0 100 0 200 i
*>i flowspec/176 6.6.6.6 0 100 0 100 i
*> flowspec/288 55.1.1.2 0 100 0 200 i

Total number of prefixes 4
*>i flowspec/216 6.6.6.6 0 100 0 100 i
* i 11.1.1.2 0 100 0 100 i
*> flowspec/336 30.1.1.1 0 100 0 200 i
*> flowspec/264 0.0.0.0 0 100 32768 i
*>i flowspec/392 6.6.6.6 0 100 0 i
* i 11.1.1.2 0 100 0 i
*>i flowspec/176 6.6.6.6 0 100 0 100 i
* i 11.1.1.2 0 100 0 100 i
*> flowspec/288 30.1.1.1 0 100 0 200 i

Total number of prefixes 6
PE2#
PE2#sh ip bgp ipv4 flowspec vrf all detail
BGP table version is 1, local router ID is 55.1.1.1
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path

BGP Route Table for VRF vrf100
*>i flowspec/216 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*> flowspec/336 55.1.1.2 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/176 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*> flowspec/288 55.1.1.2 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 4
*>i flowspec/216 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

* i 11.1.1.2 0 100 0 100 i
FlowSpec Actions:
traffic_rate: 21000 bps

*> flowspec/336 30.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*> flowspec/264 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

*>i flowspec/392 6.6.6.6 0 100 0 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

* i 11.1.1.2 0 100 0 i
FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

*>i flowspec/176 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

* i 11.1.1.2 0 100 0 100 i
FlowSpec Actions:
traffic_rate: 4444444 bps

*> flowspec/288 30.1.1.1 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
PE2#

PE2#sh ip bgp vpnv4 flowspec summary
BGP router identifier 3.3.3.3, local AS number 65000
BGP table version is 3
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
6.6.6.6 4 65000 463 463 3 0 0 03:13:42 2
11.1.1.2 4 65000 467 471 3 0 0 03:14:31 2

Total number of neighbors 2

Total number of Established sessions 2
PE2#
PE2#sh ip bgp vpnv4 flowspec vrf vrf100
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, l - labeled
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:1 (Default for VRF vrf100)
*>i flowspec/216 6.6.6.6 0 100 0 100 i
*> flowspec/336 55.1.1.2 0 100 0 200 i
*>i flowspec/176 6.6.6.6 0 100 0 100 i
*> flowspec/288 55.1.1.2 0 100 0 200 i
Announced routes count = 2
Accepted routes count = 2
PE2#
PE2#sh ip bgp vpnv4 flowspec vrf vrf100 detail
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, l - labeled
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:1 (Default for VRF vrf100)
*>i flowspec/216 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

*> flowspec/336 55.1.1.2 0 100 0 200 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

*>i flowspec/176 6.6.6.6 0 100 0 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

*> flowspec/288 55.1.1.2 0 100 0 200 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps

Announced routes count = 2
Accepted routes count = 2
PE2#
CE2

CE2#sh ip bgp
BGP table version is 3, local router ID is 5.5.5.5
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> 4.4.4.4/32 30.1.1.2 0 100 0 65000 100 ?
* 55.1.1.1 0 100 0 65000 100 ?
*> 5.5.5.5/32 0.0.0.0 0 100 32768 ?
*> 10.1.1.0/24 30.1.1.2 0 100 0 65000 100 ?
* 55.1.1.1 0 100 0 65000 100 ?
*> 30.1.1.0/24 0.0.0.0 0 100 32768 ?
*> 55.1.1.0/24 0.0.0.0 0 100 32768 ?
* 55.1.1.1 0 100 0 65000 ?
*> 66.1.1.0/24 55.1.1.1 0 100 0 65000 ?
* 30.1.1.2 0 100 0 65000 100 ?
*> 100.1.1.0/24 30.1.1.2 0 100 0 65000 100 ?
* 55.1.1.1 0 100 0 65000 100 ?
*> 200.1.1.0 0.0.0.0 0 100 32768 ?

Total number of prefixes 8
CE2#
CE2#
CE2#sh ip bgp neighbors
BGP neighbor is 30.1.1.2, remote AS 65000, local AS 200, external link
BGP version 4, local router ID 5.5.5.5, remote router ID 3.3.3.3
BGP state = Established, up for 03:15:13
Last read 00:00:14, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 467 messages, 1 notifications, 0 in queue
Sent 463 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
5 announced prefixes


For address family: IPv4 Flow Specification BGP table version 2, neighbor version 2
Index 1, Offset 0, Mask 0x2
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
4 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 30.1.1.1, Local port: 41276
Foreign host: 30.1.1.2, Foreign port: 179
Nexthop: 30.1.1.1
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:15:18, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

BGP neighbor is 55.1.1.1, remote AS 65000, local AS 200, external link
BGP version 4, local router ID 5.5.5.5, remote router ID 55.1.1.1
BGP state = Established, up for 03:15:13
Last read 00:00:03, hold time is 90, keepalive interval is 30 seconds
Neighbor capabilities:
Route refresh: advertised and received (old and new)
Address family IPv4 Unicast: advertised and received
Address family IPv4 Flow Specification: advertised and received
Received 466 messages, 1 notifications, 0 in queue
Sent 467 messages, 0 notifications, 0 in queue
Route refresh request: received 0, sent 0
Minimum time between advertisement runs is 30 seconds

For address family: IPv4 Unicast BGP table version 3, neighbor version 3
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
5 accepted prefixes
7 announced prefixes


For address family: IPv4 Flow Specification BGP table version 2, neighbor version 2
Index 2, Offset 0, Mask 0x4
Community attribute sent to this neighbor (both)
Large Community attribute sent to this neighbor
2 accepted prefixes
2 announced prefixes

Connections established 1; dropped 0
Local host: 55.1.1.2, Local port: 179
Foreign host: 55.1.1.1, Foreign port: 40660
Nexthop: 55.1.1.2
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network
Last Reset: 03:15:18, due to BGP Notification received
Notification Error Message: (OPEN Message Error/Bad BGP Identifier. Reason: )

CE2#
CE2#
CE2#sh ip bgp ipv4 flowspec summary
BGP router identifier 5.5.5.5, local AS number 200
BGP table version is 2
3 BGP AS-PATH entries
0 BGP community entries

Neighbor V AS MsgRcv MsgSen TblVer InQ OutQ Up/Down State/PfxRcd
30.1.1.2 4 65000 468 463 2 0 0 03:15:21 4
55.1.1.1 4 65000 467 467 2 0 0 03:15:21 2

Total number of neighbors 2

Total number of Established sessions 2
CE2#
CE2#
CE2#sh ip bgp ipv4 flowspec
BGP table version is 2, local router ID is 5.5.5.5
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
* flowspec/216 30.1.1.2 0 100 0 65000 100 i
* 55.1.1.1 0 100 0 65000 100 i
*> flowspec/336 0.0.0.0 0 100 32768 i
* flowspec/264 30.1.1.2 0 100 0 65000 i
* flowspec/392 30.1.1.2 0 100 0 65000 i
* flowspec/176 30.1.1.2 0 100 0 65000 100 i
* 55.1.1.1 0 100 0 65000 100 i
*> flowspec/288 0.0.0.0 0 100 32768 i

Total number of prefixes 6
CE2#
CE2#sh ip bgp ipv4 flowspec detail
BGP table version is 2, local router ID is 5.5.5.5
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
* flowspec/216 30.1.1.2 0 100 0 65000 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

* 55.1.1.1 0 100 0 65000 100 i
FlowSpec Actions:
traffic_rate: 21000 bps

*> flowspec/336 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* flowspec/264 30.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

* flowspec/392 30.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

* flowspec/176 30.1.1.2 0 100 0 65000 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

* 55.1.1.1 0 100 0 65000 100 i
FlowSpec Actions:
traffic_rate: 4444444 bps

*> flowspec/288 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
CE2#
CE2#
CE2#sh ip bgp ipv4 flowspec vrf all
BGP table version is 2, local router ID is 5.5.5.5
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
* flowspec/216 30.1.1.2 0 100 0 65000 100 i
* 55.1.1.1 0 100 0 65000 100 i
*> flowspec/336 0.0.0.0 0 100 32768 i
* flowspec/264 30.1.1.2 0 100 0 65000 i
* flowspec/392 30.1.1.2 0 100 0 65000 i
* flowspec/176 30.1.1.2 0 100 0 65000 100 i
* 55.1.1.1 0 100 0 65000 100 i
*> flowspec/288 0.0.0.0 0 100 32768 i

Total number of prefixes 6
CE2#
CE2#sh ip bgp ipv4 flowspec vrf all detail
BGP table version is 2, local router ID is 5.5.5.5
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
* flowspec/216 30.1.1.2 0 100 0 65000 100 i

FlowSpec:
destination ip address: 10.1.1.0/24
source ip address: 10.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:44
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:44
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:144
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:122

FlowSpec Actions:
traffic_rate: 21000 bps

* 55.1.1.1 0 100 0 65000 100 i
FlowSpec Actions:
traffic_rate: 21000 bps

*> flowspec/336 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 30.1.1.0/24
source ip address: 30.1.1.0/24
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:11
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:100
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:200
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:500
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:600
TCP flags:
e:0 a:0 len:0 not:0 m:1 data:0x21
e:1 a:1 len:0 not:1 m:0 data:0x1e
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x21

FlowSpec Actions:
traffic_rate: 500000 bps
traffic marking DSCP: 1e

* flowspec/264 30.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 1.1.1.1/32
source ip address: 3.3.3.3/32
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:111
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:230
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:299

FlowSpec Actions:
traffic_rate: 1111111 bps

* flowspec/392 30.1.1.2 0 100 0 65000 i

FlowSpec:
destination ip address: 3.3.3.3/32
source ip address: 1.1.1.1/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:78
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:101
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:201
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:400
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:499
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:330
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:399
ICMP code:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:10
Packet length:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:22
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:222
DSCP:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:0x10

FlowSpec Actions:
traffic_rate: 1000011 bps
traffic marking DSCP: e

* flowspec/176 30.1.1.2 0 100 0 65000 100 i

FlowSpec:
destination ip address: 4.4.4.4/32
source ip address: 4.4.4.4/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:12
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:333
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:444

FlowSpec Actions:
traffic_rate: 4444444 bps

* 55.1.1.1 0 100 0 65000 100 i
FlowSpec Actions:
traffic_rate: 4444444 bps

*> flowspec/288 0.0.0.0 0 100 32768 i

FlowSpec:
destination ip address: 5.5.5.5/32
source ip address: 5.5.5.5/32
IP protocol:
e:1 a:0 len:0 lt:0 gt:0 eq:1 data:121
TCP/UDP port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:777
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:888
TCP/UDP destination port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1300
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1400
TCP/UDP source port:
e:0 a:0 len:1 lt:0 gt:1 eq:1 data:1001
e:1 a:1 len:1 lt:1 gt:0 eq:1 data:1200

FlowSpec Actions:
traffic_rate: 100000 bps


Total number of prefixes 6
CE2#

Last modified date: 10/16/2023
