RIPV2 VRF Configuration
RIPV2 can be configured along with vrf between two nodes and also between PE-CE nodes.
Topology

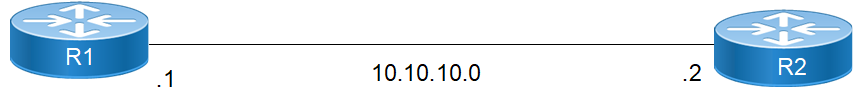

Figure 24-140: RIPV2 VRF Topology
RIPV2 VRF Configuration
This document captures requirements to use RIPv2 with vrf between two nodes.
R1
#configure terminal | Enter configuration mode. |
(config)#ip vrf ripv2 | Configure ip vrf |
(config-vrf)#rd 1:1 | Configure rd |
(config-vrf)#route-target both 1:100 | Configure rt value |
(config-vrf)#int xe48 | Enter in to interface |
(config-if)#ip vrf forwarding ripv2 | Enable ip vrf forwarding |
(config-if)#ip address 10.10.10.1/24 | Configure ip address |
(config-if)#router rip | Enter in to router rip |
(config-router)#address-family ipv4 vrf ripv2 | Address family ipv4 with vrf name |
(config-router-af)#network 10.10.10.0/24 | Configure network command |
(config-router-af)#redistribute static | Configure Redistribute static |
(config-router-af)#redistribute connected | Configure Redistribute connected |
(config-router-af)#commit | Commit the transactions |
(config)#ip route vrf ripv2 191.1.1.10/32 xe48 | Configure static route with vrf |
(config)#commit | Commit the transaction |
R2
#configure terminal | Enter configuration mode. |
(config)#ip vrf ripv2 | Configure ip vrf |
(config-vrf)#rd 1:1 | Configure rd |
(config-vrf)#route-target both 1:100 | Configure rt value |
(config-vrf)#int xe10 | Enter in to interface |
(config-if)#ip vrf forwarding ripv2 | Enable ip vrf forwarding |
(config-if)#ip address 10.10.10.2/24 | Configure ip address |
(config-if)#router rip | Enter in to router rip |
(config-router)#address-family ipv4 vrf ripv2 | Address family ipv4 with vrf name |
(config-router-af)#network 10.10.10.0/24 | Configure network command |
(config-router-af)#redistribute static | Configure Redistribute static |
(config-router-af)#redistribute connected | Configure Redistribute connected |
(config-router-af)#commit | Commit the transactions |
Validation
R1
#sh ip rip database vrf ripv2
Codes: R - RIP, Rc - RIP connected, Rs - RIP static, K - Kernel,
C - Connected, S - Static, O - OSPF, I - IS-IS, B - BGP,
X - Default
Network Next Hop Metric From If Time
Rc 10.10.10.0/24 1 xe48
S 191.1.1.10/32 1 xe48
R2
#sh ip rip database vrf ripv2
Codes: R - RIP, Rc - RIP connected, Rs - RIP static, K - Kernel,
C - Connected, S - Static, O - OSPF, I - IS-IS, B - BGP,
X - Default
Network Next Hop Metric From If Time
Rc 10.10.10.0/24 1 xe10
R 191.1.1.10/32 10.10.10.1 2 10.10.10.1 xe10 02:48
Last modified date: 10/16/2023
