LDP MD5 Authentication
LDP MD5 configuration enables LDP MD5 password authentication on a per-peer basis.
Direct LDP Session
In this example, MD5 authentication is configured for a direct LDP session.

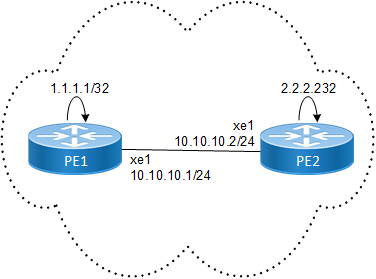

Figure 11-22: Topology for Direct Session MD5
R1

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode.
(config)#router-id 1.1.1.1
Configure the router id.
(config-router)#transport-address ipv4 1.1.1.1
Configure the transport address to be used for a TCP session over which LDP will run on an IPv4 interface.
(config-router)#neighbor 10.10.10.2 auth md5 password 0 pwd1
Configure the MD5 authentication and password, pwd1, for the neighbor, 10.10.10.2.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
(config)#interface lo
Specify the loopback (lo) interface to be configured.
(config-if)#ip address 1.1.1.1/32 secondary
Set the IP address of the loopback interface to 1.1.1.1/32.
(config)#interface xe1
Specify the interface (xe1) to be configured.
(config-if)#ip address 10.10.10.1/24
Set the IP address of the interface to 10.10.10.1/24..
(config-if)#label-switching
Enable label switching on interface xe1.
(config-if)#enable-ldp ipv4
Enable LDP on interface xe1.
(config-if)#commit
Commit the transaction.
R2

#configure terminal
Enter configure mode.
(config)#router ldp
Enter Router mode.
(config)#router-id 2.2.2.2
Configure the router id.
(config-router)#transport-address ipv4 2.2.2.2
Configure the transport address to be used for a TCP session over which LDP will run on an IPv4 interface.
(config-router)#neighbor 10.10.10.1 auth md5 password 0 pwd1
Configure the MD5 authentication and password, pwd1, for the neighbor, 10.10.10.1.
(config-router)#exit
Exit the Router mode and return to the Configure mode.
(config)#interface lo
Specify the loopback (lo) interface to be configured.
(config-if)#ip address 2.2.2.2/32 secondary
Set the IP address of the loopback interface to 2.2.2.2/32.
(config)#interface xe1
Specify the interface (xe1) to be configured.
(config-if)#ip address 10.10.10.2/24
Set the IP address of the interface to 10.10.10.2/24.
(config-if)#label-switching
Enable label switching on interface xe1.
(config-if)#enable-ldp ipv4
Enable LDP on interface xe1.
(config-if)#commit
Commit the transaction.
Validation
PE1
PE1#show ldp session
Peer IP Address IF Name My Role State KeepAlive UpTime
2.2.2.2 xe1 Passive OPERATIONAL 30 00:14:53

PE1#show ldp session count
--------------------------------------------
Multicast Peers : 1 [UP: 1]
Targeted Peers : 1 [UP: 1]
Total Sessions : 1 [UP: 1]
PE2

PE2#show ldp session
Peer IP Address IF Name My Role State KeepAlive UpTime
1.1.1.1 xe1 Active OPERATIONAL 30 00:15:05

PE2#sh ldp session count
--------------------------------------------
Multicast Peers : 1 [UP: 1]
Targeted Peers : 1 [UP: 1]
Total Sessions : 1 [UP: 1]
--------------------------------------------
Last modified date: 10/17/2023
