Overview
The MPLS Layer-3 VPN solution provides address space and routing separation via the use of per-VPN Routing and Forwarding tables (VRFs), and MPLS switching in the core and at the edge of the network. VPN customer routing data is imported into the VRFs utilizing the Route Target BGP extended community. This routing data is identified by a Route Distinguisher (RD) and is distributed among Provider Edge (PE) routers using Multi-Protocol BGP extensions.
Terminology
The following illustrates a Virtual Private Network in a CConnect Service Provider Network. This illustration corresponds to the terms defined in this subsection.

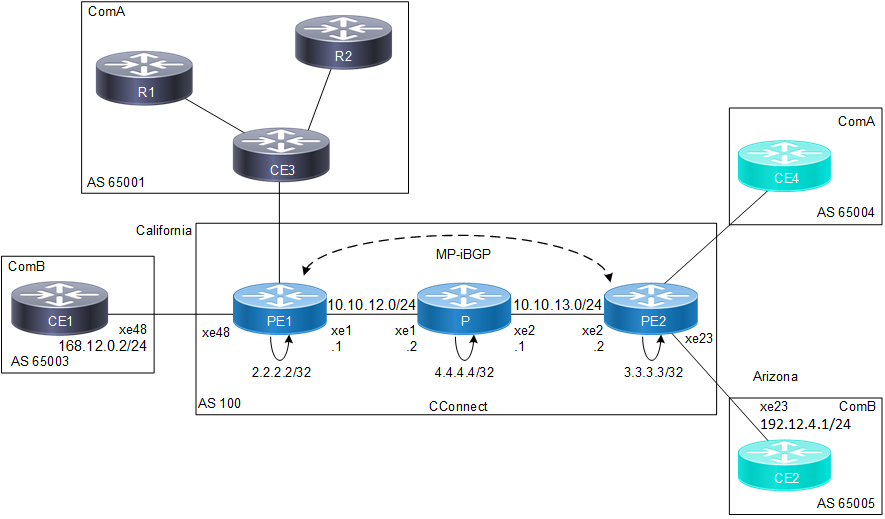

Figure 3-3: CConnect Provider with ComA and ComB Customers
• Service Provider
The organization that owns the infrastructure that provides leased lines to customers, offering them a Virtual Private Network Service. In the above illustration, CConnect is the service provider providing services to clients ComA and ComB.
• Customer Edge (CE) Router
A router at a customer’s site that connects to the Service Provider via one or more Provider Edge routers. In the above illustration, CE1, CE2, CE3 and CE4 are all CE routers connected directly to the CConnect network.
• Provider Edge (PE) Router
A provider’s router connected to a CE router through a leased line or dial-up connection. In the above illustration, PE1 and PE2 are the PE routers, because they link the CConnect service provider to its clients.
• Provider Core Router (P)
The devices in the core of the service provider network, which are generally not Provider Edge routers. In the above illustration, the P router is the Provider device, not connected to any customer, and is the core of the CConnect network.
• Site
A contiguous part of the customer network. A site connects to the provider network through transmission lines, using a CE and PE router. In the above illustration, R1, R2 and CE3 comprise a Customer network, and are seen as a single site by the CConnect network.
• Customer Router
In the illustration above, R1 and R2 are the Customer routers, and are not directly connected to the CConnect network.
The VPN Routing Process
The OcNOS MPLS-VPN Routing process follows these steps:
1. Service Providers provide VPN services from PE routers that communicate directly with CE routers via an Ethernet Link.
2. Each PE router maintains a Routing and Forwarding table (VRF) for each customer. This guarantees isolation, and allows the usage of uncoordinated private addresses. When a packet is received from the CE, the VRF that is mapped to that site is used to determine the routing for the data. If a PE has multiple connections to the same site, a single VRF is mapped to all of those connections.
3. After the PE router learns of the IP prefix, it converts it into a VPN-IPv4 prefix by prepending it with an 8-byte Route Distinguisher (RD). The RD ensures that even if two customers have the same address, two separate routes to that address can be maintained. These VPN-IPv4 addresses are exchanged between the PE routers through MP-BGP.
4. A unique Router ID (usually the loopback address) is used to allocate a label, and enable VPN packet forwarding across the backbone.
5. Based on routing information stored in the VRF table, packets are forwarded to their destination using MPLS. Each PE router allocates a unique label to every route in each VRF (even if they have the same next hop), and propagates these labels, together with 12-byte VPN-IPv4 addresses, through Multi-Protocol BGP.
6. Ingress PE routers prepend a two-level label stack to the VPN packet, which is forwarded across the Provider network. This label stack contains a BGP-specific label from the VRF table (associated with the incoming interface), specifying the BGP next hop and an LDP-specific label from the global FTN table, specifying the IP next hop.
7. The Provider router in the network switches the VPN packet, based on the top label or the LDP-specific label in the stack. This top label is used as the key to lookup in the incoming interface’s Incoming Labels Mapping table (ILM). If there is an outbound label, the label is swapped, and the packet is forwarded to the next hop; if not, the router is the penultimate router, and it pops the LDP-specific label, and forwards the packet with only the BGP-specific label to the egress PE router.
8. The egress PE router pops the BGP-specific label, performs a single label lookup in the outbound interface, and sends the packet to the appropriate CE router.
