Overview
This topology will be applicable for both VPWS and VPLS services.

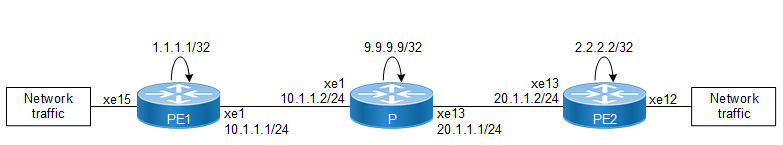

Figure 34-13: Mapping of RSVP Tunnel-name to L2VPN services
Configuring the VC:
Note: Loopback addresses being used should be advertised through OSPF, or should be statically routed.
1. Configure the IP address and OSPF for the PE1, P (Provider), and PE2 routers.
2. Configure MPLS and LDP on PE1, P, and PE2, and LDP targeted peer for the PE1 and PE2 routers. (If RSVP is used for configuring trunks, LDP must be configured on PE1 and PE2, and RSVP must be configured on PE1, P, and PE2).
3. Configure the VC with trunk-name.
4. Bind the customer interface to the VC.
