RSVP-TE Overview
RSVP-TE is a signaling protocol that supports explicit routing capabilities, To do this, an Explicit Route (ER) object is incorporated into RSVP PATH messages. This object encapsulates a sequence of hops that constitute the explicitly-routed path. Using the ER object, the paths taken by label-switched RSVP-MPLS flows can be pre-determined without conventional IP routing. An ER path can be administratively specified or computed based on CSPF and any policy requirements dictated by the operator through the trunk node, taking the current network state into consideration. A useful application of explicit routing is Traffic Engineering (TE). Using explicitly-routed LSPs, an ingress node can control the path through which traffic flows from itself, through the MPLS network, to the egress node. Explicit routing is therefore useful for the optimization of network resources and an increase in the quality of traffic-oriented performance.

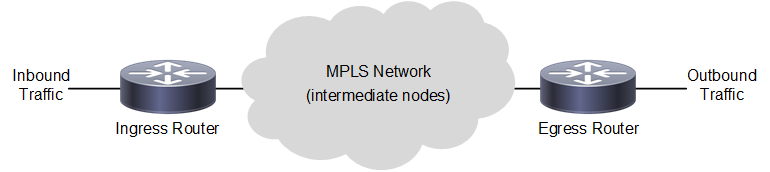

Figure 6-7: Basic RSVP-TE Topology
RSVP-TE Architecture
RSVP-TE is a signaling protocol that supports explicit routing capabilities to establish LSPs in a MPLS network. OcNOS RSVP-TE:
• Creates explicitly-routed paths, which might not agree with the route suggested by the IGP (OSPF, RIP) being used. Explicitly-routed LSPs, by definition, do not follow the paths suggested by IGPs.
• Queries CSPF for a complete, end-to-end, explicit route based on constraints specified by the operator using RSVP commands.
• Performs make-before-break type re-routing of tunnels. (Make-before-break is the creation of a new LSP before the old one is torn down).
• Exchanges Hello messages to make node failures easier to detect. This means when there is no hello exchange between routers, then other node is assumed dead or offline (except in the case when the peer is known to not support Hellos).
• Provides statistical information of RSVP messages exchanged.
In addition, OcNOS RSVP-TE may be used in unison with BGP to generate MPLS/BGP VPNs, and in unison with LDP to generate Layer-2 Virtual Circuits.
