PIM-SSM Configuration
The required steps to configure PIM-SSM are the following:
• Enable IP multicast on each PIM router (see Enabling IP Multicast Routing)
• Enable PIM-SM on the desired interfaces (see Enable PIM-SM on an Interface)
• Configure PIM-SSM on router.
All multicast group states are dynamically maintained as the result of IGMP Report/Leave and PIM Join/Prune messages.
This section provides the steps to configure the PIM-SSM feature. Configuration steps and examples are used for two relevant scenarios.
Topology
The following figure displays the network topology used in these examples.

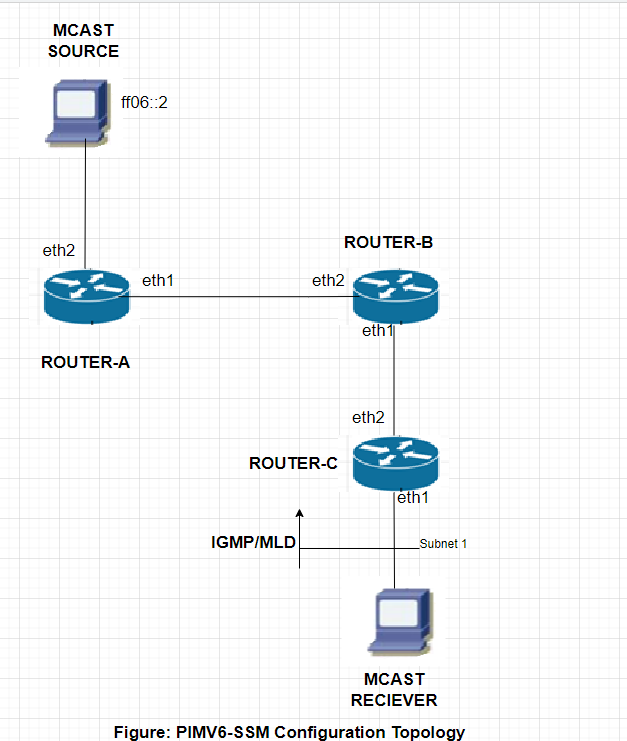

Figure 13-14: PIM-SSM Configuration Topology
