OcNOS-SP : System Management Guide : System Management Configuration Guide : Erbium-Doped Fiber Amplifier (EDFA) Configuration : Topology
Topology

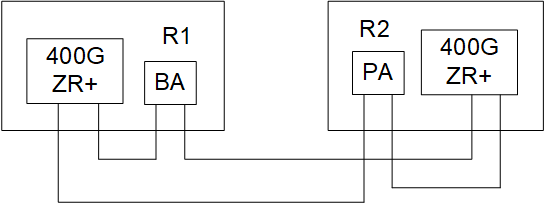

Figure 37-61: EDFA Sample Topology
Configuration
R1

#configure terminal
Enter into configure mode.
(config)#interface ce15
Enter into interface mode.
(config-if)#edfa operating-mode agc
Enable the EDFA operating mode AGC.
(config-if)#edfa target-gain 5
Specify the desired EDFA gain value.
(config-if)#commit
Commit the candidate configuration to the running configuration.
(config-if)#exit
Exit the router mode.
(config)#interface ce15
Enter into interface mode.
(config-if)#edfa operating-mode apc
Enable the EDFA operating mode APC.
(config-if)# edfa target-outpwr 10
Specify the desired EDFA output power value.
(config-if)#commit
Commit the candidate configuration to the running configuration.
(config-if)#exit
Exit the router mode.

Validation
R1 - validation for AGC mode
#show running-config interface ce15
!
interface ce15
edfa operating-mode agc
edfa target-gain 5.000
verify is the gain value is applied after configuring.
ROUTER-1#show interface ce15 transceiver detail
Codes: * Not Qualified By IP Infusion, ** Not Supported By Module, -- No Power, - Not Applicable

Intf DDM InPwr AlertMax CritMax CritMin AlertMin
(dBm) (dBm) (dBm) (dBm) (dBm)
---------------------------------------------------------------------------
ce15 Active* -9.81 +5.00 +4.00 -20.97 -21.94

Intf DDM OutPwr AlertMax CritMax CritMin AlertMin
(dBm) (dBm) (dBm) (dBm) (dBm)
---------------------------------------------------------------------------
ce15 Active* -4.46 +20.00 +18.00 -10.00 -11.94

Intf DDM PumpBias AlertMax CritMax CritMin AlertMin
(Amp) (Amp) (Amp) (Amp) (Amp)
---------------------------------------------------------------------------
ce15 Active* +0.05 +0.59 +0.53 +0.00 +0.00

Intf DDM Gain AlertMax CritMax CritMin AlertMin
(dB) (dB) (dB) (dB) (dB)
---------------------------------------------------------------------------
ce15 Active* +3.67 +26.00 +25.00 +8.00 +7.00
R1 - validation for APC mode
#show running-config interface ce15
!
interface ce15
edfa operating-mode apc
edfa target-outpwr 10.000

R-1#show interface ce15 transceiver detail
Codes: * Not Qualified By IP Infusion, ** Not Supported By Module, -- No Power, - Not Applicable

Intf DDM InPwr AlertMax CritMax CritMin AlertMin
(dBm) (dBm) (dBm) (dBm) (dBm)
---------------------------------------------------------------------------
ce15 Active* -9.77 +5.00 +4.00 -20.97 -21.94

Intf DDM OutPwr AlertMax CritMax CritMin AlertMin
(dBm) (dBm) (dBm) (dBm) (dBm)
---------------------------------------------------------------------------
ce15 Active* +10.08 +20.00 +18.00 -10.00 -11.94

Intf DDM PumpBias AlertMax CritMax CritMin AlertMin
(Amp) (Amp) (Amp) (Amp) (Amp)
---------------------------------------------------------------------------
ce15 Active* +0.13 +0.59 +0.53 +0.00 +0.00

Intf DDM Gain AlertMax CritMax CritMin AlertMin
(dB) (dB) (dB) (dB) (dB)
---------------------------------------------------------------------------
ce15 Active* +19.85 +26.00 +25.00 +8.00 +7.00

*NOTE : after unconfiguring the edfa the value of output power and gain should be in default value.
