Topology
The procedures in this section use the topology as mentioned below:

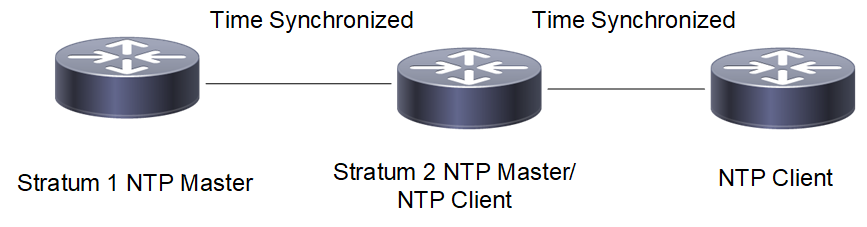

Setup consists of three nodes. First node acting as Stratum 1 NTP Master, Second node acting as Stratum 2 NTP master and the third node acting as NTP client.
Figure 18-33: Synchronization of Stadium 2 NTP Master with NTP Client
