Dynamic Configuration
Topology

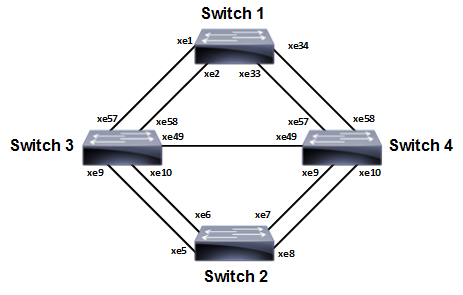

As shown in Figure 9-15, switches 3 and 4 form an MLAG domain. Switches 3 and 4 are a single logical switch to switches 1 and 2. Even if either switch 3 or 4 is down, there exists a path to reach other destinations.
Figure 9-15: MLAG Topology
Switch 1
#configure terminal | Enter configure mode. |
(config)#bridge 1 protocol rstp vlan-bridge | Create RSTP bridge 1. |
(config)#vlan 2 bridge 1 state enable | Create VLAN 2. |
(config)#interface po2 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#bridge-group 1 | Associate the interface with bridge group 1. |
(config-if)#switchport mode trunk | Set the switching characteristics of this interface to trunk mode. |
(config-if)#switchport trunk allowed vlan all | Enable all VLAN identifiers on this interface. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe1 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe2 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe33 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe34 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
Switch 2
#configure terminal | Enter configure mode. |
(config)#bridge 1 protocol rstp vlan-bridge | Create RSTP bridge 1. |
(config)#vlan 2 bridge 1 state enable | Create VLAN 2. |
(config)#interface po1 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#bridge-group 1 | Associate the interface with bridge group 1. |
(config-if)#switchport mode trunk | Set the switching characteristics of this interface to trunk mode. |
(config-if)#switchport trunk allowed vlan all | Enable all VLAN identifiers on this interface. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe5 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe6 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe7 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe8 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
Switch 3
#configure terminal | Enter configure mode. |
(config)#bridge 1 protocol rstp vlan-bridge | Create RSTP bridge 1. |
(config)#vlan 2 bridge 1 state enable | Create VLAN 2. |
(config)#interface mlag1 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#bridge-group 1 | Associate the interface with bridge group 1. |
(config-if)#switchport mode trunk | Set the switching characteristics of this interface to trunk mode. |
(config-if)#switchport trunk allowed vlan all | Enable all VLAN identifiers on this interface. |
(config-if)#exit | Exit interface mode. |
(config)#interface mlag2 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#bridge-group 1 | Associate the interface with bridge group 1. |
(config-if)#switchport mode trunk | Set the switching characteristics of this interface to trunk mode. |
(config-if)#switchport trunk allowed vlan all | Enable all VLAN identifiers on this interface. |
(config-if)#exit | Exit interface mode. |
(config)#interface po1 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#mlag 1 | Enabling Mlag group number |
(config-if)#exit | Exit interface mode. |
(config)#interface po2 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#mlag 2 | enabling Mlag group number |
(config-if)#exit | Exit interface mode. |
(config)#interface xe9 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe57 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe58 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe10 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#mcec domain configuration | Entering MCEC mode |
(config-mcec-domain)#domain-address 1111.2222.3333 | Domain address for the mlag domain |
(config-mcec-domain)#intra-domain link xe49 | Intra domain line between mlag domain |
(config-mcec-domain)#domain-system-number 1 | Number to identify the node in a domain |
(config-mcec-domain)#exit | Exit MCEC mode |
Switch 4
#configure terminal | Enter configure mode. |
(config)#bridge 1 protocol rstp vlan-bridge | Create RSTP bridge 1. |
(config)#vlan 2 bridge 1 state enable | Create VLAN 2. |
(config)#interface mlag1 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#bridge-group 1 | Associate the interface with bridge group 1. |
(config-if)#switchport mode trunk | Set the switching characteristics of this interface to trunk mode. |
(config-if)#switchport trunk allowed vlan all | Enable all VLAN identifiers on this interface. |
(config-if)#exit | Exit interface mode. |
(config)#interface mlag2 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#bridge-group 1 | Associate the interface with bridge group 1. |
(config-if)#switchport mode trunk | Set the switching characteristics of this interface to trunk mode. |
(config-if)#switchport trunk allowed vlan all | Enable all VLAN identifiers on this interface. |
(config-if)#exit | Exit interface mode. |
(config)#interface po1 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#mlag 1 | Enabling Mlag group number |
(config-if)#exit | Exit interface mode. |
(config)#interface po2 | Enter interface mode. |
(config-if)#switchport | Configure the interface as Layer 2 |
(config-if)#mlag 2 | enabling Mlag group number |
(config-if)#exit | Exit interface mode. |
(config)#interface xe9 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe10 | Enter interface mode. |
(config-if)#channel-group 1 mode active | Add this interface to channel group 1 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe57 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#interface xe58 | Enter interface mode. |
(config-if)#channel-group 2 mode active | Add this interface to channel group 2 and enable link aggregation so that it can be selected for aggregation by the local system. |
(config-if)#exit | Exit interface mode. |
(config)#mcec domain configuration | Entering MCEC mode |
(config-mcec-domain)#domain-address 1111.2222.3333 | Domain address for the Mlag domain |
(config-mcec-domain)#intra-domain link xe49 | Intra domain Link between Mlag domains |
(config-mcec-domain)#domain-system-number 2 | Number to identify the node in domain |
(config-mcec-domain)#exit | Exit MCEC mode |
Validation
Switch 3
#sh mlag domain details
------------------------------------
Domain Configuration
------------------------------------
Domain System Number : 1
Domain Address : 1111.2222.3333
Domain Priority : 1000
Intra Domain Interface : xe49
Hello RCV State : Current
Hello Periodic Timer State : Fast Periodic
Domain Sync : IN_SYNC
Neigh Domain Sync : IN_SYNC
Domain Adjacency : UP
------------------------------------
MLAG Configuration
------------------------------------
MLAG-1
Mapped Aggregator : po1
Admin Key : 16385
Oper Key : 16385
Physical properties Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Neigh Admin Key : 32769
Neigh Physical Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Info RCV State : Current
Info Periodic Time State : Standby
Mlag Sync : IN_SYNC
Mode : Active
MLAG-2
Mapped Aggregator : po2
Admin Key : 16386
Oper Key : 16386
Physical properties Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Neigh Admin Key : 32770
Neigh Physical Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Info RCV State : Current
Info Periodic Time State : Standby
Mlag Sync : IN_SYNC
Mode : Active
#sh etherchannel summary
% Aggregator po1 0
% Aggregator Type: Layer2
% Admin Key: 16385 - Oper Key 16385
% Link: xe57 (5057) sync: 1
% Link: xe58 (5058) sync: 1
% Aggregator po2 0
% Aggregator Type: Layer2
% Admin Key: 16386 - Oper Key 16386
% Link: xe9 (5009) sync: 1
% Link: xe10 (5010) sync: 1
#sh mlag 1 detail
MLAG-1
Mapped Aggregator : po1
Admin Key : 16385
Oper Key : 16385
Physical properties Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Neigh Admin Key : 32769
Neigh Physical Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Info RCV State : Current
Info Periodic Time State : Standby
Total Bandwidth : 20g
Mlag Sync : IN_SYNC
Mode : Active
sh mcec statistics
Unknown MCCPDU received on the system : 0
------------------------------------
IDP xe49
------------------------------------
Valid RX Hello PDUs : 398
Valid TX Hello PDUs : 417
Valid RX Info PDUs : 16
Valid TX Info PDUs : 6
Valid RX Mac Sync PDUs : 3
Valid TX Mac Sync PDUs : 4
MLAG 1
Valid RX Info PDUs : 8
Valid TX Info PDUs : 3
MLAG 2
Valid RX Info PDUs : 8
Valid TX Info PDUs : 3
sh mlag domain summary
------------------------------------
Domain Configuration
------------------------------------
Domain System Number : 1
Domain Address : 1111.2222.3333
Domain Priority : 1000
Intra Domain Interface : xe49
Domain Adjacency : UP
------------------------------------
MLAG Configuration
------------------------------------
MLAG-1
Mapped Aggregator : po1
Physical properties Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Total Bandwidth : 40g
Mlag Sync : IN_SYNC
Mode : Active
MLAG-2
Mapped Aggregator : po2
Physical properties Digest : dd 9c f 76 dd b6 5f 2f eb a1 d3 bb 8d 96 fc 82
Total Bandwidth : 40g
Mlag Sync : IN_SYNC
Mode : Active
