Configuring OSPF Inter-Area Segment Routing
This chapter shows how to configure segment routing between routers in different areas.
Topology
In the topology in Figure 7-5:
• Router 1 and router 2 are in backbone area 0
• Router 3 is an area border router (ABR) connected to both areas 0 and area 1
• Router 4 is in area 1

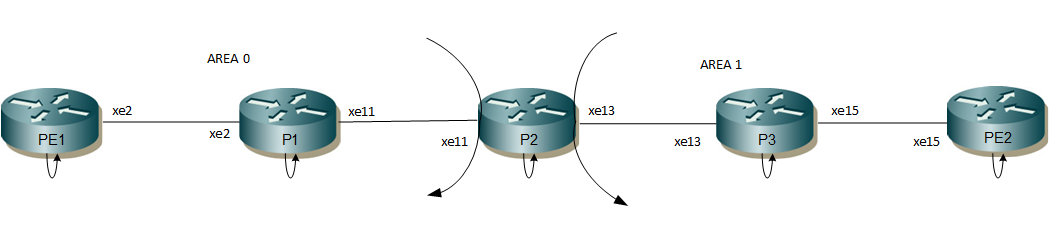

OSPF Inter-Area Segment Routing Topology
PE1
PE1#configure terminal | Enter configure mode. |
PE1(config)#int lo | Enter interface mode. |
PE1(config-if)#ip address 10.0.1.11/32 secondary | Configure the IP address of the interface. |
PE1(config-if)# prefix-sid absolute 16000 no-php | Assign the Prefix SID value. |
PE1(config-if)#exit | Exit interface mode. |
PE1(config)#int xe2 | Enter interface mode. |
PE1(config-if)#ip address 10.11.1.1/30 | Configure the IP address of the interface. |
PE1(config-if)#label-switching | Enable label switching. |
PE1(config-if)#exit | Exit interface mode. |
PE1(config)#router ospf 1 | Configure the routing process and specify the Process ID (1). |
PE1(config-router)#router-id 10.0.1.11 | Advertise the router-id |
PE1(config-router)#network 10.0.1.11/32 area 0.0.0.0 | Advertise the lo interface in OSPF area 0. |
PE1(config-router)#network 10.11.1.0/30 area 0.0.0.0 | Advertise the xe2 interface in OSPF area 0. |
PE1(config-router)# ospf segment-routing global block 16000 23999 | Advertise the segment routing global block range. |
PE1(config-router)# segment-routing mpls | Enable Segment Routing for the OSPF process. |
PE1(config-router)#exit | Exit router mode. |
PE1(config)#commit | Commit the candidate configuration to the running configuration. |
P1
P1#configure terminal | Enter configure mode. |
P1(config)#int lo | Enter interface mode. |
P1(config-if)#ip address 10.0.1.1/32 secondary | Configure the IP address of the interface. |
P1(config-if)# prefix-sid index 1000 no-php | Assign the Prefix SID value. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#int xe2 | Enter interface mode. |
P1(config-if)#ip address 10.11.1.2/30 | Configure the IP address of the interface. |
P1(config-if)#label-switching | Enable label switching. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#int xe11 | Enter interface mode. |
P1(config-if)#ip address 10.1.1.1/30 | Configure the IP address of the interface. |
P1(config-if)#label-switching | Enable label switching. |
P1(config-if)#exit | Exit interface mode. |
P1(config)#router ospf 1 | Configure the routing process and specify the Process ID (1). |
P1(config-router)#router-id 10.0.1.1 | Advertise the router-id |
P1(config-router)#network 10.0.1.1/32 area 0.0.0.0 | Advertise the lo interface in OSPF area 0. |
P1(config-router)#network 10.11.1.0/30 area 0.0.0.0 | Advertise the xe2 interface in OSPF area 0. |
P1(config-router)#network 10.1.1.0/30 area 0.0.0.0 | Advertise the xe11 interface in OSPF area 0. |
P1(config-router)# ospf segment-routing global block 16000 23999 | Advertise the segment routing global block range. |
P1(config-router)# segment-routing mpls | Enable Segment Routing for the OSPF process. |
P1(config-router)#exit | Exit router mode. |
P1(config)#commit | Commit the candidate configuration to the running configuration. |
P2
P2#configure terminal | Enter configure mode. |
P2(config)#int xe11 | Enter interface mode. |
P2(config-if)#ip address 10.1.1.2/30 | Configure the IP address of the interface. |
P2(config-if)#label-switching | Enable Label Switching |
P2(config-if)#exit | Exit interface mode. |
P2(config)#int xe13 | Enter interface mode. |
P2(config-if)#ip address 10.44.2.2/30 | Configure the IP address of the interface. |
P2(config-if)#label-switching | Enable label switching. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#int lo | Enter interface mode. |
P2(config-if)#ip address 10.0.1.2/32 secondary | Configure the IP address in the loopback interface |
P2(config-if)#prefix-sid index 2000 no-php | Set the prefix SID value. |
P2(config-if)#exit | Exit interface mode. |
P2(config)#router ospf 1 | Configure the routing process and specify the Process ID (1). |
P2(config-router)#router-id 10.0.1.2 | Advertise the router-id |
P2(config-router)#network 10.0.1.2/32 area 0.0.0.0 | Advertise the lo interface in OSPF area 0. |
P2(config-router)#network 10.44.2.0/30 area 1 | Advertise the xe13 interface in OSPF area 1. |
P2(config-router)#network 10.1.1.0/30 area 0 | Advertise the xe11 interface in OSPF area 0. |
P2(config-router)# ospf segment-routing global block 16000 23999 | Advertise the segment routing global block range. |
P2(config-router)#segment-routing mpls | Enable Segment Routing for the OSPF process. |
P2(config-router)#exit | Exit router mode. |
P2(config)#commit | Commit the candidate configuration to the running configuration. |
P3
P3#configure terminal | Enter configure mode. |
P3(config)#int xe13 | Enter interface mode. |
P3(config-if)#ip address 10.44.2.1/30 | Configure the IP address of the interface. |
P3(config-if)#label-switching | Enable label switching. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#int xe15 | Enter interface mode. |
P3(config-if)#ip address 10.33.44.2/30 | Configure the IP address of the interface. |
P3(config-if)#label-switching | Enable Label Switching |
P3(config-if)#exit | Exit interface mode. |
P3(config)#int lo | Enter interface mode. |
P3(config-if)#ip address 10.0.1.44/32 secondary | Configure the IP address in the loopback interface |
P3(config-if)#prefix-sid absolute 20000 no-php | Set the prefix SID value. |
P3(config-if)#exit | Exit interface mode. |
P3(config)#router ospf 1 | Configure the routing process and specify the Process ID (1). |
P3(config-router)#router-id 10.0.1.44 | Advertise the router-id |
P3(config-router)#network 10.0.1.44/32 area 1 | Advertise the lo interface in OSPF area 1. |
P3(config-router)#network 10.44.2.0/30 area 1 | Advertise the xe13 interface in OSPF area 1. |
P3(config-router)#network 10.33.44.2/30 area 1 | Advertise the xe15 interface in OSPF area 1. |
P3(config-router)# ospf segment-routing global block 16000 23999 | Advertise the segment routing global block range. |
P3(config-router)#segment-routing mpls | Enable Segment Routing for the OSPF process. |
P3(config-router)#exit | Exit router mode. |
P3(config)#commit | Commit the candidate configuration to the running configuration. |
PE2
PE2#configure terminal | Enter configure mode. |
PE2(config)#int xe15 | Enter interface mode. |
PE2(config-if)#ip address 10.33.44.1/30 | Configure the IP address of the interface. |
PE2(config-if)#label-switching | Enable label switching. |
PE2(config-if)#exit | Exit interface mode. |
PE2(config)#int lo | Enter interface mode. |
PE2(config-if)#ip address 10.0.1.33/32 secondary | Configure the IP address of the interface. |
PE2(config-if)# prefix-sid absolute 19000 no-php | Assign the Prefix SID value. |
PE2(config-if)#exit | Exit interface mode. |
PE2(config)#router ospf 1 | Configure the routing process and specify the Process ID (1). |
PE2(config-router)#router-id 10.0.1.33 | Advertise the router-id |
PE2(config-router)#network 10.33.44.0/30 area 1 | Advertise the xe15 interface in OSPF area 1. |
PE2(config-router)#network 10.0.1.33/32 area 1 | Advertise the lo interface in OSPF area 1. |
PE2(config-router)# ospf segment-routing global block 16000 23999 | Advertise the segment routing global block range. |
PE2(config-router)# segment-routing mpls | Enable Segment Routing for the OSPF process. |
PE2(config-router)#exit | Exit router mode. |
PE2(config)#commit | Commit the candidate configuration to the running configuration. |
Validation
Validation 1
Verify OSPF neighbor adjacency between all 5 routers.
PE1#show ip ospf neighbor
Total number of full neighbors: 1
OSPF process 1 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
10.0.1.1 1 Full/Backup 00:00:32 10.11.1.2 xe2 0
P1#show ip ospf neighbor
Total number of full neighbors: 2
OSPF process 1 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
10.0.1.2 1 Full/Backup 00:00:29 10.1.1.2 xe11 0
10.0.1.11 1 Full/DR 00:00:38 10.11.1.1 xe2 0
P2#show ip ospf neighbor
Total number of full neighbors: 2
OSPF process 1 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
10.0.1.1 1 Full/DR 00:00:30 10.1.1.1 xe11 0
10.0.1.44 1 Full/Backup 00:00:30 10.44.2.1 xe13 0
PE2#show ip ospf neighbor
Total number of full neighbors: 1
OSPF process 1 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
10.0.1.44 1 Full/DR 00:00:37 10.33.44.2 xe15 0
P3#show ip ospf neighbor
Total number of full neighbors: 2
OSPF process 1 VRF(default):
Neighbor ID Pri State Dead Time Address Interface Instance ID
10.0.1.33 1 Full/Backup 00:00:33 10.33.44.1 xe15 0
10.0.1.2 1 Full/DR 00:00:32 10.44.2.2 xe13 0
Validation 2
Verify that segment routing is enabled and that prefix SIDs are announced to other routers via OSPF opaque LSAs. Verify that labels are in the MPLS forwarding table and that prefix SIDs are installed. Verify the same in FTN and ILM tables.For a penultimate hop, label 3 is installed in forwarding tables.
Use show mpls forwarding-table to verify that Configured Prefix SIDs can be seen in the ILM table in the label field. Use show mpls ilm-table to verify the same.
For prefix advertisement, if “Route type” is 1, then it is intra-area; if it is 3, then the prefix SID is belongs to the inter-area. Verify the same using show ip ospf segment-routing announce-list.
To verify prefix-sid advertisement through opaque LSAs, use show ip ospf database opaque-area 7.0.0.1.
PE1 in Backbone Area 0
PE1#show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel, P - SR Policy FTN,
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf ELC Nexthop
O> 10.0.1.1/32 1 0 Yes LSP_DEFAULT 17000 xe2 No 10.11.1.2
O> 10.0.1.2/32 2 0 Yes LSP_DEFAULT 18000 xe2 No 10.11.1.2
O> 10.0.1.33/32 4 0 Yes LSP_DEFAULT 19000 xe2 No 10.11.1.2
O> 10.0.1.44/32 3 0 Yes LSP_DEFAULT 20000 xe2 No 10.11.1.2
PE1#show mpls ftn-table
Primary FTN entry with FEC: 10.0.1.1/32, id: 1, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 17000
Nexthop addr: 10.11.1.2 cross connect ix: 1, op code: Push
Primary FTN entry with FEC: 10.0.1.2/32, id: 2, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 18000
Nexthop addr: 10.11.1.2 cross connect ix: 2, op code: Push
Primary FTN entry with FEC: 10.0.1.33/32, id: 4, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 7
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 7, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 19000
Nexthop addr: 10.11.1.2 cross connect ix: 4, op code: Push
Primary FTN entry with FEC: 10.0.1.44/32, id: 3, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 20000
Nexthop addr: 10.11.1.2 cross connect ix: 3, op code: Push
PE1#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM
K - CLI ILM, T - MPLS-TP, s - Stitched ILM
S - SNMP, L - LDP, R - RSVP, C - CRLDP
B - BGP , K - CLI , V - LDP_VC, I - IGP_SHORTCUT
O - OSPF/OSPF6 SR, i - ISIS SR, k - SR CLI
P - SR Policy, U - unknown
Code FEC/VRF/L2CKT ILM-ID In-Label Out-Label In-Intf Out-Intf/VRF Nexthop LSP-Type
O> 10.0.1.2/32 3 18000 18000 N/A xe2 10.11.1.2 LSP_DEFAULT
O> 10.0.1.1/32 2 17000 17000 N/A xe2 10.11.1.2 LSP_DEFAULT
O> 10.0.1.11/32 1 16000 Nolabel N/A N/A 127.0.0.1 LSP_DEFAULT
O> 10.0.1.44/32 4 20000 20000 N/A xe2 10.11.1.2 LSP_DEFAULT
O> 10.0.1.33/32 5 19000 19000 N/A xe2 10.11.1.2 LSP_DEFAULT
O> 10.11.1.2/32 6 24320 3 N/A xe2 10.11.1.2 LSP_DEFAULT
PE1#show mpls in-segment-table
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.2/32, ILM-ID: 3
Cross connect ix: 2, in intf: - in label: 18000 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 18000
Nexthop addr: 10.11.1.2 cross connect ix: 2, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.1/32, ILM-ID: 2
Cross connect ix: 1, in intf: - in label: 17000 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 17000
Nexthop addr: 10.11.1.2 cross connect ix: 1, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.11/32, ILM-ID: 1
Cross connect ix: 1, in intf: - in label: 16000 out-segment ix: 0
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 0, owner: CLI, Stale: NO, out intf: N/A, out label: N/A
Nexthop addr: 127.0.0.1 cross connect ix: 1, op code: Pop
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.44/32, ILM-ID: 4
Cross connect ix: 3, in intf: - in label: 20000 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 20000
Nexthop addr: 10.11.1.2 cross connect ix: 3, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.33/32, ILM-ID: 5
Cross connect ix: 4, in intf: - in label: 19000 out-segment ix: 7
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 7, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 19000
Nexthop addr: 10.11.1.2 cross connect ix: 4, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.11.1.2/32, ILM-ID: 6
Cross connect ix: 5, in intf: - in label: 24320 out-segment ix: 9
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: N/A, Stale: NO, out intf: xe2, out label: 3
Nexthop addr: 10.11.1.2 cross connect ix: 5, op code: Swap
PE1#show mpls out-segment-table
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 18000
Nexthop addr: 10.11.1.2 cross connect ix: 2, op code: Push
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 17000
Nexthop addr: 10.11.1.2 cross connect ix: 1, op code: Push
Out-segment with ix: 9, owner: N/A, Stale: NO, out intf: xe2, out label: 3
Nexthop addr: 10.11.1.2 cross connect ix: 5, op code: Push
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 20000
Nexthop addr: 10.11.1.2 cross connect ix: 3, op code: Push
Out-segment with ix: 7, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 19000
Nexthop addr: 10.11.1.2 cross connect ix: 4, op code: Push
PE1#show ip ospf database opaque-area self-originate
OSPF Router with ID (10.0.1.11) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 661
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x46bc
Length: 28
MPLS TE router ID : 10.0.1.11
Number of Links : 0
LS age: 661
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x6abc
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 981
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x6e5c
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 151
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x92d7
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
LS age: 671
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x1389
Length: 52
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.1
SID: 24320
PE1#sh ip ospf database opaque-area
OSPF Router with ID (10.0.1.11) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 661
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.1
LS Seq Number: 80000005
Checksum: 0x16fc
Length: 28
MPLS TE router ID : 10.0.1.1
Number of Links : 0
LS age: 254
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000004
Checksum: 0x1cf5
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 650
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x46bc
Length: 28
MPLS TE router ID : 10.0.1.11
Number of Links : 0
LS age: 1895
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000003
Checksum: 0x9a3a
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 1887
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 652
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0xc06d
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 650
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x6abc
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 694
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x0e24
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 604
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x260a
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 1887
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 1895
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x87ee
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.1
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 584
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000002
Checksum: 0x6108
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.1
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 504
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0xaa2a
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 4
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0xa42f
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 969
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x6e5c
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 2012
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 1920
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 524
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x7bdd
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
LS age: 198
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0x7cd3
Length: 92
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 139
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x92d7
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
LS age: 2012
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 1920
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 661
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0x0bb2
Length: 48
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 660
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x1389
Length: 52
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.1
SID: 24320
LS age: 904
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x1b94
Length: 52
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.2
SID: 24321
LS age: 2071
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0x9534
Length: 48
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 1887
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x7ec6
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24321
LS age: 1895
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xc10b
Length: 52
Link Type: 2
Link ID: 10.33.44.1
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
LS age: 1896
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x0df8
Length: 48
Link Type: 2
Link ID: 10.33.44.1
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
PE1#show ip ospf segment-routing announce-list
------------------------
Area 0.0.0.0
Instance 0
--------------
Prefix:10.0.1.11/32
Origin Adv-Router:10.0.1.11
Route-Type:1
------------------------
PE1#show ip ospf segment-routing capability
OSPF process 1:
-----------------------------------------------------
Advertisement Router Capability :10.0.1.1
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.2
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.11
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.33
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.44
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
P1 in Backbone Area 0
P1#show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel, P - SR Policy FTN,
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf ELC Nexthop
O> 10.0.1.2/32 2 0 Yes LSP_DEFAULT 18000 xe11 No 10.1.1.2
O> 10.0.1.11/32 1 0 Yes LSP_DEFAULT 16000 xe2 No 10.11.1.1
O> 10.0.1.33/32 4 0 Yes LSP_DEFAULT 19000 xe11 No 10.1.1.2
O> 10.0.1.44/32 3 0 Yes LSP_DEFAULT 20000 xe11 No 10.1.1.2
P1#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM
K - CLI ILM, T - MPLS-TP, s - Stitched ILM
S - SNMP, L - LDP, R - RSVP, C - CRLDP
B - BGP , K - CLI , V - LDP_VC, I - IGP_SHORTCUT
O - OSPF/OSPF6 SR, i - ISIS SR, k - SR CLI
P - SR Policy, U - unknown
Code FEC/VRF/L2CKT ILM-ID In-Label Out-Label In-Intf Out-Intf/VRF Nexthop LSP-Type
O> 10.0.1.2/32 5 18000 18000 N/A xe11 10.1.1.2 LSP_DEFAULT
O> 10.0.1.1/32 3 17000 Nolabel N/A N/A 127.0.0.1 LSP_DEFAULT
O> 10.0.1.11/32 2 16000 16000 N/A xe2 10.11.1.1 LSP_DEFAULT
O> 10.11.1.1/32 6 24320 3 N/A xe2 10.11.1.1 LSP_DEFAULT
O> 10.0.1.44/32 1 20000 20000 N/A xe11 10.1.1.2 LSP_DEFAULT
O> 10.0.1.33/32 7 19000 19000 N/A xe11 10.1.1.2 LSP_DEFAULT
O> 10.1.1.2/32 4 24321 3 N/A xe11 10.1.1.2 LSP_DEFAULT
P1#show mpls ftn-table
Primary FTN entry with FEC: 10.0.1.2/32, id: 2, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 18000
Nexthop addr: 10.1.1.2 cross connect ix: 4, op code: Push
Primary FTN entry with FEC: 10.0.1.11/32, id: 1, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 16000
Nexthop addr: 10.11.1.1 cross connect ix: 2, op code: Push
Primary FTN entry with FEC: 10.0.1.33/32, id: 4, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 6, in intf: - in label: 0 out-segment ix: 9
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 19000
Nexthop addr: 10.1.1.2 cross connect ix: 6, op code: Push
Primary FTN entry with FEC: 10.0.1.44/32, id: 3, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 20000
Nexthop addr: 10.1.1.2 cross connect ix: 1, op code: Push
P1#show mpls in-segment-table
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.2/32, ILM-ID: 5
Cross connect ix: 4, in intf: - in label: 18000 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 18000
Nexthop addr: 10.1.1.2 cross connect ix: 4, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.1/32, ILM-ID: 3
Cross connect ix: 1, in intf: - in label: 17000 out-segment ix: 0
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 0, owner: CLI, Stale: NO, out intf: N/A, out label: N/A
Nexthop addr: 127.0.0.1 cross connect ix: 1, op code: Pop
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.11/32, ILM-ID: 2
Cross connect ix: 2, in intf: - in label: 16000 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 16000
Nexthop addr: 10.11.1.1 cross connect ix: 2, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.11.1.1/32, ILM-ID: 6
Cross connect ix: 5, in intf: - in label: 24320 out-segment ix: 8
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: N/A, Stale: NO, out intf: xe2, out label: 3
Nexthop addr: 10.11.1.1 cross connect ix: 5, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.44/32, ILM-ID: 1
Cross connect ix: 1, in intf: - in label: 20000 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 20000
Nexthop addr: 10.1.1.2 cross connect ix: 1, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.33/32, ILM-ID: 7
Cross connect ix: 6, in intf: - in label: 19000 out-segment ix: 9
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 19000
Nexthop addr: 10.1.1.2 cross connect ix: 6, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.1.1.2/32, ILM-ID: 4
Cross connect ix: 3, in intf: - in label: 24321 out-segment ix: 4
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: N/A, Stale: NO, out intf: xe11, out label: 3
Nexthop addr: 10.1.1.2 cross connect ix: 3, op code: Swap
P1#show mpls out-segment-table
Out-segment with ix: 8, owner: N/A, Stale: NO, out intf: xe2, out label: 3
Nexthop addr: 10.11.1.1 cross connect ix: 5, op code: Push
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 18000
Nexthop addr: 10.1.1.2 cross connect ix: 4, op code: Push
Out-segment with ix: 4, owner: N/A, Stale: NO, out intf: xe11, out label: 3
Nexthop addr: 10.1.1.2 cross connect ix: 3, op code: Push
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 20000
Nexthop addr: 10.1.1.2 cross connect ix: 1, op code: Push
Out-segment with ix: 9, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 19000
Nexthop addr: 10.1.1.2 cross connect ix: 6, op code: Push
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe2, out label: 16000
Nexthop addr: 10.11.1.1 cross connect ix: 2, op code: Push
P1#show ip ospf database opaque-area self-originate
OSPF Router with ID (10.0.1.1) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 761
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.1
LS Seq Number: 80000005
Checksum: 0x16fc
Length: 28
MPLS TE router ID : 10.0.1.1
Number of Links : 0
LS age: 751
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0xc06d
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 794
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x0e24
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 604
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0xaa2a
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 624
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x7bdd
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
LS age: 761
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0x0bb2
Length: 48
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 1004
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x1b94
Length: 52
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.2
SID: 24321
P1#show ip ospf database opaque-area
OSPF Router with ID (10.0.1.1) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 771
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.1
LS Seq Number: 80000005
Checksum: 0x16fc
Length: 28
MPLS TE router ID : 10.0.1.1
Number of Links : 0
LS age: 365
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000004
Checksum: 0x1cf5
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 762
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x46bc
Length: 28
MPLS TE router ID : 10.0.1.11
Number of Links : 0
LS age: 2006
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000003
Checksum: 0x9a3a
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 1999
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 762
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0xc06d
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 762
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x6abc
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 805
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x0e24
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 715
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x260a
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 1999
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 2006
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x87ee
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.1
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 695
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000002
Checksum: 0x6108
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.1
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 615
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0xaa2a
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 115
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0xa42f
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 1082
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x6e5c
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 2123
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 2030
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 635
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x7bdd
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
LS age: 309
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0x7cd3
Length: 92
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 252
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x92d7
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
LS age: 2123
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 2030
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 771
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0x0bb2
Length: 48
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 772
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x1389
Length: 52
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.1
SID: 24320
LS age: 1015
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x1b94
Length: 52
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.2
SID: 24321
LS age: 55
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x9335
Length: 48
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 1999
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x7ec6
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24321
LS age: 2006
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xc10b
Length: 52
Link Type: 2
Link ID: 10.33.44.1
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
LS age: 2006
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x0df8
Length: 48
Link Type: 2
Link ID: 10.33.44.1
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
P1#show ip ospf database opaque-area 7.0.0.0
OSPF Router with ID (10.0.1.1) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 646
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x7bdd
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
LS age: 319
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0x7cd3
Length: 92
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 262
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x92d7
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
LS age: 2133
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 2041
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
P2: ABR Connected to Area 0 and Area 1
P2#show ip ospf database
OSPF Router with ID (10.0.1.2) (Process ID 1 VRF default)
Router Link States (Area 0.0.0.0)
Link ID ADV Router Age Seq# CkSum Link count
10.0.1.1 10.0.1.1 842 0x80000010 0x771e 3
10.0.1.2 10.0.1.2 688 0x8000000e 0x5879 2
10.0.1.11 10.0.1.11 843 0x8000000e 0x5b49 2
10.0.1.33 10.0.1.33 857 0x80000007 0x7274 2
10.0.1.44 10.0.1.44 2071 0x80000004 0x3014 3
Net Link States (Area 0.0.0.0)
Link ID ADV Router Age Seq# CkSum
10.1.1.1 10.0.1.1 2257 0x80000001 0x7397
10.11.1.1 10.0.1.11 848 0x80000002 0x13d9
10.33.44.1 10.0.1.33 2081 0x80000001 0xe56f
Summary Link States (Area 0.0.0.0)
Link ID ADV Router Age Seq# CkSum Route
10.0.1.33 10.0.1.2 382 0x80000001 0x619f 10.0.1.33/32
10.0.1.44 10.0.1.2 454 0x80000001 0xe80e 10.0.1.44/32
10.33.44.0 10.0.1.2 454 0x80000001 0x28b1 10.33.44.0/30
10.44.2.0 10.0.1.2 688 0x80000001 0x6990 10.44.2.0/30
Area-Local Opaque-LSA (Area 0.0.0.0)
Link ID ADV Router Age Seq# CkSum Opaque ID
1.0.0.1 10.0.1.1 845 0x80000005 0x16fc 1
1.0.0.1 10.0.1.2 437 0x80000004 0x1cf5 1
1.0.0.1 10.0.1.11 836 0x80000001 0x46bc 1
1.0.0.1 10.0.1.33 2080 0x80000003 0x9a3a 1
1.0.0.1 10.0.1.44 2071 0x80000003 0xc6f7 1
1.0.0.12 10.0.1.1 836 0x80000003 0xc06d 12
1.0.0.12 10.0.1.11 836 0x80000001 0x6abc 12
1.0.0.30 10.0.1.1 879 0x80000002 0x0e24 30
1.0.0.30 10.0.1.2 787 0x80000002 0x260a 30
1.0.0.32 10.0.1.44 2071 0x80000001 0x5953 32
1.0.0.36 10.0.1.33 2080 0x80000001 0x87ee 36
1.0.0.36 10.0.1.44 767 0x80000002 0x6108 36
4.0.0.0 10.0.1.1 689 0x80000002 0xaa2a 0
4.0.0.0 10.0.1.2 187 0x80000002 0xa42f 0
4.0.0.0 10.0.1.11 1155 0x80000002 0x6e5c 0
4.0.0.0 10.0.1.33 2197 0x80000001 0xebc9 0
4.0.0.0 10.0.1.44 2104 0x80000001 0xa901 0
7.0.0.0 10.0.1.1 709 0x80000002 0x7bdd 0
7.0.0.0 10.0.1.2 381 0x80000003 0x7cd3 0
7.0.0.0 10.0.1.11 326 0x80000002 0x92d7 0
7.0.0.0 10.0.1.33 2197 0x80000001 0x1b60 0
7.0.0.0 10.0.1.44 2104 0x80000001 0x6514 0
8.0.39.20 10.0.1.1 845 0x80000003 0x0bb2 10004
8.0.39.20 10.0.1.11 846 0x80000002 0x1389 10004
8.0.39.29 10.0.1.1 1089 0x80000002 0x1b94 10013
8.0.39.29 10.0.1.2 127 0x80000002 0x9335 10013
8.0.39.30 10.0.1.44 2071 0x80000001 0x7ec6 10014
8.0.39.32 10.0.1.33 2080 0x80000001 0xc10b 10016
8.0.39.32 10.0.1.44 2080 0x80000001 0x0df8 10016
Router Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Link count
10.0.1.2 10.0.1.2 457 0x80000004 0x5e42 1
10.0.1.33 10.0.1.33 385 0x80000004 0x8e5a 2
10.0.1.44 10.0.1.44 389 0x80000006 0x42fe 3
Net Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum
10.33.44.2 10.0.1.44 389 0x80000001 0x6ddb
10.44.2.2 10.0.1.2 457 0x80000001 0xaa07
Summary Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Route
10.0.1.1 10.0.1.2 688 0x80000001 0x9889 10.0.1.1/32
10.0.1.2 10.0.1.2 688 0x80000001 0x849d 10.0.1.2/32
10.0.1.11 10.0.1.2 688 0x80000001 0x3ed8 10.0.1.11/32
10.1.1.0 10.0.1.2 688 0x80000001 0x7aab 10.1.1.0/30
10.11.1.0 10.0.1.2 688 0x80000001 0x0c0f 10.11.1.0/30
Area-Local Opaque-LSA (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Opaque ID
1.0.0.1 10.0.1.2 455 0x80000002 0x20f3 1
1.0.0.1 10.0.1.33 388 0x80000001 0x9e38 1
1.0.0.1 10.0.1.44 387 0x80000003 0xc6f7 1
1.0.0.32 10.0.1.44 456 0x80000001 0x5953 32
1.0.0.34 10.0.1.2 455 0x80000001 0x6073 34
1.0.0.36 10.0.1.33 388 0x80000001 0x9dd7 36
1.0.0.36 10.0.1.44 387 0x80000001 0x79ef 36
4.0.0.0 10.0.1.2 686 0x80000001 0xa62e 0
4.0.0.0 10.0.1.33 385 0x80000001 0xebc9 0
4.0.0.0 10.0.1.44 448 0x80000001 0xa901 0
7.0.0.0 10.0.1.2 381 0x80000003 0xb912 0
7.0.0.0 10.0.1.33 385 0x80000001 0x1b60 0
7.0.0.0 10.0.1.44 448 0x80000001 0x6514 0
8.0.39.30 10.0.1.44 448 0x80000001 0x61e4 10014
8.0.39.31 10.0.1.2 455 0x80000001 0xea3e 10015
8.0.39.32 10.0.1.33 385 0x80000001 0x4bc5 10016
8.0.39.32 10.0.1.44 387 0x80000001 0x5476 10016
P2# show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel, P - SR Policy FTN,
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf ELC Nexthop
O> 10.0.1.1/32 1 0 Yes LSP_DEFAULT 17000 xe11 No 10.1.1.1
O> 10.0.1.11/32 2 0 Yes LSP_DEFAULT 16000 xe11 No 10.1.1.1
O> 10.0.1.33/32 4 0 Yes LSP_DEFAULT 19000 xe13 No 10.44.2.1
O> 10.0.1.44/32 3 0 Yes LSP_DEFAULT 20000 xe13 No 10.44.2.1
P2#show mpls ftn-table
Primary FTN entry with FEC: 10.0.1.1/32, id: 1, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 17000
Nexthop addr: 10.1.1.1 cross connect ix: 1, op code: Push
Primary FTN entry with FEC: 10.0.1.11/32, id: 2, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 4
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 16000
Nexthop addr: 10.1.1.1 cross connect ix: 3, op code: Push
Primary FTN entry with FEC: 10.0.1.33/32, id: 4, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 6, in intf: - in label: 0 out-segment ix: 9
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 19000
Nexthop addr: 10.44.2.1 cross connect ix: 6, op code: Push
Primary FTN entry with FEC: 10.0.1.44/32, id: 3, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 6
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 20000
Nexthop addr: 10.44.2.1 cross connect ix: 4, op code: Push
P2#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM
K - CLI ILM, T - MPLS-TP, s - Stitched ILM
S - SNMP, L - LDP, R - RSVP, C - CRLDP
B - BGP , K - CLI , V - LDP_VC, I - IGP_SHORTCUT
O - OSPF/OSPF6 SR, i - ISIS SR, k - SR CLI
P - SR Policy, U - unknown
Code FEC/VRF/L2CKT ILM-ID In-Label Out-Label In-Intf Out-Intf/VRF Nexthop LSP-Type
O> 10.0.1.2/32 5 18000 Nolabel N/A N/A 127.0.0.1 LSP_DEFAULT
O> 10.0.1.1/32 1 17000 17000 N/A xe11 10.1.1.1 LSP_DEFAULT
O> 10.0.1.11/32 3 16000 16000 N/A xe11 10.1.1.1 LSP_DEFAULT
O> 10.1.1.1/32 2 24320 3 N/A xe11 10.1.1.1 LSP_DEFAULT
O> 10.0.1.44/32 4 20000 20000 N/A xe13 10.44.2.1 LSP_DEFAULT
O> 10.0.1.33/32 7 19000 19000 N/A xe13 10.44.2.1 LSP_DEFAULT
O> 10.44.2.1/32 6 24321 3 N/A xe13 10.44.2.1 LSP_DEFAULT
P2#show mpls in-segment-table
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.2/32, ILM-ID: 5
Cross connect ix: 6, in intf: - in label: 18000 out-segment ix: 0
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 0, owner: CLI, Stale: NO, out intf: N/A, out label: N/A
Nexthop addr: 127.0.0.1 cross connect ix: 6, op code: Pop
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.1/32, ILM-ID: 1
Cross connect ix: 1, in intf: - in label: 17000 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 17000
Nexthop addr: 10.1.1.1 cross connect ix: 1, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.11/32, ILM-ID: 3
Cross connect ix: 3, in intf: - in label: 16000 out-segment ix: 4
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 4, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 16000
Nexthop addr: 10.1.1.1 cross connect ix: 3, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.1.1.1/32, ILM-ID: 2
Cross connect ix: 2, in intf: - in label: 24320 out-segment ix: 3
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: N/A, Stale: NO, out intf: xe11, out label: 3
Nexthop addr: 10.1.1.1 cross connect ix: 2, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.44/32, ILM-ID: 4
Cross connect ix: 4, in intf: - in label: 20000 out-segment ix: 6
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 6, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 20000
Nexthop addr: 10.44.2.1 cross connect ix: 4, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.33/32, ILM-ID: 7
Cross connect ix: 6, in intf: - in label: 19000 out-segment ix: 9
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 19000
Nexthop addr: 10.44.2.1 cross connect ix: 6, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.44.2.1/32, ILM-ID: 6
Cross connect ix: 5, in intf: - in label: 24321 out-segment ix: 8
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: N/A, Stale: NO, out intf: xe13, out label: 3
Nexthop addr: 10.44.2.1 cross connect ix: 5, op code: Swap
P2#show mpls out-segment-table
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 17000
Nexthop addr: 10.1.1.1 cross connect ix: 1, op code: Push
Out-segment with ix: 4, owner: OSPF-SR, Stale: NO, out intf: xe11, out label: 16000
Nexthop addr: 10.1.1.1 cross connect ix: 3, op code: Push
Out-segment with ix: 3, owner: N/A, Stale: NO, out intf: xe11, out label: 3
Nexthop addr: 10.1.1.1 cross connect ix: 2, op code: Push
Out-segment with ix: 6, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 20000
Nexthop addr: 10.44.2.1 cross connect ix: 4, op code: Push
Out-segment with ix: 8, owner: N/A, Stale: NO, out intf: xe13, out label: 3
Nexthop addr: 10.44.2.1 cross connect ix: 5, op code: Push
Out-segment with ix: 9, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 19000
Nexthop addr: 10.44.2.1 cross connect ix: 6, op code: Push
P2#show ip ospf database opaque-area
OSPF Router with ID (10.0.1.2) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 878
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.1
LS Seq Number: 80000005
Checksum: 0x16fc
Length: 28
MPLS TE router ID : 10.0.1.1
Number of Links : 0
LS age: 469
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000004
Checksum: 0x1cf5
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 869
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x46bc
Length: 28
MPLS TE router ID : 10.0.1.11
Number of Links : 0
LS age: 2112
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000003
Checksum: 0x9a3a
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 2103
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 869
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0xc06d
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 869
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.12 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 12
Advertising Router: 10.0.1.11
LS Seq Number: 80000001
Checksum: 0x6abc
Length: 108
Link connected to Broadcast network
Link ID : 10.11.1.1
Interface Address : 10.11.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 911
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x0e24
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 819
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x260a
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 2103
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 2112
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x87ee
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.1
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 800
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000002
Checksum: 0x6108
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.1
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 721
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0xaa2a
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 219
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0xa42f
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 1187
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x6e5c
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 2229
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 2137
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 741
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x7bdd
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
LS age: 413
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0x7cd3
Length: 92
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 358
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x92d7
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
LS age: 2229
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 2137
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 878
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.1
LS Seq Number: 80000003
Checksum: 0x0bb2
Length: 48
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 879
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.20 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10004
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x1389
Length: 52
Link Type: 2
Link ID: 10.11.1.1
Link Data: 10.11.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.1
SID: 24320
LS age: 1121
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x1b94
Length: 52
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.2
SID: 24321
LS age: 159
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x9335
Length: 48
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 2103
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x7ec6
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24321
LS age: 2112
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xc10b
Length: 52
Link Type: 2
Link ID: 10.33.44.1
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
LS age: 2113
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x0df8
Length: 48
Link Type: 2
Link ID: 10.33.44.1
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 487
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x20f3
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 420
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9e38
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 419
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 488
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 487
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.34 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 34
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0x6073
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 420
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9dd7
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 419
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x79ef
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 718
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xa62e
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 417
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 481
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 413
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 417
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 481
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 481
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x61e4
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 487
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.31 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10015
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xea3e
Length: 52
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
LS age: 417
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x4bc5
Length: 48
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 419
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5476
Length: 52
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.33
SID: 24321
P2#show ip ospf database opaque-area self-originate
OSPF Router with ID (10.0.1.2) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 485
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000004
Checksum: 0x1cf5
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 835
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.30 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 30
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x260a
Length: 108
Link connected to Broadcast network
Link ID : 10.1.1.1
Interface Address : 10.1.1.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 235
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0xa42f
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 429
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0x7cd3
Length: 92
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 175
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.29 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10013
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x9335
Length: 48
Link Type: 2
Link ID: 10.1.1.1
Link Data: 10.1.1.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 503
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x20f3
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 503
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.34 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 34
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0x6073
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 734
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xa62e
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 429
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 503
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.31 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10015
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xea3e
Length: 52
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
P2#show ip ospf database opaque-area 7.0.0.0
OSPF Router with ID (10.0.1.2) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.0)
LS age: 781
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.1
LS Seq Number: 80000002
Checksum: 0x7bdd
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
LS age: 453
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0x7cd3
Length: 92
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 398
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.11
LS Seq Number: 80000002
Checksum: 0x92d7
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
LS age: 2269
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 2177
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 453
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 457
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 520
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
P2#show ip ospf segment-routing capability
OSPF process 1:
-----------------------------------------------------
Advertisement Router Capability :10.0.1.1
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.2
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.11
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.33
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.44
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
P2#show ip ospf segment-routing announce-list
------------------------
Area 0.0.0.0
Instance 0
--------------
Prefix:10.0.1.2/32
Origin Adv-Router:10.0.1.2
Route-Type:1
--------------
Prefix:10.0.1.44/32
Origin Adv-Router:10.0.1.44
Route-Type:3
--------------
Prefix:10.0.1.33/32
Origin Adv-Router:10.0.1.33
Route-Type:3
------------------------
------------------------
Area 0.0.0.1
Instance 0
--------------
Prefix:10.0.1.1/32
Origin Adv-Router:10.0.1.1
Route-Type:3
--------------
Prefix:10.0.1.2/32
Origin Adv-Router:10.0.1.2
Route-Type:3
--------------
Prefix:10.0.1.11/32
Origin Adv-Router:10.0.1.11
Route-Type:3
--------------
Prefix:10.0.1.33/32
Origin Adv-Router:10.0.1.2
Route-Type:3
P3 in Area 1
P3#show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel, P - SR Policy FTN,
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf ELC Nexthop
O> 10.0.1.1/32 1 0 Yes LSP_DEFAULT 17000 xe13 No 10.44.2.2
O> 10.0.1.2/32 2 0 Yes LSP_DEFAULT 18000 xe13 No 10.44.2.2
O> 10.0.1.11/32 3 0 Yes LSP_DEFAULT 16000 xe13 No 10.44.2.2
O> 10.0.1.33/32 4 0 Yes LSP_DEFAULT 19000 xe15 No 10.33.44.1
P3#show mpls ftn-table
Primary FTN entry with FEC: 10.0.1.1/32, id: 1, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 17000
Nexthop addr: 10.44.2.2 cross connect ix: 1, op code: Push
Primary FTN entry with FEC: 10.0.1.2/32, id: 2, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 18000
Nexthop addr: 10.44.2.2 cross connect ix: 2, op code: Push
Primary FTN entry with FEC: 10.0.1.11/32, id: 3, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 16000
Nexthop addr: 10.44.2.2 cross connect ix: 3, op code: Push
Primary FTN entry with FEC: 10.0.1.33/32, id: 4, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 5, in intf: - in label: 0 out-segment ix: 8
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 19000
Nexthop addr: 10.33.44.1 cross connect ix: 5, op code: Push
P3#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM
K - CLI ILM, T - MPLS-TP, s - Stitched ILM
S - SNMP, L - LDP, R - RSVP, C - CRLDP
B - BGP , K - CLI , V - LDP_VC, I - IGP_SHORTCUT
O - OSPF/OSPF6 SR, i - ISIS SR, k - SR CLI
P - SR Policy, U - unknown
Code FEC/VRF/L2CKT ILM-ID In-Label Out-Label In-Intf Out-Intf/VRF Nexthop LSP-Type
O> 10.0.1.2/32 3 18000 18000 N/A xe13 10.44.2.2 LSP_DEFAULT
O> 10.0.1.1/32 2 17000 17000 N/A xe13 10.44.2.2 LSP_DEFAULT
O> 10.0.1.11/32 4 16000 16000 N/A xe13 10.44.2.2 LSP_DEFAULT
O> 10.0.1.44/32 1 20000 Nolabel N/A N/A 127.0.0.1 LSP_DEFAULT
O> 10.0.1.33/32 6 19000 19000 N/A xe15 10.33.44.1 LSP_DEFAULT
O> 10.44.2.2/32 5 24320 3 N/A xe13 10.44.2.2 LSP_DEFAULT
O> 10.33.44.1/32 7 24321 3 N/A xe15 10.33.44.1 LSP_DEFAULT
P3#show ip ospf database opaque-area self-originate
OSPF Router with ID (10.0.1.44) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 514
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 583
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 514
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x79ef
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 575
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 575
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 575
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x61e4
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 514
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5476
Length: 52
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.33
SID: 24321
P3#show ip ospf database opaque-area
OSPF Router with ID (10.0.1.44) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 607
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x20f3
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 538
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9e38
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 537
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 606
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 607
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.34 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 34
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0x6073
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 538
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9dd7
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 537
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x79ef
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 838
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xa62e
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 535
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 599
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 533
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 535
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 599
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 599
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x61e4
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 607
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.31 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10015
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xea3e
Length: 52
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
LS age: 535
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x4bc5
Length: 48
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 537
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5476
Length: 52
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.33
SID: 24321
P3#show mpls in-segment-table
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.2/32, ILM-ID: 3
Cross connect ix: 2, in intf: - in label: 18000 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 18000
Nexthop addr: 10.44.2.2 cross connect ix: 2, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.1/32, ILM-ID: 2
Cross connect ix: 1, in intf: - in label: 17000 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 17000
Nexthop addr: 10.44.2.2 cross connect ix: 1, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.11/32, ILM-ID: 4
Cross connect ix: 3, in intf: - in label: 16000 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 16000
Nexthop addr: 10.44.2.2 cross connect ix: 3, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.44/32, ILM-ID: 1
Cross connect ix: 3, in intf: - in label: 20000 out-segment ix: 0
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 0, owner: CLI, Stale: NO, out intf: N/A, out label: N/A
Nexthop addr: 127.0.0.1 cross connect ix: 3, op code: Pop
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.33/32, ILM-ID: 6
Cross connect ix: 5, in intf: - in label: 19000 out-segment ix: 8
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 8, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 19000
Nexthop addr: 10.33.44.1 cross connect ix: 5, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.44.2.2/32, ILM-ID: 5
Cross connect ix: 4, in intf: - in label: 24320 out-segment ix: 7
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 7, owner: N/A, Stale: NO, out intf: xe13, out label: 3
Nexthop addr: 10.44.2.2 cross connect ix: 4, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.33.44.1/32, ILM-ID: 7
Cross connect ix: 6, in intf: - in label: 24321 out-segment ix: 10
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 10, owner: N/A, Stale: NO, out intf: xe15, out label: 3
Nexthop addr: 10.33.44.1 cross connect ix: 6, op code: Swap
P3#show mpls out-segment-table
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 16000
Nexthop addr: 10.44.2.2 cross connect ix: 3, op code: Push
Out-segment with ix: 8, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 19000
Nexthop addr: 10.33.44.1 cross connect ix: 5, op code: Push
Out-segment with ix: 10, owner: N/A, Stale: NO, out intf: xe15, out label: 3
Nexthop addr: 10.33.44.1 cross connect ix: 6, op code: Push
Out-segment with ix: 7, owner: N/A, Stale: NO, out intf: xe13, out label: 3
Nexthop addr: 10.44.2.2 cross connect ix: 4, op code: Push
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 18000
Nexthop addr: 10.44.2.2 cross connect ix: 2, op code: Push
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe13, out label: 17000
Nexthop addr: 10.44.2.2 cross connect ix: 1, op code: Push
P3#show ip ospf database opaque-area 7.0.0.0
OSPF Router with ID (10.0.1.44) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 554
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 556
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 620
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
P3#show ip ospf segment-routing capability
OSPF process 1:
-----------------------------------------------------
Advertisement Router Capability :10.0.1.2
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.33
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.44
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
P3#show ip ospf segment-routing announce-list
------------------------
Area 0.0.0.1
Instance 0
--------------
Prefix:10.0.1.44/32
Origin Adv-Router:10.0.1.44
Route-Type:1
------------------------
P3#show ip ospf database
OSPF Router with ID (10.0.1.44) (Process ID 1 VRF default)
Router Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Link count
10.0.1.2 10.0.1.2 739 0x80000004 0x5e42 1
10.0.1.33 10.0.1.33 665 0x80000004 0x8e5a 2
10.0.1.44 10.0.1.44 669 0x80000006 0x42fe 3
Net Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum
10.33.44.2 10.0.1.44 669 0x80000001 0x6ddb
10.44.2.2 10.0.1.2 739 0x80000001 0xaa07
Summary Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Route
10.0.1.1 10.0.1.2 970 0x80000001 0x9889 10.0.1.1/32
10.0.1.2 10.0.1.2 970 0x80000001 0x849d 10.0.1.2/32
10.0.1.11 10.0.1.2 970 0x80000001 0x3ed8 10.0.1.11/32
10.1.1.0 10.0.1.2 970 0x80000001 0x7aab 10.1.1.0/30
10.11.1.0 10.0.1.2 970 0x80000001 0x0c0f 10.11.1.0/30
Area-Local Opaque-LSA (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Opaque ID
1.0.0.1 10.0.1.2 737 0x80000002 0x20f3 1
1.0.0.1 10.0.1.33 668 0x80000001 0x9e38 1
1.0.0.1 10.0.1.44 667 0x80000003 0xc6f7 1
1.0.0.32 10.0.1.44 736 0x80000001 0x5953 32
1.0.0.34 10.0.1.2 737 0x80000001 0x6073 34
1.0.0.36 10.0.1.33 668 0x80000001 0x9dd7 36
1.0.0.36 10.0.1.44 667 0x80000001 0x79ef 36
4.0.0.0 10.0.1.2 968 0x80000001 0xa62e 0
4.0.0.0 10.0.1.33 665 0x80000001 0xebc9 0
4.0.0.0 10.0.1.44 729 0x80000001 0xa901 0
7.0.0.0 10.0.1.2 663 0x80000003 0xb912 0
7.0.0.0 10.0.1.33 665 0x80000001 0x1b60 0
7.0.0.0 10.0.1.44 729 0x80000001 0x6514 0
8.0.39.30 10.0.1.44 729 0x80000001 0x61e4 10014
8.0.39.31 10.0.1.2 737 0x80000001 0xea3e 10015
8.0.39.32 10.0.1.33 665 0x80000001 0x4bc5 10016
8.0.39.32 10.0.1.44 667 0x80000001 0x5476 10016
PE2 in Area 1
PE2#show mpls forwarding-table
Codes: > - installed FTN, * - selected FTN, p - stale FTN,
B - BGP FTN, K - CLI FTN, t - tunnel, P - SR Policy FTN,
L - LDP FTN, R - RSVP-TE FTN, S - SNMP FTN, I - IGP-Shortcut,
U - unknown FTN, O - SR-OSPF FTN, i - SR-ISIS FTN, k - SR-CLI FTN
Code FEC FTN-ID Tunnel-id Pri LSP-Type Out-Label Out-Intf ELC Nexthop
O> 10.0.1.1/32 2 0 Yes LSP_DEFAULT 17000 xe15 No 10.33.44.2
O> 10.0.1.2/32 3 0 Yes LSP_DEFAULT 18000 xe15 No 10.33.44.2
O> 10.0.1.11/32 4 0 Yes LSP_DEFAULT 16000 xe15 No 10.33.44.2
O> 10.0.1.44/32 1 0 Yes LSP_DEFAULT 20000 xe15 No 10.33.44.2
PE2#show mpls ftn-table
Primary FTN entry with FEC: 10.0.1.1/32, id: 2, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 2, in intf: - in label: 0 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 17000
Nexthop addr: 10.33.44.2 cross connect ix: 2, op code: Push
Primary FTN entry with FEC: 10.0.1.2/32, id: 3, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 3, in intf: - in label: 0 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 18000
Nexthop addr: 10.33.44.2 cross connect ix: 3, op code: Push
Primary FTN entry with FEC: 10.0.1.11/32, id: 4, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 4, in intf: - in label: 0 out-segment ix: 7
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 7, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 16000
Nexthop addr: 10.33.44.2 cross connect ix: 4, op code: Push
Primary FTN entry with FEC: 10.0.1.44/32, id: 1, row status: Active
Owner: OSPF-SR, distance: 110, Action-type: Redirect to Tunnel, Exp-bits: 0x0, Incoming DSCP: none
Tunnel id: 0, Protected LSP id: 0, QoS Resource id: 0, Description: N/A
Cross connect ix: 1, in intf: - in label: 0 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 20000
Nexthop addr: 10.33.44.2 cross connect ix: 1, op code: Push
PE2#show mpls ilm-table
Codes: > - installed ILM, * - selected ILM, p - stale ILM
K - CLI ILM, T - MPLS-TP, s - Stitched ILM
S - SNMP, L - LDP, R - RSVP, C - CRLDP
B - BGP , K - CLI , V - LDP_VC, I - IGP_SHORTCUT
O - OSPF/OSPF6 SR, i - ISIS SR, k - SR CLI
P - SR Policy, U - unknown
Code FEC/VRF/L2CKT ILM-ID In-Label Out-Label In-Intf Out-Intf/VRF Nexthop LSP-Type
O> 10.0.1.33/32 1 19000 Nolabel N/A N/A 127.0.0.1 LSP_DEFAULT
O> 10.0.1.1/32 3 17000 17000 N/A xe15 10.33.44.2 LSP_DEFAULT
O> 10.0.1.11/32 5 16000 16000 N/A xe15 10.33.44.2 LSP_DEFAULT
O> 10.0.1.2/32 4 18000 18000 N/A xe15 10.33.44.2 LSP_DEFAULT
O> 10.0.1.44/32 2 20000 20000 N/A xe15 10.33.44.2 LSP_DEFAULT
O> 10.33.44.2/32 6 24320 3 N/A xe15 10.33.44.2 LSP_DEFAULT
PE2#show mpls in-segment-table
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.33/32, ILM-ID: 1
Cross connect ix: 1, in intf: - in label: 19000 out-segment ix: 0
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 0, owner: CLI, Stale: NO, out intf: N/A, out label: N/A
Nexthop addr: 127.0.0.1 cross connect ix: 1, op code: Pop
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.1/32, ILM-ID: 3
Cross connect ix: 2, in intf: - in label: 17000 out-segment ix: 3
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 17000
Nexthop addr: 10.33.44.2 cross connect ix: 2, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.11/32, ILM-ID: 5
Cross connect ix: 4, in intf: - in label: 16000 out-segment ix: 7
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 7, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 16000
Nexthop addr: 10.33.44.2 cross connect ix: 4, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.2/32, ILM-ID: 4
Cross connect ix: 3, in intf: - in label: 18000 out-segment ix: 5
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 18000
Nexthop addr: 10.33.44.2 cross connect ix: 3, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.0.1.44/32, ILM-ID: 2
Cross connect ix: 1, in intf: - in label: 20000 out-segment ix: 1
Owner: OSPF-SR, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 20000
Nexthop addr: 10.33.44.2 cross connect ix: 1, op code: Swap
Owner: OSPF-SR, # of pops: 1, fec: 10.33.44.2/32, ILM-ID: 6
Cross connect ix: 5, in intf: - in label: 24320 out-segment ix: 9
Owner: N/A, Persistent: No, Admin Status: Up, Oper Status: Up
Out-segment with ix: 9, owner: N/A, Stale: NO, out intf: xe15, out label: 3
Nexthop addr: 10.33.44.2 cross connect ix: 5, op code: Swap
PE2#show mpls out-segment-table
Out-segment with ix: 3, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 17000
Nexthop addr: 10.33.44.2 cross connect ix: 2, op code: Push
Out-segment with ix: 7, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 16000
Nexthop addr: 10.33.44.2 cross connect ix: 4, op code: Push
Out-segment with ix: 9, owner: N/A, Stale: NO, out intf: xe15, out label: 3
Nexthop addr: 10.33.44.2 cross connect ix: 5, op code: Push
Out-segment with ix: 1, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 20000
Nexthop addr: 10.33.44.2 cross connect ix: 1, op code: Push
Out-segment with ix: 5, owner: OSPF-SR, Stale: NO, out intf: xe15, out label: 18000
Nexthop addr: 10.33.44.2 cross connect ix: 3, op code: Push
PE2#show ip ospf database opaque-area self-originate
OSPF Router with ID (10.0.1.33) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 617
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9e38
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 617
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9dd7
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 614
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 614
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 614
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x4bc5
Length: 48
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
PE2#show ip ospf database opaque-area
OSPF Router with ID (10.0.1.33) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 694
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.2
LS Seq Number: 80000002
Checksum: 0x20f3
Length: 28
MPLS TE router ID : 10.0.1.2
Number of Links : 0
LS age: 623
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9e38
Length: 28
MPLS TE router ID : 10.0.1.33
Number of Links : 0
LS age: 624
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.1 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 1
Advertising Router: 10.0.1.44
LS Seq Number: 80000003
Checksum: 0xc6f7
Length: 28
MPLS TE router ID : 10.0.1.44
Number of Links : 0
LS age: 693
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.32 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 32
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5953
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 694
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.34 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 34
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0x6073
Length: 108
Link connected to Broadcast network
Link ID : 10.44.2.2
Interface Address : 10.44.2.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 623
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x9dd7
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.1
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 624
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 1.0.0.36 (Area-Local Opaque-Type/ID)
Opaque Type: 1
Opaque ID: 36
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x79ef
Length: 108
Link connected to Broadcast network
Link ID : 10.33.44.2
Interface Address : 10.33.44.2
Admin Metric : 1
Maximum bandwidth : 10000000.00 Kbits/s
Maximum reservable bandwidth : 10000000.00 Kbits/s
Unreserved Bandwidth :
Number of Priority : 8
Priority 0 : 10000000.00 Kbits/s Priority 1 : 10000000.00 Kbits/s
Priority 2 : 10000000.00 Kbits/s Priority 3 : 10000000.00 Kbits/s
Priority 4 : 10000000.00 Kbits/s Priority 5 : 10000000.00 Kbits/s
Priority 6 : 10000000.00 Kbits/s Priority 7 : 10000000.00 Kbits/s
Number of Links : 1
LS age: 925
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xa62e
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 620
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0xebc9
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 685
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 4.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 4
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0xa901
Length: 44
Range Size: 8000
Base-SID: 16000
Algorithm: 0
LS age: 620
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 620
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 685
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
LS age: 685
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.30 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10014
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x61e4
Length: 48
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 694
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.31 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10015
Advertising Router: 10.0.1.2
LS Seq Number: 80000001
Checksum: 0xea3e
Length: 52
Link Type: 2
Link ID: 10.44.2.2
Link Data: 10.44.2.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.44
SID: 24321
LS age: 620
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x4bc5
Length: 48
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.1
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
SID: 24320
LS age: 624
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 8.0.39.32 (Area-Local Opaque-Type/ID)
Opaque Type: 8
Opaque ID: 10016
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x5476
Length: 52
Link Type: 2
Link ID: 10.33.44.2
Link Data: 10.33.44.2
Flags: 0x60 (-|V|L|-|-|-|-|-)
MT-ID: 0
NBR ID: 10.0.1.33
SID: 24321
PE2#show ip ospf database opaque-area 7.0.0.0
OSPF Router with ID (10.0.1.33) (Process ID 1 VRF default)
Area-Local Opaque-LSA (Area 0.0.0.1)
LS age: 640
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.2
LS Seq Number: 80000003
Checksum: 0xb912
Length: 116
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.1
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 1000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0xc0 (A|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.2
Flags: 0x40 (-|NP|-|-|-|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 2000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.11
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 16000
Prefix type : Extended Prefix TLV
Route Type: 3
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 640
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.33
LS Seq Number: 80000001
Checksum: 0x1b60
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.33
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 19000
LS age: 705
Options: 0x22 (-|-|DC|-|-|-|E|-)
LS Type: Area-Local Opaque-LSA
Link State ID: 7.0.0.0 (Area-Local Opaque-Type/ID)
Opaque Type: 7
Opaque ID: 0
Advertising Router: 10.0.1.44
LS Seq Number: 80000001
Checksum: 0x6514
Length: 44
Prefix type : Extended Prefix TLV
Route Type: 1
Prefix Length: 32
AF: 0
Flags: 0x40 (-|N|-|-|-|-|-|-)
Address Prefix: 10.0.1.44
Flags: 0x48 (-|NP|-|-|V|-|-|-)
MT-ID: 0
Algorithm: 0
SID: 20000
PE2#show ip ospf segment-routing capability
OSPF process 1:
-----------------------------------------------------
Advertisement Router Capability :10.0.1.2
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.33
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
Advertisement Router Capability :10.0.1.44
Algorithm :0
SRMS Preference :0
Total SID'S Supported :8000
SID Range List Count :1
SID's Range :16000 - 23999
-----------------------------------------------------
PE2#show ip ospf segment-routing announce-list
------------------------
Area 0.0.0.1
Instance 0
--------------
Prefix:10.0.1.33/32
Origin Adv-Router:10.0.1.33
Route-Type:1
------------------------
PE2#show ip ospf database
OSPF Router with ID (10.0.1.33) (Process ID 1 VRF default)
Router Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Link count
10.0.1.2 10.0.1.2 740 0x80000004 0x5e42 1
10.0.1.33 10.0.1.33 664 0x80000004 0x8e5a 2
10.0.1.44 10.0.1.44 670 0x80000006 0x42fe 3
Net Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum
10.33.44.2 10.0.1.44 670 0x80000001 0x6ddb
10.44.2.2 10.0.1.2 740 0x80000001 0xaa07
Summary Link States (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Route
10.0.1.1 10.0.1.2 971 0x80000001 0x9889 10.0.1.1/32
10.0.1.2 10.0.1.2 971 0x80000001 0x849d 10.0.1.2/32
10.0.1.11 10.0.1.2 971 0x80000001 0x3ed8 10.0.1.11/32
10.1.1.0 10.0.1.2 971 0x80000001 0x7aab 10.1.1.0/30
10.11.1.0 10.0.1.2 971 0x80000001 0x0c0f 10.11.1.0/30
Area-Local Opaque-LSA (Area 0.0.0.1)
Link ID ADV Router Age Seq# CkSum Opaque ID
1.0.0.1 10.0.1.2 738 0x80000002 0x20f3 1
1.0.0.1 10.0.1.33 667 0x80000001 0x9e38 1
1.0.0.1 10.0.1.44 668 0x80000003 0xc6f7 1
1.0.0.32 10.0.1.44 737 0x80000001 0x5953 32
1.0.0.34 10.0.1.2 738 0x80000001 0x6073 34
1.0.0.36 10.0.1.33 667 0x80000001 0x9dd7 36
1.0.0.36 10.0.1.44 668 0x80000001 0x79ef 36
4.0.0.0 10.0.1.2 969 0x80000001 0xa62e 0
4.0.0.0 10.0.1.33 664 0x80000001 0xebc9 0
4.0.0.0 10.0.1.44 729 0x80000001 0xa901 0
7.0.0.0 10.0.1.2 664 0x80000003 0xb912 0
7.0.0.0 10.0.1.33 664 0x80000001 0x1b60 0
7.0.0.0 10.0.1.44 729 0x80000001 0x6514 0
8.0.39.30 10.0.1.44 729 0x80000001 0x61e4 10014
8.0.39.31 10.0.1.2 738 0x80000001 0xea3e 10015
8.0.39.32 10.0.1.33 664 0x80000001 0x4bc5 10016
8.0.39.32 10.0.1.44 668 0x80000001 0x5476 10016
