Topology

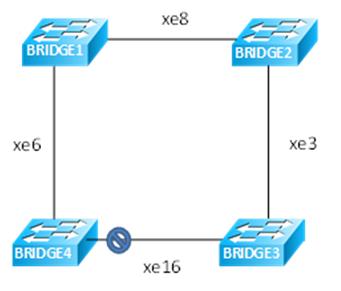

Figure 4-9 displays a sample Ring Protection topology on which protection switching is configured with four bridges. The Ring Protection Link (RPL) owner is the link between Bridge 3 and Bridge 4 (xe16), on which one side of the link is defined explicitly as RPL owner (Bridge 4) and RPL neighbor (Bridge 3). The rest of the bridges are explicitly configured RPL non owner to enable ERPS in the ring.
Figure 4-9: Major Ring Topology
Prerequisite
Configure below hardware-profile commands related to CFM in configuration mode and reboot the nodes.
hardware-profile filter cfm-domain-name-str enable
hardware-profile statistics cfm-ccm enable
Bridge 1
Bridge1#configure terminal | Enter configure mode |
Bridge1(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge1(config)#hardware-profile filter cfm-domain-name-str enable | Enable CFM domain name as string |
Bridge1(config)#vlan database | Configure VLAN database |
Bridge1(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge1(config-vlan)#interface xe6 | Configure interface xe6 |
Bridge1(config-if)#switchport | Configure xe6 as a layer 2 port |
Bridge1(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge1(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge1(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge1(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe6 interface |
Bridge1(config-if)#interface xe8 | Configure interface xe8 |
Bridge1(config-if)#switchport | Configure xe8 as a layer 2 port |
Bridge1(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge1(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge1(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge1(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe8 interface |
Bridge1(config-if)#ethernet cfm domain-type character-string domain-name nod12 level 7 mip-creation none | Create cfm domain with type as character string with name nod12 and set MIP creation criteria to default with level 7 |
Bridge1(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982 |
Bridge1(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge1(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge1(config-ether-cfm-ma)#ethernet cfm mep down mpid 12 active true xe8 | Create down MEP 12 for xe8 interface |
Bridge1(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge1(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge1(config-ether-cfm-ma)#mep crosscheck mpid 21 | Configure crosscheck to remote MEP with value 21 |
Bridge1(config-ether-cfm-ma)#cc interval 100ms | Enable cc interval with 100ms |
Bridge1(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge1(config-ether-cfm)#ethernet cfm domain-type character-string domain-name nod41 level 7 mip-creation none | Create cfm domain with type as character string with name nod41 and set mip creation criteria to default with level 7 |
Bridge1(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge1(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge1(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge1(config-ether-cfm-ma)#ethernet cfm mep down mpid 14 active true xe6 | Create down MEP 14 for xe6 interface |
Bridge1(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge1(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge1(config-ether-cfm-ma)#mep crosscheck mpid 41 | Configure crosscheck to remote MEP with value 41 |
Bridge1(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge1(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge1(config-ether-cfm)#g8032 ring RING1 | Create g8032 ring with name RING1 |
Bridge1(g8032-ring-config)#east-interface xe6 | Associate xe6 interface as east-interface |
Bridge1(g8032-ring-config)#west-interface xe8 | Associate xe8 interface as west-interface |
Bridge1(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge1(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge1(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge1(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge1(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge1(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge1(g8032-config-switch)#ring RING1 | Associate ring RING1 to erp1 instance |
Bridge1(g8032-config-switch)#rpl role non-owner | Configure the node as non-owner node |
Bridge1(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge1(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge1(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge1(g8032-config-switch)#data vlan 201-205 | Configure traffic vlan from 201-205 |
Bridge1(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge1(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge1(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 2
Bridge2#config terminal | Enter configure mode |
Bridge2(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge2(config)#hardware-profile filter cfm-domain-name-str enable | Enable CFM domain name as string |
Bridge2(config)#vlan database | Configure VLAN database |
Bridge2(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge2(config-vlan)#interface xe3 | Configure interface xe3 |
Bridge2(config-if)#switchport | Configure xe3 as a layer 2 port |
Bridge2(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge2(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge2(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge2(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe3 interface |
Bridge2(config-if)#interface xe8 | Configure interface xe8 |
Bridge2(config-if)#switchport | Configure xe8 as a layer 2 port |
Bridge2(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge2(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge2(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge2(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe8 interface |
Bridge2(config-if)#ethernet cfm domain-type character-string domain-name nod23 level 7 mip-creation none | Create cfm domain with type as character string with name nod23 and set mip creation criteria to default with level 7 |
Bridge2(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge2(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge2(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge2(config-ether-cfm-ma)#ethernet cfm mep down mpid 23 active true local-vid 200 xe3 | Create down MEP 23 with local VID 200 for xe3 interface |
Bridge2(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge2(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge2(config-ether-cfm-ma)#mep crosscheck mpid 32 | Configure crosscheck to remote MEP with value 32 |
Bridge2(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge2(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge2(config-ether-cfm)#ethernet cfm domain-type character-string domain-name nod12 level 7 mip-creation none | Create CFM domain with type as character string with name nod12 and set mip creation criteria to default with level 7 |
Bridge2(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge2(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge2(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge2(config-ether-cfm-ma)#ethernet cfm mep down mpid 21 active true xe8 | Create down MEP 21 for xe8 interface |
Bridge2(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge2(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge2(config-ether-cfm-ma)#mep crosscheck mpid 12 | Configure crosscheck to remote MEP with value 12 |
Bridge2(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge2(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge2(config-ether-cfm)#g8032 ring RING1 | Create g8032 ring with name RING1 |
Bridge2(g8032-ring-config)#east-interface xe8 | Associate xe8 interface as east-interface |
Bridge2(g8032-ring-config)#west-interface xe3 | Associate xe3 interface as west-interface |
Bridge2(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge2(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge2(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge2(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge2(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge2(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge2(g8032-config-switch)#ring RING1 | Associate ring RING1 to erp1 instance |
Bridge2(g8032-config-switch)#rpl role non-owner | Configure the node as non-owner node |
Bridge2(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge2(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge2(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge2(g8032-config-switch)#data vlan 201-205 | Configure traffic vlan from 201-205 |
Bridge2(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge2(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge2(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 3
Bridge3#config terminal | Enter configure mode |
Bridge3(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge3(config)#hardware-profile filter cfm-domain-name-str enable | Enable CFM domain name as string |
Bridge3(config)#vlan database | Configure VLAN database |
Bridge3(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge3(config-vlan)#interface xe3 | Configure interface xe3 |
Bridge3(config-if)#switchport | Configure xe3 as a layer 2 port |
Bridge3(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge3(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge3(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge3(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe3 interface |
Bridge3(config-if)#interface xe16 | Configure interface xe16 |
Bridge3(config-if)#switchport | Configure xe16 as a layer 2 port |
Bridge3(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge3(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge3(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge3(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe16 interface |
Bridge3(config-if)#ethernet cfm domain-type character-string domain-name nod23 level 7 mip-creation none | Create cfm domain with type as character string with name nod23 and set mip creation criteria to default with level 7 |
Bridge3(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge3(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge3(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge3(config-ether-cfm-ma)#ethernet cfm mep down mpid 32 active true xe3 | Create down MEP 32 for xe3 interface |
Bridge3(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge3(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge3(config-ether-cfm-ma)#mep crosscheck mpid 23 | Configure crosscheck to remote MEP with value 23 |
Bridge3(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge3(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge3(config-ether-cfm)#ethernet cfm domain-type character-string domain-name nod34 level 7 mip-creation none | Create cfm domain with type as character string with name nod34 and set mip creation criteria to default with level 7 |
Bridge3(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge3(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge3(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge3(config-ether-cfm-ma)#ethernet cfm mep down mpid 34 active true xe16 | Create down MEP 34 for xe16 interface |
Bridge3(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge3(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge3(config-ether-cfm-ma)#mep crosscheck mpid 43 | Configure crosscheck to remote MEP with value 43 |
Bridge3(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge3(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge3(config-ether-cfm)#g8032 ring RING1 | Create g8032 ring with name RING1 |
Bridge3(g8032-ring-config)#east-interface xe3 | Associate xe3 interface as east-interface |
Bridge3(g8032-ring-config)#west-interface xe16 | Associate xe16 interface as west-interface |
Bridge3(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge3(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge3(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge3(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge3(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge3(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge3(g8032-config-switch)#ring RING1 | Associate ring RING1 to erp1 instance |
Bridge3(g8032-config-switch)#rpl role neighbor west-interface | Configure RPL node as neighbor node on west-interface |
Bridge3(g8032-config-switch)#g8032-profile profile1 | Associate profile profile1 to erp1 instance |
Bridge3(g8032-config-switch)#aps-chanel level 7 | Configure level as 7 |
Bridge3(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge3(g8032-config-switch)#data vlan 201-205 | Configure traffic vlan from 201-205 |
Bridge3(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge3(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge3(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 4
Bridge4#config term | Enter configure mode |
Bridge4(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge4(config)#hardware-profile filter cfm-domain-name-str enable | Enable CFM domain name as string |
Bridge4(config)#vlan database | Configure VLAN database |
Bridge4(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge4(config-vlan)#interface xe6 | Configure interface xe6 |
Bridge4(config-if)#switchport | Configure xe6 as a layer 2 port |
Bridge4(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge4(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge4(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge4(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe6 interface |
Bridge4(config-if)#interface xe16 | Configure interface xe16 |
Bridge4(config-if)#switchport | Configure xe16 as a layer 2 port |
Bridge4(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge4(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge4(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge4(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe16 interface |
Bridge4(config-if)#ethernet cfm domain-type character-string domain-name nod34 level 7 mip-creation none | Create cfm domain with type as character string with name nod34 and set mip creation criteria to default with level 7 |
Bridge4(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge4(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge4(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge4(config-ether-cfm-ma)#ethernet cfm mep down mpid 43 active true xe16 | Create down MEP 43 for xe16 interface |
Bridge4(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge4(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge4(config-ether-cfm-ma)#mep crosscheck mpid 34 | Configure crosscheck to remote MEP with value 34 |
Bridge4(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge4(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge4(config-ether-cfm)#ethernet cfm domain-type character-string domain-name nod41 level 7 mip-creation none | Create CFM domain with type as character string with name nod41 and set mip creation criteria to default with level 7 |
Bridge4(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge4(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge4(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge4(config-ether-cfm-ma)#ethernet cfm mep down mpid 41 active true xe6 | Create down MEP 41 for xe6 interface |
Bridge4(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge4(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge4(config-ether-cfm-ma)#mep crosscheck mpid 14 | Configure crosscheck to remote MEP with value 14 |
Bridge4(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge4(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge4(config-ether-cfm)#g8032 ring RING1 | Create g8032 physical ring with name RING1 |
Bridge4(g8032-ring-config)#east-interface xe16 | Associate xe16 interface as east-interface |
Bridge4(g8032-ring-config)#west-interface xe6 | Associate xe6 interface as west-interface |
Bridge4(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge4(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge4(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge4(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge4(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge4(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge4(g8032-config-switch)#ring RING1 | Associate ring RING1 to erp1 instance |
Bridge4(g8032-config-switch)#rpl role owner east-interface | Configure the node as owner node on east-interface |
Bridge4(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge4(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge4(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge4(g8032-config-switch)#data vlan 201-205 | Configure traffic vlan from 201-205 |
Bridge4(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge4(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge4(g8032-config-switch)#end | Exit g8032 erp instance mode |
Last modified date: 07/11/2023
