Sub-ring with Virtual Channel
An ethernet ring that is connected to a Major Ring at the Interconnection Nodes. By itself, the Sub-Ring does not constitute a closed ring. A Sub-Ring is connected to the Interconnection nodes on only one port which is configured as east-interface.
Topology
Figure 4-10 displays a sample Ring Protection topology on which protection switching is configured with six bridges. This constitutes of one major ring (Bridge2, Bridge3, Bridge4 and Bridge 5) and one sub-ring (Bridge2, Bridge1, Bridge6 and Bridge5).
Major ring’s RPL in enabled between Bridge 3(owner node) and Bridge 4(neighbor node) on xe4 and other devices are non-owner nodes for that ring. Sub-ring’s RPL is enabled between bridge 1(owner node) and bridge 2 (neighbor node) on link xe2 and other devices on the non-owner nodes. Bridge 2 and Bridge 5 are called interconnected nodes since they are common node between major ring and subring. Virtual channel is enabled for this Subring on interconnected nodes on vlan 100 and tcn propagation is enabled.

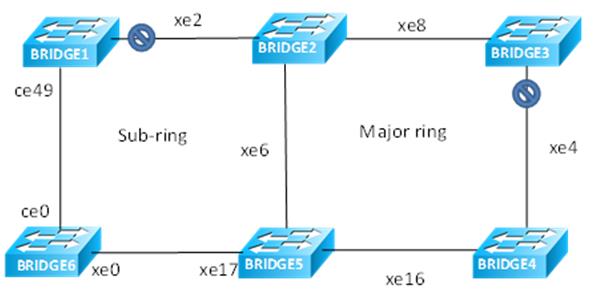

Figure 4-10: Major ring and Sub-ring with Virtual Channel Topology
Configuration
Bridge 1
Bridge1#config term | Enter configure mode |
Bridge1(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge1(config)#vlan database | Configure VLAN database |
Bridge1(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge1(config)#interface ce49 | Configure interface ce49 |
Bridge1(config-if)#switchport | Configure ce49 as a layer 2 port |
Bridge1(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge1(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge1(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge1(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on ce49 interface |
Bridge1(config-if)#interface xe2 | Configure interface xe2 |
Bridge1(config-if)#switchport | Configure xe2 as a layer 2 port |
Bridge1(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge1(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge1(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge1(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe2 interface |
Bridge1(config-if)#ethernet cfm domain-type character-string domain-name 00061 level 7 mip-creation none | Create cfm domain with type as character string with name 00061 and set mip creation criteria to default with level 7 |
Bridge1(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982. |
Bridge1(config-ether-cfm-ma)# vlan 201 bridge 1 | Add VLAN 201 |
Bridge1(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge1(config-ether-cfm-ma)#ethernet cfm mep down mpid 16 active true ce49 | Create down MEP 16 for ce49 interface |
Bridge1(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge1(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge1(config-ether-cfm-ma)#mep crosscheck mpid 61 | Configure crosscheck to remote MEP with value 61 |
Bridge1(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge1(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge1(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00012 level 7 mip-creation none | Create CFM domain with type as character string with name 00012 and set mip creation criteria to default with level 7 |
Bridge1(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982 |
Bridge1(config-ether-cfm-ma)# vlan 201 bridge 1 | Add VLAN 201 |
Bridge1(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge1(config-ether-cfm-ma)#ethernet cfm mep down mpid 12 active true xe2 | Create down MEP 12 for xe2 interface |
Bridge1(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge1(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge1(config-ether-cfm-ma)#mep crosscheck mpid 21 | Configure crosscheck to remote MEP with value 21 |
Bridge1(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge1(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge1(config-ether-cfm)#g8032 ring subring | Create g8032 ring with name subring |
Bridge1(g8032-ring-config)#east-interface ce49 | Associate ce49 interface as east-interface |
Bridge1(g8032-ring-config)#west-interface xe2 | Associate xe2 interface as west-interface |
Bridge1(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge1(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge1(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge1(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge1(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge1(g8032-profile-config)#g8032 erp-instance erp2 | Create g8032 erp instance erp2 |
Bridge1(g8032-config-switch)#ring-type sub-ring-vc | Configure ring type as subring virtual channel |
Bridge1(g8032-config-switch)#ring subring | Associate ring subring to erp2 instance |
Bridge1(g8032-config-switch)#rpl role owner west-interface | Configure the node as owner node on west-interface |
Bridge1(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp2 instance |
Bridge1(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge1(g8032-config-switch)#aps-channel vlan 201 | Configure RAPS channel vlan as 201 |
Bridge1(g8032-config-switch)#data vlan 202-205 | Configure traffic vlan from 202-205 |
Bridge1(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge1(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge1(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 2
Bridge2#config term | Enter configure mode |
Bridge2(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge1(config)#vlan database | Configure VLAN database |
Bridge2(config-vlan)#vlan 100 bridge 1 state enable | Create VLAN 100 on bridge 1 |
Bridge2(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge2(config)#interface xe2 | Configure interface xe2 |
Bridge2(config-if)#switchport | Configure xe2 as a layer 2 port |
Bridge2(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge2(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge2(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge2(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe2 interface |
Bridge2(config-if)#interface xe6 | Configure interface xe6 |
Bridge2(config-if)#switchport | Configure xe6 as a layer 2 port |
Bridge2(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge2(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge2(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge2(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe6 interface |
Bridge2(config-if)#interface xe8 | Configure interface xe8 |
Bridge2(config-if)#switchport | Configure xe8 as a layer 2 port |
Bridge2(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge2(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge2(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge2(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe8 interface |
Bridge2(config-if)#ethernet cfm domain-type character-string domain-name 00012 level 7 mip-creation none | Create cfm domain with type as character string with name 00012 and set mip creation criteria to default with level 7 |
Bridge2(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge2(config-ether-cfm-ma)# vlan 201 bridge 1 | Add VLAN 201 |
Bridge2(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge2(config-ether-cfm-ma)#ethernet cfm mep down mpid 21 active true xe2 | Create down MEP 21 for xe2 interface |
Bridge2(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge2(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge2(config-ether-cfm-ma)#mep crosscheck mpid 12 | Configure crosscheck to remote MEP with value 12 |
Bridge2(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge2(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge2(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00052 level 7 mip-creation none | Create cfm domain with type as character string with name 00052 and set mip creation criteria to default with level 7 |
Bridge2(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge2(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge2(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge2(config-ether-cfm-ma)#ethernet cfm mep down mpid 25 active true xe6 | Create down MEP 25 for xe6 interface |
Bridge2(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge2(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge2(config-ether-cfm-ma)#mep crosscheck mpid 52 | Configure crosscheck to remote MEP with value 52 |
Bridge2(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge2(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge2(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00023 level 7 mip-creation none | Create CFM domain with type as character string with name 00023 and set mip creation criteria to default with level 7 |
Bridge2(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982 |
Bridge2(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge2(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge2(config-ether-cfm-ma)#ethernet cfm mep down mpid 23 active true xe8 | Create down MEP 23 for xe8 interface |
Bridge2(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge2(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge2(config-ether-cfm-ma)#mep crosscheck mpid 32 | Configure crosscheck to remote MEP with value 32 |
Bridge2(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge2(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge2(config-ether-cfm)#g8032 ring ring | Create g8032 ring with name ring on bridge 1 |
Bridge2(g8032-ring-config)#east-interface xe6 | Associate xe6 interface as east-interface |
Bridge2(g8032-ring-config)#west-interface xe8 | Associate xe8 interface as west-interface |
Bridge2(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge2(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge2(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge2(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge2(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge2(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge2(g8032-config-switch)#ring ring | Associate ring RING1 to erp1 instance |
Bridge2(g8032-config-switch)#ring-type major-ring | Configure ring-type as major ring |
Bridge2(g8032-config-switch)#rpl role non-owner | Configure the node as non-owner node |
Bridge2(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge2(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge2(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge2(g8032-config-switch)#data vlan 202-205, 100 | Configure traffic vlan from 202-205, 100 |
Bridge2(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge2(g8032-config-switch)#g8032 ring subring | Create g8032 ring with name subring |
Bridge2(g8032-ring-config)#east-interface xe2 | Associate xe2 interface as east-interface |
Bridge2(g8032-ring-config)#g8032 erp-instance erp2 | Create g8032 erp instance erp2 |
Bridge2(g8032-config-switch)#ring-type sub-ring-vc | Configure ring-type as sub-ring virtual channel |
Bridge2(g8032-config-switch)#ring subring | Associate ring RING1 to erp2 instance |
Bridge2(g8032-config-switch)#rpl role neighbor east-interface | Configure the node as neighbor node on east interface |
Bridge2(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp2 instance |
Bridge2(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge2(g8032-config-switch)#aps-channel vlan 201 | Configure RAPS channel vlan as 201 |
Bridge2(g8032-config-switch)#data vlan 202-205 | Configure traffic vlan from 202-205 |
Bridge2(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge2(g8032-config-switch)#virtual-channel 100 attached-to-instance erp1 | Configure virtual channel with vlan 100 and attach erp2 to erp1 |
Bridge1(g8032-config-switch)# enable-tcn-propagation | Enable tcn propagation |
Bridge2(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge2(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 3
Bridge3#config term | Enter configure mode |
Bridge3(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge3(config)#vlan database | Configure VLAN database |
Bridge3(config-vlan)#vlan 100 bridge 1 state enable | Create VLAN 100 on bridge 1 |
Bridge3(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge3(config)#interface xe8 | Configure interface xe8 |
Bridge3(config-if)#switchport | Configure xe8 as a layer 2 port |
Bridge3(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge3(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge3(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge3(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe8 interface |
Bridge3(config-if)#interface xe4 | Configure interface xe4 |
Bridge3(config-if)#switchport | Configure xe4 as a layer 2 port |
Bridge3(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge3(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge3(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge3(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow VLAN 100,200-205 on xe4 interface |
Bridge3(config-if)#ethernet cfm domain-type character-string domain-name 00023 level 7 mip-creation none | Create CFM domain with type as character string with name 00023 and set mip creation criteria to default with level 7 |
Bridge3(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982 |
Bridge3(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge3(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge3(config-ether-cfm-ma)#ethernet cfm mep down mpid 32 active true xe8 | Create down MEP 32 for xe8 interface |
Bridge3(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge3(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge3(config-ether-cfm-ma)#mep crosscheck mpid 23 | Configure crosscheck to remote MEP with value 23 |
Bridge3(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge3(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge3(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00034 level 7 mip-creation none | Create cfm domain with type as character string with name 00034 and set mip creation criteria to default with level 7 |
Bridge3(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge3(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge3(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge3(config-ether-cfm-ma)#ethernet cfm mep down mpid 34 active true xe4 | Create down MEP 34 for xe4 interface |
Bridge3(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge3(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge3(config-ether-cfm-ma)#mep crosscheck mpid 43 | Configure crosscheck to remote MEP with value 43 |
Bridge3(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge3(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge3(config-ether-cfm)#g8032 ring ring | Create g8032 ring with name ring |
Bridge3(g8032-ring-config)#east-interface xe8 | Associate xe8 interface as east-interface |
Bridge3(g8032-ring-config)#west-interface xe4 | Associate xe4 interface as west-interface |
Bridge3(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge3(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge3(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge3(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge3(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge3(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge3(g8032-config-switch)#ring ring | Associate ring ring to erp1 instance |
Bridge3(g8032-config-switch)#ring-type major-ring | Configure ring-type as major ring |
Bridge3(g8032-config-switch)#rpl role owner west-interface | Configure the node as owner node on west interface |
Bridge3(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge3(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge3(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge3(g8032-config-switch)#data vlan 202-205,100 | Configure traffic vlan from 202-205, 100 |
Bridge3(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge3(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge3(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 4
Bridge4#config term | Enter configuration mode |
Bridge4(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge4(config)#vlan database | Configure VLAN database |
Bridge5(config-vlan)#vlan 100 bridge 1 state enable | Create VLAN 100 on bridge 1 |
Bridge4(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge4(config)#interface xe4 | Configure interface xe4 |
Bridge4(config-if)#switchport | Configure xe4 as a layer 2 port |
Bridge4(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge4(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge4(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge4(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe4 interface |
Bridge4(config-if)#interface xe16 | Configure interface xe16 |
Bridge4(config-if)#switchport | Configure xe4 as a layer 2 port |
Bridge4(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge4(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge4(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge4(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe16 interface |
Bridge4(config-if)#ethernet cfm domain-type character-string domain-name 00034 level 7 mip-creation none | Create cfm domain with type as character string with name 00023 and set mip creation criteria to default with level 7 |
Bridge4(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge4(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge4(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge4(config-ether-cfm-ma)#ethernet cfm mep down mpid 43 active true xe4 | Create down MEP 43 for xe4 interface |
Bridge4(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge4(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge4(config-ether-cfm-ma)#mep crosscheck mpid 34 | Configure crosscheck to remote MEP with value 34 |
Bridge4(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge4(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge4(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00045 level 7 mip-creation none | Create cfm domain with type as character string with name 00045 and set mip creation criteria to default with level 7 |
Bridge4(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge4(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge4(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge4(config-ether-cfm-ma)#ethernet cfm mep down mpid 45 active true xe16 | Create down MEP 45 for xe16 interface |
Bridge4(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge4(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge4(config-ether-cfm-ma)#mep crosscheck mpid 54 | Configure crosscheck to remote MEP with value 54 |
Bridge4(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge4(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet MA mode |
Bridge4(config-ether-cfm)#g8032 ring ring | Create g8032 ring with name ring |
Bridge4(g8032-ring-config)#east-interface xe4 | Associate xe4 interface as east-interface |
Bridge4(g8032-ring-config)#west-interface xe16 | Associate xe16 interface as west-interface |
Bridge4(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge4(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge4(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge4(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge4(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge4(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge4(g8032-config-switch)#ring-type major-ring | Configure ring-type as major ring |
Bridge4(g8032-config-switch)#ring ring | Associate ring ring to erp1 instance |
Bridge4(g8032-config-switch)#rpl role neighbor east-interface | Configure the node as neighbor node on east interface |
Bridge4(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge4(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge4(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge4(g8032-config-switch)#data vlan 202-205, 100 | Configure traffic vlan from 202-205, 100 |
Bridge4(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge4(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge4(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 5
Bridge5#config term | Enter configure mode |
Bridge5(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge1(config)#vlan database | Configure VLAN database |
Bridge5(config-vlan)#vlan 100 bridge 1 state enable | Create VLAN 100 on bridge 1 |
Bridge5(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge5(config)#interface xe16 | Configure interface xe16 |
Bridge5(config-if)#switchport | Configure xe16 as a layer 2 port |
Bridge5(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge5(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge5(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge5(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe16 interface |
Bridge5(config-if)#interface xe6 | Configure interface xe6 |
Bridge5(config-if)#switchport | Configure xe6 as a layer 2 port |
Bridge5(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge5(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge5(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge5(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe6 interface |
Bridge5(config-if)#interface xe17 | Configure interface xe17 |
Bridge5(config-if)#switchport | Configure xe17 as a layer 2 port |
Bridge5(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge5(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge5(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge5(config-if)#switchport trunk allowed vlan add 100,200-205 | Allow vlan 100,200-205 on xe17 interface |
Bridge5(config-if)#ethernet cfm domain-type character-string domain-name 00045 level 7 mip-creation none | Create cfm domain with type as character string with name 00045 and set mip creation criteria to default with level 7 |
Bridge5(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge5(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge5(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge5(config-ether-cfm-ma)#ethernet cfm mep down mpid 54 active true xe16 | Create down MEP 54 for xe16 interface |
Bridge5(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge5(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM ma-mep mode |
Bridge5(config-ether-cfm-ma)#mep crosscheck mpid 45 | Configure crosscheck to remote MEP with value 45 |
Bridge5(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge5(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge5(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00052 level 7 mip-creation none | Create cfm domain with type as character string with name 00052 and set mip creation criteria to default with level 7 |
Bridge5(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982 |
Bridge5(config-ether-cfm-ma)# vlan 200 bridge 1 | Add VLAN 200 |
Bridge5(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge5(config-ether-cfm-ma)#ethernet cfm mep down mpid 52 active true xe6 | Create down MEP 52 for xe6 interface |
Bridge5(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge5(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet CFM MA-MEP mode |
Bridge5(config-ether-cfm-ma)#mep crosscheck mpid 25 | Configure crosscheck to remote MEP with value 25 |
Bridge5(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge5(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge5(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00056 level 7 mip-creation none | Create cfm domain with type as character string with name 00056 and set mip creation criteria to default with level 7 |
Bridge5(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge5(config-ether-cfm-ma)# vlan 201 bridge 1 | Add VLAN 201 |
Bridge5(config-ether-cfm-ma)# mip-creation none | Set mip-creation criteria to none |
Bridge5(config-ether-cfm-ma)#ethernet cfm mep down mpid 56 active true xe17 | Create down MEP 56 for xe17 interface |
Bridge5(config-ether-cfm-ma-mep)#cc multicast state enable | Enable cc multicast |
Bridge5(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet cfm ma-mep mode |
Bridge5(config-ether-cfm-ma)#mep crosscheck mpid 65 | Configure crosscheck to remote MEP with value 65 |
Bridge5(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge5(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge5(config-ether-cfm)#g8032 ring ring | Create g8032 ring with name ring |
Bridge5(g8032-ring-config)#east-interface xe16 | Associate xe16 interface as east-interface |
Bridge5(g8032-ring-config)#west-interface xe6 | Associate xe6 interface as west-interface |
Bridge5(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge5(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge5(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge5(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge5(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge5(g8032-profile-config)#g8032 erp-instance erp1 | Create g8032 erp instance erp1 |
Bridge5(g8032-config-switch)#ring ring | Associate ring ring to erp1 instance |
Bridge5(g8032-config-switch)#ring-type major-ring | Configure ring-type as major ring |
Bridge5(g8032-config-switch)#rpl role non-owner | Configure the node as non-owner node |
Bridge5(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp1 instance |
Bridge5(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge5(g8032-config-switch)#aps-channel vlan 200 | Configure RAPS channel vlan as 200 |
Bridge5(g8032-config-switch)#data vlan 202-205,100 | Configure traffic vlan from 202-205, 100 |
Bridge5(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge5(g8032-config-switch)#g8032 ring subring | Create g8032 physical ring with name subring |
Bridge5(g8032-ring-config)#east-interface xe17 | Associate xe17 interface as east-interface |
Bridge5(g8032-profile-config)#g8032 erp-instance erp2 | Create g8032 erp instance erp2 |
Bridge5(g8032-config-switch)#ring-type sub-ring-vc | Configure ring-type as sub-ring virtual channel |
Bridge5(g8032-config-switch)#ring subring | Associate ring subring to erp2 instance |
Bridge5(g8032-config-switch)#rpl role non-owner | Configure the node as non-owner node |
Bridge5(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp2 instance |
Bridge5(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge5(g8032-config-switch)#aps-channel vlan 201 | Configure RAPS channel vlan as 201 |
Bridge5(g8032-config-switch)#data vlan 202-205 | Configure traffic vlan from 202-205 |
Bridge5(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge5(g8032-config-switch)#virtual-channel 100 attached-to-instance erp1 | Configure virtual channel with vlan 100 and attach erp2 to erp1 |
Bridge5(g8032-config-switch)# enable-tcn-propagation | Enable tcn propagation |
Bridge5(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge5(g8032-config-switch)#end | Exit g8032 erp instance mode |
Bridge 6
Bridge6#config term | Enter configuration mode |
Bridge6(config)#bridge 1 protocol rstp vlan-bridge | Create bridge 1 as an RSTP VLAN-aware bridge. |
Bridge1(config)#vlan database | Configure VLAN database |
Bridge6(config-vlan)#vlan 200-205 bridge 1 state enable | Create VLAN 200-205 on bridge 1 |
Bridge6(config-vlan)#hardware-profile filter cfm-domain-name-str enable | Enable CFM domain name as string |
Bridge6(config)#interface xe0 | Configure interface xe0 |
Bridge6(config-if)#switchport | Configure xe0 as a layer 2 port |
Bridge6(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge6(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge6(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge6(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on xe0 interface |
Bridge6(config-if)#interface ce0 | Configure interface ce0 |
Bridge6(config-if)#switchport | Configure ce0 as a layer 2 port |
Bridge6(config-if)#bridge-group 1 | Configure interface in bridge group 1 |
Bridge6(config-if)#bridge-group 1 spanning-tree disable | Disable spanning tree for bridge group 1 on that interface |
Bridge6(config-if)#switchport mode trunk | Configure port as trunk port |
Bridge6(config-if)#switchport trunk allowed vlan add 200-205 | Allow vlan 200-205 on ce0 interface |
Bridge6(config-if)#ethernet cfm domain-type character-string domain-name 00056 level 7 mip-creation none | Create cfm domain with type as character string with name 00056 and set mip creation criteria to default with level 7 |
Bridge6(config-ether-cfm)#service ma-type string ma-name 43982 | Create MA type as string with name 43982. |
Bridge6(config-ether-cfm-ma)# vlan 201 bridge 1 | Add VLAN 201 |
Bridge6(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge6(config-ether-cfm-ma)#ethernet cfm mep down mpid 65 active true xe0 | Create down MEP 65 for xe0 interface |
Bridge6(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge6(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet cfm ma-mep mode |
Bridge6(config-ether-cfm-ma)#mep crosscheck mpid 56 | Configure crosscheck to remote MEP with value 56 |
Bridge6(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge6(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge6(config-ether-cfm)#ethernet cfm domain-type character-string domain-name 00061 level 7 mip-creation none | Create cfm domain with type as character string with name 00061 and set mip creation criteria to default with level 7 |
Bridge6(config-ether-cfm)#service ma-type string ma-name 43982 | Create ma type as string with name 43982 |
Bridge6(config-ether-cfm-ma)# vlan 201 bridge 1 | Add VLAN 201 |
Bridge6(config-ether-cfm-ma)# mip-creation none | Set MIP-creation criteria to none |
Bridge6(config-ether-cfm-ma)#ethernet cfm mep down mpid 61 active true ce0 | Create down MEP 61 for ce0 interface |
Bridge6(config-ether-cfm-ma-mep)#cc multicast state enable | Enable CC multicast |
Bridge6(config-ether-cfm-ma-mep)#exit-ether-ma-mep-mode | Exit ethernet cfm ma-mep mode |
Bridge6(config-ether-cfm-ma)#mep crosscheck mpid 16 | Configure crosscheck to remote MEP with value 16 |
Bridge6(config-ether-cfm-ma)#cc interval 100ms | Enable CC interval with 100ms |
Bridge6(config-ether-cfm-ma)#exit-ether-ma-mode | Exit Ethernet ma mode |
Bridge6(config-ether-cfm)#g8032 ring subring | Create g8032 physical ring with name subring |
Bridge6(g8032-ring-config)#east-interface xe0 | Associate xe0 interface as east-interface |
Bridge6(g8032-ring-config)#west-interface ce0 | Associate ce0 interface as west-interface |
Bridge6(g8032-ring-config)#g8032 profile profile1 | Create g8032 profile with profile name profile1 |
Bridge6(g8032-profile-config)#timer wait-to-restore 1 | Configure wait to restore time as 1 min |
Bridge6(g8032-profile-config)#timer hold-off 0 | Configure hold-off timer value as 0 |
Bridge6(g8032-profile-config)#timer guard-timer 10 | Configure guard-timer value as 10ms |
Bridge6(g8032-profile-config)#switching mode revertive | Configure Switching mode as revertive Switching mode |
Bridge6(g8032-profile-config)#g8032 erp-instance erp2 | Create g8032 erp instance erp2 |
Bridge6(g8032-config-switch)#ring-type sub-ring-vc | Configure ring type as subring virtual channel |
Bridge6(g8032-config-switch)#ring subring | Associate ring subring to erp2 instance |
Bridge6(g8032-config-switch)#rpl role non-owner | Configure the node as non-owner node |
Bridge6(g8032-config-switch)#g8032-profile profile1 | Associate Profile profile1 to erp2 instance |
Bridge6(g8032-config-switch)#aps-channel level 7 | Configure level as 7 |
Bridge6(g8032-config-switch)#aps-channel vlan 201 | Configure RAPS channel vlan as 201 |
Bridge6(g8032-config-switch)#data-traffic-vlan 202-205 | Configure traffic vlan from 202-205 |
Bridge6(g8032-config-switch)#ring-id 1 | Configure ring-id as 1 |
Bridge6(g8032-config-switch)#commit | Commit the candidate configuration to the running configuration |
Bridge6(g8032-config-switch)#end | Exit g8032 erp instance mode |
Validation
Bridge1#show g8032 erp-instance erp2
Inst Name : erp2
Description :
State : G8032_ST_IDLE
Phy Ring : subring
Ring Type : SUB-RING (VIRTUAL)
Role : OWNER (WEST)
Node ID : 6c:b9:c5:67:72:1d
----------------------------------------------------------
East Link West Link
==========================================================
Interface : ce49 xe2
State : Unblocked Blocked
Remote NodeId : - -
Remote BPR : - -
Endpoint Info
-------------
Domain Name : 00061 00012
MEP ID : 16 12
MA Name : 43982 43982
==========================================================
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 201, 1) |
===========================
DataTraffic vlan: 202-205
Profile : profile1
Bridge2#show g8032 erp-instance erp2
Inst Name : erp2
Description :
State : G8032_ST_IDLE
Phy Ring : subring
Ring Type : SUB-RING (VIRTUAL)
Role : NEIGHBOR (EAST)
Node ID : 3c:2c:99:26:e6:7c
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe2 -
State : Blocked -
Remote NodeId : 6c:b9:c5:67:72:1d -
Remote BPR : 0 -
Endpoint Info
-------------
Domain Name : 00012 -
MEP ID : 21 -
MA Name : 43982 -
==========================================================
TCN Propagation : Enabled
Attached : -
Attached To : erp1,
Virtual ID : 100 : 1
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 201, 1) |
===========================
DataTraffic vlan: 202-205
Profile : profile1
Bridge2#show g8032 erp-instance erp1
Inst Name : erp1
Description :
State : G8032_ST_IDLE
Phy Ring : ring
Ring Type : MAJOR-RING
Role : NON-OWNER
Node ID : 3c:2c:99:26:e6:80
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe6 xe8
State : Unblocked Unblocked
Remote NodeId : - d8:9e:f3:5e:f8:29
Remote BPR : - 0
Endpoint Info
-------------
Domain Name : 00052 00023
MEP ID : 25 23
MA Name : 43982 43982
==========================================================
TCN Propagation : Disabled
Attached : erp2,
Attached To : -
Virtual ID : -:-
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 200, 1) |
===========================
DataTraffic vlan: 202-205,100
Profile : profile1
Bridge3#show g8032 erp-instance erp1
Inst Name : erp1
Description :
State : G8032_ST_IDLE
Phy Ring : ring
Ring Type : MAJOR-RING
Role : OWNER (WEST)
Node ID : d8:9e:f3:5e:f8:29
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe8 xe4
State : Unblocked Blocked
Remote NodeId : - -
Remote BPR : - -
Endpoint Info
-------------
Domain Name : 00023 00034
MEP ID : 32 34
MA Name : 43982 43982
==========================================================
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 200, 1) |
===========================
DataTraffic vlan: 202-205,100
Profile : profile1
Bridge4#show g8032 erp-instance erp1
Inst Name : erp1
Description :
State : G8032_ST_IDLE
Phy Ring : ring
Ring Type : MAJOR-RING
Role : NEIGHBOR (EAST)
Node ID : 3c:2c:99:1a:da:7e
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe4 xe16
State : Blocked Unblocked
Remote NodeId : d8:9e:f3:5e:f8:29 d8:9e:f3:5e:f8:29
Remote BPR : 0 0
Endpoint Info
-------------
Domain Name : 00034 00045
MEP ID : 43 45
MA Name : 43982 43982
==========================================================
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 200, 1) |
===========================
DataTraffic vlan: 202-205,100
Profile : profile1
Bridge5#show g8032 erp-instance erp2
Inst Name : erp2
Description :
State : G8032_ST_IDLE
Phy Ring : subring
Ring Type : SUB-RING (VIRTUAL)
Role : NON-OWNER
Node ID : 34:17:eb:e4:af:12
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe17 -
State : Unblocked -
Remote NodeId : 6c:b9:c5:67:72:1d -
Remote BPR : 0 -
Endpoint Info
-------------
Domain Name : 00056 -
MEP ID : 56 -
MA Name : 43982 -
==========================================================
TCN Propagation : Enabled
Attached : -
Attached To : erp1,
Virtual ID : 100 : 1
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 201, 1) |
===========================
DataTraffic vlan: 202-205
Profile : profile1
Bridge5#show g8032 erp-instance erp1
Inst Name : erp1
Description :
State : G8032_ST_IDLE
Phy Ring : ring
Ring Type : MAJOR-RING
Role : NON-OWNER
Node ID : 34:17:eb:e4:af:11
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe16 xe6
State : Unblocked Unblocked
Remote NodeId : - d8:9e:f3:5e:f8:29
Remote BPR : - 0
Endpoint Info
-------------
Domain Name : 00045 00052
MEP ID : 54 52
MA Name : 43982 43982
==========================================================
TCN Propagation : Disabled
Attached : erp2,
Attached To : -
Virtual ID : -:-
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 200, 1) |
===========================
DataTraffic vlan: 202-205,100
Profile : profile1
Bridge6#show g8032 erp-instance erp2
Inst Name : erp2
Description :
State : G8032_ST_IDLE
Phy Ring : subring (VIRTUAL)
Ring Type : SUB-RING
Role : NON-OWNER
Node ID : b8:6a:97:d2:27:c6
----------------------------------------------------------
East Link West Link
==========================================================
Interface : xe0 ce0
State : Unblocked Unblocked
Remote NodeId : - 6c:b9:c5:67:72:1d
Remote BPR : - 0
Endpoint Info
-------------
Domain Name : 00056 00061
MEP ID : 65 61
MA Name : 43982 43982
==========================================================
---------------------------
Channel |
(LEVEL, VLAN, RING ID) |
===========================
(7, 201, 1) |
===========================
DataTraffic vlan: 202-205
Profile : profile1
Last modified date: 07/11/2023
