6PE Configuration
:
Topology
Topology

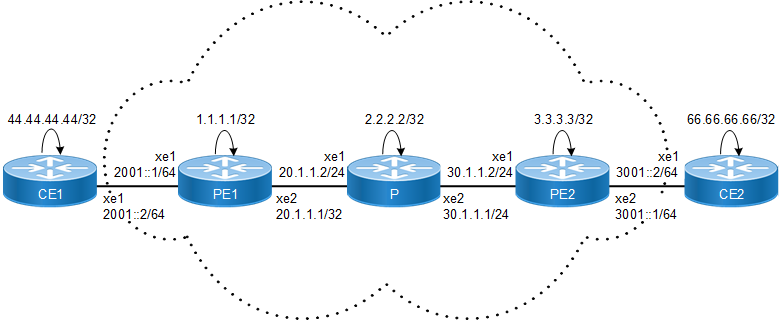

As shown in
Figure 4-5
:
•
CE1 and CE2 are customer edge routers
•
6PE1 and 6PE2 are IPv6 Provider Edge routers
•
P is the router at the core of the IPv4 MPLS provider network
Figure 4-5:
6PE Configuration
