Configuring Multi-Homing
Topology

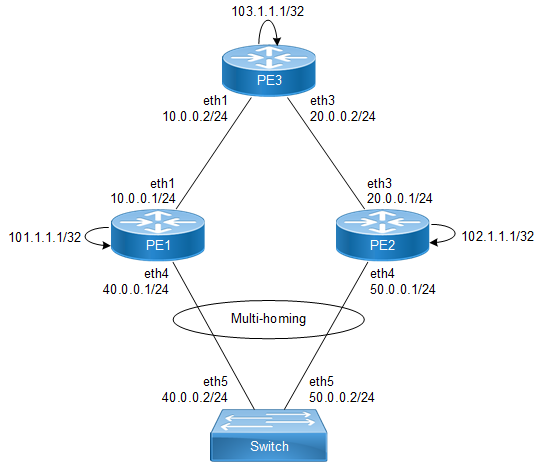

Figure 25-3 shows the topology used to show how to configure multi-homing in MPLS EVPN.
Figure 25-3: MPLS EVPN Multi-homing Configuration
Switch
#configure terminal | Enter configure mode. |
(config)#bridge 1 protocol ieee vlan-bridge | Configure IEEE VLAN bridge |
(config)#vlan 2-100 bridge 1 state enable | Configure VLANs from 2-100 and associate them with bridge 1 |
(config)#interface xe5 | Enter Interface mode |
(config-if)#switchport | Make eth5 an L2 port |
(config-if)#bridge-group 1 | Associate eth5 to bridge 1 |
(config-if)#switchport mode trunk | Configure eth5 as a trunk port |
(config-if)#switchport trunk allowed vlan all | Allow all configured VLANs on eth5 |
(config-if)#exit | Exit Interface mode and return to Configure mode. |
(config)#interface xe6 | Enter interface mode |
(config-if)#switchport | Make eth6 an L2 port |
(config-if)#bridge-group 1 | Associate eth6 to bridge 1 |
(config-if)#switchport mode trunk | Configure eth6 as a trunk port |
(config-if)#switchport trunk allowed vlan all | Allow all configured VLANs on eth6 |
(config-if)#exit | Exit interface mode. |
(config)#interface po1 | Enter interface mode and configure LAG interface |
(config-if)#exit | Exit interface mode. |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
PE1
#configure terminal | Enter configure mode. |
(config)#int lo | Enter interface mode for loopback. |
(config-if)#ip address 101.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 101:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target export 101:1 | Configure export RT for the MAC VRF |
(config-vrf)#route-target import 103:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target import 104:1 | Configure import RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode. |
(config)#evpn mpls vtep-ip-global 101.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-evpn-mpls)#exit | Exit EVPN MPLS mode. |
(config-if)#int eth4.1 | Configure sub-interface to create access-circuit. |
(config-if)#switchport | Make the sub-interface a Layer 2 interface |
(config-if)#encapsulation dot1q 2 | Configure the encapsulation required. |
(config-if)#map vpn-id 1000 | Map interface to Ethernet virtual network identifier. |
(config-if)#mac 0000.0000.1001 | Advertise static MAC-only route in the access-circuit. |
(config-if)#mac 0000.0000.1002 ip 11.11.11.1 | Advertise static MAC-IPv4 route in the access-circuit. |
(config-if)#mac 0000.0000.1003 ipv6 1001::1 | Advertise static MAC-IPv6 route in the access-circuit. |
(config-if)#exit | Exit interface mode. |
(config)#router rsvp | Enable RSVP in the PE |
(config)#interface xe1 | Enter interface mode for the network side interface. |
(config-if)#ip address 10.0.0.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#interface xe2 | Enter interface mode for the network side interface. |
(config-if)#ip address 40.0.0.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#rsvp-path p1 | Configure RSVP path. |
(config-path)#10.0.0.2 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode |
(config)#rsvp-path p2 | Configure RSVP path. |
(config-path)#40.0.0.2 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode |
(config)#rsvp-trunk t1 | Configure RSVP trunk. |
(config-trunk)#primary path p1 | Associate RSVP path. |
(config-trunk)#from 101.1.1.1 | Assign the source loopback address to the RSVP trunk |
(config-trunk)#to 103.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config-trunk)#exit | Exit RSVP path mode. |
(config)#rsvp-trunk t2 | Create RSVP trunk. |
(config-trunk)#primary path p2 | Set the primary path |
(config-trunk)#from 101.1.1.1 | Assign the source loopback address to the to the RSVP trunk |
(config-trunk)#to 104.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config)#router ospf 1 | Enter OSPF router mode |
(config-router)#ospf router-id 101.1.1.1 | Configure router-id. |
(config-router)#network 101.1.1.1/32 area 0.0.0.0 | Advertise the loopback address in area 0. |
(config-router)#network 10.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#network 40.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF router mode. |
(config)#router bgp 1 | Enter BGP router mode |
(config-router)#neighbor 102.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 102.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 103.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 103.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 104.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 104.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 102.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 103.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 104.1.1.1 activate | Activate the neighbor |
(config-router)#exit | Exit BGP router mode. |
(config)#evpn multihoming enable | Enable EVPN multi-homing |
(config)#int po1 | Enter interface mode |
(config-if)#evpn multi-homed system-mac 00:00:00:00:00:00:00:11:22 | Make the interface multi-homed and set an Ethernet Segment Identifier (ESI) |
(config-if)#exit | Exit interface mode. |
(config)#int xe4 | Enter interface mode |
(config-if)#channel-group 1 mode active | Add member to the LAG interface |
(config-if)#exit | Exit the interface mode. |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
Note: The below command can also be used for multi-homing ESI configuration (applicable only for dynamic aggregation interface)
(config-if)#evpn multi-homed esi 0000.aaaa.aaaa
PE2
#configure terminal | Enter configure mode. |
(config)#int lo | Enter interface mode for loopback. |
(config-if)#ip address 102.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 102:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target export 102:1 | Configure export RT for the MAC VRF |
(config-vrf)#route-target import 103:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target import 104:1 | Configure import RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode. |
(config)#evpn mpls vtep-ip-global 102.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-evpn-mpls)#exit | Exit EVPN MPLS mode. |
(config-if)#int xe4.1 | Configure sub-interface to create access-circuit. |
(config-if)#switchport | Make the sub-interface a Layer 2 interface |
(config-if)#encapsulation dot1q 2 | Configure the encapsulation required. |
(config-if)#map vpn-id 1000 | Map interface to Ethernet virtual network identifier. |
(config-if)#mac 0000.0000.2001 | Advertise static MAC-only route in the access-circuit. |
(config-if)#mac 0000.0000.2002 ip 12.12.12.1 | Advertise static MAC-IPv4 route in the access-circuit. |
(config-if)#mac 0000.0000.2003 ipv6 2001::1 | Advertise static MAC-IPv6 route in the access-circuit. |
(config-if)#exit | Exit interface mode. |
(config)#router rsvp | Enable RSVP in the PE |
(config)#interface xe3 | Enter interface mode for the network side interface. |
(config-if)#ip address 20.0.0.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#interface xe5 | Enter interface mode for the network side interface. |
(config-if)#ip address 50.0.0.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#rsvp-path p1 | Configure RSVP path. |
(config-path)#20.0.0.2 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode. |
(config)#rsvp-path p2 | Configure RSVP path. |
(config-path)#50.0.0.2 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode. |
(config)#rsvp-trunk t1 | Configure RSVP trunk. |
(config-trunk)#primary path p1 | Associate RSVP path. |
(config-trunk)#from 102.1.1.1 | Assign the source loopback address to the to the RSVP trunk |
(config-trunk)#to 103.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config-trunk)#exit | Exit RSVP trunk mode. |
(config)#rsvp-trunk t2 | Configure RSVP trunk. |
(config-trunk)#primary path p2 | Associate RSVP path. |
(config-trunk)#from 102.1.1.1 | Assign the source loopback address to the to the RSVP trunk |
(config-trunk)#to 104.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config)#router ospf 1 | Enter OSPF router mode |
(config-router)#ospf router-id 102.1.1.1 | Configure router-id. |
(config-router)#network 102.1.1.1/32 area 0.0.0.0 | Advertise the loopback address in area 0. |
(config-router)#network 20.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#network 50.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF process |
(config)#router bgp 1 | Enter BGP router mode |
(config-router)#neighbor 101.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 101.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 103.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 103.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 104.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 104.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 101.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 103.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 104.1.1.1 activate | Activate the neighbor |
(config-router-af)#exit-address-family | Exit address family mode |
(config-router)#exit | Exit BGP router mode |
(config)#evpn multihoming enable | Enable EVPN multi-homing |
(config)#int po1 | Enter interface mode. |
(config-if)#evpn multi-homed esi 00:00:00:00:00:00:00:11:22 | Make the interface multi-homed and set an Ethernet Segment Identifier (ESI) |
(config-if)#exit | Exit interface mode |
(config)#int xe4 | Enter interface mode |
(config-if)#channel-group 1 mode active | Add member to the LAG interface |
(config-if)#exit | Exit the interface mode. |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
PE3
#configure terminal | Enter configure mode. |
(config)#int lo | Enter interface mode for loopback. |
(config-if)#ip address 103.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 103:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target export 103:1 | Configure export RT for the MAC VRF |
(config-vrf)#route-target import 101:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target import 102:1 | Configure import RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode. |
(config)#evpn mpls vtep-ip-global 103.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-evpn-mpls)#exit | Exit EVPN MPLS mode. |
(config)#router rsvp | Enable RSVP in the PE |
(config)#interface xe3 | Enter interface mode for the network side interface. |
(config-if)#ip address 20.0.0.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#interface xe1 | Enter interface mode for the network side interface. |
(config-if)#ip address 10.0.0.2/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#rsvp-path p1 | Configure RSVP path. |
(config-path)#10.0.0.1 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode |
(config)#rsvp-path p2 | Configure RSVP path. |
(config-path)#20.0.0.1 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode |
(config)#rsvp-trunk t1 | Configure RSVP trunk. |
(config-trunk)#primary path p1 | Associate the RSVP path. |
(config-trunk)#from 103.1.1.1 | Assign the source loopback address to the RSVP trunk |
(config-trunk)#to 101.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config-trunk)#exit | Exit RSVP trunk mode. |
(config)#rsvp-trunk t2 | Configure RSVP trunk. |
(config-trunk)#primary path p2 | Associate the RSVP path. |
(config-trunk)#from 103.1.1.1 | Assign the source loopback address to the RSVP trunk |
(config-trunk)#to 102.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config)#router ospf 1 | Enter OSPF router mode |
(config-router)#ospf router-id 103.1.1.1 | Configure router-id. |
(config-router)#network 103.1.1.1/32 area 0.0.0.0 | Advertise the loopback address in area 0. |
(config-router)#network 10.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#network 20.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF router mode |
(config)#router bgp 1 | Enter BGP router mode |
(config-router)#neighbor 101.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 101.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 102.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 102.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 101.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 102.1.1.1 activate | Activate the neighbor |
(config-router-af)#exit-address-family | Exit address family mode |
(config-router)#exit | Exit BGP router mode |
(config)#evpn multihoming enable | Enable EVPN multi-homing |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
PE4
#configure terminal | Enter configure mode. |
(config)#int lo | Enter interface mode for loopback. |
(config-if)#ip address 104.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 104:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target export 104:1 | Configure export RT for the MAC VRF |
(config-vrf)#route-target import 101:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target import 102:1 | Configure import RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode. |
(config)#evpn mpls vtep-ip-global 104.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-evpn-mpls)#exit | Exit EVPN MPLS mode. |
(config)#router rsvp | Enable RSVP in the PE |
(config)#interface xe2 | Enter interface mode for the network side interface. |
(config-if)#ip address 40.0.0.2/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#interface xe5 | Enter interface mode for the network side interface. |
(config-if)#ip address 50.0.0.2/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#rsvp-path p1 | Configure RSVP path. |
(config-path)#40.0.0.1 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode |
(config)#rsvp-path p2 | Configure RSVP path. |
(config-path)#50.0.0.1 loose | Configure the nexthop address in the connected subnet |
(config-path)#exit | Exit RSVP path mode |
(config)#rsvp-trunk t1 | Configure RSVP trunk. |
(config-trunk)#primary path p1 | Associate the RSVP path. |
(config-trunk)#from 104.1.1.1 | Assign the source loopback address to the RSVP trunk |
(config-trunk)#to 101.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config-trunk)#exit | Exit RSVP trunk mode. |
(config)#rsvp-trunk t2 | Configure RSVP trunk. |
(config-trunk)#primary path p2 | Associate the RSVP path. |
(config-trunk)#from 104.1.1.1 | Assign the source loopback address to the RSVP trunk |
(config-trunk)#to 102.1.1.1 | Assign the destination loopback address to the RSVP trunk |
(config)#router ospf 1 | Enter OSPF router mode |
(config-router)#ospf router-id 103.1.1.1 | Configure router-id. |
(config-router)#network 103.1.1.1/32 area 0.0.0.0 | Advertise the loopback address in area 0. |
(config-router)#network 40.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#network 50.0.0.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF router mode |
(config)#router bgp 1 | Enter BGP router mode |
(config-router)#neighbor 101.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 101.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 102.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 102.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 101.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 102.1.1.1 activate | Activate the neighbor |
(config-router-af)#exit-address-family | Exit address family mode |
(config-router)#exit | Exit BGP router mode |
(config)#evpn multihoming enable | Enable EVPN multi-homing |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
Validation
Note: Remote entries cannot be fetched from through MAC table/ARP cache/ND cache. However they can be fetched from the BGP table.
PE1
#show evpn mpls tunnel
EVPN-MPLS Network tunnel Entries
Source Destination Status Up/Down Update evpn-id
===================================================================================
101.1.1.1 103.1.1.1 Installed 01:25:18 01:25:18 1000
101.1.1.1 102.1.1.1 Installed 01:24:29 01:24:29 1000
101.1.1.1 104.1.1.1 Installed 01:24:22 01:24:22 1000
#show evpn mpls tunnel label
EVPN-MPLS Network tunnel labels
Local Remote
Destination Status evpn-id Network-Intf Tunnel-Label MC-Label UC-Label MC-Label UC-Label
===================================================================================================================
103.1.1.1 Installed 1000 xe1 24320 16 640 16 640
102.1.1.1 Installed 1000 xe3 24325 16 640 16 640
104.1.1.1 Installed 1000 xe2 24324 16 640 16 640
Total number of entries are 2
#show evpn mpls mac-table
==========================================================================================================================================
EVPN MPLS MAC Entries
==========================================================================================================================================
VNID Interface VlanId Inner-VlanId Mac-Addr VTEP-Ip/ESI Type Status AccessPortDesc
__________________________________________________________________________________________________________________________________________
1000 xe4.1 ---- ---- 0000.0000.0001 00:00:00:00:00:00:00:00:11:22 Dynamic Local ------- -------
1000 xe4.1 ---- ---- 0000.0000.0003 00:00:00:00:00:00:00:00:11:22 Dynamic Local ------- -------
1000 xe4.1 ---- ---- 0000.0000.0004 00:00:00:00:00:00:00:00:11:22 Dynamic Local ------- -------
1000 xe4.1 ---- ---- 0000.0000.0005 00:00:00:00:00:00:00:00:11:22 Dynamic Local ------- -------
1000 xe4.1 ---- ---- 0000.0000.0006 00:00:00:00:00:00:00:00:11:22 Dynamic Local ------- -------
1000 xe4.1 ---- ---- 0000.0000.0007 00:00:00:00:00:00:00:00:11:22 Dynamic Local ------- -------
#show evpn mpls arp-cache
MPLS-EVPN ARP-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
______________________________________________________
1000 11.11.11.1 0000.0000.1002 Static Local
Total number of entries are 1
#show evpn mpls nd-cache
MPLS-EVPN ND-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
_____________________________________________________________________________
1000 1001::1 0000.0000.1003 Static Local
Total number of entries are 1
#show evpn mpls id 1000
EVPN-MPLS Information
=================
Codes: NW - Network Port
AC - Access Port
(u) - Untagged
VPN-ID EVI-Name EVI-Type Type Interface ESI VLAN DF-Status Src-Addr Dst-Addr
_______________________________________________________________________________________________________________________________
1000 ---- L2 NW ---- ---- ---- ---- 101.1.1.1 103.1.1.1
1000 ---- L2 NW ---- ---- ---- ---- 101.1.1.1 102.1.1.1
1000 ---- L2 NW ---- ---- ---- ---- 101.1.1.1 104.1.1.1
1000 ---- -- AC xe4.1 00:00:00:00:00:00:00:00:11:22 ---- DF ---- ----
#show evpn mpls tunnel summary
Total number of entries: 2 [Installed: 2, Resolved: 0, Unresolved: 0]
#show evpn mpls mac-table summary
==========================================================
Evpn mpls MAC Summary
==========================================================
Total number of entries are : 6
PE1#show evpn mpls route-count
EVPN-MPLS Active route count information
====================================
Max route count : 32768
Active route count: 6
---------------------------------------------
VNID Total MACONLY MACIPv4 MACIPv6
---------------------------------------------
1000 6 6 0 0
Total number of entries are 1
#show bgp l2vpn evpn multihoming ethernet-ad-per-es
RD[101:22] VRF[evpn-gvrf-1]:
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 101.1.1.1
RD[102:22]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 102.1.1.1
#show bgp l2vpn evpn multihoming ethernet-ad-per-evi
RD[101:1] VRF[vrfred]:
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 101.1.1.1
RD[102:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 102.1.1.1
#show evpn mpls-label esi
S - Self
R - Remote
ESI PE-IP-ADDRESS ESI-LABEL
================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(S) 17
00:00:00:00:00:00:00:00:11:22 102.1.1.1(R) 17
#show evpn mpls-label alias
S - Self
R - Remote
ESI PE-IP-ADDRESS TENANT ALIAS-LABEL
=============================================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(S) 100 18
00:00:00:00:00:00:00:00:11:22 102.1.1.1(R) 100 18
#
#show bgp l2vpn evpn
BGP table version is 6, local router ID is 10.12.4.242
Status codes: s suppressed, d damped, h his]tory, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
RD[101:1] VRF[vrfred]:
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*> 101.1.1.1 0 100 32768 i ---------- MPLS
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*> 101.1.1.1 0 100 32768 i ---------- MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*> 101.1.1.1 0 100 32768 i ---------- MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*> 101.1.1.1 0 100 32768 i ---------- MPLS
*> [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 32768 i ---------- MPLS
* i [3]:[1]:[32,102.1.1.1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i [3]:[1]:[32,103.1.1.1]
104.1.1.1 0 100 0 i 103.1.1.1 MPLS
RD[102:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [3]:[1]:[32,102.1.1.1]
103.1.1.1 0 100 0 i 102.1.1.1 MPLS
RD[102:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
RD[103:1]
*>i [3]:[1]:[32,103.1.1.1]
103.1.1.1 0 100 0 i 103.1.1.1 MPLS
Total number of prefixes 16
PE2
#show evpn mpls tunnel
EVPN-MPLS Network tunnel Entries
Source Destination Status Up/Down Update evpn-id ILM
=========================================================================================================
102.1.1.1 103.1.1.1 Installed 02:08:55 02:08:55 1000 16
102.1.1.1 101.1.1.1 Installed 02:08:55 02:08:55 1000 0
102.1.1.1 104.1.1.1 Installed 02:08:52 02:08:52 1000 0
Total number of entries are 2
#show evpn mpls tunnel label
EVPN-MPLS Network tunnel labels
Local Remote
Destination Status evpn-id Network-Intf Tunnel-Label MC-Label UC-Label MC-Label UC-Label
===================================================================================================================
101.1.1.1 Installed 1000 xe1 24320 16 640 16 640
103.1.1.1 Installed 1000 xe3 24325 16 640 16 640
104.1.1.1 Installed 1000 xe5 24324 16 640 16 640
Total number of entries are 3
#show evpn mpls id 1000
EVPN-MPLS Information
=================
Codes: NW - Network Port
AC - Access Port
(u) - Untagged
VPN-ID EVI-Name EVI-Type Type Interface ESI VLAN DF-Status Src-Addr Dst-Addr
____________________________________________________________________________________________________________________________
1000 ---- L2 NW ---- ---- ---- ---- 102.1.1.1 101.1.1.1
1000 ---- L2 NW ---- ---- ---- ---- 102.1.1.1 103.1.1.1
1000 ---- L2 NW ---- ---- ---- ---- 102.1.1.1 104.1.1.1
1000 ---- -- AC xe4.1 00:00:00:00:00:00:00:00:11:22 ---- DF ---- ----
#show evpn mpls tunnel summary
Total number of entries: 2 [Installed: 2, Resolved: 0, Unresolved: 0]
#show evpn mpls mac-table summary
==========================================================
Evpn mpls MAC Summary
==========================================================
Total number of entries are : 6
PE1#show evpn mpls route-count
EVPN-MPLS Active route count information
====================================
Max route count : 32768
Active route count: 6
---------------------------------------------
VNID Total MACONLY MACIPv4 MACIPv6
---------------------------------------------
1000 6 6 0 0
Total number of entries are 1
#show bgp l2vpn evpn multihoming ethernet-ad-per-es
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 101.1.1.1
#
#show bgp l2vpn evpn multihoming ethernet-ad-per-evi
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 19 101.1.1.1
#
#show evpn mpls mac-table
=====================================================================================================================================================
MAC Entries
=====================================================================================================================================================
EVID Interface VlanId Inner-VlanId Mac-Addr VTEP-Ip/ESI Type Status Time-out AccessPortDesc
_____________________________________________________________________________________________________________________________________________________
100 xe4 2 ---- 0000.0000.1001 00:00:00:00:00:00:00:00:11:22 Static Local ------- -------
100 xe4 2 ---- 0000.0000.1002 00:00:00:00:00:00:00:00:11:22 Static Local ------- -------
100 xe4 2 ---- 0000.0000.1003 00:00:00:00:00:00:00:00:11:22 Static Local ------- -------
#show evpn mpls arp-cache
MPLS-EVPN ARP-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
______________________________________________________
100 11.11.11.1 0000.0000.1002 Static Local
Total number of entries are 1
#show evpn mpls nd-cache
MPLS-EVPN ND-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
_____________________________________________________________________________
100 1001::1 0000.0000.1003 Static Local
Total number of entries are 1
#show bgp l2vpn evpn multihoming ethernet-ad-per-es
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 101.1.1.1
RD[102:1] VRF[evpn-gvrf-1]:
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 102.1.1.1
#show bgp l2vpn evpn multihoming ethernet-ad-per-evi
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 101.1.1.1
RD[102:1] VRF[vrfred]:
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 102.1.1.1
#show evpn mpls-label esi
S - Self
R - Remote
ESI PE-IP-ADDRESS ESI-LABEL
================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(R) 17
00:00:00:00:00:00:00:00:11:22 102.1.1.1(S) 17
#show evpn mpls-label alias
S - Self
R - Remote
ESI PE-IP-ADDRESS TENANT ALIAS-LABEL
=============================================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(R) 100 18
00:00:00:00:00:00:00:00:11:22 102.1.1.1(S) 100 18
#show bgp l2vpn evpn
BGP table version is 6, local router ID is 10.12.4.42
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
RD[101:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[101:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[102:1] VRF[vrfred]:
*> [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
102.1.1.1 0 100 32768 i ---------- MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*> [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
102.1.1.1 0 100 32768 i ---------- MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*> [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
102.1.1.1 0 100 32768 i ---------- MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*> [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
102.1.1.1 0 100 32768 i ---------- MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*> [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 32768 i ---------- MPLS
* i [3]:[1]:[32,103.1.1.1]
103.1.1.1 0 100 0 i 103.1.1.1 MPLS
RD[102:1] VRF[evpn-gvrf-1]:
*> [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
102.1.1.1 0 100 32768 i ---------- MPLS
RD[103:1]
*>i [3]:[1]:[32,103.1.1.1]
103.1.1.1 0 100 0 i 103.1.1.1 MPLS
Total number of prefixes 16
PE3
#show evpn mpls tunnel
EVPN-MPLS Network tunnel Entries
Source Destination Status Up/Down Update evpn-id ILM
=========================================================================================================
103.1.1.1 101.1.1.1 Installed 02:02:55 02:02:55 1000 0
103.1.1.1 102.1.1.1 Installed 02:02:55 02:02:55 1000 16
Total number of entries are 2
#show evpn mpls tunnel label
EVPN-MPLS Network tunnel labels
Local Remote
Destination Status evpn-id Network-Intf Tunnel-Label MC-Label UC-Label MC-Label UC-Label
===================================================================================================================
101.1.1.1 Installed 1000 xe1 24320 16 640 16 640
102.1.1.1 Installed 1000 xe2 24325 16 640 16 640
Total number of entries are 2
#show evpn mpls id 1000
EVPN-MPLS Information
=================
Codes: NW - Network Port
AC - Access Port
(u) - Untagged
VPN-ID EVI-Name EVI-Type Type Interface ESI VLAN DF-Status Src-Addr Dst-Addr
_______________________________________________________________________________________________________________________________
1000 ---- L2 NW ---- ---- ---- ---- 103.1.1.1 101.1.1.1
1000 ---- L2 NW ---- ---- ---- ---- 103.1.1.1 101.1.1.1
1000 ---- -- AC xe4.1 00:00:00:00:00:00:00:00:11:22 ---- DF ---- ----
#show evpn mpls tunnel summary
Total number of entries: 2 [Installed: 2, Resolved: 0, Unresolved: 0]
#show evpn mpls mac-table summary
==========================================================
Evpn mpls MAC Summary
==========================================================
Total number of entries are : 6
PE1#show evpn mpls route-count
EVPN-MPLS Active route count information
====================================
Max route count : 32768
Active route count: 6
---------------------------------------------
VNID Total MACONLY MACIPv4 MACIPv6
---------------------------------------------
1000 6 6 0 0
Total number of entries are 1
#show bgp l2vpn evpn multihoming ethernet-ad-per-es
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 101.1.1.1
RD[102:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 102.1.1.1
#show bgp l2vpn evpn multihoming ethernet-ad-per-evi
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 101.1.1.1
RD[102:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 102.1.1.1
#show evpn mpls-label esi
S - Self
R - Remote
ESI PE-IP-ADDRESS ESI-LABEL
================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(R) 17
00:00:00:00:00:00:00:00:11:22 102.1.1.1(R) 17
#show evpn mpls-label alias
S - Self
R - Remote
ESI PE-IP-ADDRESS TENANT ALIAS-LABEL
=============================================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(R) 100 18
00:00:00:00:00:00:00:00:11:22 102.1.1.1(R) 100 18
#show bgp l2vpn evpn
BGP table version is 3, local router ID is 10.12.5.29
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
RD[101:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[101:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[102:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
RD[102:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
RD[103:1] VRF[vrfred]:
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*> [3]:[1]:[32,103.1.1.1]
103.1.1.1 0 100 32768 i ---------- MPLS
Total number of prefixes 20
PE4
#show evpn mpls tunnel
EVPN-MPLS Network tunnel Entries
Source Destination Status Up/Down Update evpn-id ILM
=========================================================================================================
104.1.1.1 101.1.1.1 Installed 02:02:55 02:02:55 1000 0
104.1.1.1 102.1.1.1 Installed 02:02:55 02:02:55 1000 16
Total number of entries are 2
#show evpn mpls tunnel label
EVPN-MPLS Network tunnel labels
Local Remote
Destination Status evpn-id Network-Intf Tunnel-Label MC-Label UC-Label MC-Label UC-Label
===================================================================================================================
101.1.1.1 Installed 1000 xe2 24320 16 640 16 640
102.1.1.1 Installed 1000 xe5 24324 16 640 16 640
Total number of entries are 2
#show evpn mpls id 1000
EVPN-MPLS Information
=================
Codes: NW - Network Port
AC - Access Port
(u) - Untagged
VPN-ID EVI-Name EVI-Type Type Interface ESI VLAN DF-Status Src-Addr Dst-Addr
_______________________________________________________________________________________________________________________________
1000 ---- L2 NW ---- ---- ---- ---- 104.1.1.1 101.1.1.1
1000 ---- L2 NW ---- ---- ---- ---- 104.1.1.1 102.1.1.1
1000 ---- -- AC xe4.1 00:00:00:00:00:00:00:00:11:22 ---- DF ---- ----
#show evpn mpls tunnel summary
Total number of entries: 2 [Installed: 2, Resolved: 0, Unresolved: 0]
#show evpn mpls mac-table summary
==========================================================
Evpn mpls MAC Summary
==========================================================
Total number of entries are : 6
PE1#show evpn mpls route-count
EVPN-MPLS Active route count information
====================================
Max route count : 32768
Active route count: 6
---------------------------------------------
VNID Total MACONLY MACIPv4 MACIPv6
---------------------------------------------
1000 6 6 0 0
Total number of entries are 1
#show bgp l2vpn evpn multihoming ethernet-ad-per-es
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 101.1.1.1
RD[102:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 4294967295 0 102.1.1.1
#show bgp l2vpn evpn multihoming ethernet-ad-per-evi
RD[101:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 101.1.1.1
RD[102:1]
ESI Eth-Tag VNID Nexthop IP
00:00:00:00:00:00:00:00:11:22 100 18 102.1.1.1
#show evpn mpls-label esi
S - Self
R - Remote
ESI PE-IP-ADDRESS ESI-LABEL
================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(R) 17
00:00:00:00:00:00:00:00:11:22 102.1.1.1(R) 17
#show evpn mpls-label alias
S - Self
R - Remote
ESI PE-IP-ADDRESS TENANT ALIAS-LABEL
=============================================================================================
00:00:00:00:00:00:00:00:11:22 101.1.1.1(R) 100 18
00:00:00:00:00:00:00:00:11:22 102.1.1.1(R) 100 18
#show bgp l2vpn evpn
BGP table version is 3, local router ID is 10.12.5.29
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
RD[101:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[101:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[102:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*>i [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
RD[102:1]
*>i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
RD[103:1] VRF[vrfred]:
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[1]:[18]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [1]:[00:00:00:00:00:00:00:00:11:22]:[4294967295]:[0]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1001]:[0]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1002]:[32,12.12.12.1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[00:00:00:00:00:00:00:00:11:22]:[1]:[48,0000.0000.1003]:[128,2001::1]:[1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
* i 101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 0 i 102.1.1.1 MPLS
*> [3]:[1]:[32,103.1.1.1]
104.1.1.1 0 100 32768 i ---------- MPLS
Total number of prefixes 20
Last modified date: 07/17/2023
