Topology
The procedures in this section use the topology in Figure 13-14.

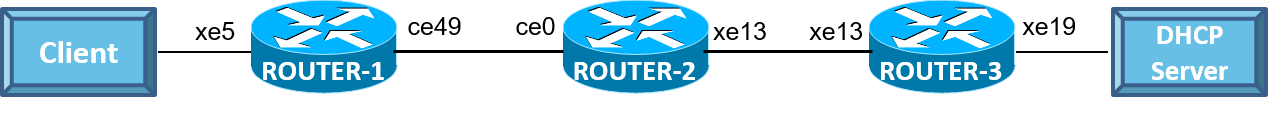

Figure 13-14: DHCP Relay over IRB
ROUTER-1

#configure terminal
Enter Configure mode.
(config)#interface lo
Enter Interface mode for loopback.
(config-if)#ip address 1.1.1.1/32 secondary
Assign secondary IP address.
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#hardware-profile filter vxlan enable
Enable hardware-profile filter for VXLAN.
(config)#nvo vxlan enable
Enable VXLAN
(config)#nvo vxlan irb
Enable VXLAN IRB
(config)#ip vrf vrf1
Create routing/forwarding instance with VRF1 name
and enter into VRF mode
(config-vrf)#rd 200:1
Assign RD value
(config-vrf)#route-target both 200:1
Assign route target value
(config-vrf)#ip dhcp relay address 40.40.40.1
The relay address configured should be server interface
address connected to DUT machine
(config-vrf)#ip dhcp relay uplink evpn
Configure the uplink interface as L3 VNI interface for specific VRF
(config-vrf)#l3vni 45001
Configure L3VNI as 45001 for VRF1
(config-vrf)#exit
Exit IP VRF mode
(config)#mac vrf vrfred
Create MAC VRF instance with vrfred name and enter into VRF mode
(config-vrf)#rd 1.1.1.1:1
Assign RD value
(config-vrf)#route-target both 1.1.1.1:1
Assign route target value
(config-vrf)#exit
Exit MAC VRF mode
(config)#interface irb 1
Configure IRB interface
(config-irb-if)#ip vrf forwarding vrf1
Configure IP VRF forwarding
(config-irb-if)#ip address 11.1.1.1/24
Assign IP address on IRB interface.
(config-irb-if)#ip dhcp relay
Relay should be configured on the interface connecting to the relay
(config-irb-if)#exit
Exit IRB interface mode
(config)#interface irb 2
Configure irb interface
(config-irb-if)#ip vrf forwarding vrf1
Configure IP VRF forwarding
(config-irb-if)#ip address 70.70.70.1/24
Assign IP address on IRB interface.
(config-irb-if)#exit
Exit IRB interface mode
(config)#interface ce49
Enter Interface mode for ce49.
(config-if)#ip address 10.1.1.0/31
Assign IP address on ce49 interface.
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#interface xe5
Enter Interface mode for xe5.
(config-if)#switchport
Configure interface as L2 interface
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#router ospf
Enter the Router OSPF mode
(config-router)#network 1.1.1.1/32 area 0.0.0.0
Advertise loopback address in OSPF
(config-router)#network 10.1.1.0/31 area 0.0.0.0
Advertise network address in OSPF
(config-router)#exit
Exit from Router OSPF mode and enter into config mode
(config)#router bgp 1
Enter into BGP router mode
(config-router)#neighbor 2.2.2.2 remote-as 1
Specify a VTEP2 loopback IP address and remote-as defined
(config-router)#neighbor 2.2.2.2 update-source 1.1.1.1
Configure update as loopback for VTEP2
(config-router)#address-family l2vpn evpn
Enter into L2VPN EVPN address family mode
(config-router-af)#neighbor 2.2.2.2 activate
Activate neighbor in L2VPN mode
(config-router-af)#exit-address-family
Exit from Address family mode
(config-router)#address-family ipv4 vrf vrf1
Enter into address-family mode for VRF1
(config-router-af)#redistribute connected
Configure Redistribute connected
(config-router-af)#exit-address-family
Exit from Address family mode
(config-router)#exit
Exit from router BGP mode and enter into config mode
(config)#nvo vxlan vtep-ip-global 1.1.1.1
Configure Source VTEP-IP-global configuration. Use loopback IP address
(config)#nvo vxlan id 10 ingress-replication inner-vid-disabled
Configure VXLAN Network identifier with/without inner-vid-disabled configure and enter into VXLAN tenant mode
(config-nvo)#vxlan host-reachability-protocol evpn-bgp vrfred
Assign VRF for EVPN-BGP to carry EVPN route
(config-nvo)#evpn irb1
Configure IRB1 under VXLAN ID 10
(config-nvo)#exit
Exit from VXLAN tenant mode and enter into configuration
mode.
(config)#nvo vxlan id 30 ingress-replication inner-vid-disabled
Configure VXLAN Network identifier with/without inner-vid-disabled configure and enter into VXLAN tenant mode
(config-nvo)#vxlan host-reachability-protocol evpn-bgp vrfred
Assign VRF for EVPN-BGP to carry EVPN route
(config-nvo)#evpn irb2
Configure IRB2 under VXLAN ID 30
(config-nvo)#exit
Exit from VXLAN tenant mode and enter into configuration
mode.
(config)#nvo vxlan access-if port-vlan xe5 2
Enable port-VLAN mapping i.e. access port to outer-VLAN
(SVLAN) - Multihomed access port
(config-nvo-acc-if)#map vnid 10
Map VXLAN Identified to access-port for VXLAN
(config-nvo-acc-if)#exit
Exit from VXLAN access-interface mode and enter into
configuration mode
(config)#commit
Commit the candidate configuration to the running configuration
(config)#exit
Exit from configuration mode
ROUTER-2

#configure terminal
Enter Configure mode.
(config)#interface ce0
Enter Interface mode for ce0.
(config-if)#ip address 10.1.1.1/31
Assign IP address on ce0 interface.
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#interface xe13
Enter Interface mode for xe13.
(config-if)#ip address 30.1.1.1/31
Assign IP address on xe13 interface.
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#router ospf
Enter the Router OSPF mode
(config-router)#network 10.1.1.0/24 area 0.0.0.0
Advertise network address in OSPF
(config-router)#network 30.30.30.0/24 area 0.0.0.0
Advertise network address in OSPF
(config-router)#exit
Exit from Router OSPF mode and enter into config mode
(config)#commit
commit the candidate configuration to the running configuration
(config)#exit
Exit from configuration mode
ROUTER-3

#configure terminal
Enter Configure mode.
(config)#interface lo
Enter Interface mode for loopback.
(config-if)#ip address 2.2.2.2/32 secondary
Assign secondary IP address.
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#hardware-profile filter vxlan enable
Enable hardware-profile filter for VXLAN.
(config)#nvo vxlan enable
Enable VXLAN
(config)#nvo vxlan irb
Enable VXLAN IRB
(config)#ip vrf vrf1
Create routing/forwarding instance with VRF1 name
and enter into VRF mode
(config-vrf)#rd 300:1
Assign RD value
(config-vrf)#route-target both 200:1
Assign route target value
(config-vrf)#ip dhcp relay uplink evpn
Configure the uplink interface as L3 VNI interface for specific VRF
(config-vrf)#l3vni 45001
Configure L3VNI as 45001 for VRF1
(config-vrf)#exit
Exit IP VRF mode
(config)#mac vrf vrfred
Create MAC VRF instance with vrfred name and enter into VRF mode
(config-vrf)#rd 2.2.2.1:1
Assign RD value
(config-vrf)#route-target both 1.1.1.1:1
Assign route target value
(config-vrf)#exit
Exit MAC VRF mode
(config)#interface irb 2
Configure IRB interface
(config-irb-if)#ip vrf forwarding vrf1
Configure IP VRF forwarding
(config-irb-if)#ip address 40.40.40.2/24
Assign IP address on IRB interface.
(config-irb-if)#exit
Exit IRB interface mode
(config)#interface xe13
Enter Interface mode for xe13.
(config-if)#ip address 30.1.1.0/31
Assign IP address on xe13 interface.
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#interface xe19
Enter Interface mode for xe19.
(config-if)#switchport
Configure interface as L2 interface
(config-if)#exit
Exit Interface mode and return to Configure mode.
(config)#router ospf
Enter the Router OSPF mode
(config-router)#network 2.2.2.2/32 area 0.0.0.0
Advertise loopback address in OSPF
(config-router)#network 30.1.1.0/24 area 0.0.0.0
Advertise network address in OSPF
(config-router)#network 40.1.1.0/24 area 0.0.0.0
Advertise network address in OSPF
(config-router)#exit
Exit from Router OSPF mode and enter into config mode
(config)#router bgp 1
Enter into BGP router mode
(config-router)#neighbor 1.1.1.1 remote-as 1
Specify a VTEP1 loopback IP address and remote-as defined
(config-router)#neighbor 1.1.1.1 update-source 2.2.2.2
Configure update as loopback for VTEP1
(config-router)#address-family l2vpn evpn
Enter into L2VPN EVPN address family mode
(config-router-af)#neighbor 1.1.1.1 activate
Activate neighbor in L2VPN mode
(config-router-af)#exit-address-family
Exit from Address family mode
(config-router)#address-family ipv4 vrf vrf1
Enter into address-family mode for VRF1
(config-router-af)#redistribute connected
Configure Redistribute connected
(config-router-af)#exit-address-family
Exit from Address family mode
(config-router)#exit
Exit from router BGP mode and enter into config mode
(config)#nvo vxlan vtep-ip-global 2.2.2.2
Configure Source VTEP-IP-global configuration. Use loopback IP address
(config)#nvo vxlan id 10 ingress-replication inner-vid-disabled
Configure VXLAN Network identifier with/without inner-vid-disabled configure and enter into VXLAN tenant mode
(config-nvo)#vxlan host-reachability-protocol evpn-bgp vrfred
Assign VRF for EVPN-BGP to carry EVPN route
(config-nvo)#exit
Exit from VXLAN tenant mode and enter into configuration mode.
(config)#nvo vxlan id 20 ingress-replication inner-vid-disabled
Configure VXLAN Network identifier with/without inner-vid-disabled configure and enter into VXLAN tenant mode
(config-nvo)#vxlan host-reachability-protocol evpn-bgp vrfred
Assign VRF for EVPN-BGP to carry EVPN route
(config-nvo)#evpn irb2
Configure IRB2 under VXLAN ID 20
(config-nvo)#exit
Exit from VXLAN tenant mode and enter into configuration mode.
(config)#nvo vxlan access-if port xe19
Enable port mapping i.e. access port
(config-nvo-acc-if)#map vnid 20
Map VXLAN Identified to access-port for VXLAN
(config-nvo-acc-if)#exit
Exit from VXLAN access-interface mode and enter into configuration mode
(config)#commit
Commit the candidate configuration to the running configuration
(config)#exit
Exit from configuration mode
Validation
ROUTER-1
VTEP1#show running-config nvo vxlan
!
nvo vxlan enable
!
nvo vxlan irb
!
nvo vxlan vtep-ip-global 1.1.1.1
!
nvo vxlan id 10 ingress-replication inner-vid-disabled
vxlan host-reachability-protocol evpn-bgp vrfred
evpn irb1
!
nvo vxlan id 30 ingress-replication inner-vid-disabled
vxlan host-reachability-protocol evpn-bgp vrfred
evpn irb2
!
nvo vxlan access-if port xe2
map vnid 10
!
nvo vxlan access-if port-vlan xe5 2
map vnid 10
!
VTEP1#show ip dhcp relay
DHCP relay service is Enabled.
VRF Name: vrf1
Option 82: Disabled
DHCP Servers configured: 40.40.40.1

Interface Uplink/Downlink
--------- -------------
irb1 Downlink
evpn uplink
Incoming DHCPv4 packets which already contain relay agent option are FORWARDED unchanged.

VTEP1#show nvo vxlan mac-table
==========================================================================================================================================
VXLAN MAC Entries
==========================================================================================================================================
VNID Interface VlanId Vlan-RangeId Inner-VlanId Mac-Addr VTEP-Ip/ESI Type Status AccessPortDesc
__________________________________________________________________________________________________________________________________________

10 xe5 2 ---- ---- 0000.2837.ddf5 1.1.1.1 Dynamic Local ------- -------
10 irb1 b86a.97f9.85be 1.1.1.1 Static Local ------- -------
30 irb2 b86a.97f9.85be 1.1.1.1 Static Local ------- -------

Total number of entries are : 3

VTEP1#show nvo vxlan arp-cache
VXLAN ARP-CACHE Information
===========================
VNID Ip-Addr Mac-Addr Type Age-Out Retries-Left
____________________________________________________________________________
30 70.70.70.1 b86a.97f9.85be Static Local ----
10 11.1.1.1 b86a.97f9.85be Static Local ----
10 11.1.1.30 0000.2837.ddf5 Dynamic Local ----
Total number of entries are 3

VTEP1#show nvo vxlan tunnel
VXLAN Network tunnel Entries
Source Destination Status Up/Down Update
============================================================================
1.1.1.1 2.2.2.2 Installed 01:51:11 01:51:11

Total number of entries are 1
ROUTER-2
VTEP2#show running-config nvo vxlan
!
nvo vxlan enable
!
nvo vxlan irb
!
nvo vxlan vtep-ip-global 2.2.2.2
!
nvo vxlan id 10 ingress-replication inner-vid-disabled
vxlan host-reachability-protocol evpn-bgp vrfred
!
nvo vxlan id 20 ingress-replication inner-vid-disabled
vxlan host-reachability-protocol evpn-bgp vrfred
evpn irb2
!
nvo vxlan access-if port xe19
map vnid 20
!
!

VTEP2#show nvo vxlan arp-cache
VXLAN ARP-CACHE Information
===========================
VNID Ip-Addr Mac-Addr Type Age-Out Retries-Left
____________________________________________________________________________
20 40.40.40.2 b86a.9761.ea3d Static Local ----
20 40.40.40.1 0002.a54f.1577 Dynamic Local ----
20 40.40.40.101 0000.2837.ddf3 Dynamic Local ----
10 11.1.1.1 b86a.97f9.85be Static Remote ----
10 11.1.1.30 0000.2837.ddf6 Dynamic Remote ----
Total number of entries are 5

VTEP2#show running-config dhcp
interface eth0
ip address dhcp
!
!

ip vrf vrf1
ip dhcp relay uplink evpn

Last modified date: 08/29/2023
