Topology
The procedures in this section use the topology in Figure 15-1

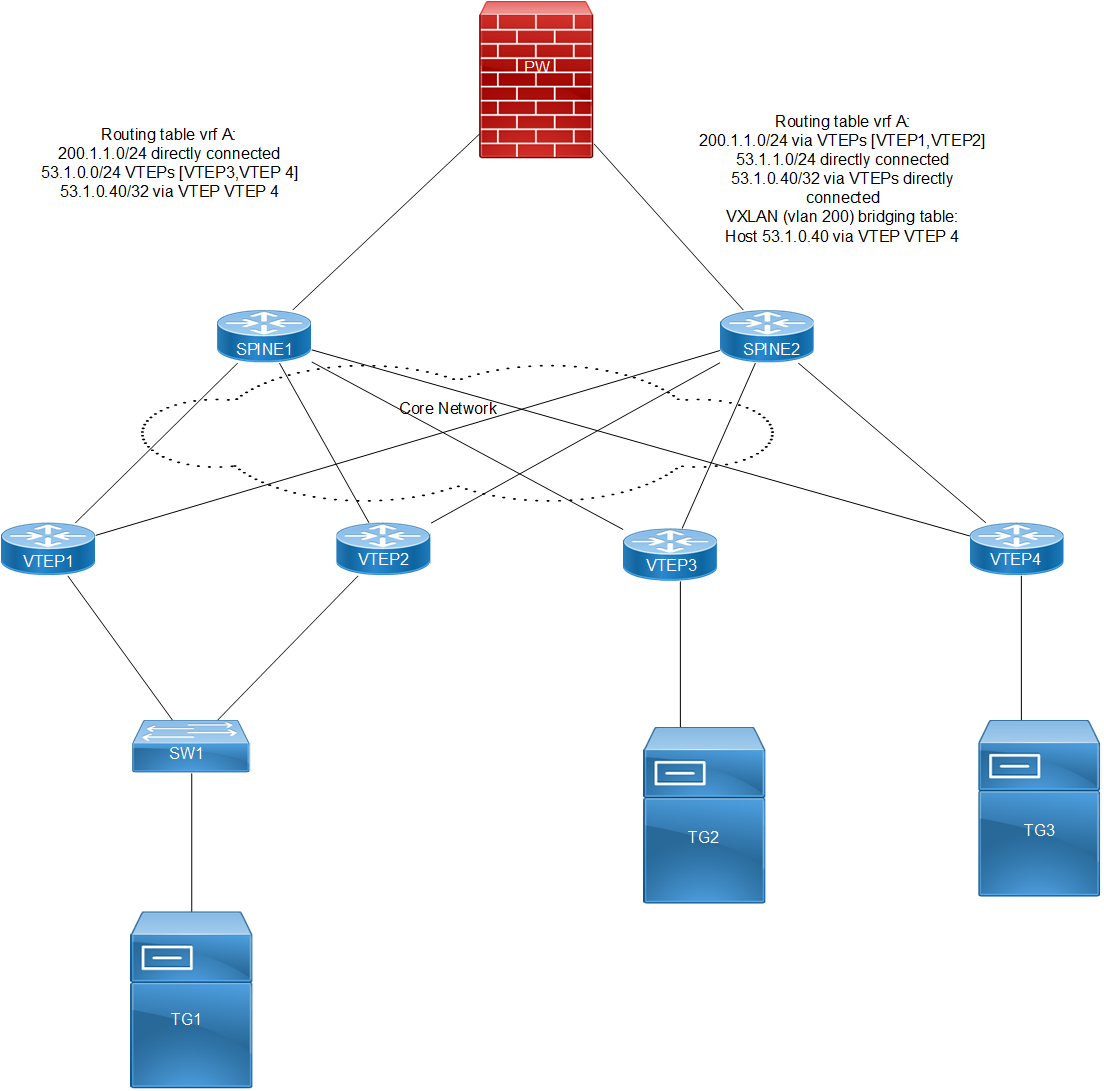

Figure 15-1: VxLAN_EVPN_IRB_Connected_host
Note: In the above topology TG1 is Multi homed Host and TG2 and TG3 are Single homed host with same subnet configured so there will be ECMP for 53 network in VTEP1 and VTEP2.
