Configuring MPLS EVPN over BGP-LU
Topology

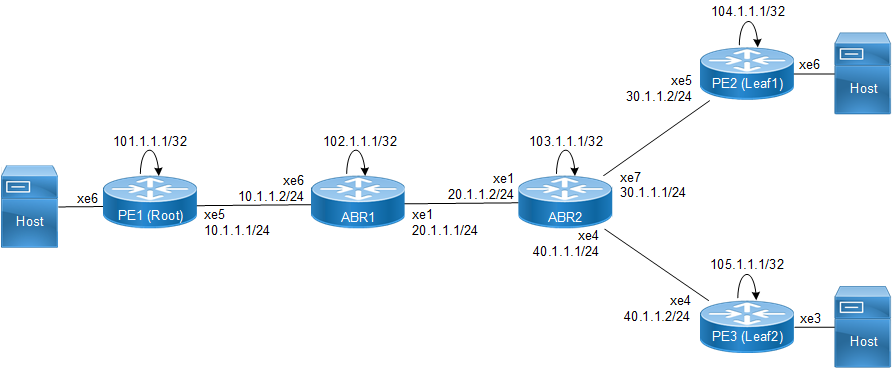

Figure 25-2 shows the topology used to show how to configure MPLS EVPN over BGP-LU as underlay MPLS path.
Figure 25-2: MPLS EVPN configuration over BGP-LU
Configuration
PE1
#configure terminal | Enter configuration mode. |
(config)#interface lo | Enter interface mode for loopback. |
(config-if)#ip address 101.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 101:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target export 101:1 | Configure export RT for the MAC VRF |
(config-vrf)#route-target import 104:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target import 105:1 | Configure import RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode. |
(config)#evpn mpls enable | Enable the evpn mpls. |
(config)#evpn mpls vtep-ip-global 101.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-if)#interface xe6.2 | Configure sub-interface to create access-circuit. |
(config-if)#switchport | Make the sub-interface a Layer 2 interface |
(config-if)#encapsulation dot1q 2 | Configure the encapsulation required. |
(config-if)#map vpn-id 1000 | Map interface to Ethernet virtual network identifier. |
(config-if)#exit | Exit interface mode. |
(config)#router ldp | Enable LDP in the PE |
(config-router)#router-id 101.1.1.1 | Set the router ID to IP address 101.1.1.1 |
(config-router)#transport-address ipv4 101.1.1.1 | Configure transport address |
(config-router)#exit | Exit router mode |
(config)#interface xe5 | Enter interface mode for the network side interface. |
(config-if)#ip address 10.1.1.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-ldp ipv4 | Enable ldp |
(config-if)#exit | Exit interface mode |
(config)#router ospf 1 | Enter OSPF router mode |
(config-router)#ospf router-id 101.1.1.1 | Configure router-id. |
(config-router)#network 101.1.1.1/32 area 0.0.0.0 | Advertise the loopback address in area 0. |
(config-router)#network 10.1.1.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF router mode. |
(config)#router bgp 1 | Enter BGP router mode |
(config)#allocate-label all | Configure allocate all under router bgp |
(config-router)#neighbor 102.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 102.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 104.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 104.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 105.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 105.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)# address-family ipv4 unicast | Entering into address family ipv4 unicast |
(config-router-af)# network 104.1.1.1/32 | Advertise the network |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)# address-family ipv4 labeled-unicast | Entering into address family ipv4 labeled-unicast |
(config-router-af)#neighbor 102.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)#neighbor 102.1.1.1 next-hop-self | Configure next-hop-self for the ipv4 labeled-unicast neighbor |
config-router-af)#neighbor 102.1.1.1 route-reflector-client | Configure neighbor as route reflector client |
(config-router-af)# exit-address-family | Exit from ipv4 labeled-unicast address family |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 104.1.1.1 activate | Activate the neighbor |
(config-router-af)#neighbor 105.1.1.1 activate | Activate the neighbor |
(config-router-af)#exit-address-family | Exit address family mode. |
(config-router)#exit | Exit the router mode |
(config)#commit | Commit the transaction. |
(config)#exit | Exit the config mode. |
ABR1: Loopback Interface
#configure terminal | Enter configuration mode. |
(config)#interface lo | Enter the Interface mode for the loopback interface. |
(config-if)#ip address 102.1.1.1/32 secondary | Configure IP address on loopback interface. |
(config-if)#commit | Commit the transaction. |
ABR1: Global LDP
(config)#router ldp | Enter the Router LDP mode. |
(config-router)#router-id 102.1.1.1 | Set the router ID to IP address 102.1.1.1 |
(config-router)#transport-address ipv4 102.1.1.1 | Configure transport address |
(config-router)#commit | Commit the transaction. |
ABR1: Interface Configuration
(config)#interface xe6 | Enter the Interface mode for xe3. |
(config-if)#ip address 10.1.1.2/24 | Configure IP address on the interface. |
(config-if)#enable-ldp ipv4 | Enable LDP on the physical interface |
(config-if)#label-switching | Enable label switching on the interface. |
(config-if)#exit | Exit interface mode |
(config)#interface xe1 | Enter the Interface mode for xe5 |
(config-if)#ip address 20.1.1.1/31 | Configure IP address on the interface. |
(config-if)#enable-ldp ipv4 | Enable LDP on the physical interface |
(config-if)#label-switching | Enable label switching on the interface. |
(config-if)#commit | Commit the transaction. |
ABR1: OSPF Configuration
(config)#enable ext-ospf-multi-inst | Enable multiple-instance capability |
(config)#router ospf 1 | Enter the Router OSPF mode. |
(config-router)#ospf router-id 102.1.1.1 | Setting the Router ID as Loopback IP |
(config-router)#network 102.1.1.1/32 area 0.0.0.0 instance-id 2 | Advertise loopback address in OSPF. |
(config-router)#network 20.1.1.0/24 area 0.0.0.0 | Advertise network address in OSPF. |
(config)#router ospf 2 | Enter the Router OSPF mode. |
(config-router)#network 10.1.1.0/24 area 0.0.0.0 instance-id 1 | Advertise the network address in area 0 |
(config-router)#exit | Exit Router OSPF mode and return to Configure mode. |
(config)#commit | Commit candidate configuration to be running configuration |
ABR1: BGP-LU Configuration
(config)#router bgp 1 | Enter the Router BGP mode, ASN: 1 |
(config)#allocate-label all | Configure allocate all under router bgp |
(config-router)#neighbor 101.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 101.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 103.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 103.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)# address-family ipv4 unicast | Entering into address family ipv4 unicast |
(config-router-af)# network 102.1.1.1/32 | Advertise the network |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)# address-family ipv4 labeled-unicast | Entering into address family ipv4 labeled-unicast |
(config-router-af)#neighbor 101.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)#neighbor 101.1.1.1 next-hop-self | Configure next-hop-self for the ipv4 labeled-unicast neighbor |
config-router-af)#neighbor 101.1.1.1 route-reflector-client | Configure neighbor as route reflector client |
(config-router-af)#neighbor 103.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)#neighbor 103.1.1.1 next-hop-self | Configure next-hop-self for the ipv4 labeled-unicast neighbor |
config-router-af)#neighbor 103.1.1.1 route-reflector-client | Configure neighbor as route reflector client |
(config-router-af)# exit-address-family | Exit from ipv4 labeled-unicast address family |
(config-router)#exit | Exit the config mode. |
(config)#commit | Commit the transaction. |
(config)#exit | Exit the config mode. |
ABR2
#configure terminal | Enter configuration mode. |
(config)#int lo | Enter interface mode for loopback. |
(config-if)#ip address 103.1.1.1/32 secondary | Configure IP address on loopback |
(config)#router ldp | Configure ldp. |
(config-router)#router-id 103.1.1.1 | Set the router ID to IP address 103.1.1.1 |
(config-router)#transport-address ipv4 103.1.1.1 | Configure transport address |
(config)#interface xe4 | Enter interface mode for the network side interface. |
(config-if)#ip address 30.1.1.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-ldp | Enable RSVP. |
(config)#interface xe1 | Enter interface mode for the network side interface. |
(config-if)#ip address 20.1.1.2/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-ldp | Enable ldp |
(config)#interface xe7 | Enter interface mode for the network side interface. |
(config-if)#ip address 40.1.1.1/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-rsvp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#enable ext-ospf-multi-inst | Enable multiple-instance capabilit |
(config)#router ospf 2 | Enter OSPF router mode |
(config-router)#ospf router-id 103.1.1.1 | Configure router-id. |
(config-router)#network 103.1.1.1/32 area 0.0.0.0 instance-id 3 | Advertise the loopback address in area 0. |
(config-router)#network 20.1.1.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config)#router ospf 3 | Enter the Router OSPF mode. |
(config-router)#network 30.1.1.0/24 area 0.0.0.0 instance-id 2 | Advertise the network address in area 0 |
(config-router)#network 40.1.1.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit the transaction |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
ABR2: BGP-LU Configuration
(config)#router bgp 1 | Enter the Router BGP mode, ASN: 1 |
(config)#allocate-label all | Configure allocate all under router bgp |
(config-router)#neighbor 102.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 102.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 104.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 104.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 105.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 105.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)# address-family ipv4 unicast | Entering into address family ipv4 unicast |
(config-router-af)# network 103.1.1.1/32 | Advertise the network |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)# address-family ipv4 labeled-unicast | Entering into address family ipv4 labeled-unicast |
(config-router-af)#neighbor 102.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)#neighbor 102.1.1.1 next-hop-self | Configure next-hop-self for the ipv4 labeled-unicast neighbor |
config-router-af)#neighbor 102.1.1.1 route-reflector-client | Configure neighbor as route reflector client |
(config-router-af)#neighbor 104.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)#neighbor 104.1.1.1 next-hop-self | Configure next-hop-self for the ipv4 labeled-unicast neighbor |
config-router-af)#neighbor 104.1.1.1 route-reflector-client | Configure neighbor as route reflector client |
(config-router-af)#neighbor 105.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)#neighbor 105.1.1.1 next-hop-self | Configure next-hop-self for the ipv4 labeled-unicast neighbor |
config-router-af)#neighbor 105.1.1.1 route-reflector-client | Configure neighbor as route reflector client |
(config-router-af)# exit-address-family | Exit from ipv4 labeled-unicast address family |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
PE2
#configure terminal | Enter configuration mode. |
(config)#int lo | Enter interface mode for loopback. |
(config-if)#ip address 104.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 104:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target import 101:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target export 104:1 | Configure export RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode |
(config)#evpn mpls enable | Enable evpn mpls. |
(config)#evpn mpls vtep-ip-global 104.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-if)#int xe6.2 | Configure sub-interface to create access-circuit. |
(config-if)#switchport | Make the sub-interface a Layer 2 interface |
(config-if)#encapsulation dot1q 2 | Configure the encapsulation required. |
(config-if)#map vpn-id 10000 | Map interface to Ethernet virtual network identifier. |
(config-if)#exit | Exit interface mode. |
(config)#router ldp | Enable ldp in the PE |
(config-router)#router-id 104.1.1.1 | Set the router ID to IP address 104.1.1.1 |
(config-router)#transport-address ipv4 104.1.1.1 | Configure transport address |
(config)#interface xe5 | Enter interface mode for the network side interface. |
(config-if)#ip address 30.1.1.2/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-ldp ipv4 | Enable ldp |
(config-if)#exit | Exit interface mode |
(config)#router ospf 3 | Enter OSPF router mode |
(config-router)#ospf router-id 104.1.1.1 | Configure router-id. |
(config-router)#network 104.1.1.1/32 area 0.0.0.2 | Advertise the loopback address in area 0. |
(config-router)#network 30.1.1.0/24 area 0.0.0.2 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF router mode. |
(config)#router bgp 1 | Enter BGP router mode |
(config-router)#neighbor 103.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 103.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 101.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 101.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)# address-family ipv4 unicast | Entering into address family ipv4 unicast |
(config-router-af)# network 104.1.1.1/32 | Advertise the network |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)# address-family ipv4 labeled-unicast | Entering into address family ipv4 labeled-unicast |
(config-router-af)#neighbor 103.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 101.1.1.1 activate | Activate the neighbor |
(config-router-af)#exit-address-family | Exit address family mode. |
(config-router)#exit | Exit the router mode |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
PE3
#configure terminal | Enter configuration mode. |
(config)#interface lo | Enter interface mode for loopback. |
(config-if)#ip address 105.1.1.1/32 secondary | Configure IP address on loopback |
(config-if)#exit | Exit interface mode |
(config)#mac vrf vrfred | Configure MAC VRF |
(config-vrf)#rd 105:1 | Configure RD for the MAC VRF |
(config-vrf)#route-target import 101:1 | Configure import RT for the MAC VRF |
(config-vrf)#route-target export 105:1 | Configure export RT for the MAC VRF |
(config-vrf)#exit | Exit VRF mode |
(config)#evpn mpls enable | Enable evpn mpls. |
(config)#evpn mpls vtep-ip-global 105.1.1.1 | Configure VTEP-IP-global. |
(config)#evpn mpls id 1000 | Configure MPLS EVID. |
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrfred | Configure host-reachability with VRF association. |
(config-if)#interface xe3.2 | Configure sub-interface to create access-circuit. |
(config-if)#switchport | Make the sub-interface a Layer 2 interface |
(config-if)#encapsulation dot1q 2 | Configure the encapsulation required. |
(config-if)#map vpn-id 1000 | Map interface to Ethernet virtual network identifier. |
(config-if)#exit | Exit interface mode. |
(config)#router ldp | Enable RSVP in the PE |
(config-router)#router-id 105.1.1.1 | Set the router ID to IP address 105.1.1.1 |
(config-router)#transport-address ipv4 105.1.1.1 | Configure transport address |
(config)#interface xe4 | Enter interface mode for the network side interface. |
(config-if)#ip address 40.1.1.2/24 | Configure IP address on the network interface |
(config-if)#label-switching | Enable label-switching. |
(config-if)#enable-ldp | Enable RSVP. |
(config-if)#exit | Exit interface mode |
(config)#router ospf 3 | Enter OSPF router mode |
(config-router)#ospf router-id 105.1.1.1 | Configure router-id. |
(config-router)#network 105.1.1.1/32 area 0.0.0.0 | Advertise the loopback address in area 0. |
(config-router)#network 40.1.1.0/24 area 0.0.0.0 | Advertise the network address in area 0 |
(config-router)#exit | Exit OSPF router mode. |
(config)#router bgp 1 | Enter BGP router mode |
(config-router)#neighbor 101.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 101.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)#neighbor 103.1.1.1 remote-as 1 | Advertise the neighbor in BGP process with the remote-as number |
(config-router)#neighbor 103.1.1.1 update-source lo | Configure the update-source for the neighbor |
(config-router)# address-family ipv4 unicast | Entering into address family ipv4 unicast |
(config-router-af)# network 105.1.1.1/32 | Advertise the network |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)# address-family ipv4 labeled-unicast | Entering into address family ipv4 labeled-unicast |
(config-router-af)#neighbor 103.1.1.1 activate | Activate the ipv4 labeled-unicast neighbor |
(config-router-af)# exit-address-family | Exit from ipv4 address family |
(config-router)#address-family l2vpn evpn | Enter EVPN address family mode |
(config-router-af)#neighbor 101.1.1.1 activate | Activate the neighbor |
(config-router-af)#exit | Exit the transaction |
(config-router)#exit | Exit the router mode |
(config)#commit | Commit candidate configuration to be running configuration |
(config)#exit | Exit the config mode |
Validation
PE1
#show evpn mpls tunnel
EVPN-MPLS Network tunnel Entries
Source Destination Status Up/Down Update evpn-id
===================================================================================
101.1.1.1 105.1.1.1 Installed 02:08:11 02:08:11 1000
101.1.1.1 104.1.1.1 Installed 02:08:10 02:08:10 1000
Total number of entries are 2
pe1#show mpls forwarding-table | inc 105.1.1.1
B> 105.1.1.1/32 6 10 - - LSP_DEFAULT 24960 xe3 No 10.1.1.2
pe1#show mpls forwarding-table | inc 106.1.1.1
B> 106.1.1.1/32 6 10 - - LSP_DEFAULT 24960 xe3 No 10.1.1.2
pe1#show ip bgp labeled-unicast
Status codes: s suppressed, d damped, h history, a add-path, * valid, > best, i - internal, S - stale
Network Next Hop In Label Out Label
*> 102.1.1.1/32 0.0.0.0 24320 -
*>i 103.1.1.1/32 10.143.73.2 24322 24961
*>i 104.1.1.1/32 10.143.73.2 24323 24963
*>i 105.1.1.1/32 10.143.73.2 24321 24960
pe1#
#show evpn mpls nd-cache
MPLS-EVPN ND-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
_____________________________________________________________________________
1 1001::1 0000.0000.1113 Static Local
Total number of entries are 1
#show evpn mpls arp-cache
MPLS-EVPN ARP-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
______________________________________________________
1 11.11.11.1 0000.0000.1112 Static Local
PE2
#show bgp l2vpn evpn vrf vrfred
BGP table version is 1, local router ID is 0.0.0.0
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
*> [2]:[0]:[1]:[48,0000.0000.2221]:[0]:[1]
101.1.1.1 0 100 32768 i ---------- MPLS
*> [2]:[0]:[1]:[48,0000.0000.2222]:[32,12.12.12.1]:[1]
102.1.1.1 0 100 32768 i ---------- MPLS
*> [2]:[0]:[1]:[48,0000.0000.2223]:[128,2001::1]:[1]
101.1.1.1 0 100 32768 i ---------- MPLS
*> [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 32768 i ---------- MPLS
* i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
Total number of prefixes 5
#show bgp l2vpn evpn
BGP table version is 5, local router ID is 102.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
RD[101:1] VRF[vrfred]:
*> [2]:[0]:[1]:[48,0000.0000.2221]:[0]:[1]
101.1.1.1 0 100 32768 i ---------- MPLS
*> [2]:[0]:[1]:[48,0000.0000.2222]:[32,12.12.12.1]:[1]
101.1.1.1 0 100 32768 i ---------- MPLS
*> [2]:[0]:[1]:[48,0000.0000.2223]:[128,2001::1]:[1]
102.1.1.1 0 100 32768 i ---------- MPLS
*> [3]:[1]:[32,102.1.1.1]
102.1.1.1 0 100 32768 i ---------- MPLS
* i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[101:1]
*>i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
#show evpn mpls nd-cache
MPLS-EVPN ND-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
_____________________________________________________________________________
1 2001::1 0000.0000.2223 Static Local
Total number of entries are 1
#show evpn mpls arp-cache
MPLS-EVPN ARP-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
______________________________________________________
1 12.12.12.1 0000.0000.2222 Static Local
PE3
PE3#show evpn mpls tunnel
EVPN-MPLS Network tunnel Entries
Source Destination Status Up/Down Update evpn-id
===================================================================================
103.1.1.1 101.1.1.1 Installed 21:28:14 21:28:14 1000
Total number of entries are 1
#show bgp l2vpn evpn vrf vrfred
BGP table version is 1, local router ID is 0.0.0.0
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route information]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
*> [2]:[0]:[1]:[48,0000.0000.2221]:[0]:[1]
101.1.1.1 0 100 32768 i ---------- MPLS
*> [2]:[0]:[1]:[48,0000.0000.2222]:[32,12.12.12.1]:[1]
104.1.1.1 0 100 32768 i ---------- MPLS
*> [2]:[0]:[1]:[48,0000.0000.2223]:[128,2001::1]:[1]
101.1.1.1 0 100 32768 i ---------- MPLS
*> [3]:[1]:[32,103.1.1.1]
104.1.1.1 0 100 32768 i ---------- MPLS
* i [3]:[1]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
Total number of prefixes 5
PE3#show bgp l2vpn evpn
BGP table version is 15, local router ID is 105.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
l - labeled, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
[EVPN route type]:[ESI]:[VNID]:[relevent route informantion]
1 - Ethernet Auto-discovery Route
2 - MAC/IP Route
3 - Inclusive Multicast Route
4 - Ethernet Segment Route
5 - Prefix Route
Network Next Hop Metric LocPrf Weight Path Peer Encap
RD[101:1]
*>i [2]:[0]:[1000]:[48,0000:1111:2222]:[32,10.0.1.1]:[640]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [2]:[0]:[1000]:[48,0000:1111:3333]:[0]:[640]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*>i [3]:[1000]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
RD[103:1] VRF[vrfred]:
[7m--More--[27m * i [2]:[0]:[1000]:[48,0000:1111:2222]:[32,10.0.1.1]:[640]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
* i [2]:[0]:[1000]:[48,0000:1111:3333]:[0]:[640]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*> [2]:[0]:[1000]:[48,0000:3333:1111]:[0]:[640]
104.1.1.1 0 100 32768 i ---------- MPLS
* i [3]:[1000]:[32,101.1.1.1]
101.1.1.1 0 100 0 i 101.1.1.1 MPLS
*> [3]:[1000]:[32,103.1.1.1]
104.1.1.1 0 100 32768 i ---------- MPLS
Total number of prefixes 8
#show evpn mpls nd-cache
MPLS-EVPN ND-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
_____________________________________________________________________________
1 2001::1 0000.0000.2223 Static Local
Total number of entries are 1
#show evpn mpls arp-cache
MPLS-EVPN ARP-CACHE Information
===========================
EVPN-ID Ip-Addr Mac-Addr Type
______________________________________________________
1 12.12.12.1 0000.0000.2222 Static Local
Last modified date: 10/17/2023
