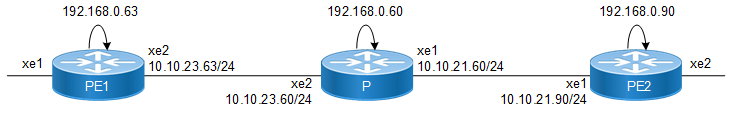

To establish a trunk on a system:

OcNOS, Constrained Shortest Path First (CSPF) calculation is enabled by default.Typically, CSPF is disabled when all of the participating nodes do not support the required traffic engineering extensions and LSPs are configured manually to use an explicit path. In this case, an LSP is established only along the path specified by the operator.

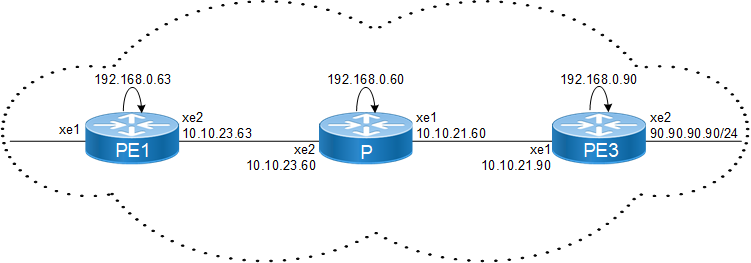

The RSVP trunk can be configured using CSPF (Constraint-based Shortest Path First). In this case, the RSVP daemon (rsvpd) sends a request to the CSPF server to compute a path through the network to reach the destination. CSPF returns a hop-by-hop path called the Explicit Route to the RSVP daemon to be used in the Explicit Route Object (ERO). Each router along the path sends a Path message only to the nexthop specified in the ERO. In the OcNOS implementation, CSPF is enabled by default and if no cspf is not specified, the trunk is CSPF enabled automatically.

In the OcNOS implementation, a network can be mapped to a particular trunk using map-route configuration.

Explicit Route hops can be configured manually in the trunk configuration. In this case, the RSVP daemon uses the configured hops as Explicit Route Objects (ERO). It sets up the LSP using specified hops only.

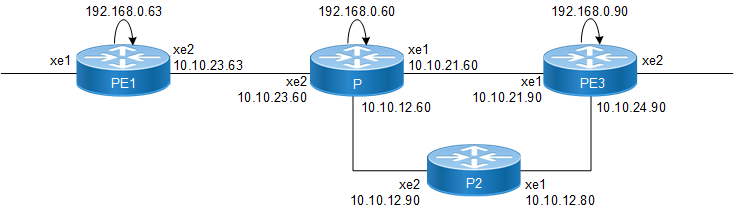

An ERO is composed of IP addresses called hops. An ERO hop can be defined as loose or strict. A loose hop can be reached by any available route. A strict hop must be reached via a direct link and cannot be routed over any alternate routers in between. In this example, since PE3 is defined as loose hop, P can use P2 as an intermediate hop to reach PE2. However, if it was a strict hop, then P would have to use interface xe1 to reach PE3 directly.

Although the attributes of a Secondary LSP are independent of the Primary LSP, a Secondary LSP cannot be configured without first configuring a Primary LSP. In addition to information on how to configure a secondary LSP, this example illustrates how to define a non-default setup and the hold priority for an LSP. Setup and hold priorities are used to determine which LSP should be given a preference when competing for resources. Specifically, the setup priority of an un-established LSP is compared to the hold priorities of established LSPs, and the numerically lower one is given a preference. However, once the LSP is established, its setup priority is never used until it is pre-empted or reset and is being brought up again.

This example shows the number of configured RSVP sessions in a router.

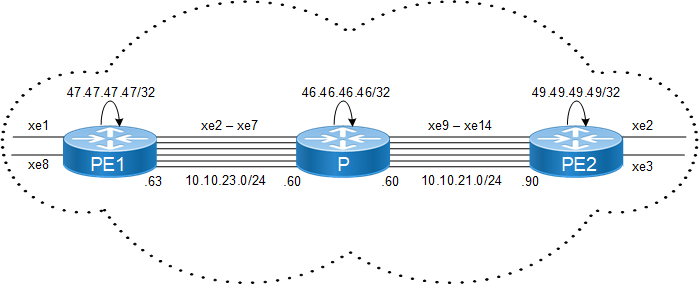

RSVP Multiple Secondary feature tries to provide continuous protection when multiple failures happen. In majority scenarios, feature tries to provide seamless protection. This is a proprietary feature where user can configure multiple secondary sessions in a rsvp-trunk. Each secondary will be associated with a priority. Priority secondary sessions must be programmed with a predefined path. User can configure a maximum of five priority levels. Lowest priority number corresponds to highest priority. Highest priority session will be signaled to be programmed as secondary session. If highest priority session cannot come up, then next available secondary will be selected based on polling. During primary session fail-over, programmed secondary priority session will protect the primary and then goes for an MBB update to act as the primary session until primary comes up. Once the highest priority session comes up as acting primary session, next available secondary priority session will be programmed to signal and come up secondary. Re-optimization timer executed once in every 5 minutes to ensure the best priority session serves as secondary. Configuration updates on secondary priority configurations doesn't trigger MBB and session will be restarted. This example illustrates how to create SVI, enable IGP protocols and RSVP on SVI.



This example shows the number of configured RSVP sessions in a router.

This example shows the number of configured RSVP sessions in a router.

To add administrative group constraints (also known as color constraints) to an LSP:

The configuration in this example forces the primary LSP to be setup through links that belong either to administrative group A or C. A link that does not belong to either of these administrative groups will not be used for setting up the LSP.
