Topology

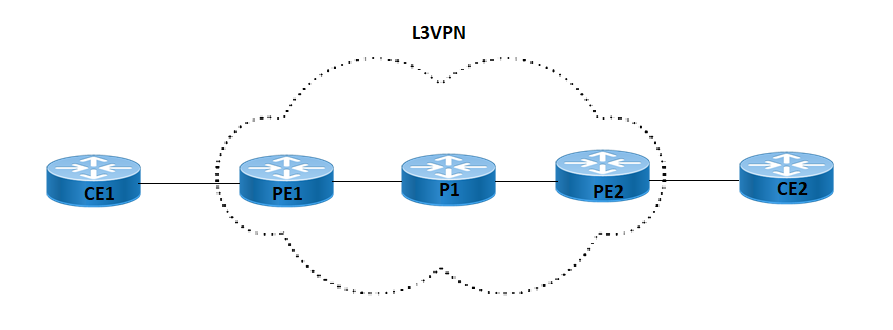

Figure 43-23 displays a sample TWAMP over L3VPN topology.
• CE1 and CE2 are customer edge routers
• PE1 and PE2 are IPv4 Provider Edge routers
• P1 is the router at the core of the IPv4 MPLS provider network
Figure 43-23: TWAMP over L3VPN Topology
