Topology
The procedures in this section use the topology in Figure 10-11

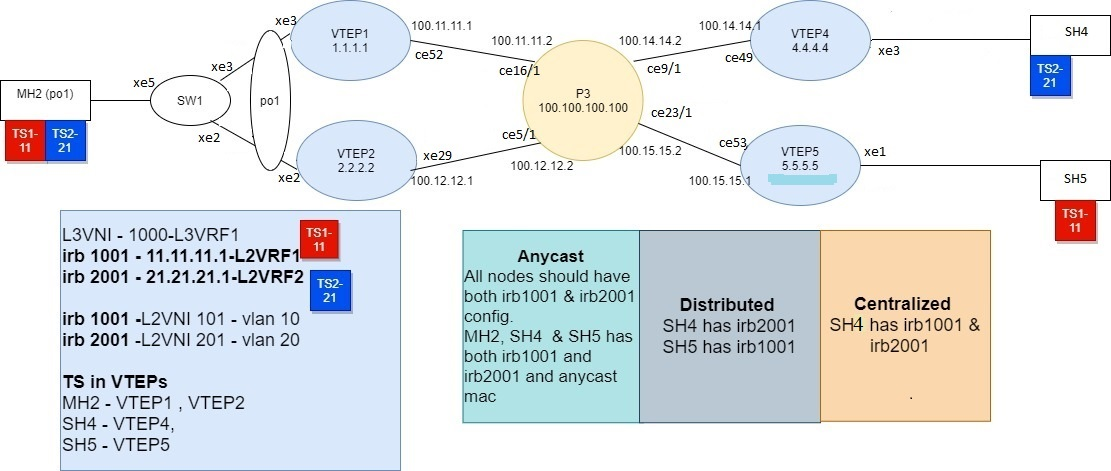

Figure 10-11: VxLAN_EVPN_IRB
Note: In the above topology TS1, TS2 are the tenant systems. The blue and red color denotes different subnets in the Tenant systems.
